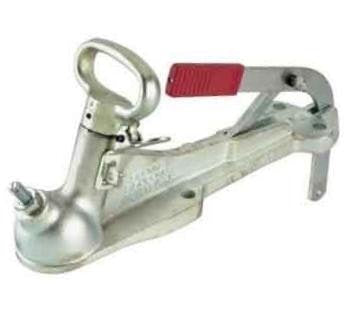

AL-KO 3500KG FIXED COUPLING ELECTRIC 614010PL

AL-KO 3500KG FIXED COUPLING ELECTRIC 614010PL

This style of coupling, usually suited to a 50mm Australian Standard tow ball, is suitable to be used where either there are no brakes fitted to the trailer or the braking system does not require activation from a sliding or overrun coupling.
AL-KO couplings are simple to attach to the towball and provide safe secure attachment of the trailer to the tow vehicle.

Typical applications for domestic trailers are up to 750 kg ATM (total loaded mass), where no brakes are required. For independent brake systems such as electric or power operated like the IQ7 system for marine trailers over 2000 kg ATM (total loaded mass), a fixed coupling is the appropriate election. Fixed couplings for 50mm towballs are suitable for up to 3500 kg ATM (total loaded trailer mass) as long as the appropriate braking system is fitted to the trailer.

Mounting Hole - L:182.5mm x W:55mm x D:13.5

Surface Finish - Zinc Plated

Ball To First Centre Hole - 110mm

Suitable for trailers and caravans.

50mm Australian Standard tow ball. Zinc plated.

Suitable for up to 3500kg total laden trailer mass with electric braking system.

Ball to first centre hole 128mm. Diameter: 13.5mm.
