12 Volt Direct 12/24V Anderson Style Plug to Red Anderson Style Plug

|

❖Features

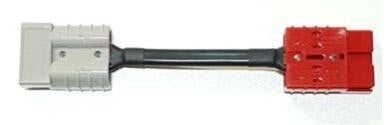

GREY TO RED ANDERSON STYLE PLUG ADAPTER

The genuine grey 50A Anderson plugs are not compatible with red Anderson plugs. They are keyed slightly different meaning they will not plug into each other / mate. This grey to red adaptor lead is a handy plug n play option to overcome this issue. It is commonly used with Baintech power tops to connect into the red Anderson.

The 8 B&S cable is also tinned copper which makes it perfect for solar panels, caravan, camping, marine, dual battery systems and 12 volt fridges etc.

ANDERSON PLUG:

Anderson Plugs / Socket are the preferred heavy duty connection for all DC power distribution and battery connections. The gender less design allows you to quickly create custom, highly efficient connections for any DC and solar setup.

The one piece fully insulated plastic housing is rated at a huge 50amps. Designed to accept cable from 16 to 6 AWG they are perfect for all your solar and charging needs. These Anderson plugs also feature low resistance silver plated contacts capable of handling high currents with minimal loss.

The 50a Anderson plug is built to last. Made from durable polycarbonate with stainless steel locking springs it is a favourite amongst off-road campers, 4x4 's and caravaners alike.

The genderless design simply means each unit is a plug/socket - 2 units are required for a complete connection. There is a range of colours available to enable you to create easily discernible circuits. Each colour has a unique key, which can not be mis-connected. ie colours will only mate with themselves, red to red or blue to blue.

There is a complete range of Anderson accessories available including weatherproof covers and mounting bracket providing a practical solution for every situation. For common setups there is a variety of pre-made high current adapter leads such as alligator clamps, solar panel pv plug leads, battery terminal eyelets and even piggyback / double adapter leads.

Features:

• Australian assembled
• Australian made cable
• copper wire
• UV stable
• 2 core, red & black with outer sheath
• Suitable for fridges, sockets & solar panel wiring
• Great for battery or other applications where the ability to interrupt circuits is required
• Incendiary strong construction
• Low resistance silver plated contacts
• Impossible to connect reserve polarity
• Low Resistance Silver or Tin Plated Copper Contacts

|

❖Specifications

Brand | 12 Volt Direct
Sku | TVDA16
Colour | Black
Plug Size | 50A
Length | 10CM
Guage | 8AWG
Shipping Weight | 0.1kg
Shipping Dimensions(mm) | 200 x 60 x 40
Manufacturer Warranty | 1 Year
