This style of coupling is suitable to be used where either there are no brakes
fitted to the trailer or the braking system does not require activation from a
sliding or overrun coupling.
AL-KO couplings are simple to attach to the towball and provide safe secure
attachment of the trailer to the tow vehicle.
Typical applications for domestic trailers up to 750 kg ATM (total loaded
mass), where no brakes are required. For independent brake systems such as
electric or power operated like the IQ7 system for marine trailers over 2000
kg ATM (total loaded mass), a fixed coupling is the appropriate selection.
Fixed couplings for 50mm towballs are suitable for up to 3500 kg ATM (total
loaded trailer mass) as long as the appropriate braking system is fitted to
the trailer

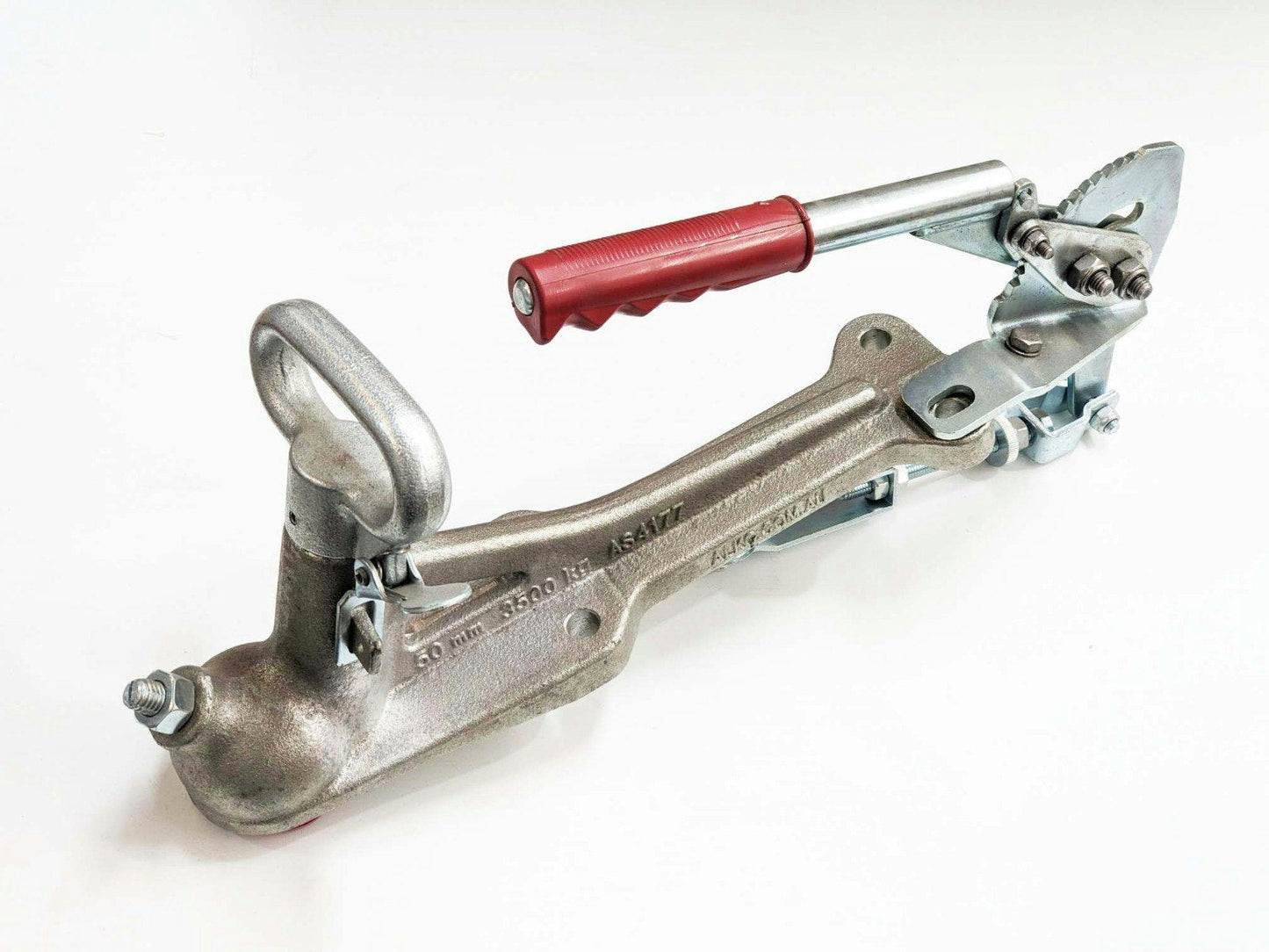

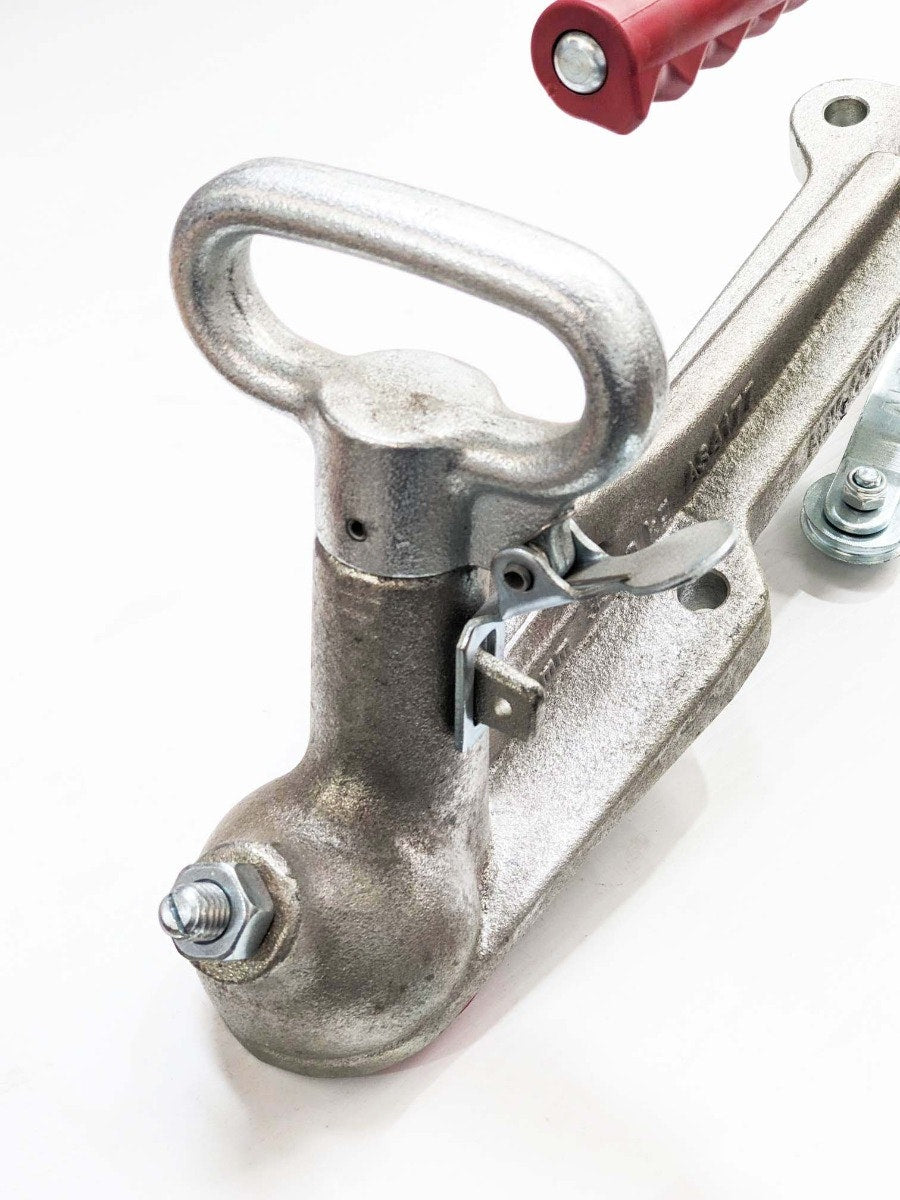

Coupling, Premium, snap on 4 hole 3500 kg Fixed, suits electric brakes and a
50mm ball. Premium park brake and cable adjuster, Plated finish.
|
❖Specifications
Brand | ALKO
Model | 614015PBWCA
Capacity | 3500kg
Suits Ball Size | 50mm
Mounting Pattern | 182.5mm x 55mm
Hole Diameter | 13.5mm
Ball to First Hole | 128mm
Surface Finish | Zinc plated
