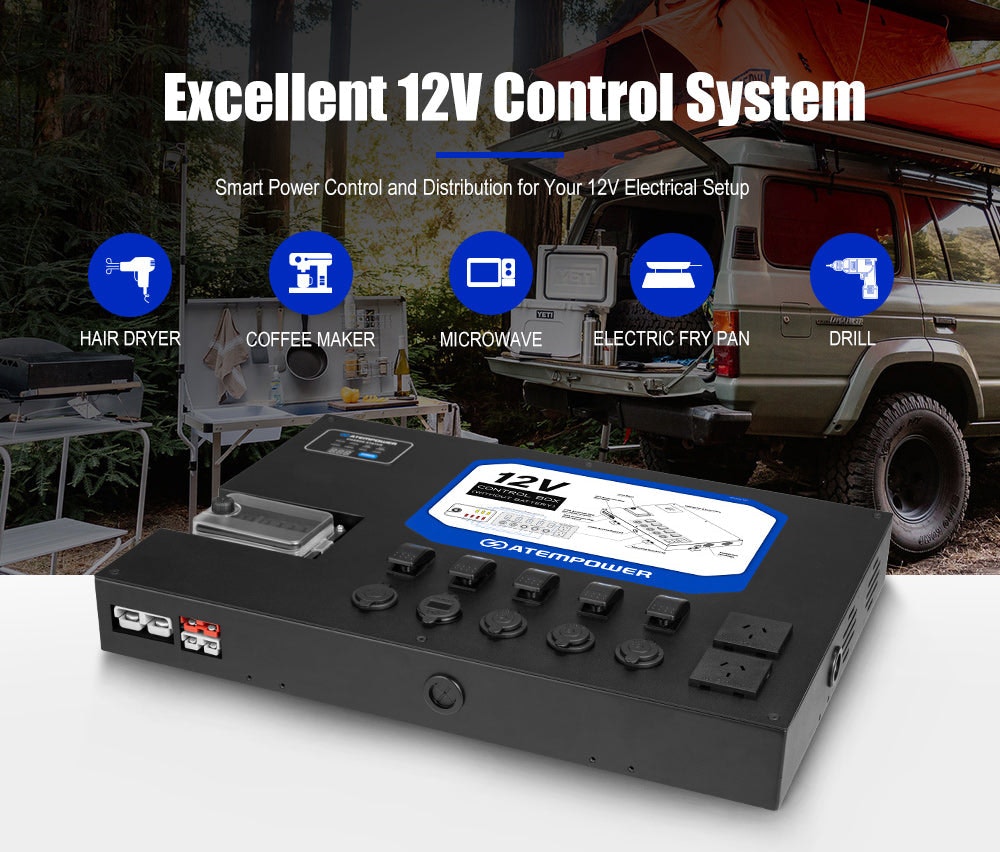

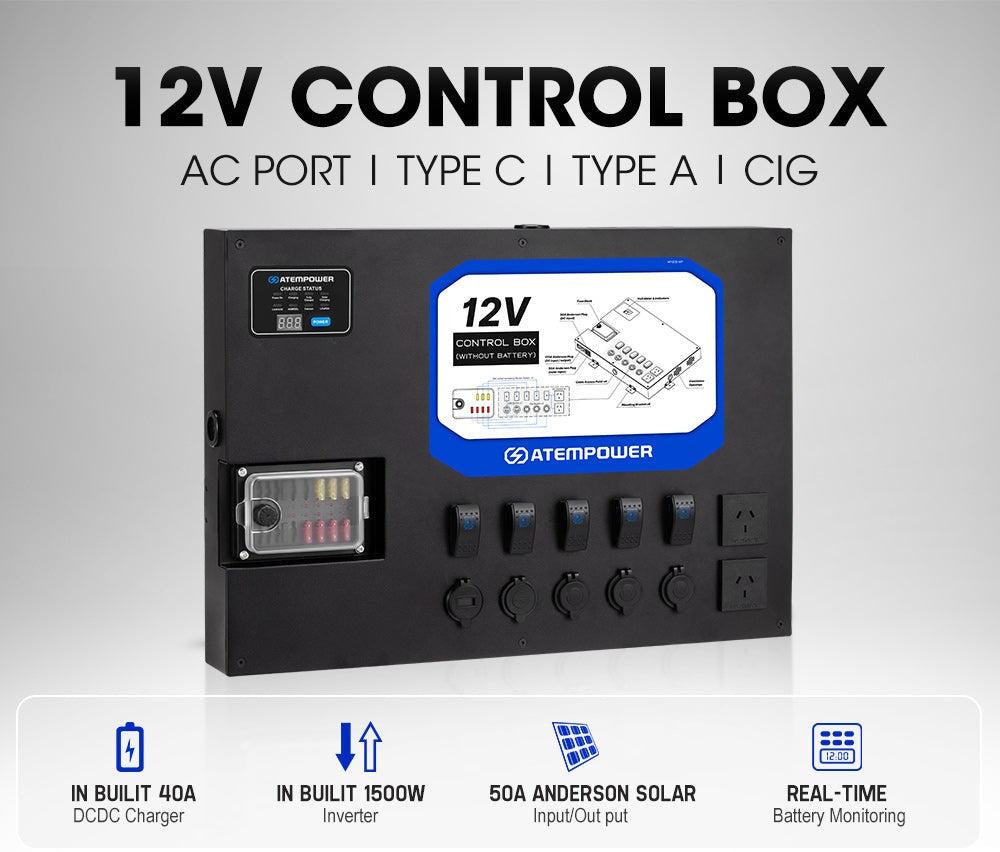

DESCRIPTION
Whether you're powering multiple devices in your RV, boat, or off-grid setup,
our 12V control box provides efficient power distribution and unrivaled
convenience. The built-in 40A DCDC charger simplifies wiring setup, and the
flush-mounted fuse holder maximizes space efficiency, achieving a clean and
organized look. ATEM POWER 12V control box includes two AC sockets, three cig
sockets, USB Type-A and Type-C sockets, ensuring compatibility with a wide
range of devices. Whether you need to charge your phone, power up your laptop,
or run other electronic equipment, our 12V control hub has got you covered.
The integrated 1500W inverter allows you to power various appliances and
devices. From TVs to kitchen equipment, our 12V control box handles it all
with ease. Thanks to the 50A Anderson plugs, you can conveniently extract
power from your start battery or solar panel. Upgrade to our 12V power control
box and take control of your power like never before.
FEATURES
Smart Power Management: Our 12V control box enables convenient control and
distribution to your devices, providing unmatched flexibility in your 12V
electrical setup.

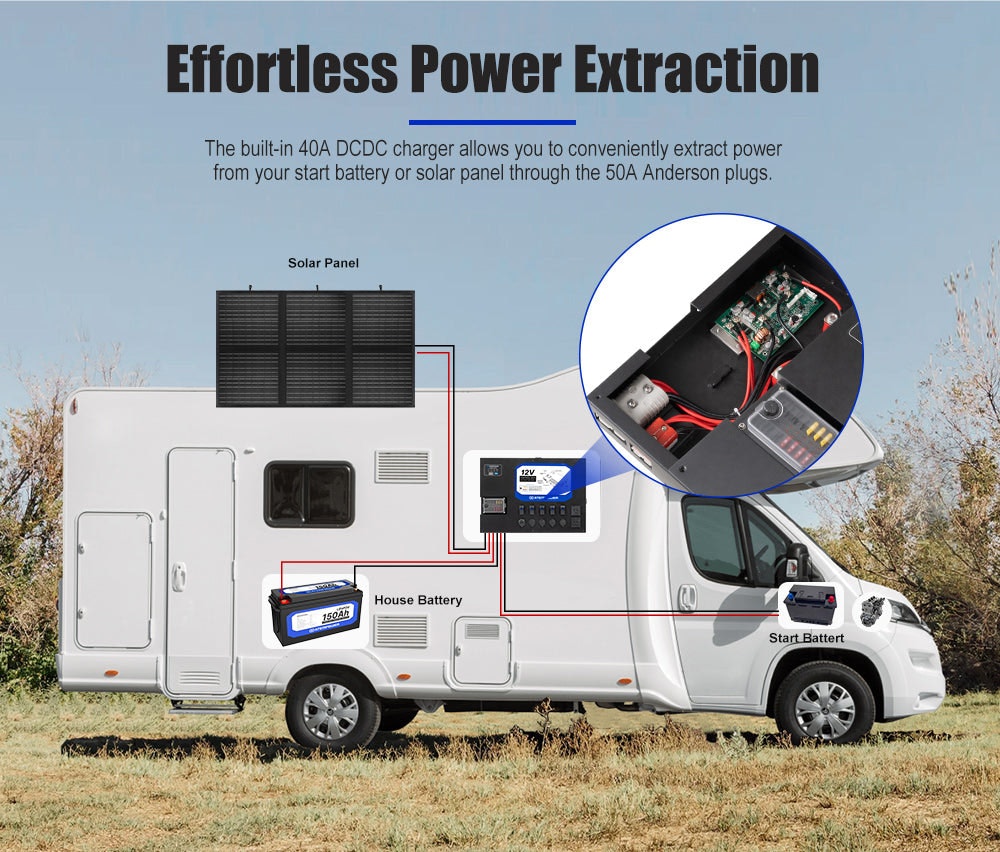

Smart Power Hub: The built-in 40A DCDC charger allows you to conveniently
extract power from your start battery or solar panel through the 50A Anderson
plugs.

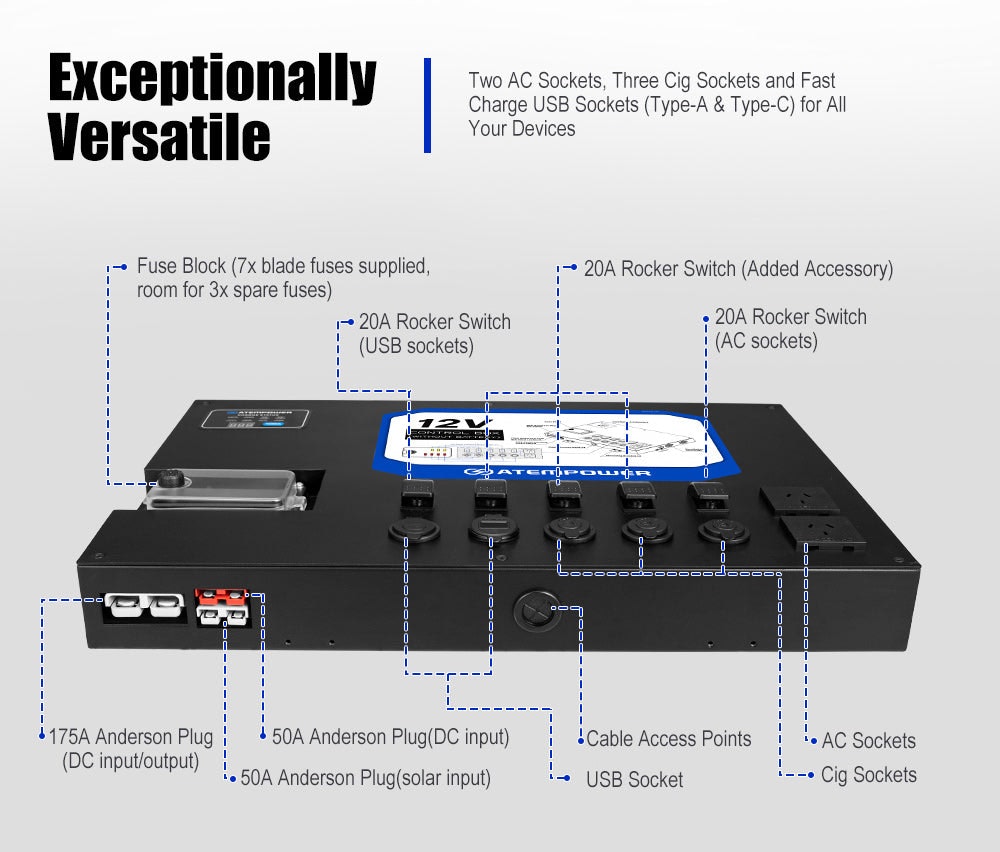

Multiple Sockets: Our 12V control box includes two AC sockets, three cig
sockets and USB sockets (Type-A & Type-C), ensuring compatibility with a wide
array of devices.

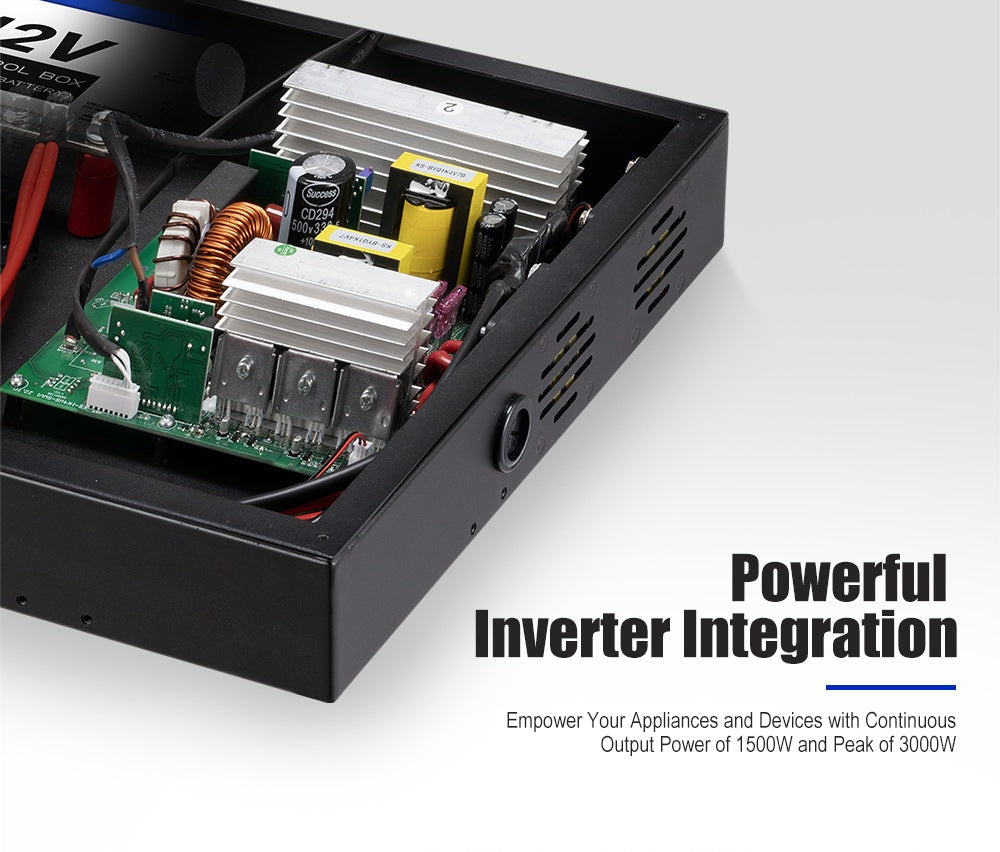

Integrated Inverter: Our 12V control hub features an integrated inverter with
continuous output power of 1500W, allowing you to power various appliances &
devices.
Ultimate Customization: Our 12V control hub allows you to wire three added
accessories according to your needs and label them using the included sticker
sheet.

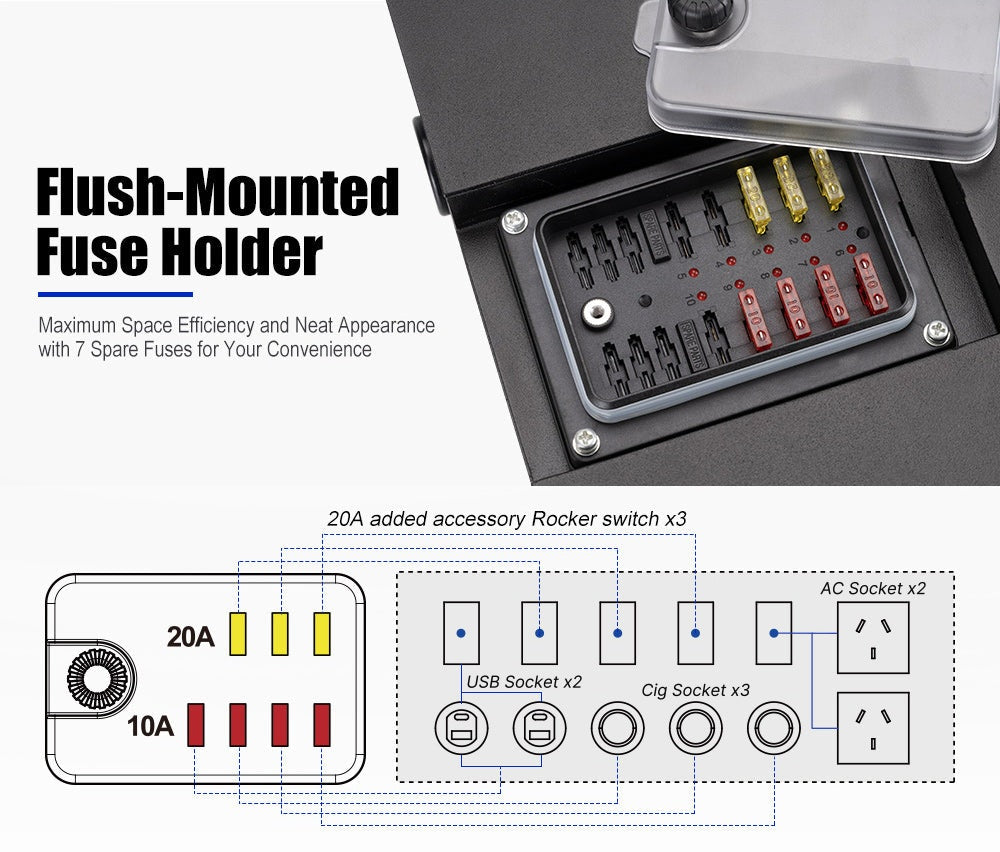

Embedded Fuse Holder: Flush-mounted fuse holder maximizes space efficiency and
maintains a neat appearance, while 7 spare fuses are included for your
convenience.

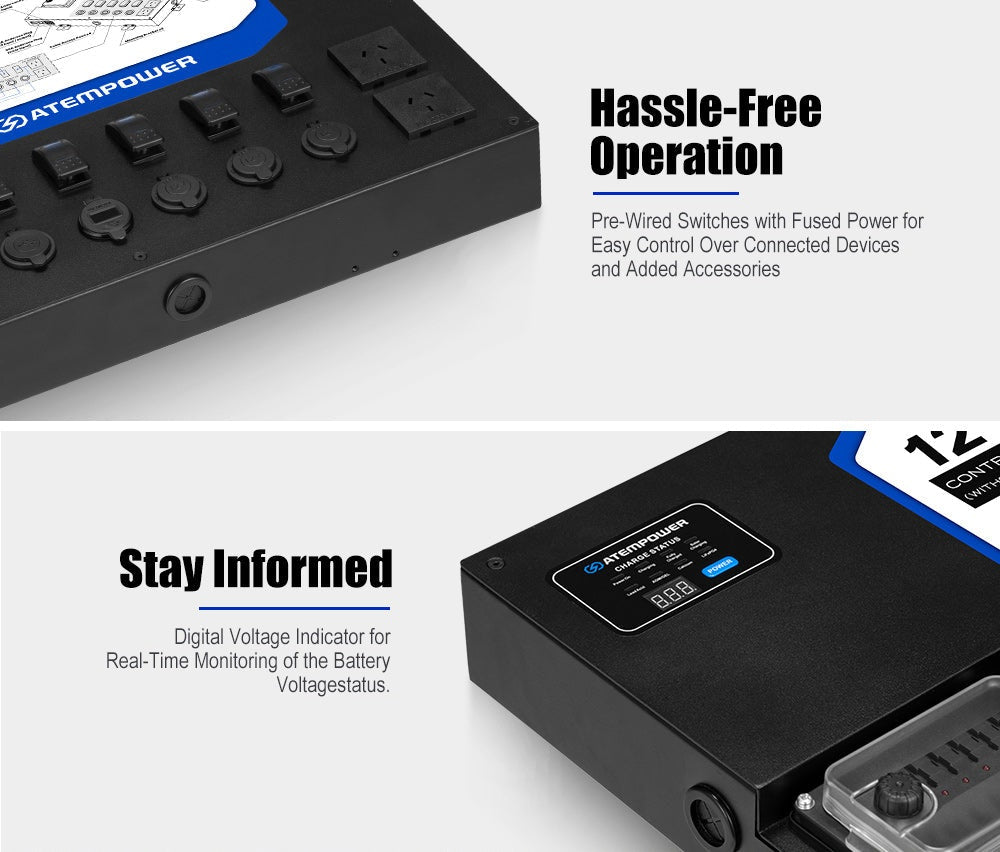

Digital Voltage Indicator: ATEM POWER 12V power control box includes a digital
voltage indicator, providing real-time monitoring of the battery voltage.
Pre-Wired Switches: Our 12V control box comes pre-wired with fused power,
providing hassle-free control over connected devices and added accessories.
Durable Construction: Our 12V control hub is constructed with high-quality
steel and features matte black powder coating for aesthetic appeal and added
protection.

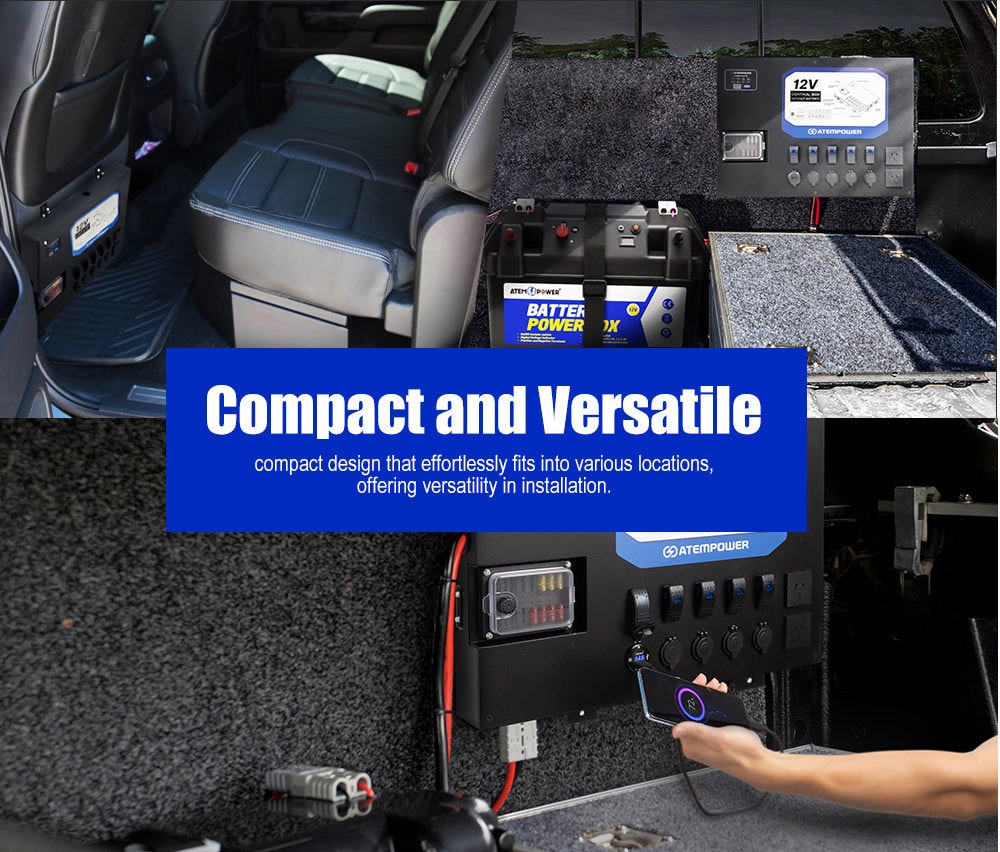

Versatile Cable Access: With cable access points on all four sides, our 12V
control box offers convenient and flexible options for cable routing and
organization.
SPECIFICATIONS
Box Material:Steel
Coating:Black Powder Coating

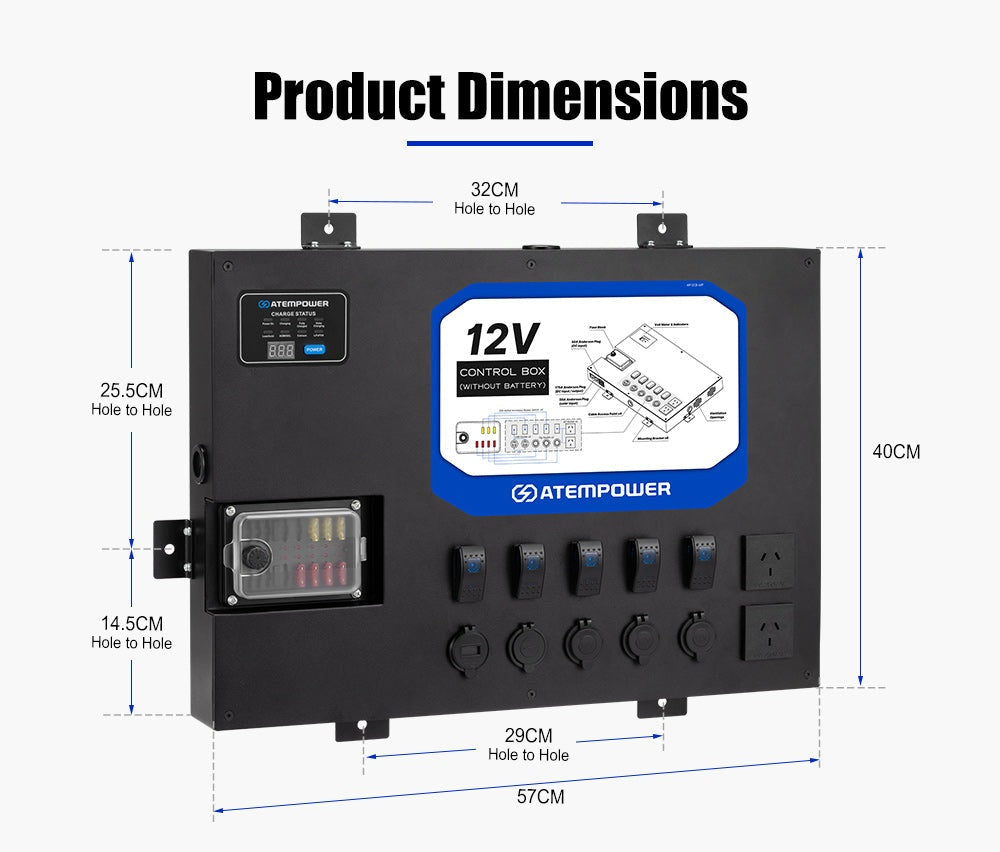

Box Size:570mm(L) x 400mm(W) x 70mm(H)
Lid Thickness:3
Box Thickness:3
Recommended Fuse Size for Batteries:1~50A
Recommended Cable Size for BatteriesDepending on Length:0~1m = 2 x 6 AWG
UL10151~3m = 2 x 4 AWG UL10153m+= 2 x 2 AWG UL1015
Integrated Inverter Continuous Output Power1500W
Integrated DCDC Rated Charge Current40A
Switch Specifications12V 20A Max Current
AC Socket Specifications240V (AUS) OR 220V (CHN) OR 120V (USA) OR 100V (JPN)
230V (EUR) 1500W shared between both sockets
Cig Socket Specifications12V, 8A MAX
USB Socket SpecificationsUSB Socket 1: Type-A 5V 1A Type-A 5V 2.1AUSB Socket
2: Type-A QC 18W Type-C PD 18W
Anderson Plug SpecificationsGrey 175A Anderson Plug (DC input / output, input
10~16V)Red 50A Anderson Plug (DC input, MAX 24V 40A)Grey 50A Anderson Plug
(solar input, MAX 26V MAX 40A)
Fuse Block7x blade fuses supplied, room for 3x spare
PACKAGE INCLUDES
1 x ATEM POWER 12V Control Box
1 x 50A Anderson Style Connector (Red)
1 x 50A Anderson Style Connector (Grey)
1 x 175A Anderson Style Connector (Grey)
7 x Spare Fuses (4x10A, 3x20A)
1 Kit of Stickers
Set of Mounting Kit
1 x User Manual
WARRANTY
1 Year Warranty
