DESCRIPTION
A battery monitor is an essential tool that helps you keep track of how much
power your battery has left. With an RV battery monitor, you can easily
monitor the condition of your battery to prevent damage caused by over-
discharging. Our battery monitor is suitable for 5~64V batteries and provides
highly accurate data. Compared to voltage-based battery monitors, our shunt-
type monitor is much more accurate as it measures the actual energy flowing
into and out of the battery. With the ATEM POWER car battery monitor, you can
monitor real-time voltage, current draw, watts, charge level, and remaining
time on its high-definition backlit LCD display. Whether you're on a road trip
or using your RV as a permanent residence, our battery monitor with shunt
ensures that you always have enough power for your needs. Investing in our 12V
battery monitor with battery shunt is a smart choice for anyone who wants to
keep their battery in top condition.
FEATURES
1% Accuracy Measurement: Our battery monitor with shunt is incredibly
accurate, measuring the actual energy flowing into&out of your battery with a
precision of 1%.

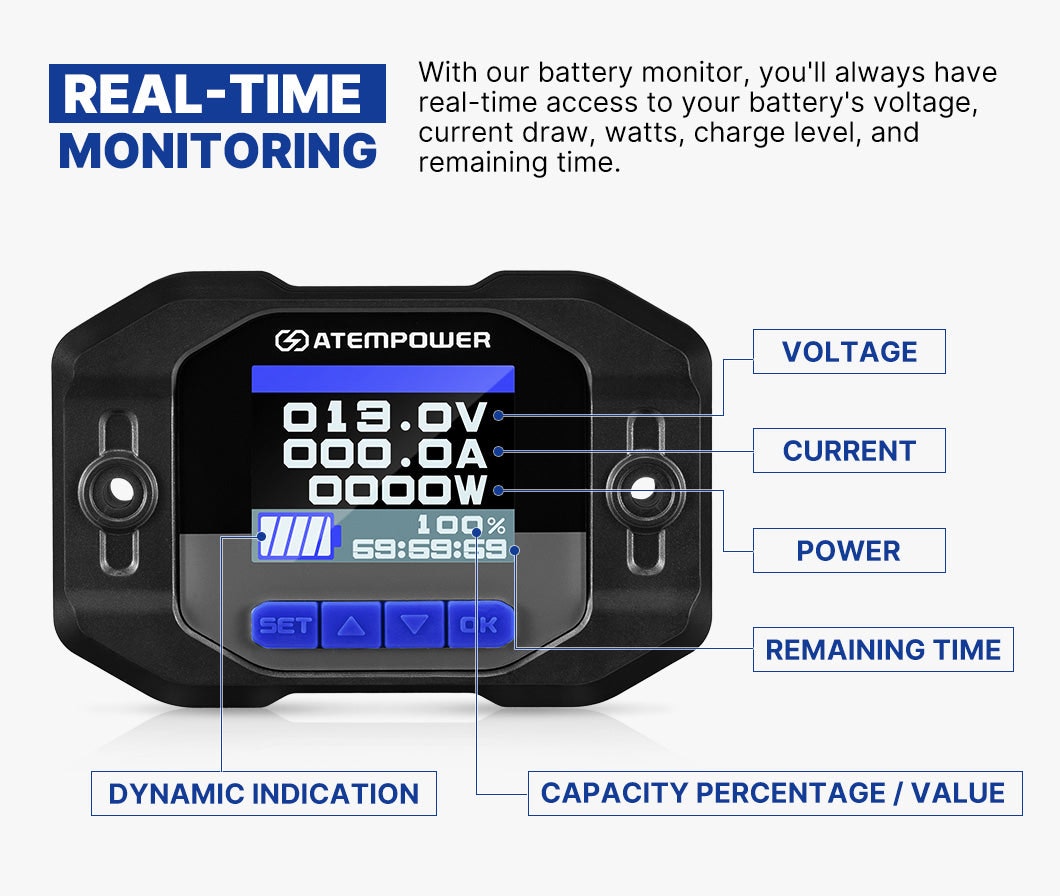

Real-Time Monitoring: With our battery monitor, you'll always have real-time
access to your battery's voltage, current draw, watts, charge level, and
remaining time.
Low Power Consumption: Our battery monitor draws very low standby power and
keeps an eye on your battery without worrying about excessive power
consumption.

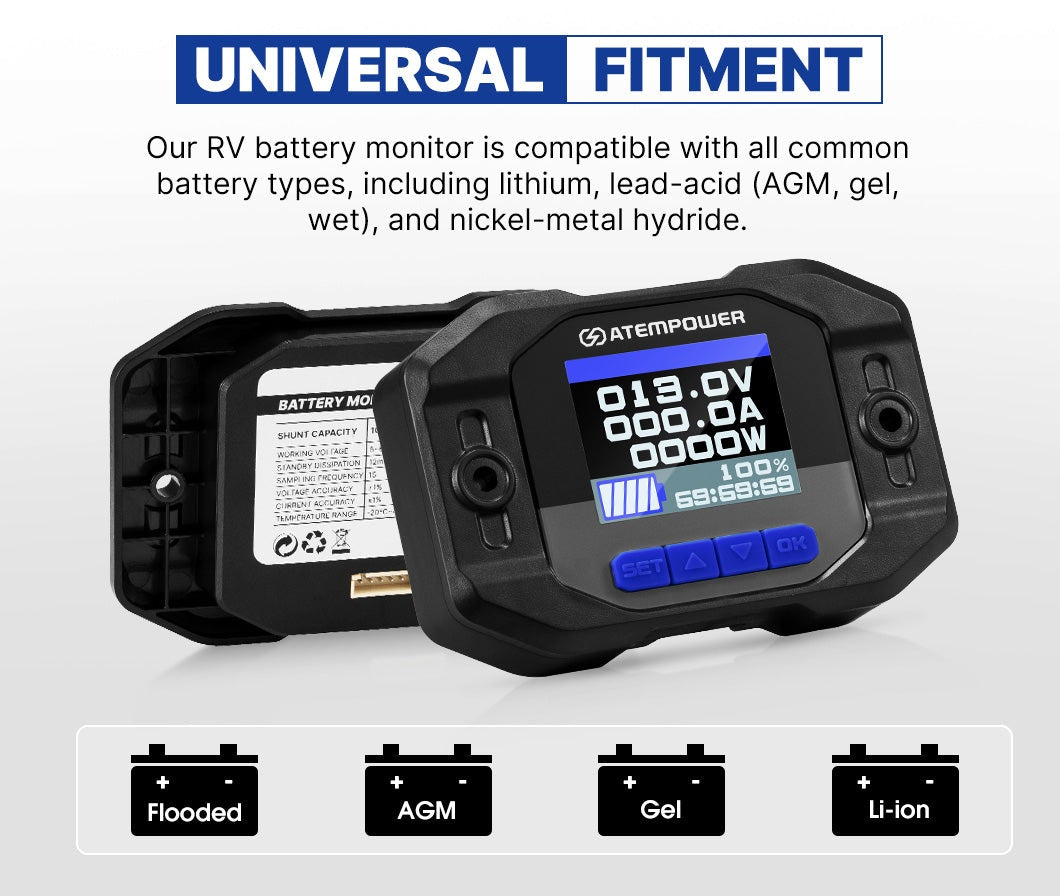

Universal Fitment: Our RV battery monitor is compatible with all common
battery types, including lithium, lead-acid (AGM, gel, wet), and nickel-metal
hydride.

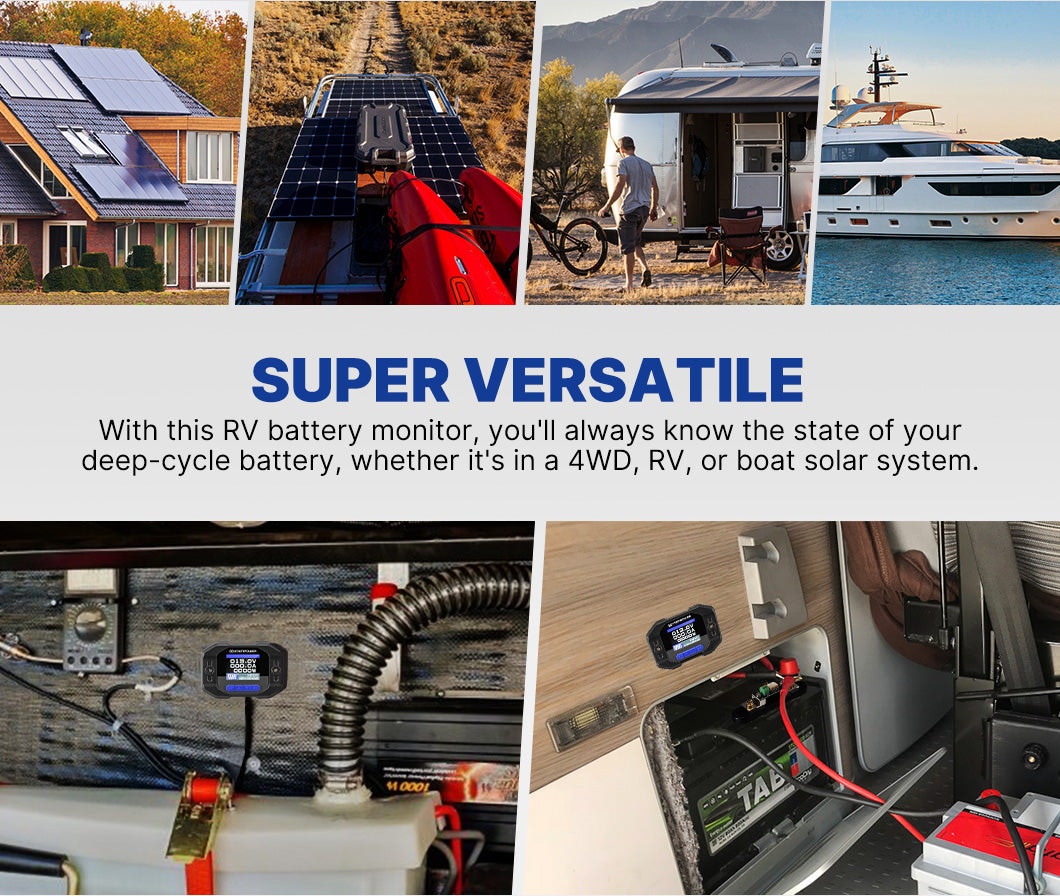

Super Versatile: With this RV battery monitor, you'll always know the state of
your deep-cycle battery, whether it's in a 4WD, RV, or boat solar system.

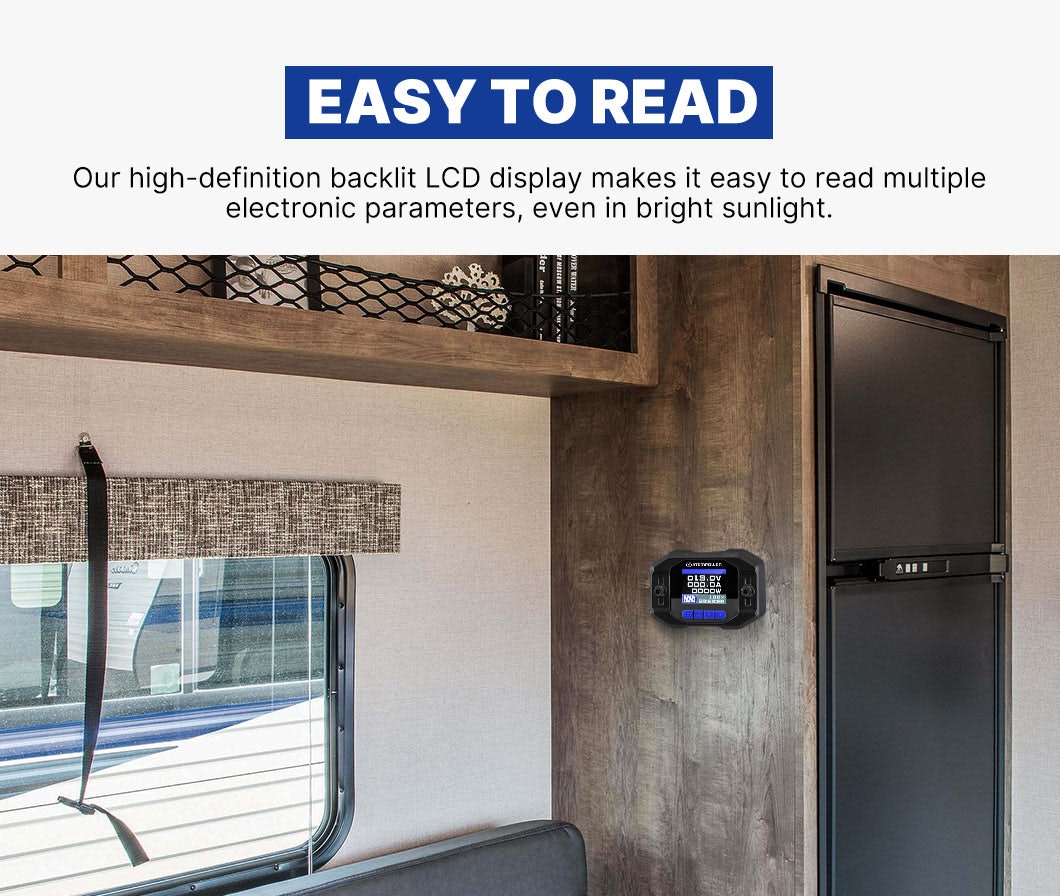

Easy to Read: Our high-definition backlit LCD display makes it easy to read
multiple electronic parameters, even in bright sunlight.

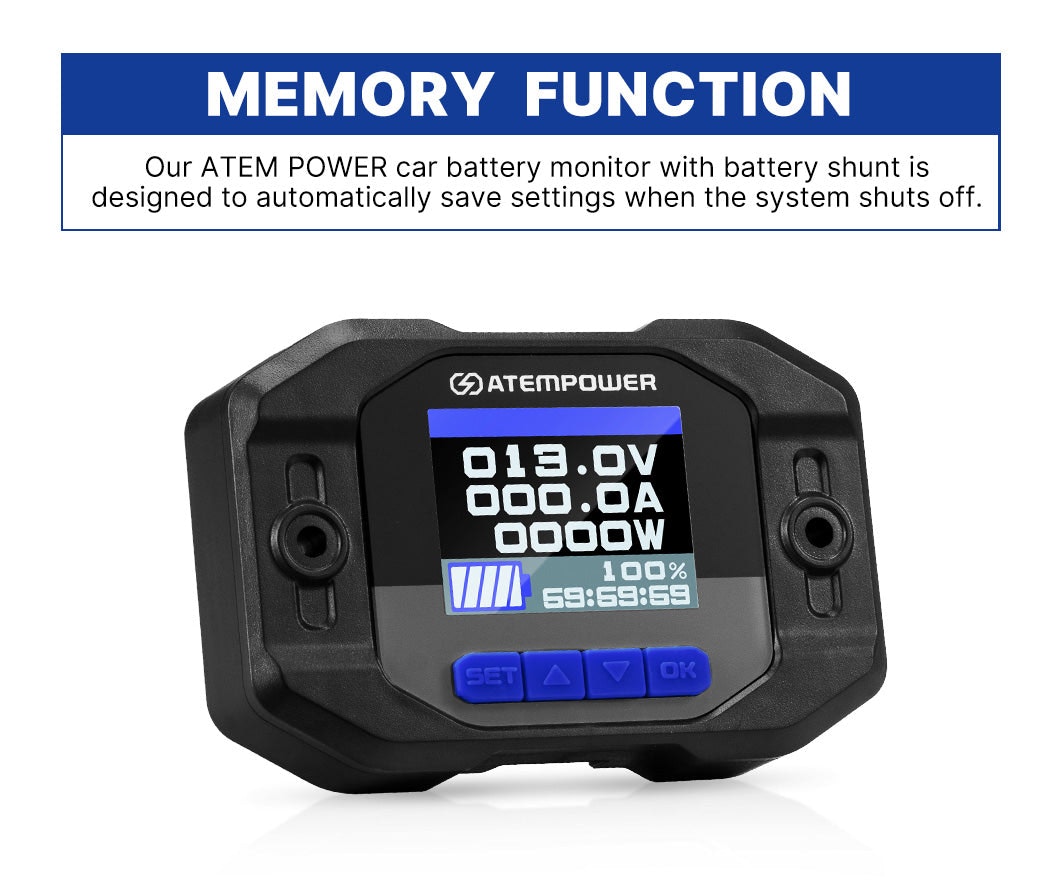

Memory Function: Our ATEM POWER car battery monitor with battery shunt is
designed to automatically save settings when the system shuts off.

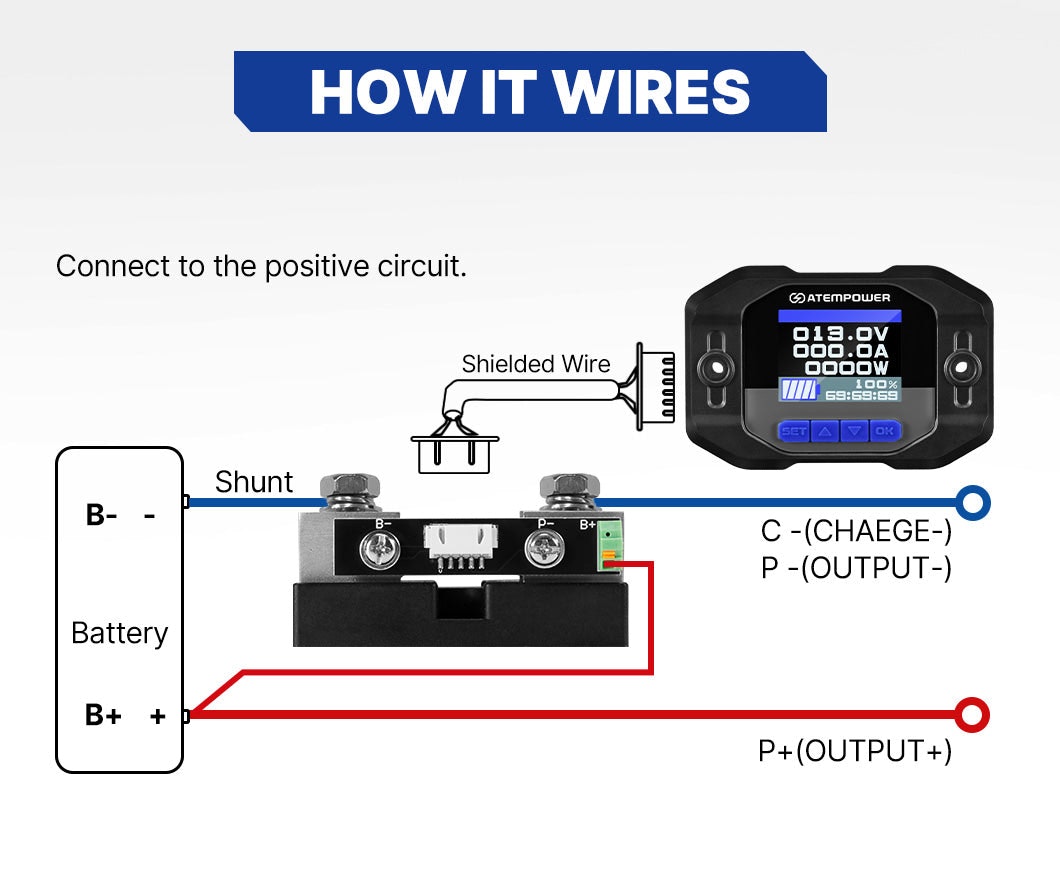

Hassle-Free Installation: We've included everything you need for easy
installation, including a battery monitor, 500A shunt, shielded wire, B+ wire
& mounting screws.
Dual Mounting Options: Our 12V battery monitor with battery shunt can be
mounted either with the standard base or flush-mounted without the base.
SPECIFICATIONS
Shunt Capacity:500A
Working Voltage:5~64V
Standby Dissipation:12mA (Backlight Off)15mA (Backlight On)
Preset Capacity Value:1~999Ah
Max. Measured Current:Peak 600A1h, 1500A3sContinuous 500A
Voltage Accuracy:1%
Current Accuracy:1%
Capacity Accuracy:1%
Temperature Range:-20℃～45℃ (-4℉~113℉)
Weight (LCD Interface):107g (0.24lbs)

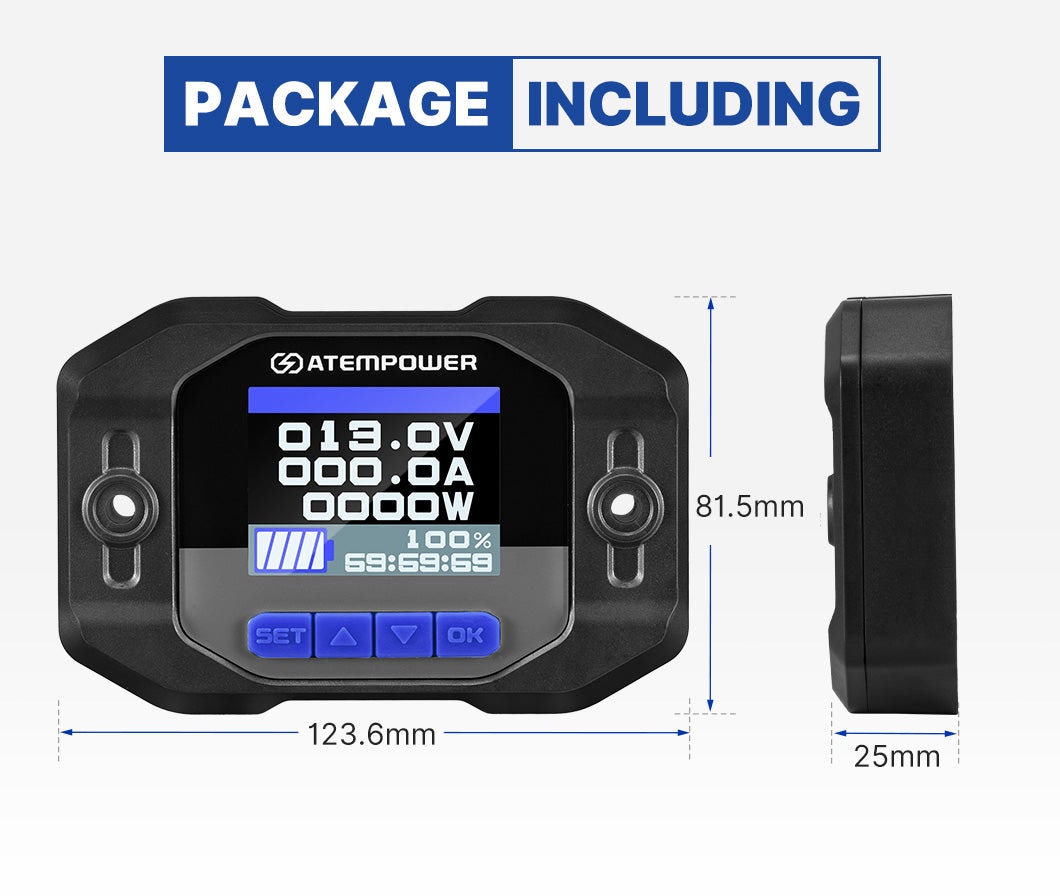

Size (LCD Interface):124mm(L) x 81.5mm(W) x 25mm(H)
Shielded Wire:3.0m
B+ Wire:0.5m
Package Size:22cm(L) x 13cm(W) x4.5cm(H)
Gross Weight:0.6kg
PACKAGE INCLUDES
1 x ATEM POWER Battery Monitor
1 x 500A Shunt
2 x Insulated Terminals
1 x 3.0m Shielded Wire
1 x 0.5m B+ Wire
Set of Mounting Kit
1 x User Manual
WARRANTY
1 Year Warranty
