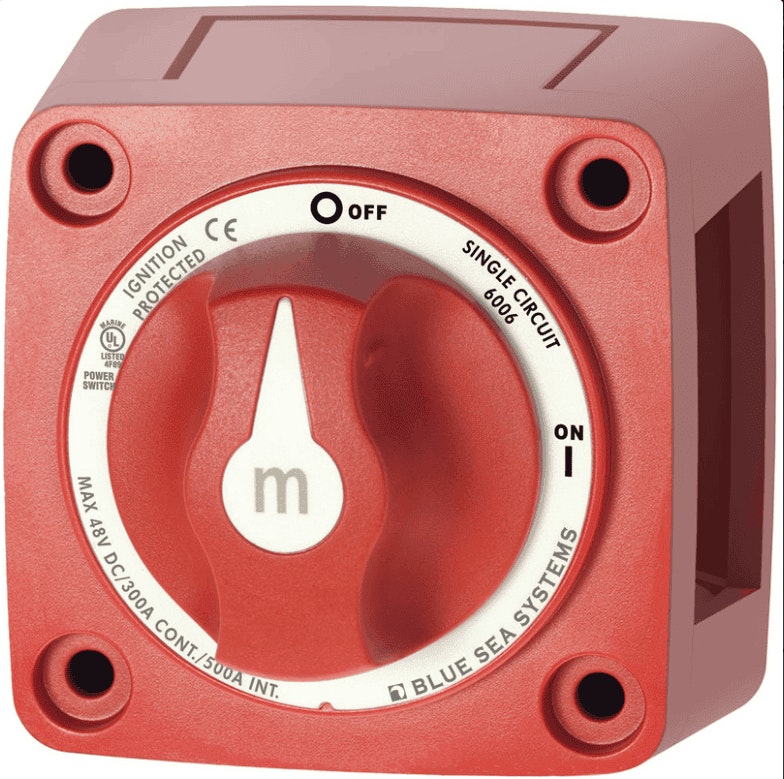

Blue Sea m-Series Mini On-Off Battery Switch with Knob - Red

Description

• Switches a single battery to a single load group
• Ignition protected—safe for installation aboard gasoline powered boats

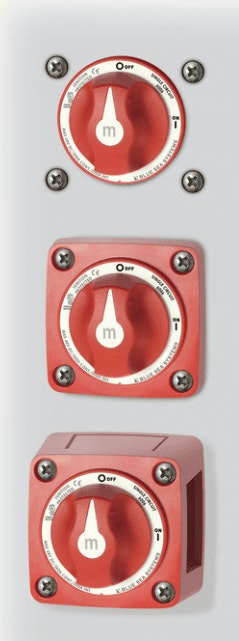

• Case design allows surface, front panel, or rear panel mounting

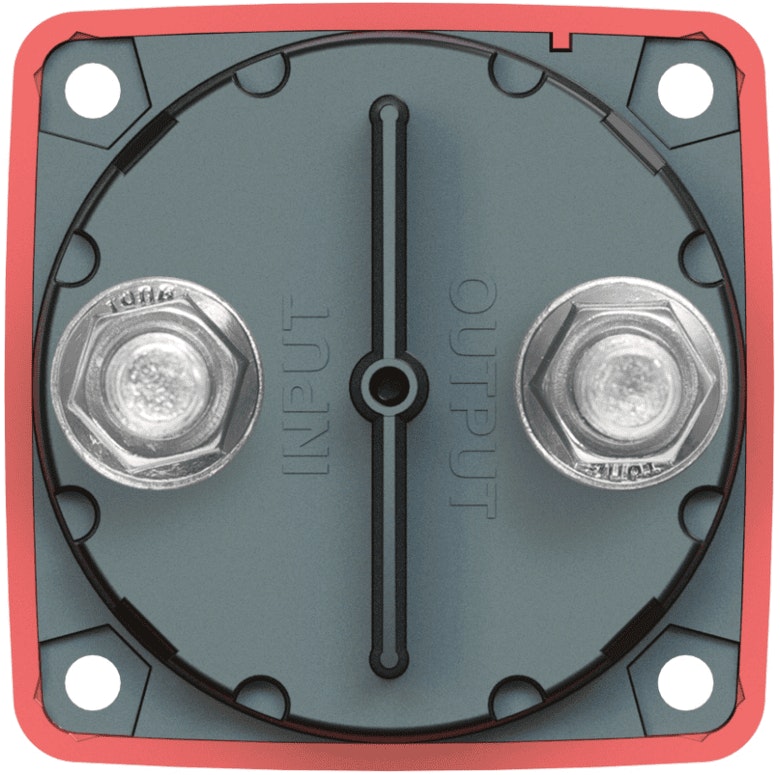

• Isolating cover with snap-on sections protects rear contacts

* 6006 Specifications

Switch Type | Single Circuit ON-OFF
Color | Red
Switch Positions | 2
Battery Combine | No
Alternator Field Disconnect | No
Maximum Voltage | 48V DC
Stud Size | 3/8"
Terminal Stud Torque | 120 in-lb (13.56 Nm)
Continuous Rating | 300A
Intermittent Rating | 500A (5 min)
Cranking Rating 30 sec | 900A
Battery Inputs | 1
Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm)
Cable Size to Meet Ratings | 4/0 AWG (120mm²)
Mounting Holes | Accept #10 Screw
Stud Material | Tinned Copper
Stud Torque | 120 in-lb (13.56 Nm)
Terminal Stud Size | 3/8" - 16 (M10)
Weight | 0.65Lb (0.29 Kg)
