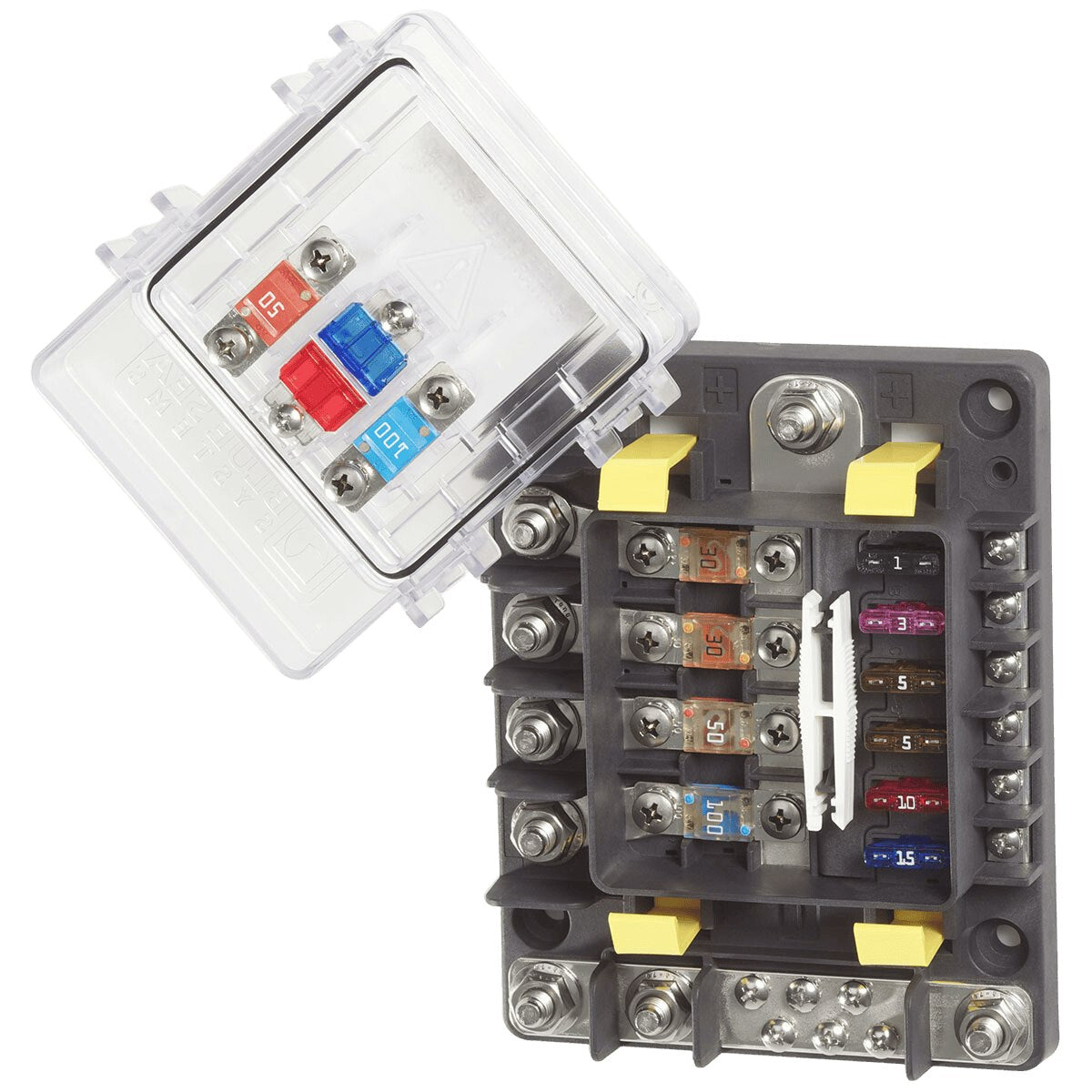

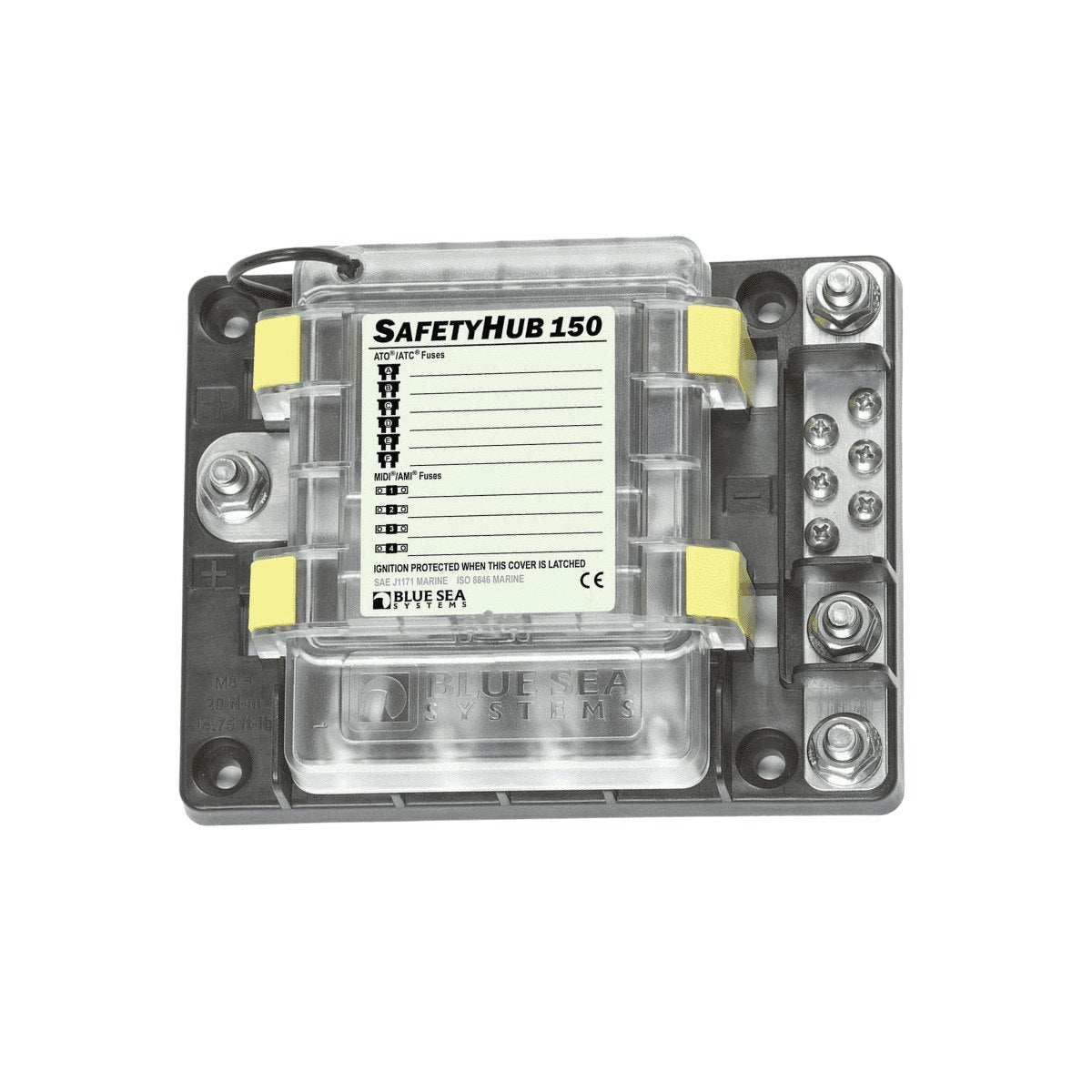

An ignition protected fuse block with screw termination safe for use on gasoline powered boats
Accepts four AMI® or MIDI® Fuses for high-amp circuits up to 200A

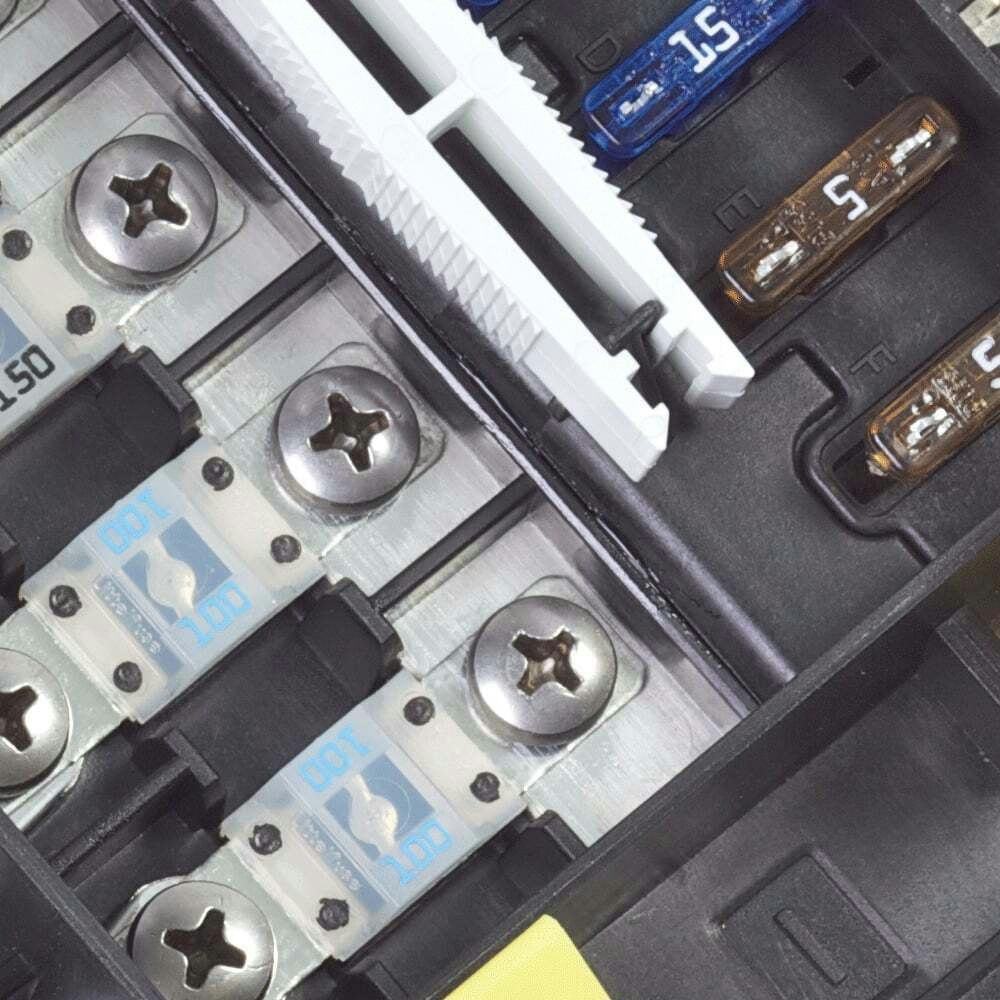

Accepts six ATO® or ATC® Fuses for circuits up to 30A including bilge pumps, electronics and lights
Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements

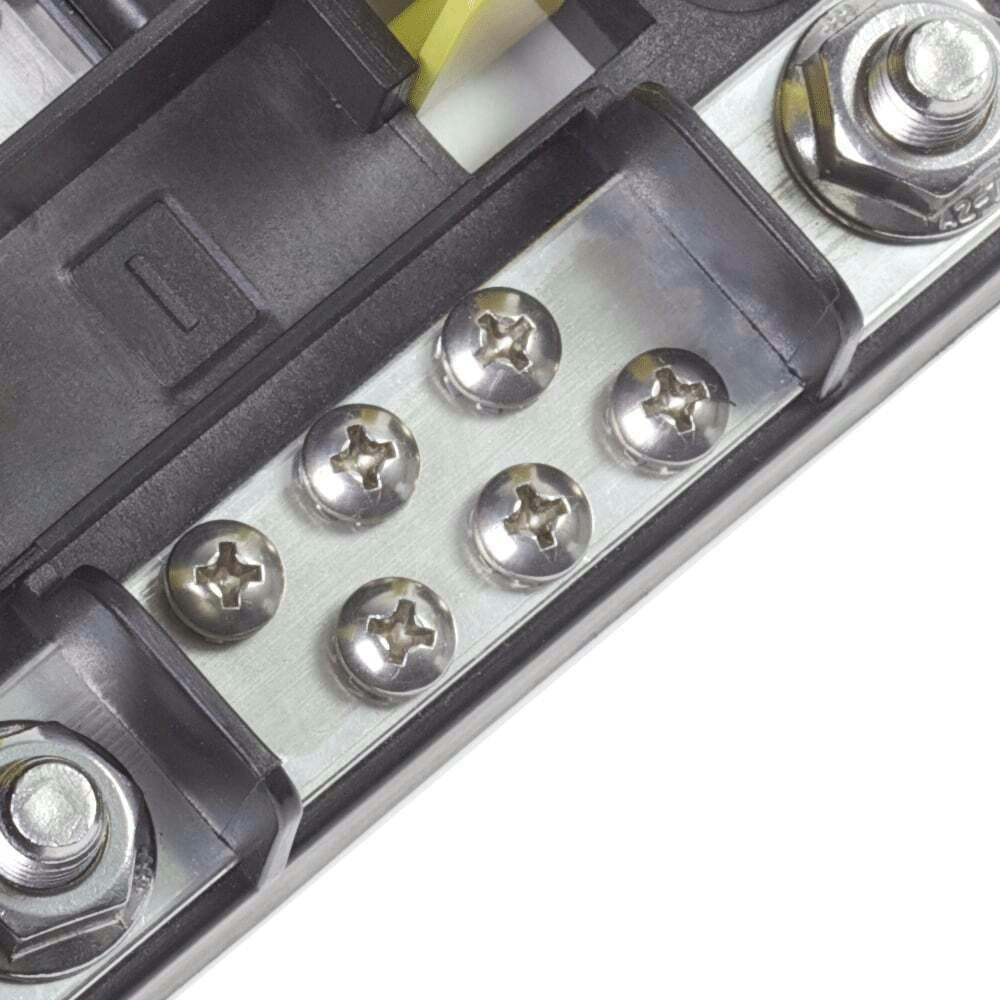

Negative bus provides common location for negative connection
Circuit identification label with write-on capability
Fuse puller easily removes ATO® or ATC® Fuses

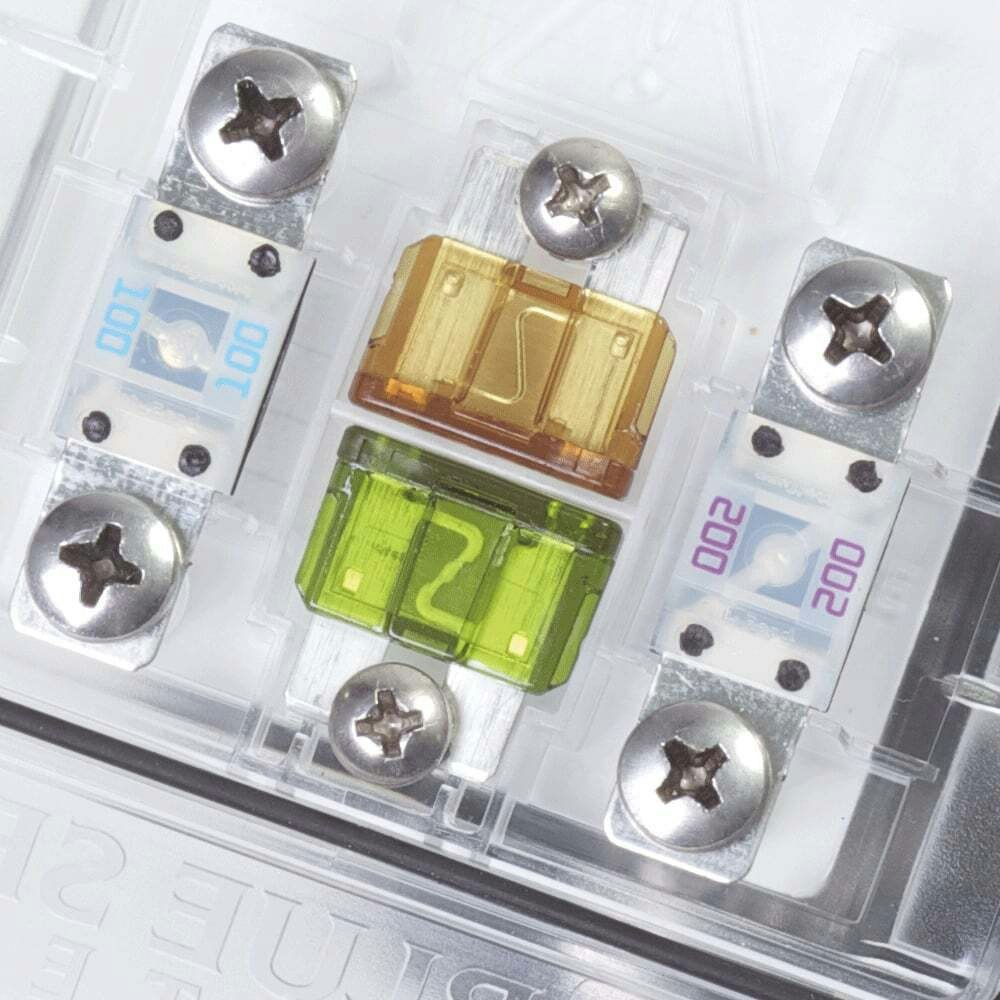

Cover provides storage space for two spare ATO® or ATC® and two spare AMI® or MIDI® fuses and mounting screws
One-piece stainless flange nuts ensure safe and secure connections
Fuses sold separately

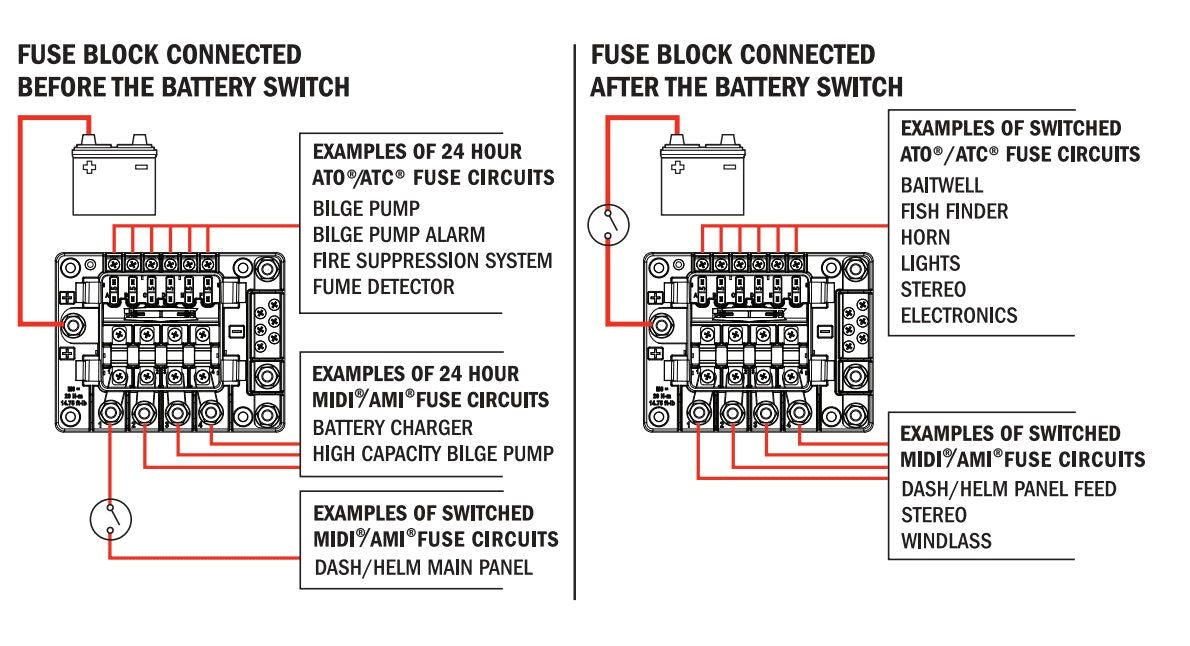

The SafetyHub 150 consolidates ignition protected, high amperage and 24 hour
circuit protection into one place near the battery while also providing
circuit protection for the 360 Panel feed wire. The 360 Panel provides circuit
protection for all medium amperage loads and the ST Blade Fuse Block protects
the electronics, as these devices are switched on the device. This example
minimizes panel space and consolidates circuit protection to only three places
on the boat and achieves a critical safety advantage by ensuring all high
amperage cables are protected.
