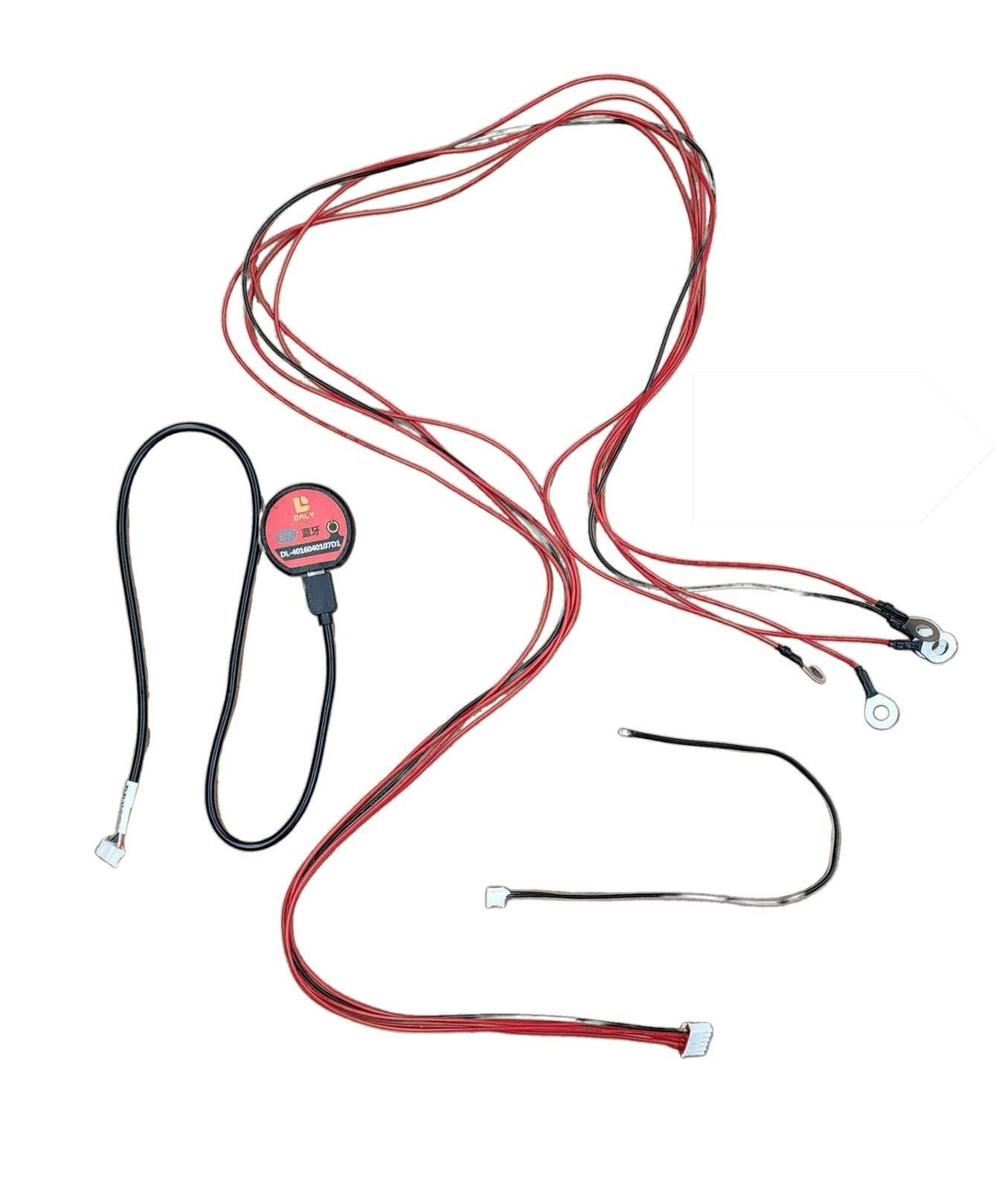

1m long balance cables (5 pin) factory crimped with M6 lugs

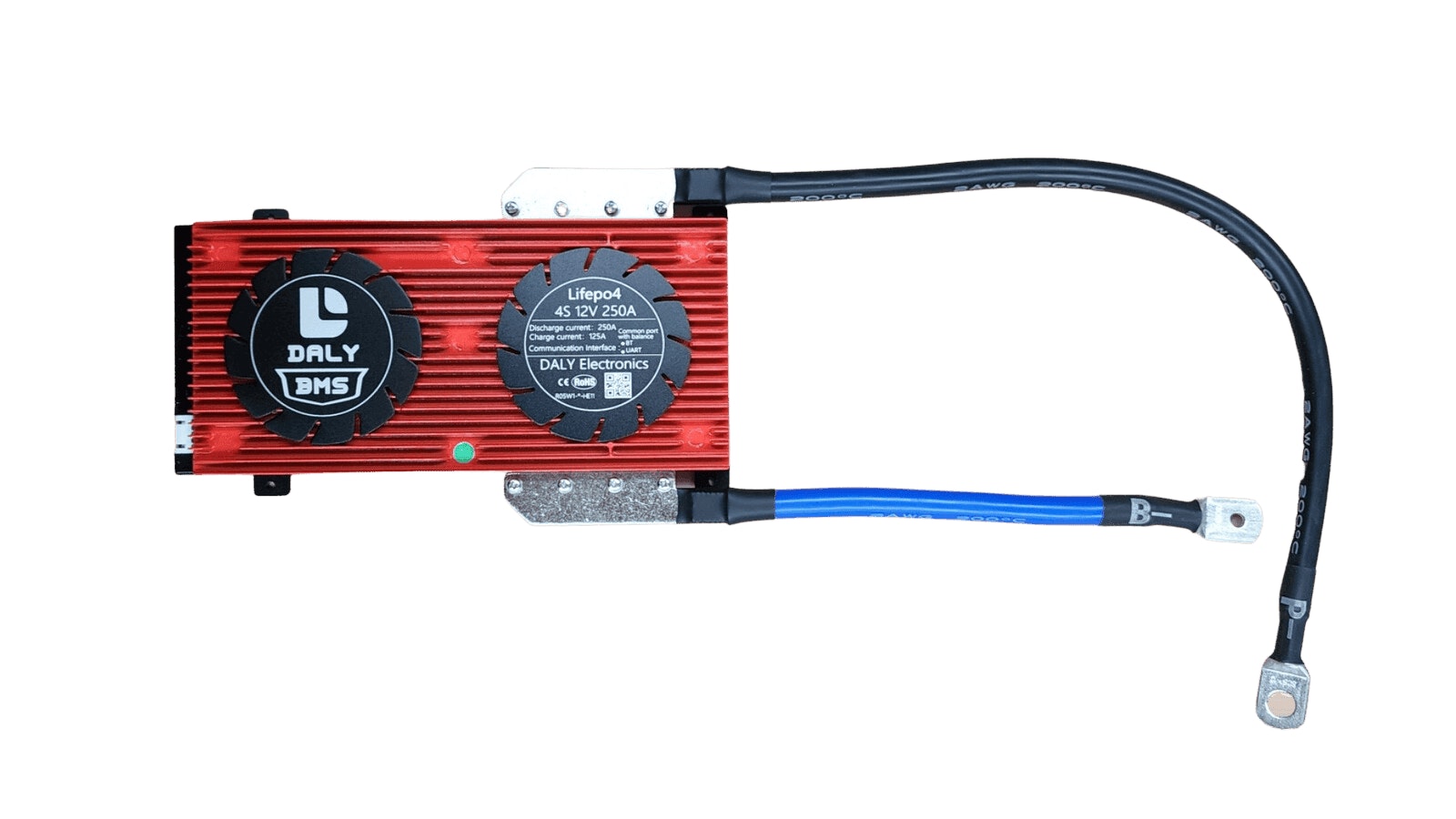

Extra long black P- cable with M10 lug for easy attachement straight to the shunt
Blue B- cable with M6 lug
New Bluetooth module with Wake-Up Button
Temperature sensor (NTC)
Video Instruction Guide by QR Code - ( It is mandatory this instructional video is watched! )

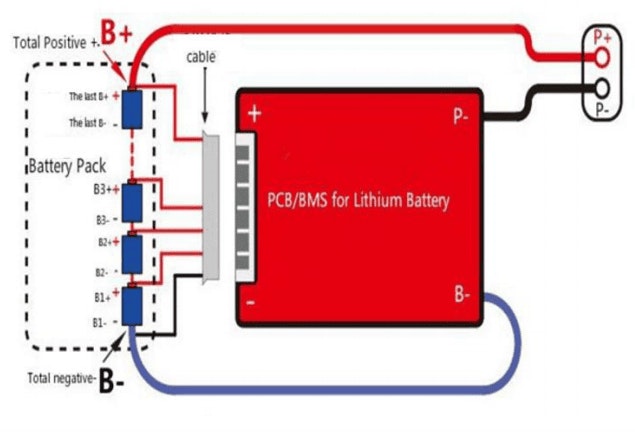

If any cables are incorrect the unit will be irreparably destroyed, the video instruction guide demonstates how to test this BEFORE connecting the plugs into the BMS
This version of the Daly may not have the lightboard slot, if you require one
with a lightboard slot please contact us.
The 4S 250A SMART BMS is for LiFePO4 cells only. You *must *use 4 cells in
series and they *must *be LiFePO4. This BMS is ideal for a 3000VA inverter.
Features:
Using top quality (A-level) protective integrated circuit IC, from Seiko of Japan. The IC itself has power a balancing function. The circuit is simple and reliable
Strong load ability, high constant discharge current, using high voltage tolerant and ultra low resistance power MOSFETs. Daly's extra large heat sinks and sealed thermal coating greatly assist cooling
Voltage detection for each cell so each cell will be protected from over charge or over discharge. The over current and short circuit protection function is a built-in feature to preserve the life of both the BMS and cells.
Temperature protection during charging and discharging
Extremely low power consumption. The consumption of the whole device is between 50 - 600uA depending on the model without Bluetooth. While the Bluetooth module is on, 15mA.
Program via UART to PC cord or let Solar 4 RVs know your battery capacity and we can program the unit for you

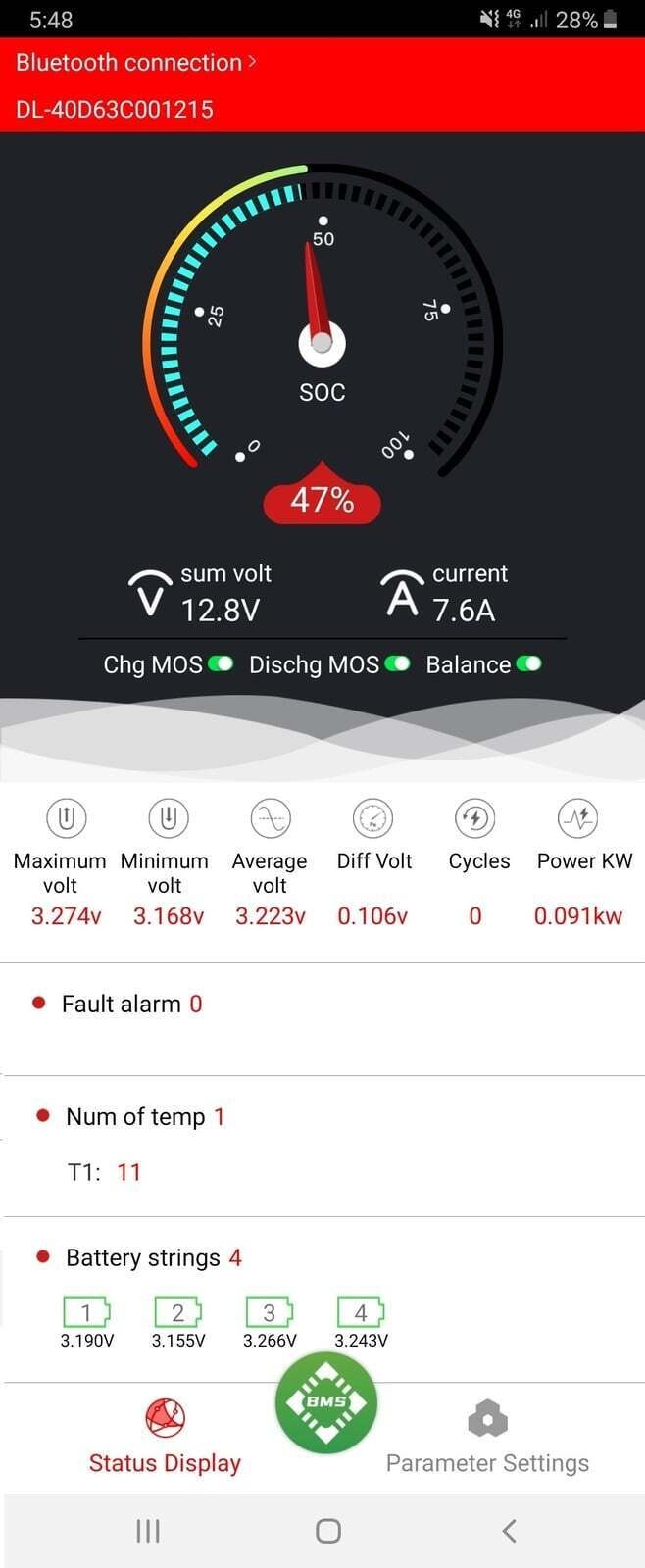

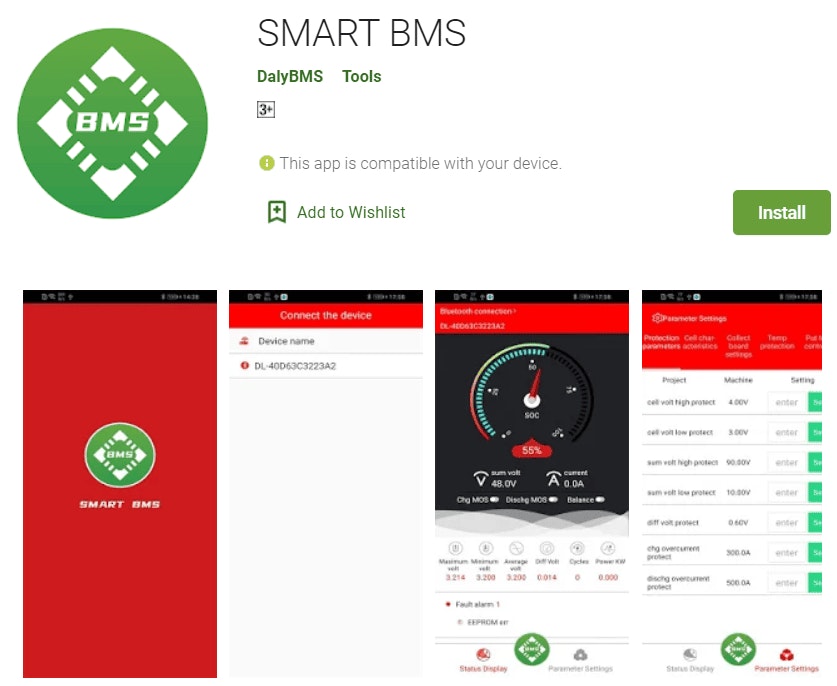

Look up SMART BMS by DalyBMS on the Android Play Store or iOS App Store
Monitor state of charge
Current in/out
Power in/out
Temperature
Charge/discharge MOSFETs open/closed
If balancing
Individual cell voltages, overall voltage, maximum cell voltage, minimum cell voltage, differential voltage
Please see the "Download Manual" link under the main product image for all specifications
