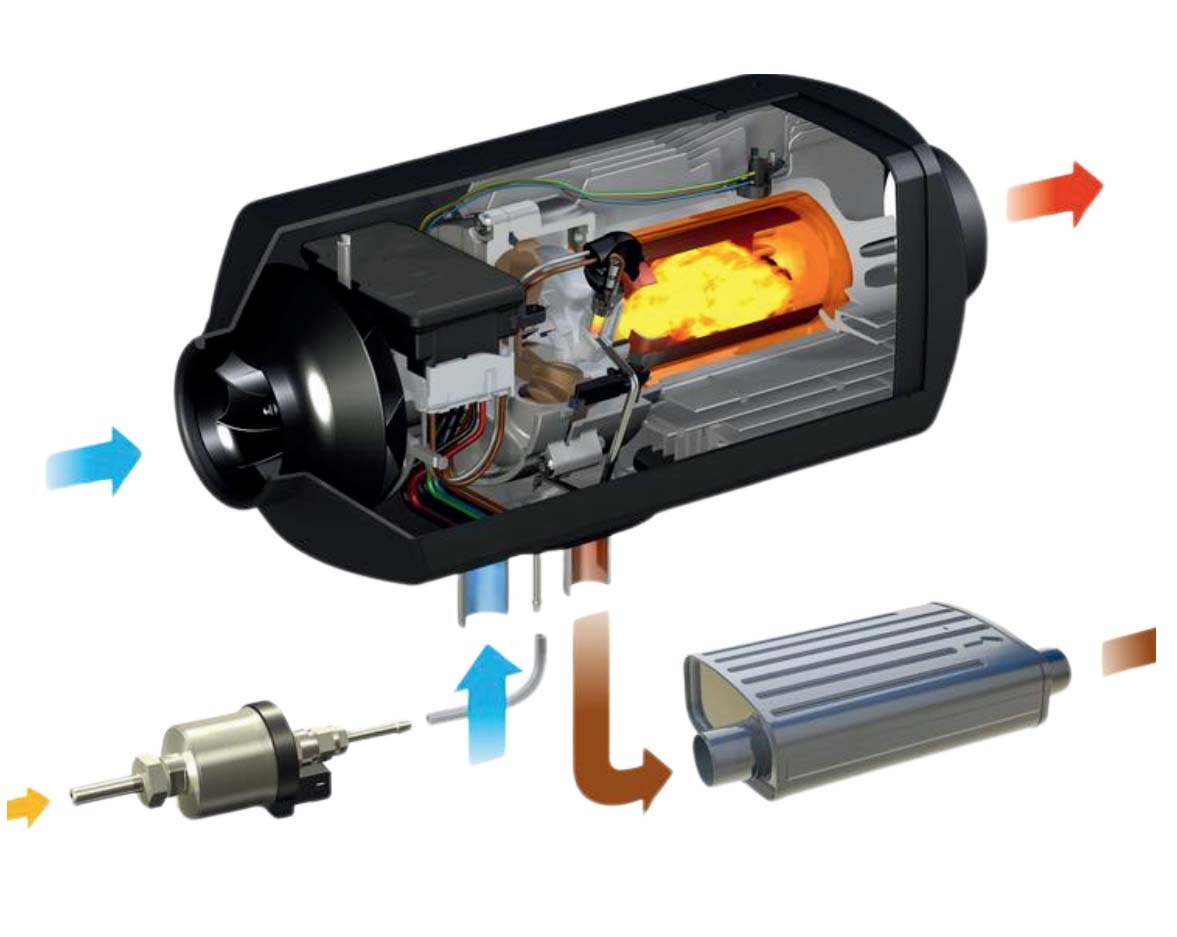

Second-generation fuel-powered air heater with 2.2kW heating power for heating
driver’s
cabs in trucks, transporters, minibuses, caravans, motor homes and boats.

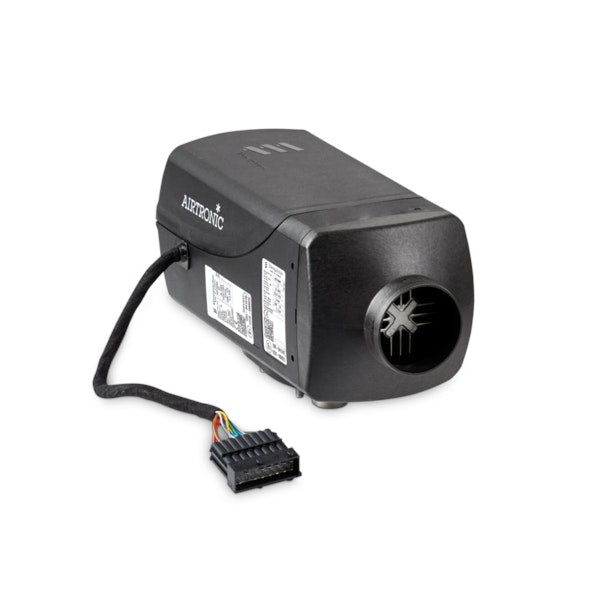

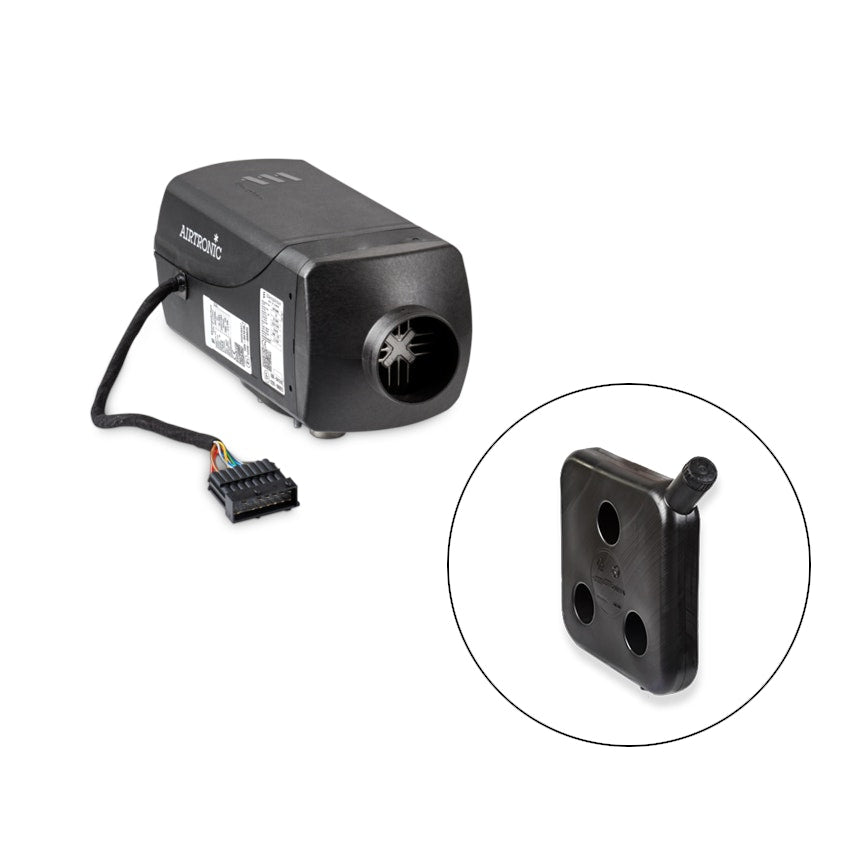

Eberspächer Airtronic D2L AS2 12v 1 Outlet E/S Pro Kit
Interfaces: CAN, LIN (only 12 V), S+
Service life up to 5,000 h

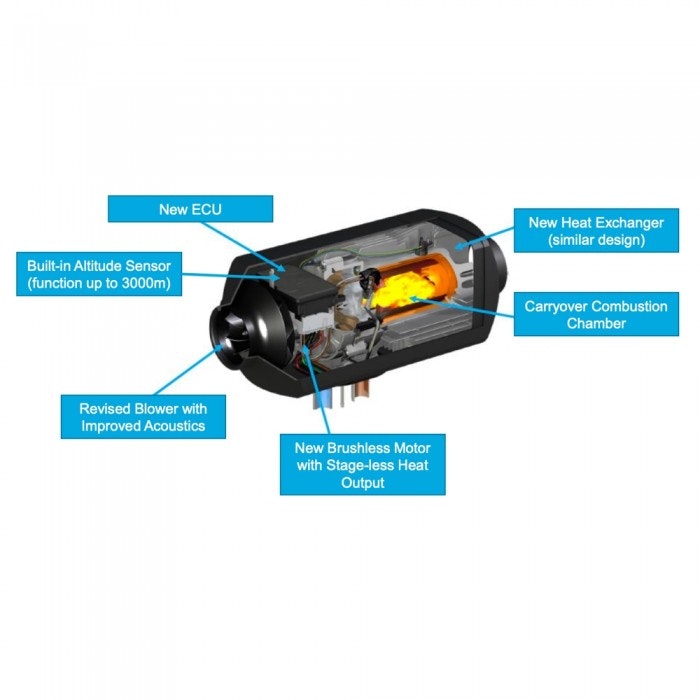

Brushless motor

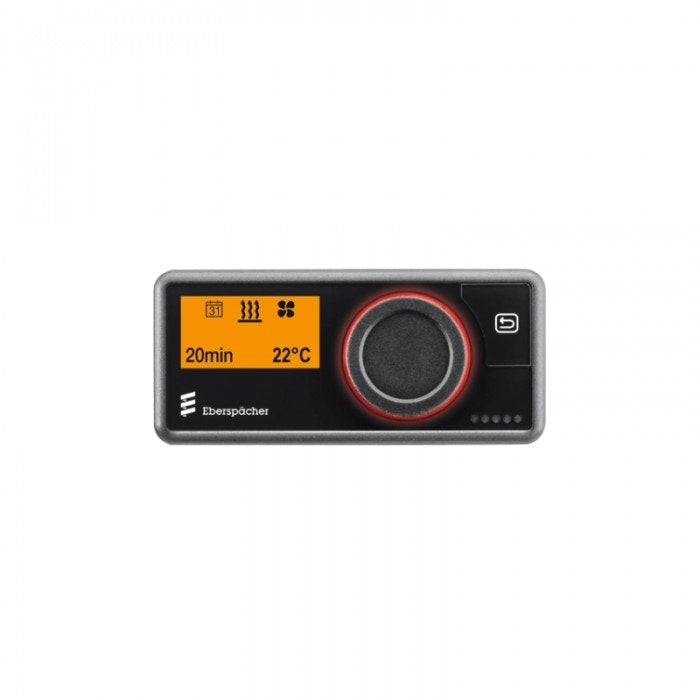

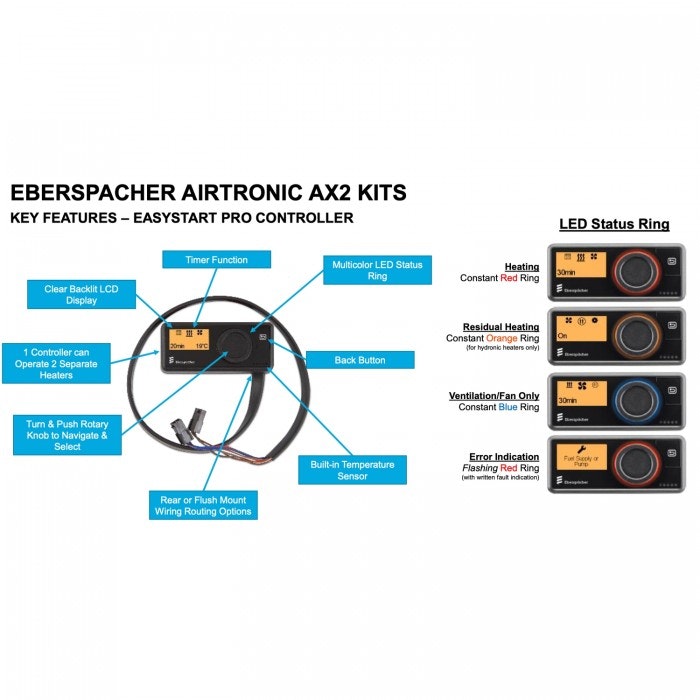

EasyStart Pro controller with integrated fault diagnostic tool.
Optimized combustion
Light weight 2.7kg
Stepless heating performance control
Noise emissions optimized
Use of acoustically improved metering pump
Integrated altitude sensor: Automatic altitude adjustment up to 3,000 m

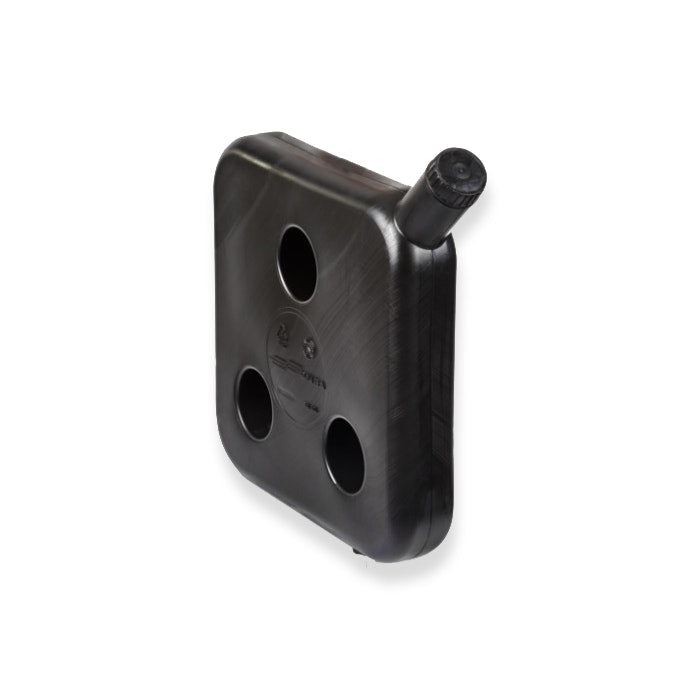

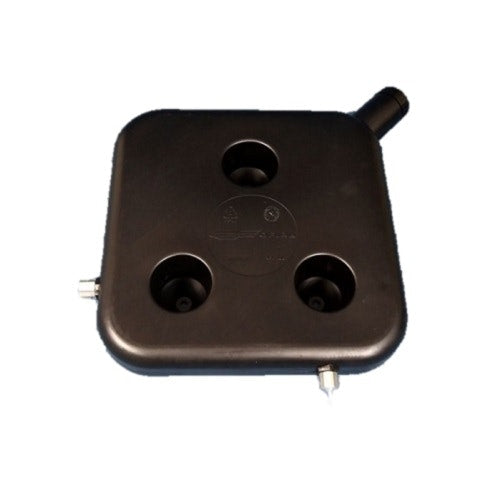

Eberspächer 10L Diesel Fuel Tank
It has an screw cap opening at the top, plus the outlet to allow the tank to be placed in either direction.
Slim design makes the tank easy to store
Very light weight when empty
Secure lid

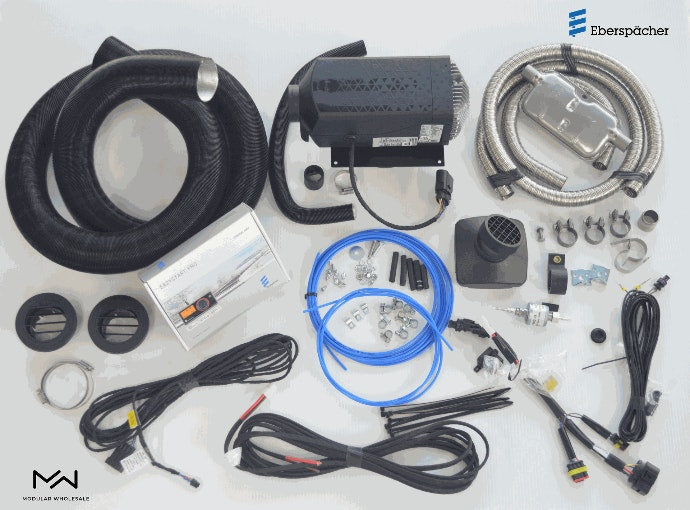

Kit inclusion:
1 x Airtronic D2L AS2 D/Heater Body
1 x Easystart Pro Controller
1 x Mounting Plate
1 x Fuel Metering Pump Inc Pump Holder
1 x 6mtr Fuel Line
1 x 2m S/Steel Exhaust Pipe & Silencer
1 x 0.5m Air Intake Tube
1 x 2 Meters 60mm Ducting
2 x 60mm Vent Flanges & Flat Vent Covers
1 x Wiring Harness (plug & play throughout heater kit) & 6m Twin Core Power Supply Cable
1 x Miscellany Pack, Screws & Washes, Clamps, P Clips, Zip Ties, Fuel Line Joiners, Warranty Card, QR Code For Digital
1 x 10L Diesel Fuel Tank
|
❖Specifications
Brand | Eberspacher
Model | 2902120000250
Product Type | Diesel Heater
Voltage | 12V
Fuel | Diesel
Heating Capacity | 2.2kW
Electrical power | Start: 100W Low: 6W High: 31W
Consumption Power | Low: 850W High: 2,200W
Fuel Consumption | Low: 0.1 L/H High: 0.28 L/H
Automatic altitude adjustment | 3000 M
Voltage cut out protection | > 10.5 V
Digital programmable timer | 7 day function
Auto dimmer function on controller | Standard
Dimensions(mm) | 115 x 122 x 310
Net Weight | 2.7 kg
Manufacturers Warranty | 2 years
