With the third generation of the Airtronic, Eberspächer is launching a
completely new product family of air heaters for commercial and special
vehicles.
It combines high heating performance with a very compact design, quiet
operation, automatic altitude
Adjustment up to 5,500 m* and flexible installation. The Eberspächer EasyStart
Pro and EasyStart Web control units offer particularly convenient and
userfriendly operation for the Airtronic. All other control units are also
compatible.

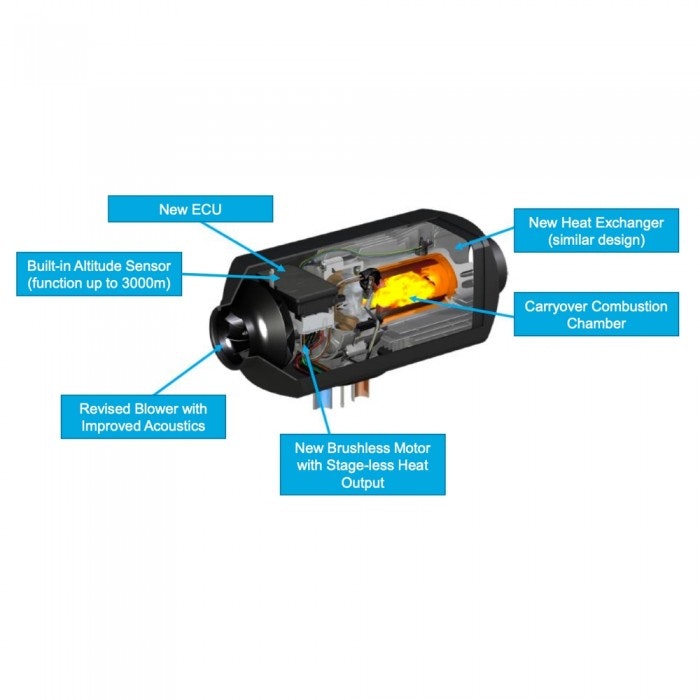

The Airtronic 3 complements Eberspächer’s segment-focused product strategy
perfectly, boasting a new combustion chamber concept and other new features,
including a new casing design.
And of course, the enhancements previously made to the Airtronic 2 are
included in the thirdgeneration heaters as well.

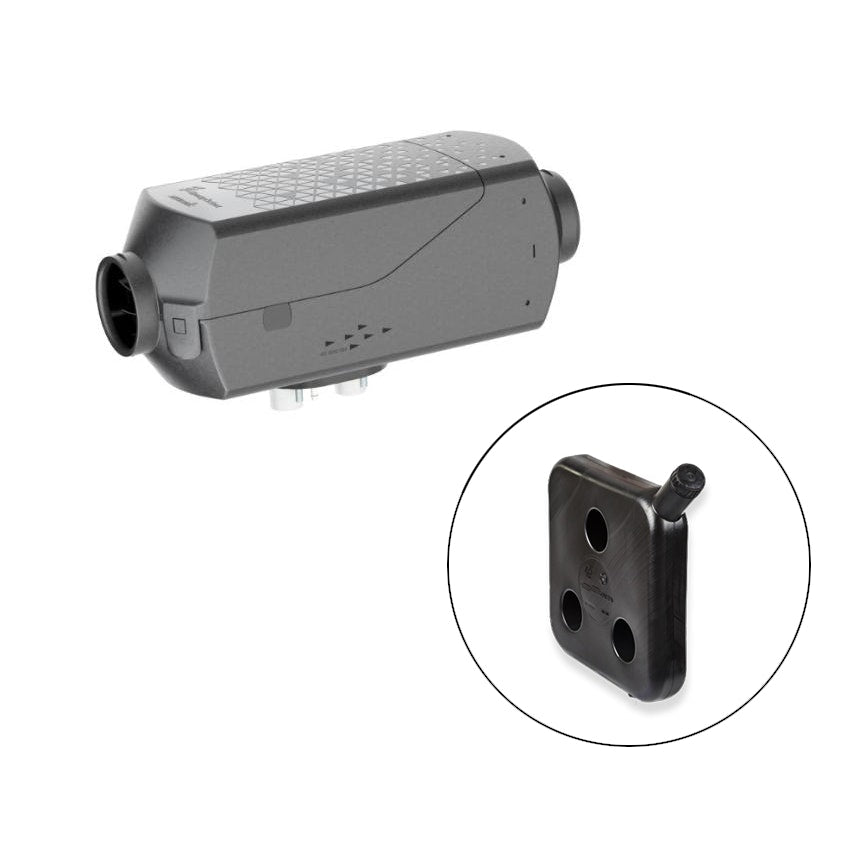

Eberspächer Airtronic D2L AS3 12v 1 Outlet E/S Pro Kit
ADDITIONAL FEATURES:
Patented housing design for improved plagiarism protection
Lifetime of up to 5,000 operating hours due to brushless motor
Backward compatibility through carry-over connections
Sensor-controlled, optimized start-up sequences through measurement of environmental parameters
Optimized heat air flow due to improved heat exchanger

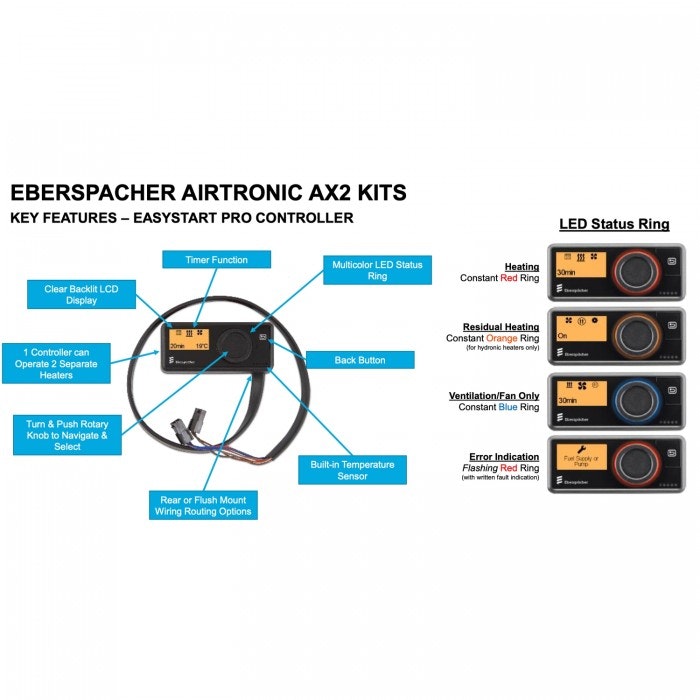

Maximum control with EasyStart Pro and EasyStart Web
Compatibility with all other control units
Diagnostics and parameter assignment via EasyScan
Can also be integrated into on-board systems via CAN (12/24V), LIN (12V), S+(12/24V) interfaces
ADVANTAGES
High heating power, yet compact design
Automatic altitude adjustment up to 5,500 m*
Flexible installation with 90° tilt possible to either side
Stepless heating performance control ensures quiet operation

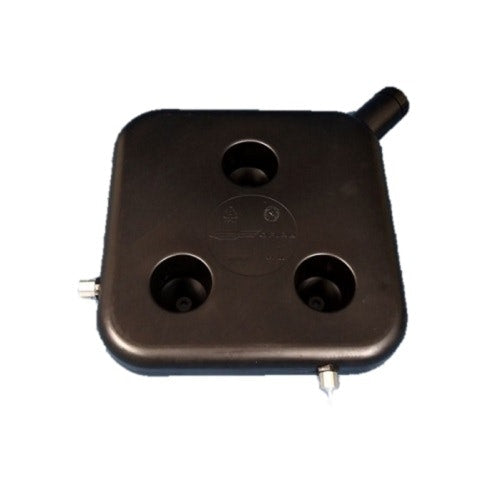

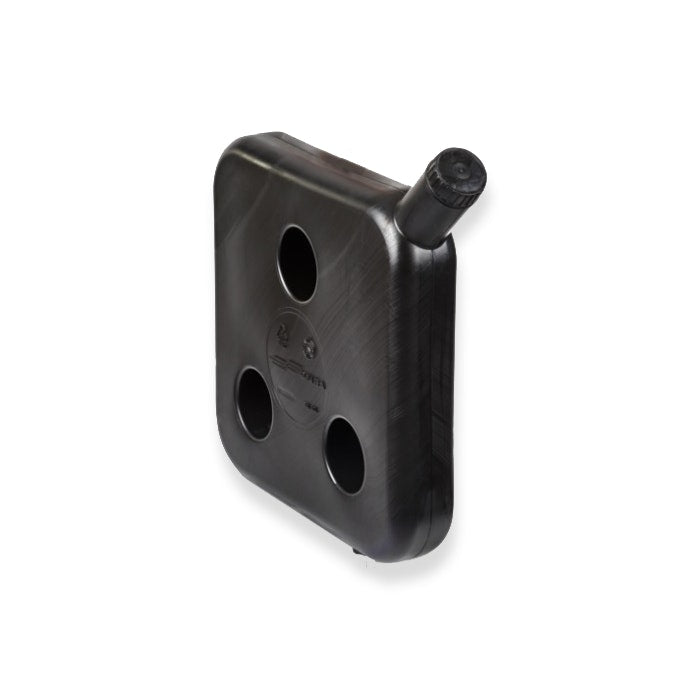

Eberspächer 10L Diesel Fuel Tank
It has an screw cap opening at the top, plus the outlet to allow the tank to be placed in either direction.
Slim design makes the tank easy to store
Very light weight when empty
Secure lid

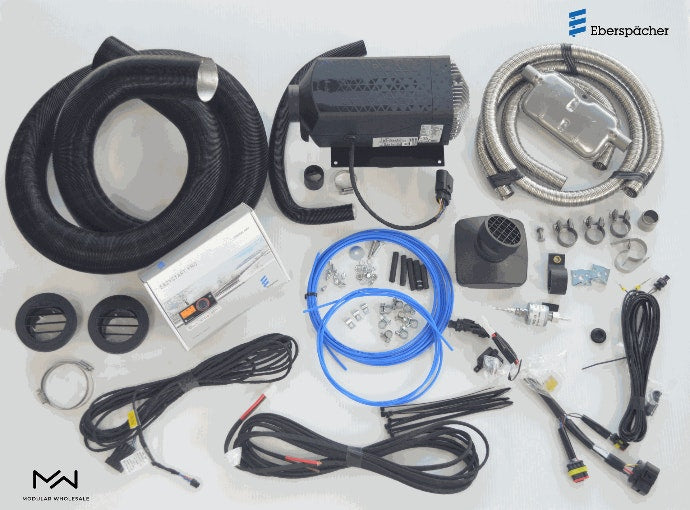

Kit inclusion:

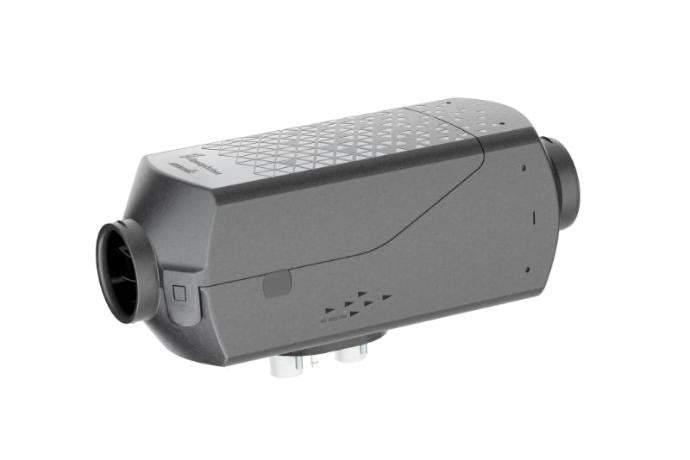

1 x Airtronic D2L AS3 D/Heater Body

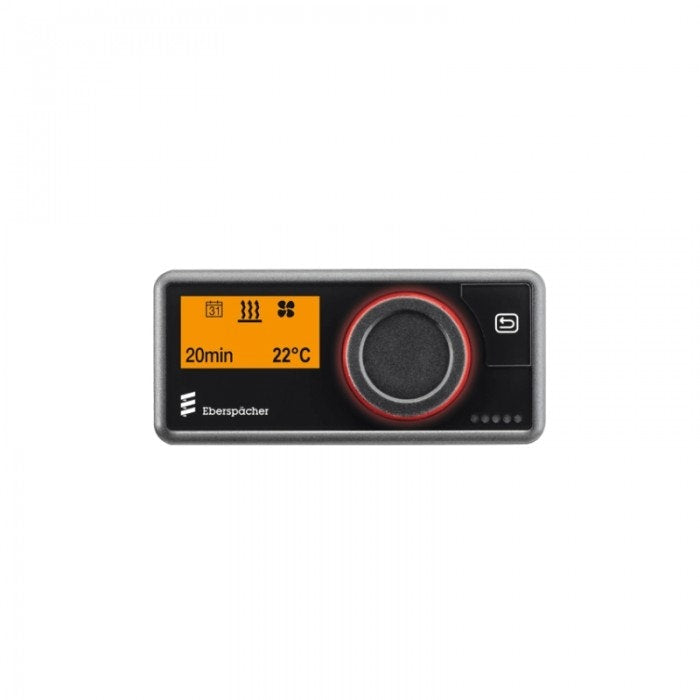

1 x Easystart Pro Controller
1 x Mounting Plate
1 x Fuel Metering Pump Inc Pump Holder
1 x 6mtr Fuel Line
1 x 2m S/Steel Exhaust Pipe & Silencer
1 x 0.5m Air Intake Tube
1 x 2 Meters 60mm Ducting
2 x 60mm Vent Flanges & Flat Vent Covers
1 x Wiring Harness (plug & play throughout heater kit) & 6m Twin Core Power Supply Cable
1 x Miscellany Pack, Screws & Washes, Clamps, P Clips, Zip Ties, Fuel Line Joiners, Warranty Card, QR Code For Digital
1 x 10L Diesel Fuel Tank
|
❖Specifications
Brand | Eberspacher
Model | 292113000019
Product Type | Diesel Heater
Voltage | 12V
Fuel | Diesel
Heating Capacity (kw) | 0.85 - 2.2
Heating Air Flow Rate * (kg/h) | max. 105
Electaical Power Consumption (W) | max. 28
Fuel Consumption (l/h) | 0.1 - 0.27
Operating Temperature Heater (˚C) | -40 to +70
Auto dimmer function on controller | Standard
Main Dimensions LxWxH (mm) | 310x115x122
Net Weight (kg) | 2.5
Manufacturers Warranty | 3 years
