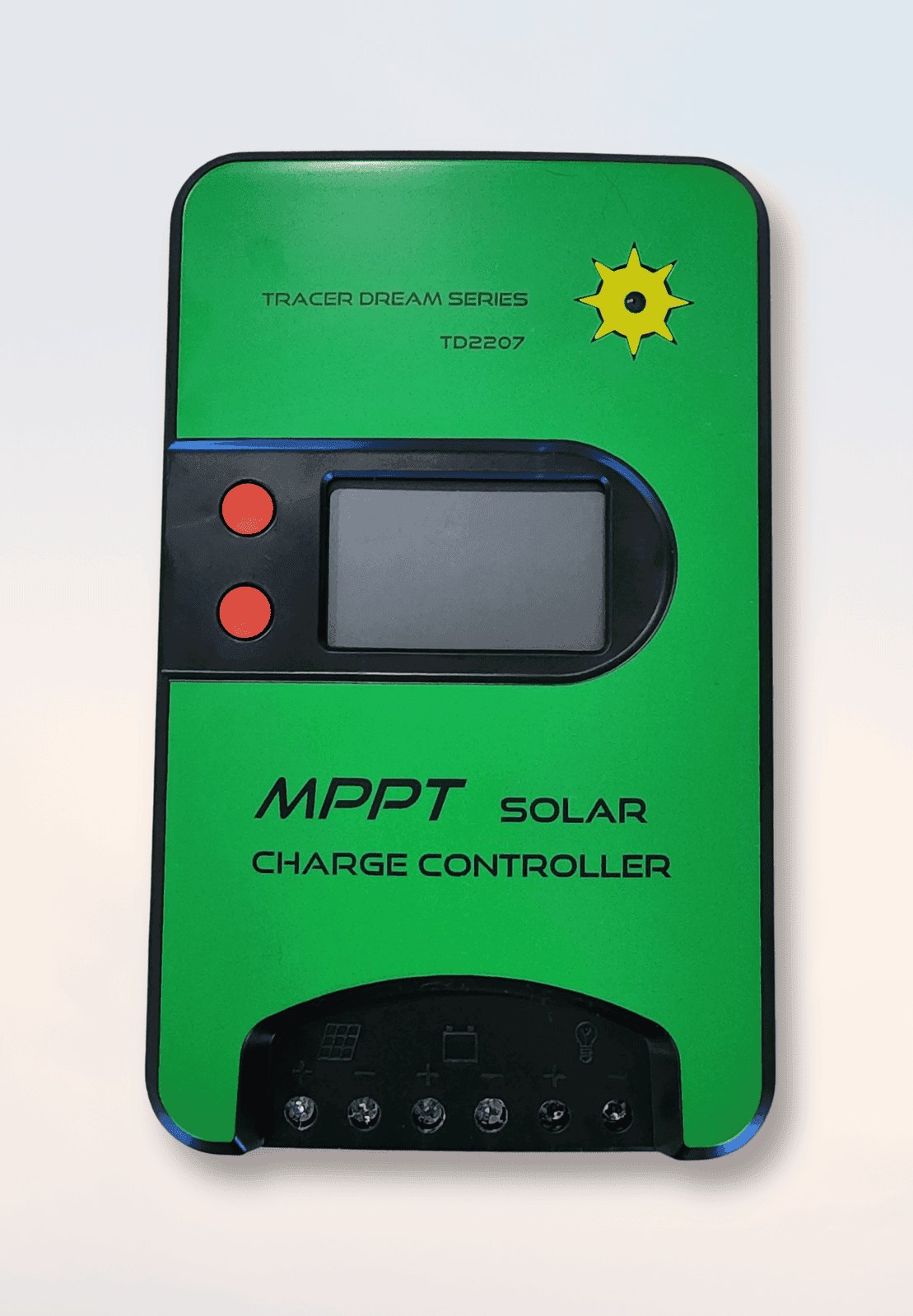

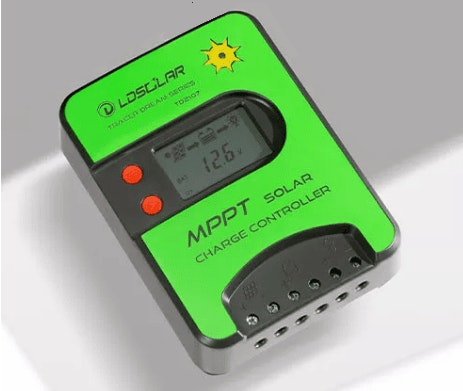

Exotronic Tracer Dream 75V Bluetooth Series: Advanced Solar Charge
Controller
The Tracer Dream 75V Bluetooth Series is engineered with MPPT technology. Its
32-bit CPU ensures stability and high-speed operation. The innovative
Synchronous Rectifier Technology enhances circuit transfer efficiency up to an
impressive 98.5%, while the Pmax tracking accuracy soars to 99.5%. This
ensures the controller quickly identifies the exact Pmax even in rapidly
changing sunlight conditions. It effectively manages extreme weather and weak
sunlight, ensuring maximum performance.
Key Features:
Employs advanced MPPT technology for swift and stable operation. It boasts up to 99.5% efficiency in tracking the Maximum Power Point.
Leverages Synchronous Rectifier Technology , enhancing the circuit transfer efficiency to an exceptional 98.5%.
Successfully identifies and tracks multi-peak power point function and PV array limited power input function, guaranteeing that the controller avoids overloading under any conditions.
Supports a wide Maximum Power Point range of PV array, with a maximum PV input voltage of 75V.
Automatically recognizes 12/24VDC system voltage.
Features a user-friendly LCD display , providing dynamic operation data and working status.
Control and Monitoring:

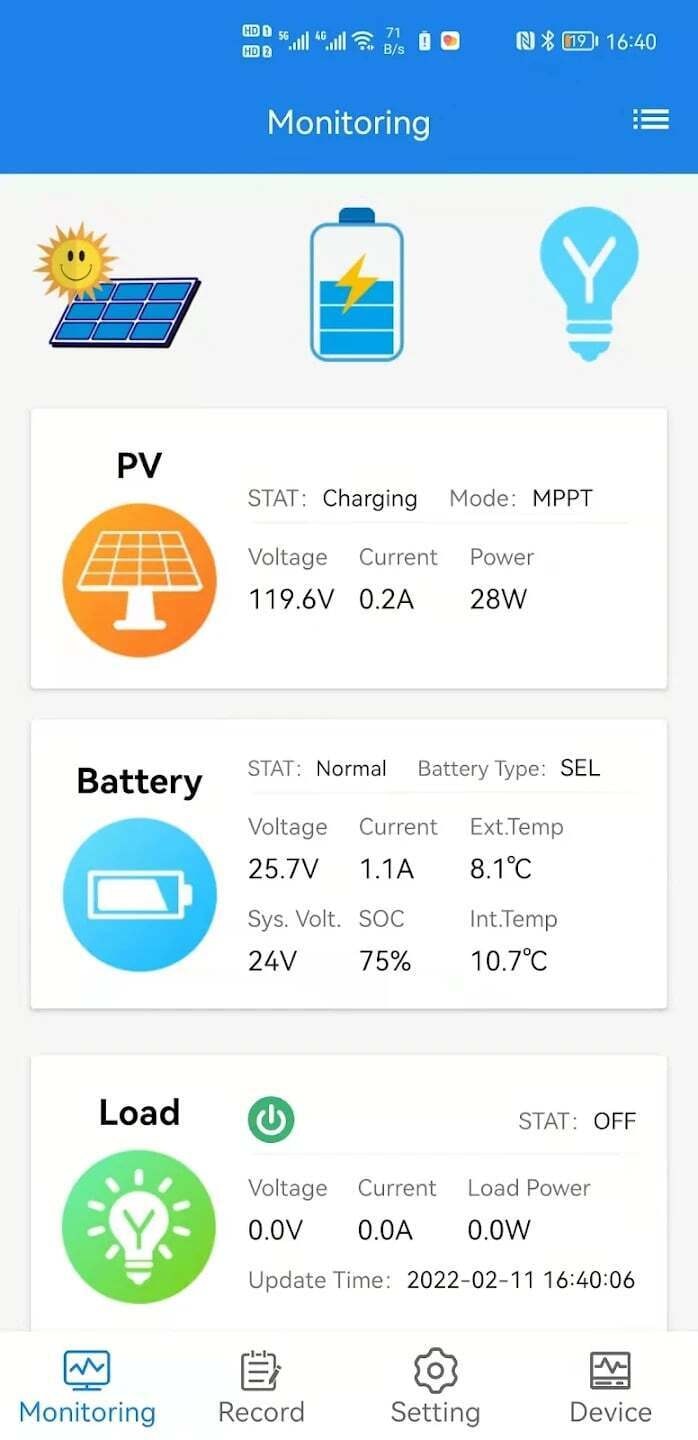

Access the Bluetooth App on your [Apple] or [Android] device by searching for LD iConnect. The default password is 1234.
Incorporates a built-in operation log for comprehensive record-keeping.
Offers multiple Load Output Control modes: Normal Mode, Sensor Mode, and Timer Mode.
Provides a Temperature Compensation Function to mitigate environmental effects.
Offers a charging and discharging accumulation function , alongside real-time power generation display.
Battery Charging and Protection:
Includes a 3-stage charging mode with several chemistry modes: Sealed, Gel, Flooded, Lithium, and many user-adjustable settings (default set to Lithium ).

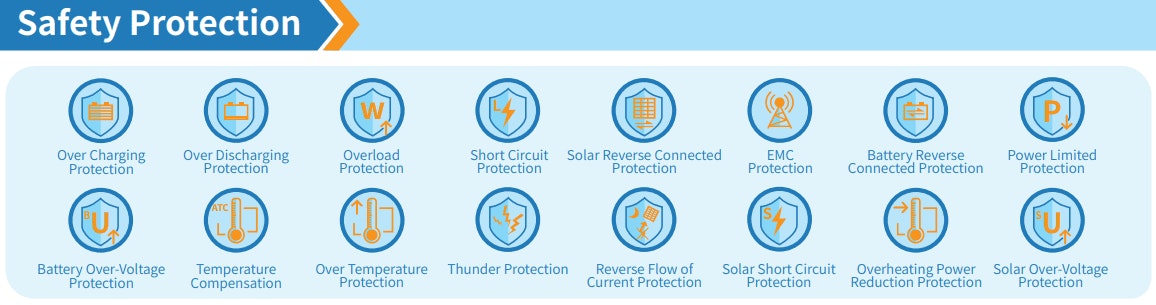

Comprehensive digital protection functions ensure the device's longevity and safety. These include safeguards against reverse connection, overcharging, over-discharging, overvoltage, overload, short circuits, and more.
