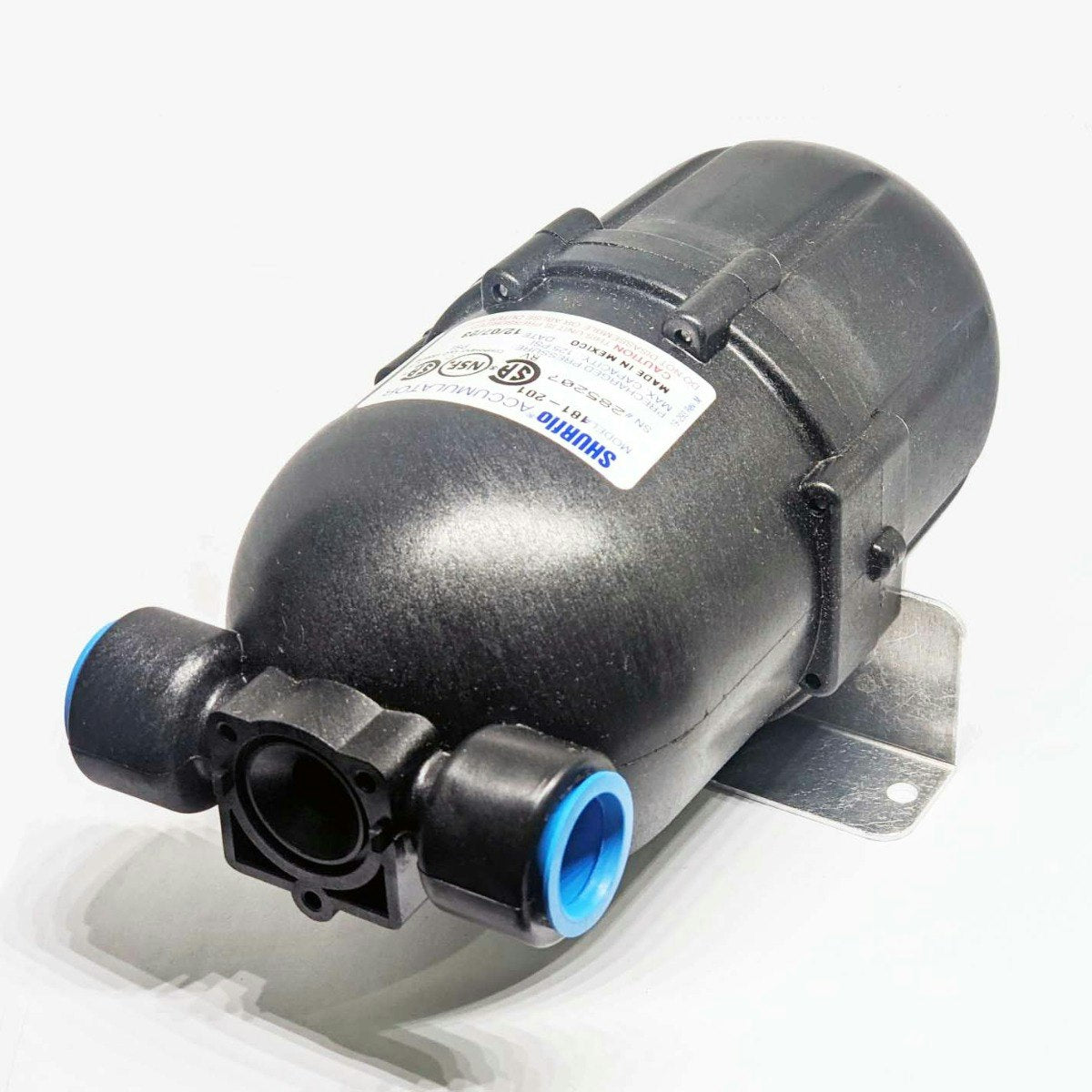

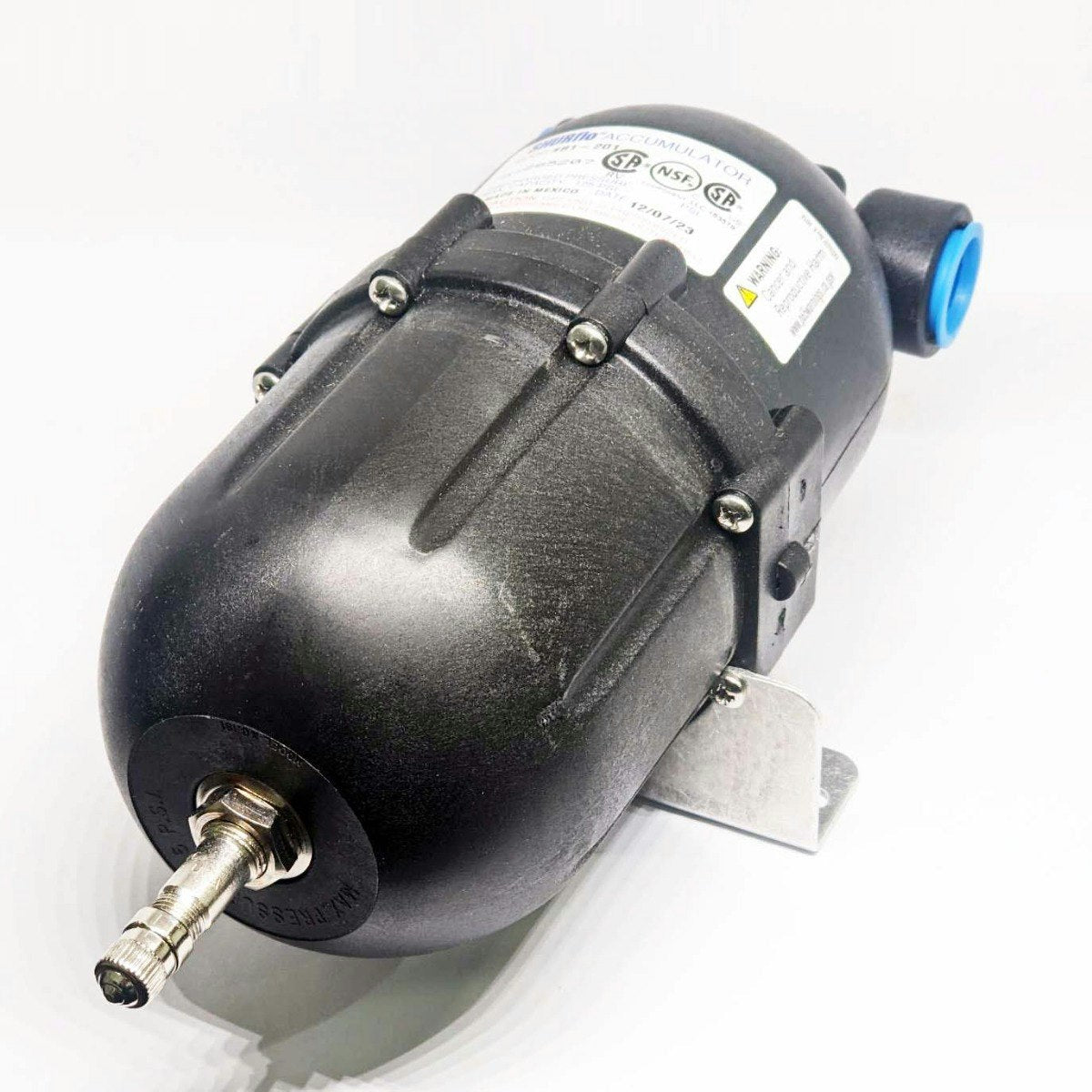

Genuine Shurflo Accumulator Tank 181-201

|

❖Features

Reduce cycling pulsation and pressure spikes, increase the life of your pump—and even save battery power. Easily handles pressure requirements from 20 PSI to 125 PSI.

• Reduces Pump Cycling
• Smooths Water Faucet Pulses
• Pre-Pressurized to 30 PSI with Built-In Diaphragm
• Supported for industrial and marine

|

❖Specifications

Brand | SHURflo
Model | 181-201
Maximum Working Pressure | 125 psi [25 bar]
Pre-Charge Pressure | ACCUMULATORS ARE SHIPPED WITH 0 PSI [0 Bar]. Must be charged before use.
Total Volume: (gas/liquid) | 21 oz. [620 ml]
Temperature Range | 34-120°F [1-49°C]
Diameter | 3 3/4" [95 mm]
Length | 8 3/4" [22cm]
Listings | NSF listed
Housing Material | Nylon
Bladder Material | Butyl
Ports | 1/2-14NPT-F
Snap Fit Ports Fittings | Available in Nylon or SS 1/4", 3/8" and 1/2" barb, straight or 90° elbow. A 3/8" straight Jogn Guest adapter is also available. Refer to Beverage Catalog # MS-060-062 for fitting #x. Std. fittings supplied with SHURflo pumps are 3/8" barb fittings.
Mounting Bracket | Two 7/32" [5.3 mm] holes at 4-1/16" [103mm] centerline apart
Dimensions | 9.1" x 4.8" x 3.8" [232 x 121 x 97 mm]
Manufacturers Warranty | 1 year
