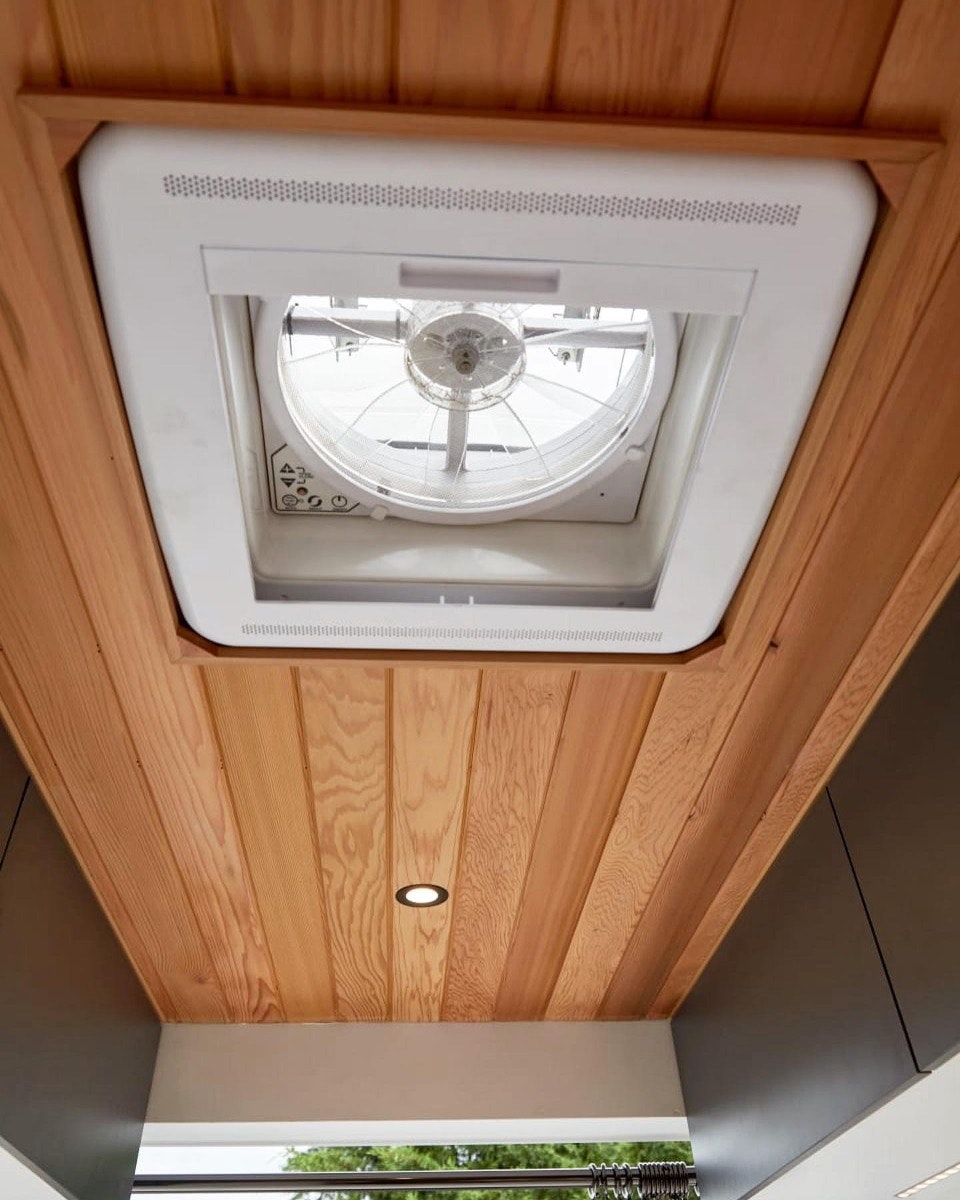

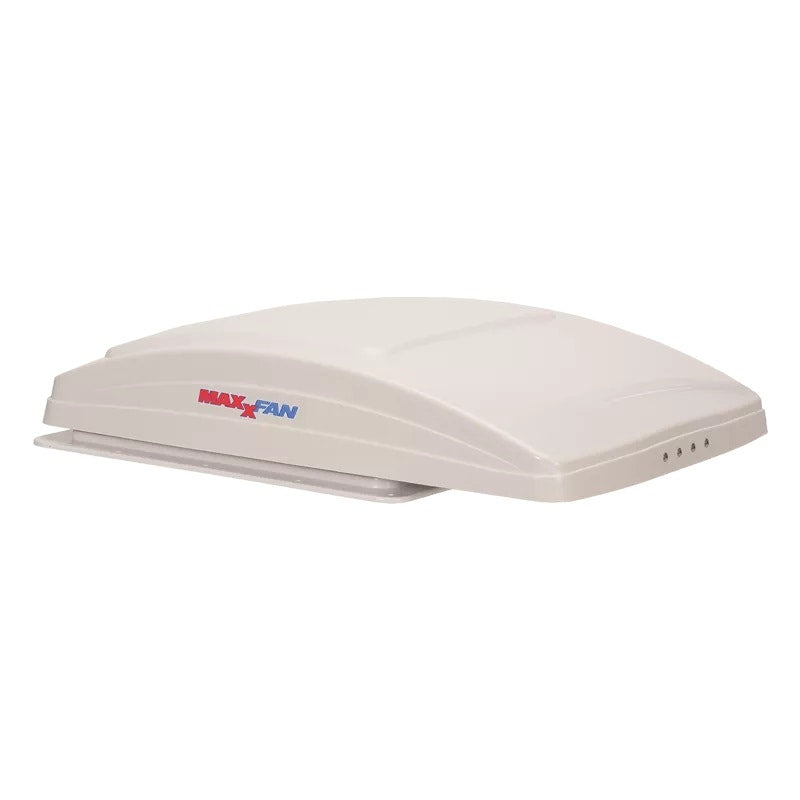

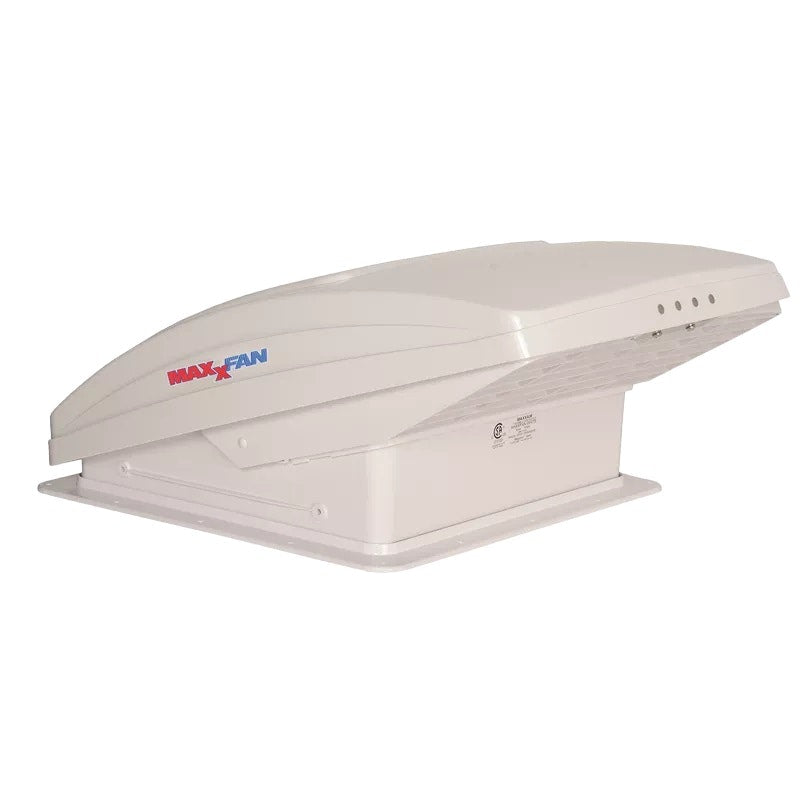

RV ventilation has never been easier than with a MaxxFan. They’ve been used in
the US RV market since 1988, and they are now exclusively available from Coast
to Coast. The MaxxFan Plus and the MaxxFan Deluxe, both have a manual option

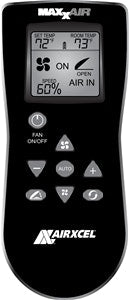

and an electric opening option, and they also have a ceiling mounted control
panel that is easy to use and read.
Product Description

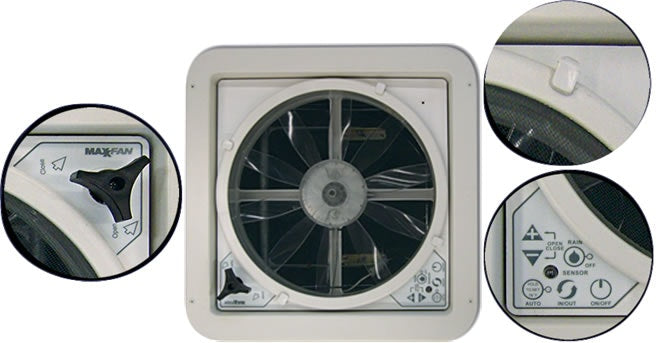

Removable flyscreen – simply twist the L-clamps and remove for cleaning!
Installs onto all standard 14” x 14” (356mm x 356mm) roof openings
Powerful 10-speed fan motor
Fan can run even if the lid is closed (select ‘Ceiling Fan Mode’) and can be used in “intake” and “exhaust” modes
Provides over 900CFM, keeping your RV cool and comfortable
Twin lifting arms limit vibrations cause by wind when in the ‘open’ position
Specifications
Amp Draw on High: 2.5A
Amp Draw on Low: 0.16A
Dimensions (closed): 589L x 421W x 128H (mm)
Dimensions (open): 589L x 421W x 230H (mm)
Installed Weight: 5.4kg
Roof Thickness: 25mm (min) – 90mm (max)
|
❖Specifications
Brand | MAXXAIR
Model | MAXXFAN Deluxe
Amp Draw on High | 2.5A
Amp Draw on Low | 0.16A
Weight | 5.4kg
Dimension (closed) | 589(l) x 421(w) x 128(h) mm
Dimension (open) | 589(l) x 421(w) x 230(h) mm
Permanent Airflow | 82cm Squared
Roof Thickness | 22mm (min) - 90mm (max)
Warranty | 2 year
