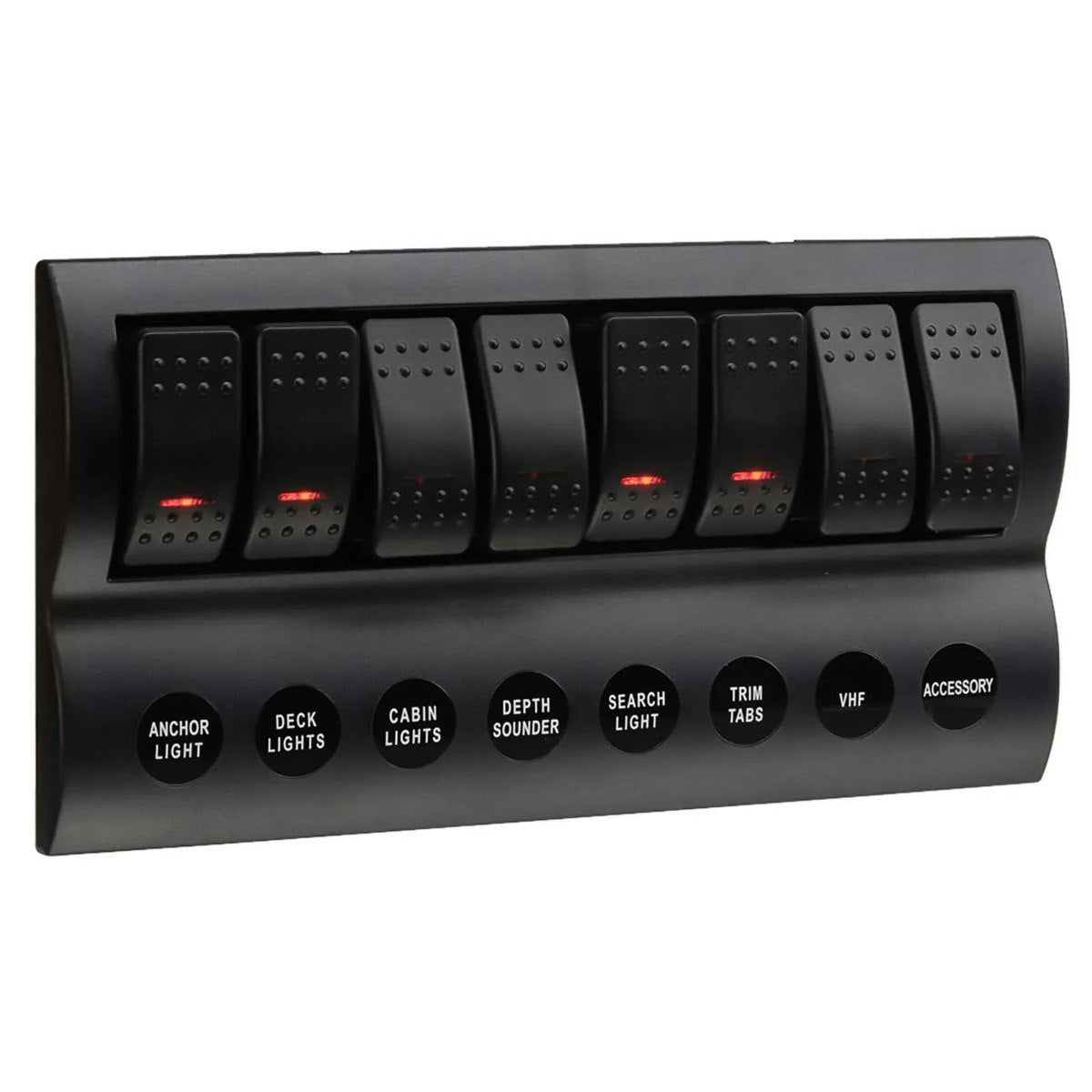

Narva 63196 8-Way LED Switch Panel with Fuse Protection

|

❖Features

8-Way LED Switch Panel with Fuse Protection

Part No. 63196

A Large, Sealed switch panel with 'on' illumination ideal for RV and marine applications

• 8 LED illuminated off/on switches
• Customisable panel with symbols
• Switch fascia fully sealed against dust & water ingress
• Horizontal or vertical mounting

|

❖Specifications

Brand | Narva
Model | 93196
Switch Detail | SPST, 'ON' illumination
Current Draw | Amperage rating 20A at 12V, 10A at 24V
LEDs | 38
Comprises | 8 Off/On switches with red ‘On’ illumination.; 46 piece symbol set for RV and Marine applications included;
Mounting Opening | 209 x 93 mm
Overall Panel Dimensions | 250 x 120 mm
Shipping Weight | 0.55kg
Shipping Dimensions(mm) | 250 x 130 x 90
