Leon Cycle is the manufacturer of NCM and ET.Cycle Electric Bikes. Buy from
Leon Cycle & we will guarantee for our product quality, & warranty.
Do you want to avoid traffic jams and still arrive quickly and safely at your
destination? Then our E-Trekking and City Bikes are just the thing for you.

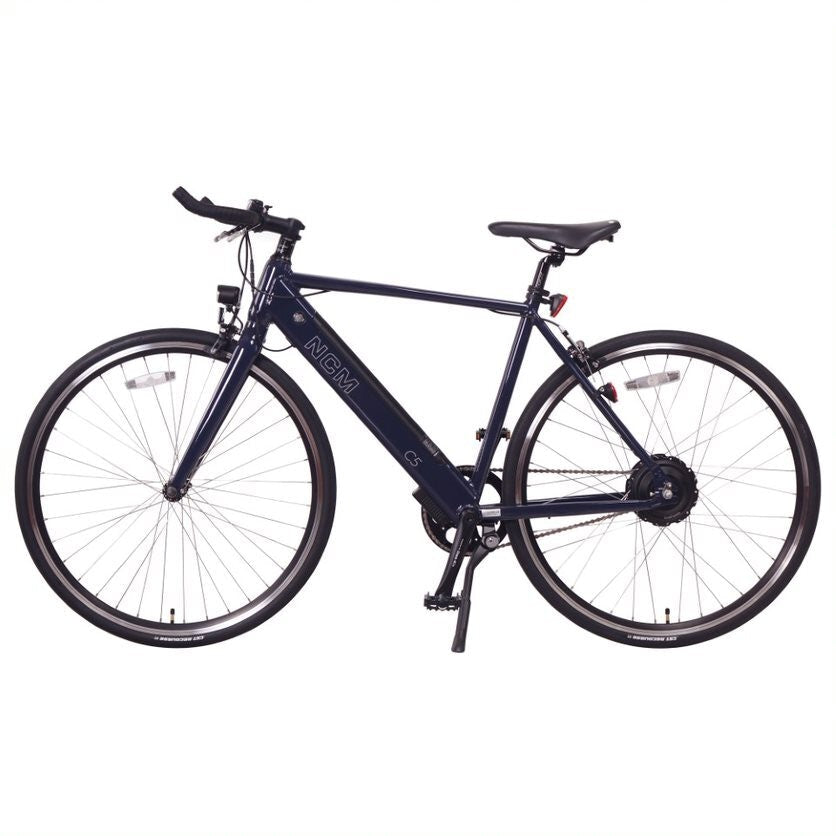

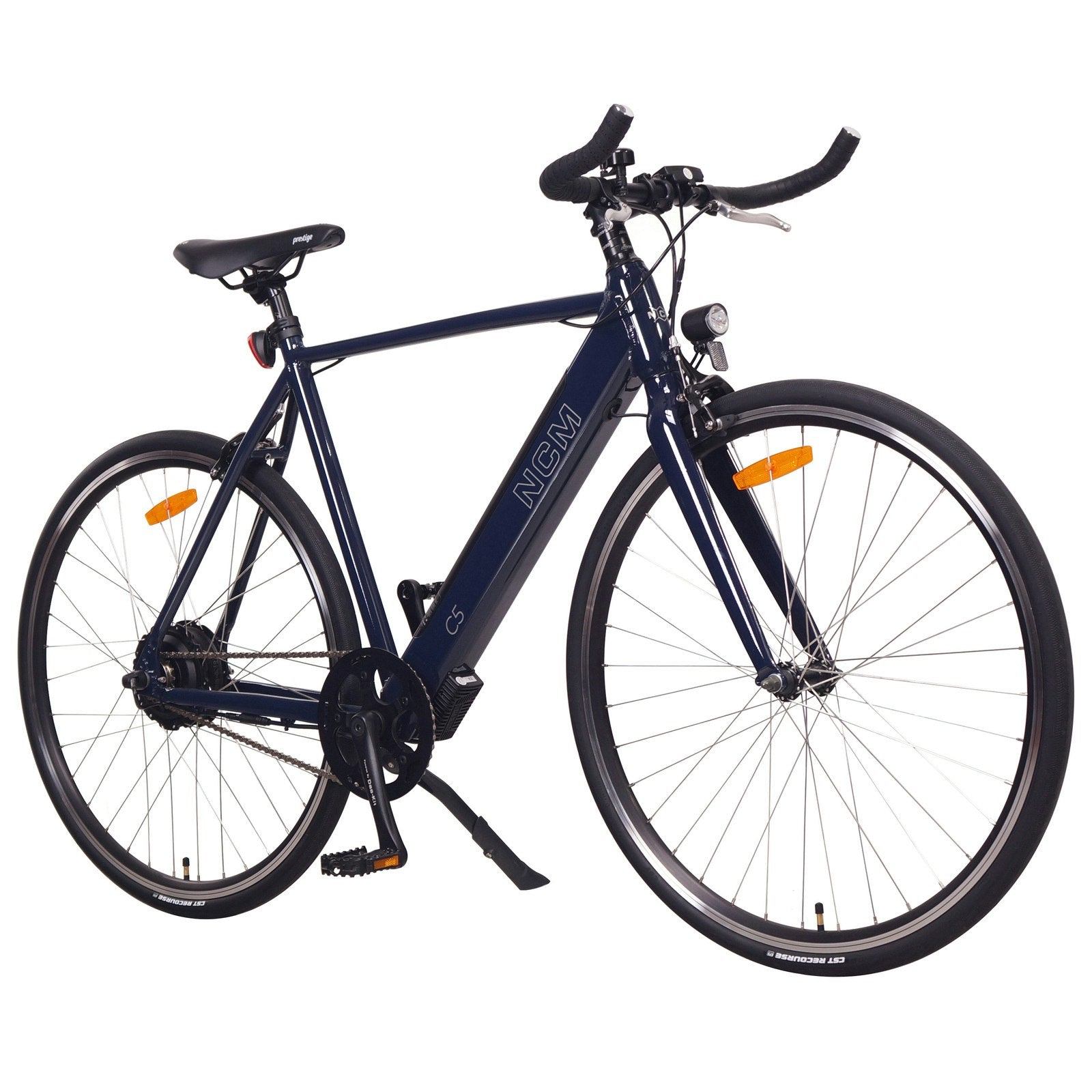

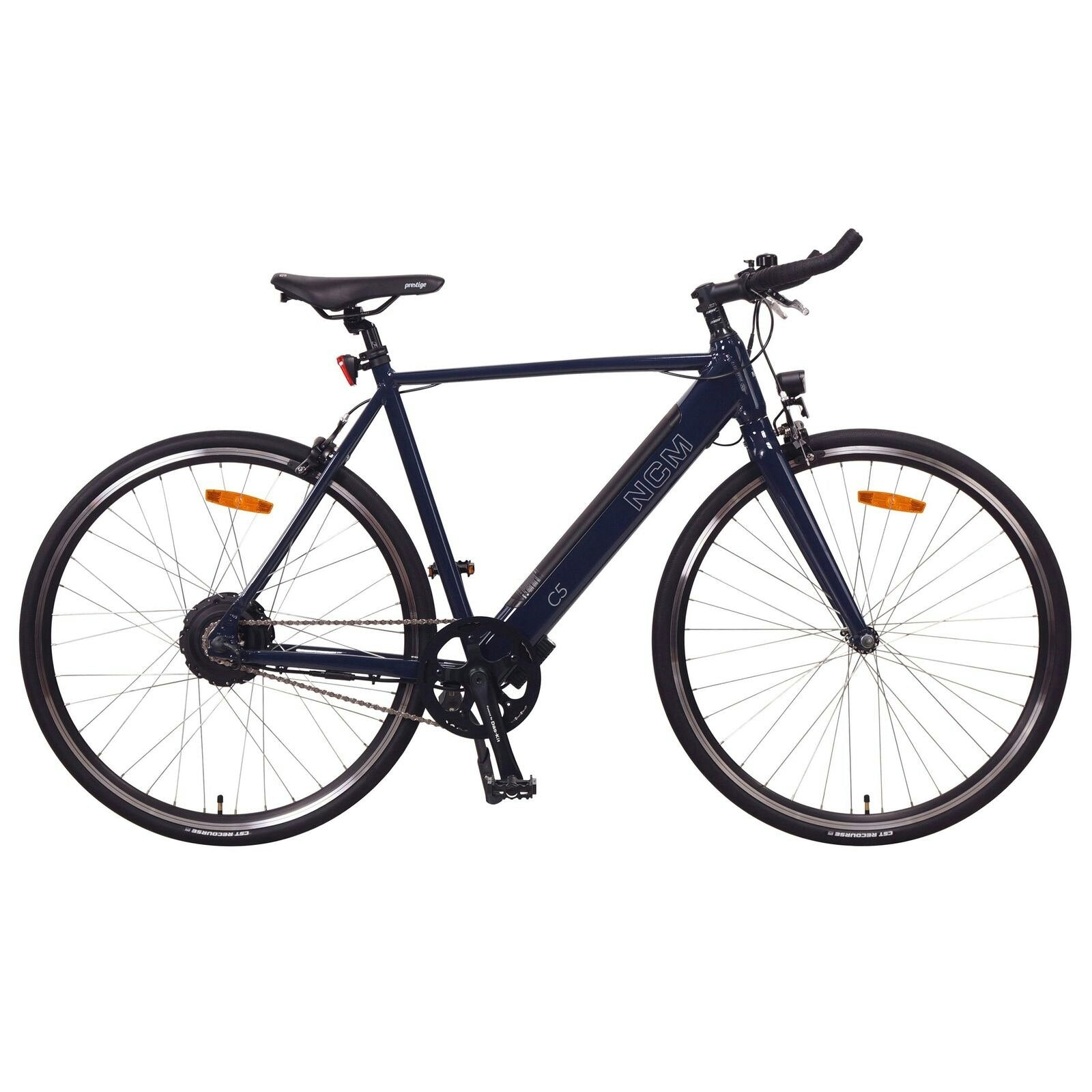

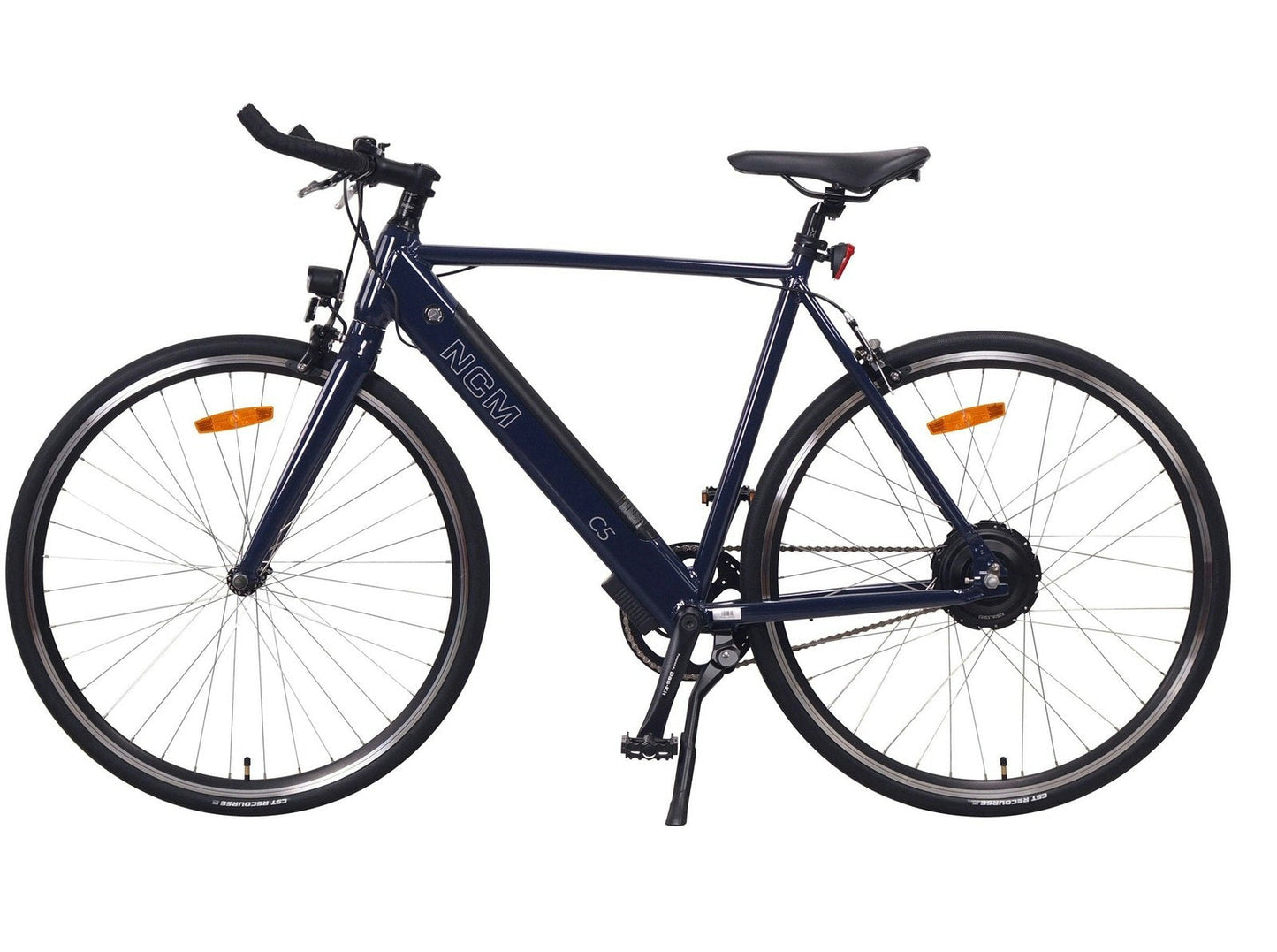

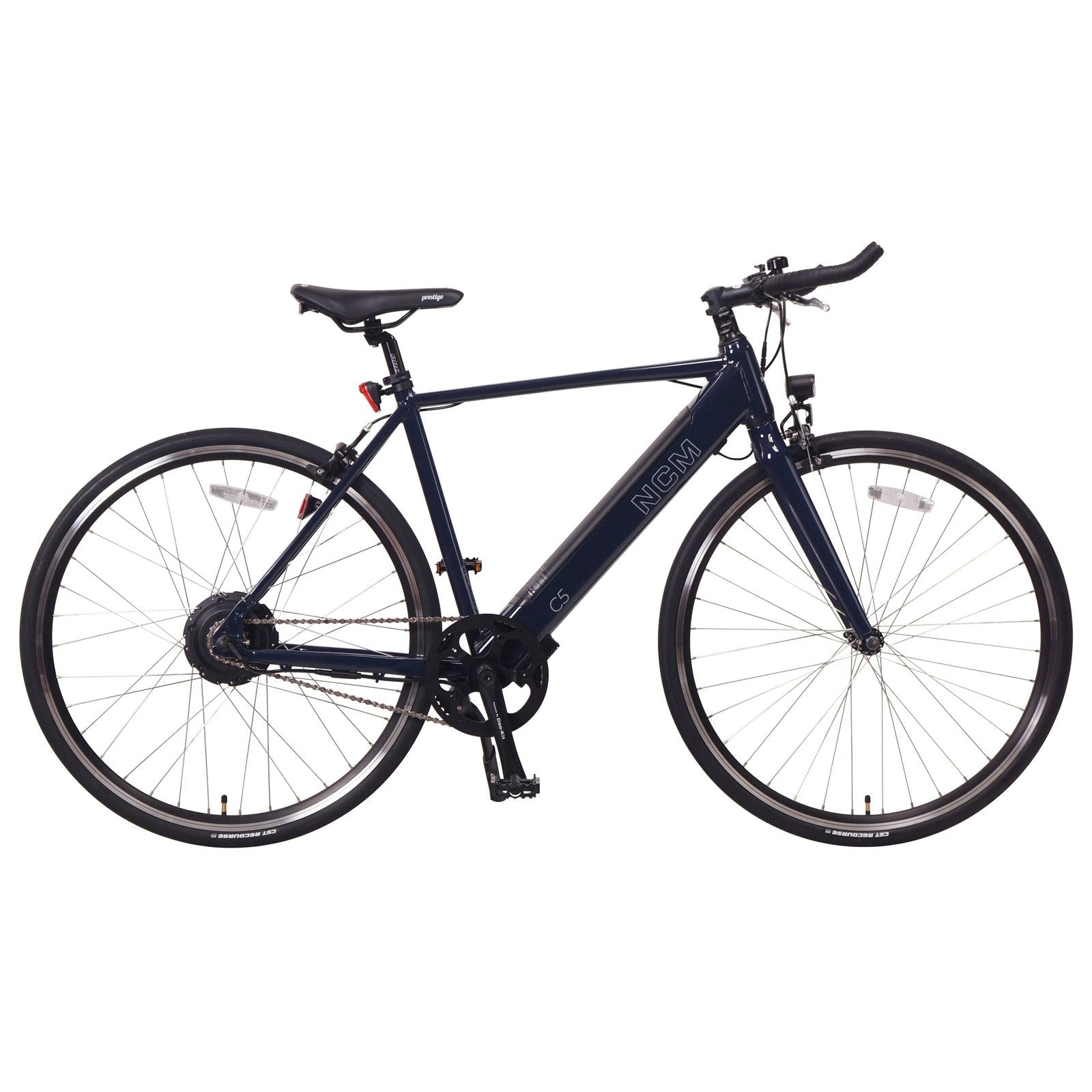

Roadworthiness, comfort and elegance are the main features of our NCM C5
Electric City Bike.
Minimal Design, Maximal Performance. The NCM C5 is a fully equipped E-bike for
city commutes. Whether you are trying to get to work on time, while being
sweat-free, or need to rush to your favorite place in style, the all-new NCM
C5 lets you cover your daily journeys with ease. This Electric bicycle is

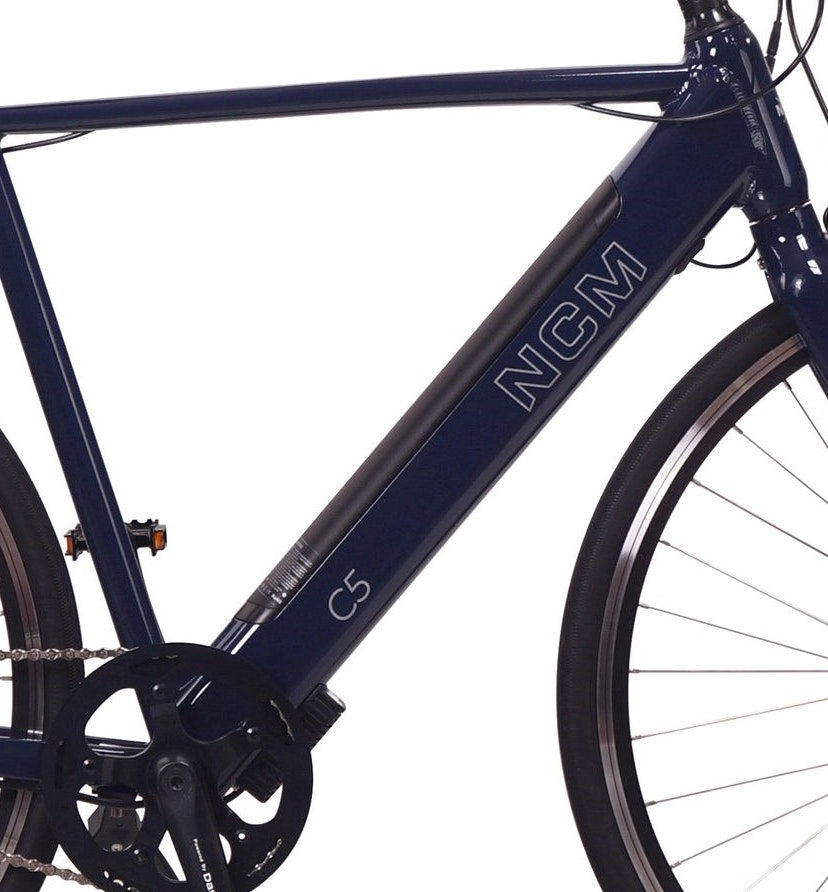

designed with a tough aluminum frame and a strong rigid handlebar and saddle
for improved ergonomics and performance. The high-top tube makes the bike
sturdy and strong allowing the power you put down to be effectively
transferred to the road. This electric bicycle is the lightest e-bike on the
market.
Upgraded to Torque Sensor Technology, the NCM C5 Pedal assist model activates
the intelligent drive system delivering and distributing the 350W peak power
being put into the pedals rather than simply the number of revolutions. Give
you power when you need it most with a smooth and silent ride. The NCM C5
comes with Das-Kit 36V, 12Ah, 432Wh long-lasting battery that will give you
reach *up to 100km *per charge.
General Information
Load capacity: Max. 125kg
Maximum speed: 25km/h
Range: Upto 100km (Depending on the conditions)
Battery Information
Lithium-ion Battery
Model: i6-3612A
Ratings: 36V, 12Ah, 432Wh
Electric Parts

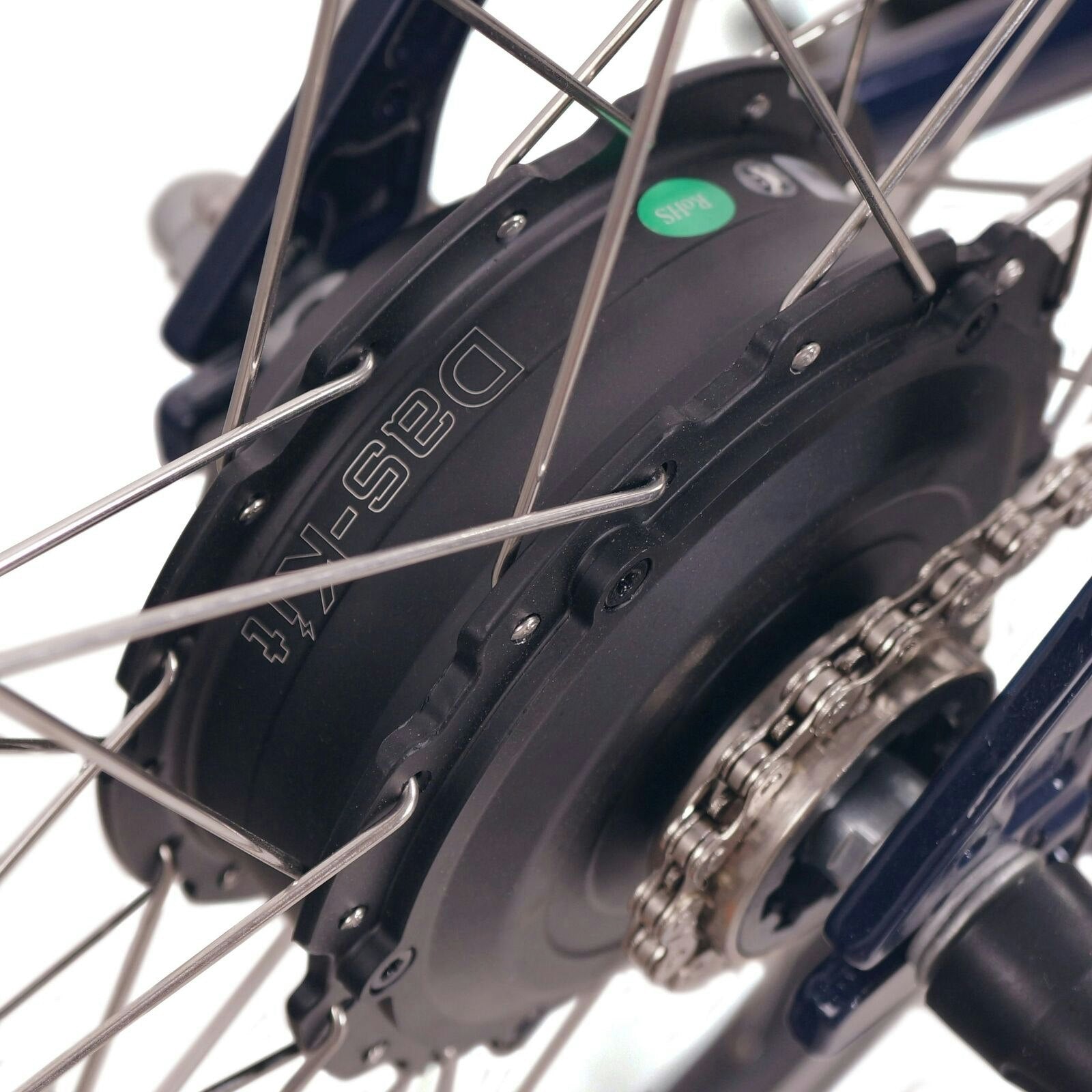

Motor: Das kit, X2, 36V 250W-350W, 25km/h
Battery: I6-3612A, 36V12AH, 432WH
Charger: Das-Kit, DC363, 36V3A (EESS Number: E2022081360)
Display: Das-kit E2
Controller: T6, 36V15A

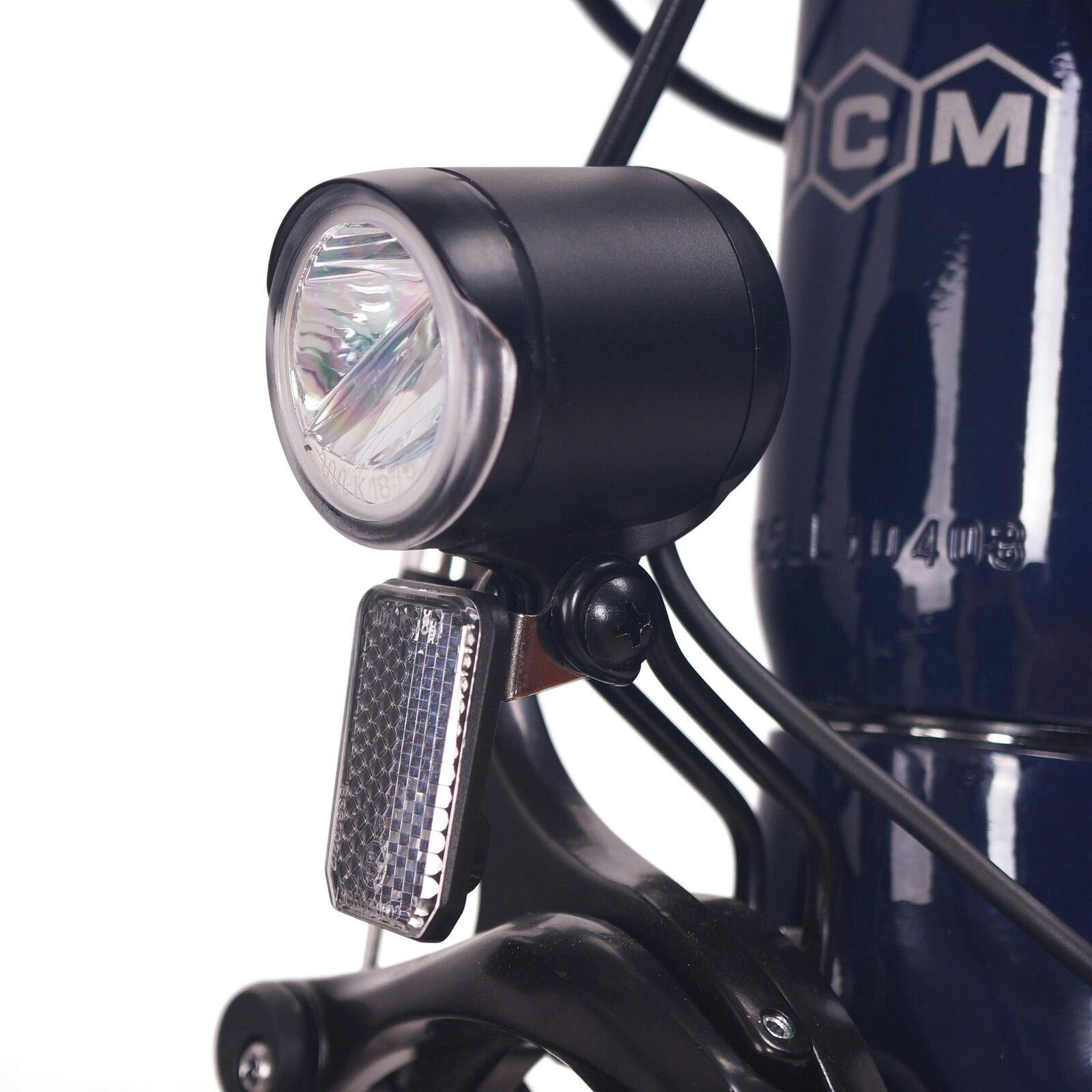

Front Light: DH002
Rear Light: DR004
Bike Parts
Frame: Alu. 6061, 560MM
Fork: ZF, 5058-02, 27.5'', rigid fork

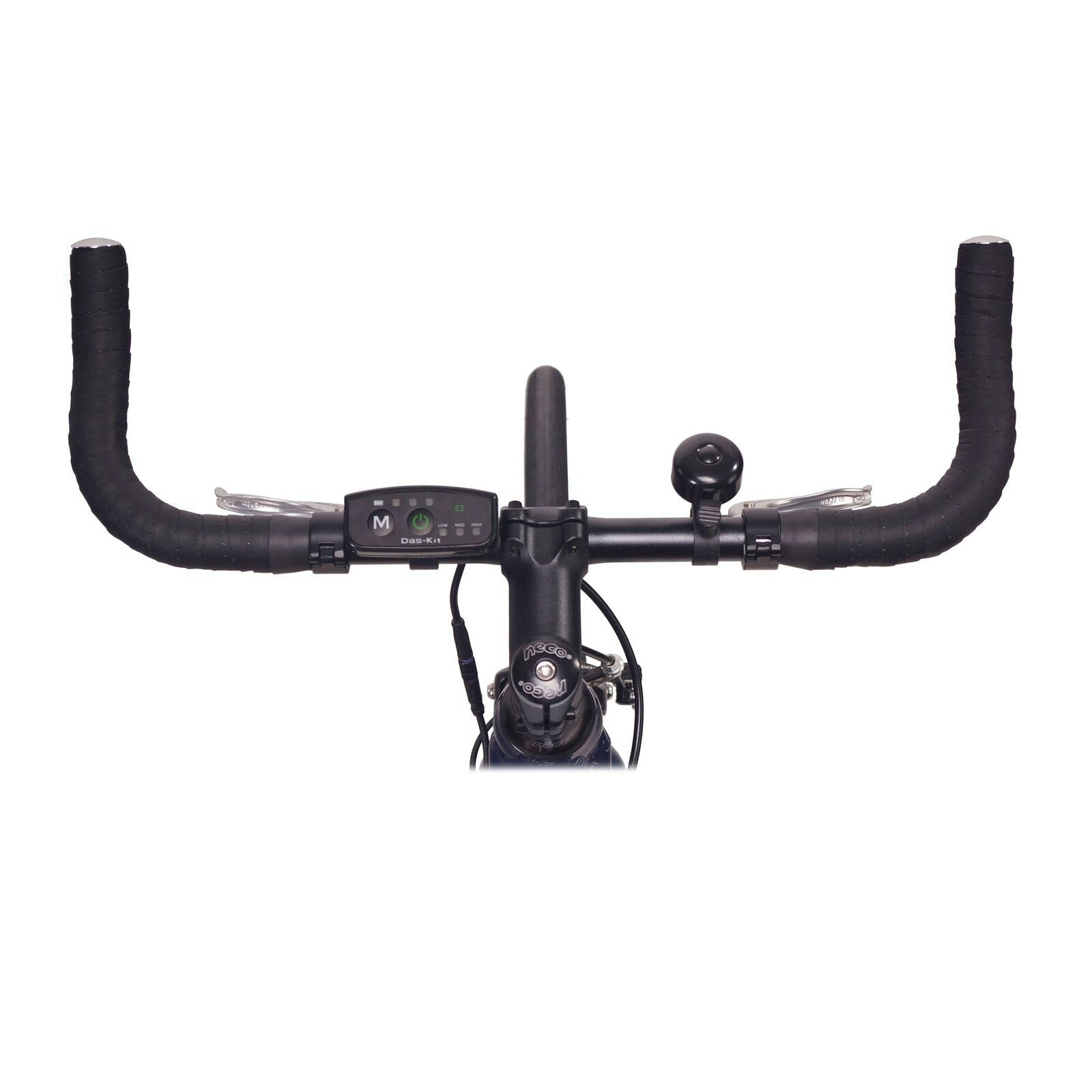

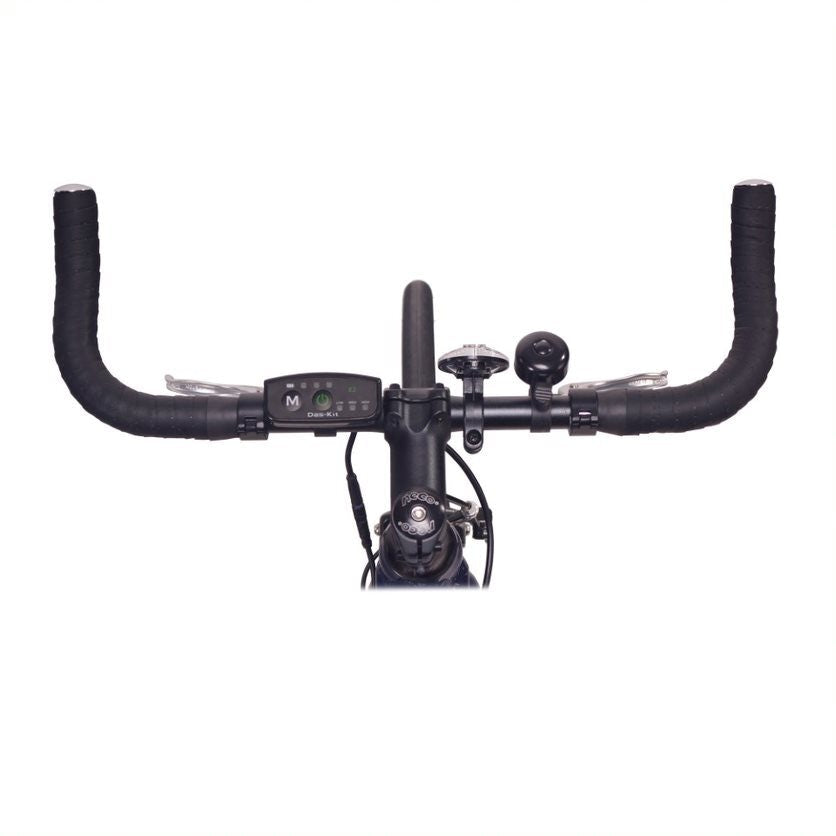

Handlebar: FQ 455mm
Stem: HP-HD75－8
Head Set: NECO, H384M
Brake Lever: Tektro RL570

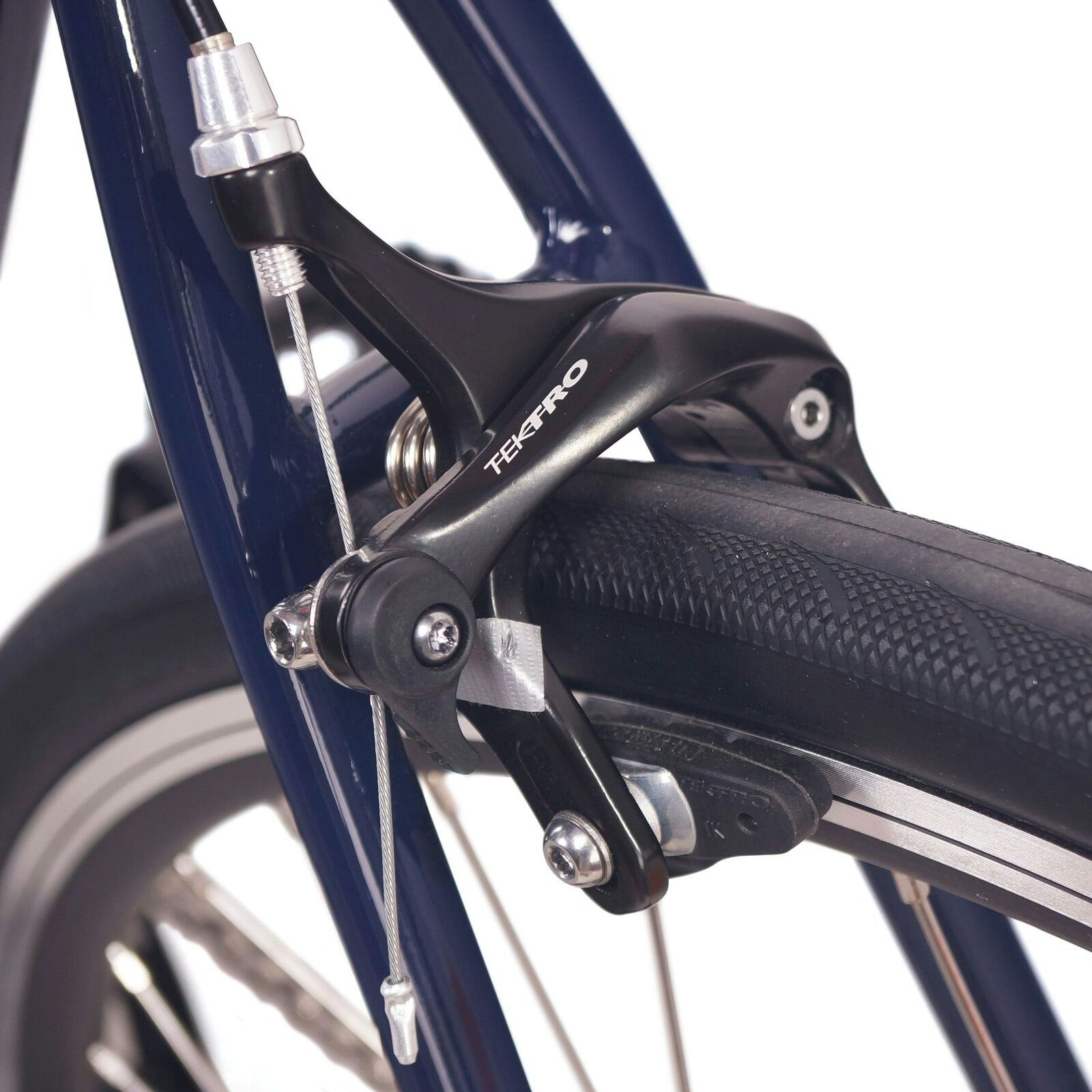

Brakes: F/R: Tektro Dual pivot caliper Brakes, R315
Crank: Prowheel, 46T, Black
Chain: KMC
Freewheel: LY-BB16T8VNF, Single Speed
Tire: CST, C1808，70030c （Black)
Saddle: Selle Royal, Prestige-1307URN (Black)
Seat Post: Promax, Alu., SP-252, 27.2350MM, Black
Seat Clamp: Zoom, AT-83
Grip: VELO,VLT-2019HD2-R
Pedal: Wellgo，C280DU
Kickstand: Leisger
Manufacturer Warranty
- Leon Cycle provides 1-year warranty on all electronic parts (including battery, motor, controller, display, and lights)
- Leon Cycle provides a 2-years warranty on the bike frame. For more warranty information visit our FAQs.
- Apart from manufacturing defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but may be replaced on a case-by-case basis within the first 6 months.
- Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.
* Disclaimer: *Once you received the e-bike, we recommend having it
assembled by a professional in bike shops near you and also get your bike
serviced after 1 month of use to ensure all aspects of the bike are set and
calibrated correctly.
