Leon Cycle is the manufacturer of NCM and ET.Cycle Electric Bikes. Buy from
Leon Cycle & we will guarantee for our product quality, & warranty.
Maximum flexibility! That's what our electric folding bikes offer you.
Pleasant rides over long distances and easy transport by tram, bus, train or
car? With its 20-inch wheels and compact design, our folding bikes fold to the
size of handy luggage, making them easy to carry. Take anywhere. Store
anywhere.

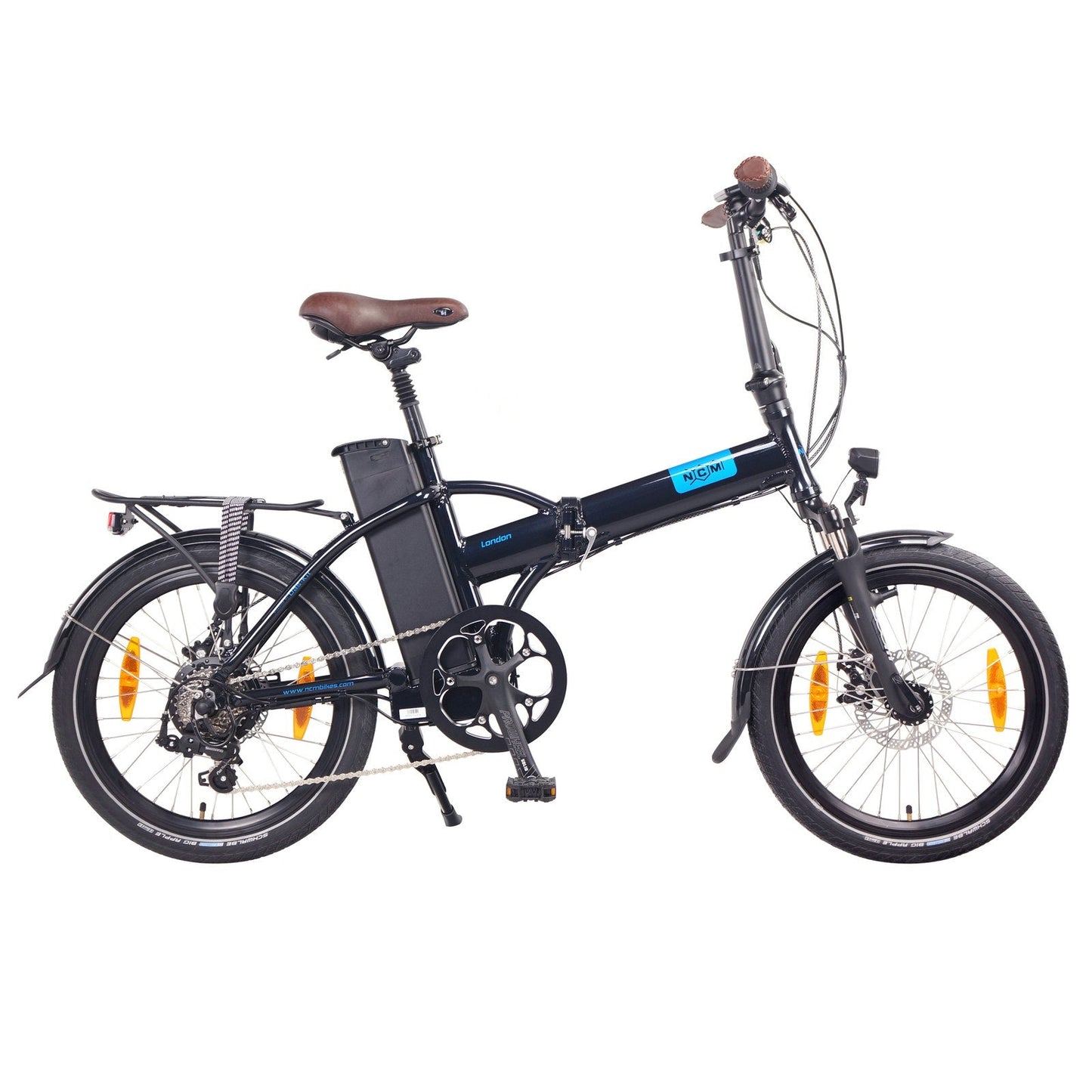

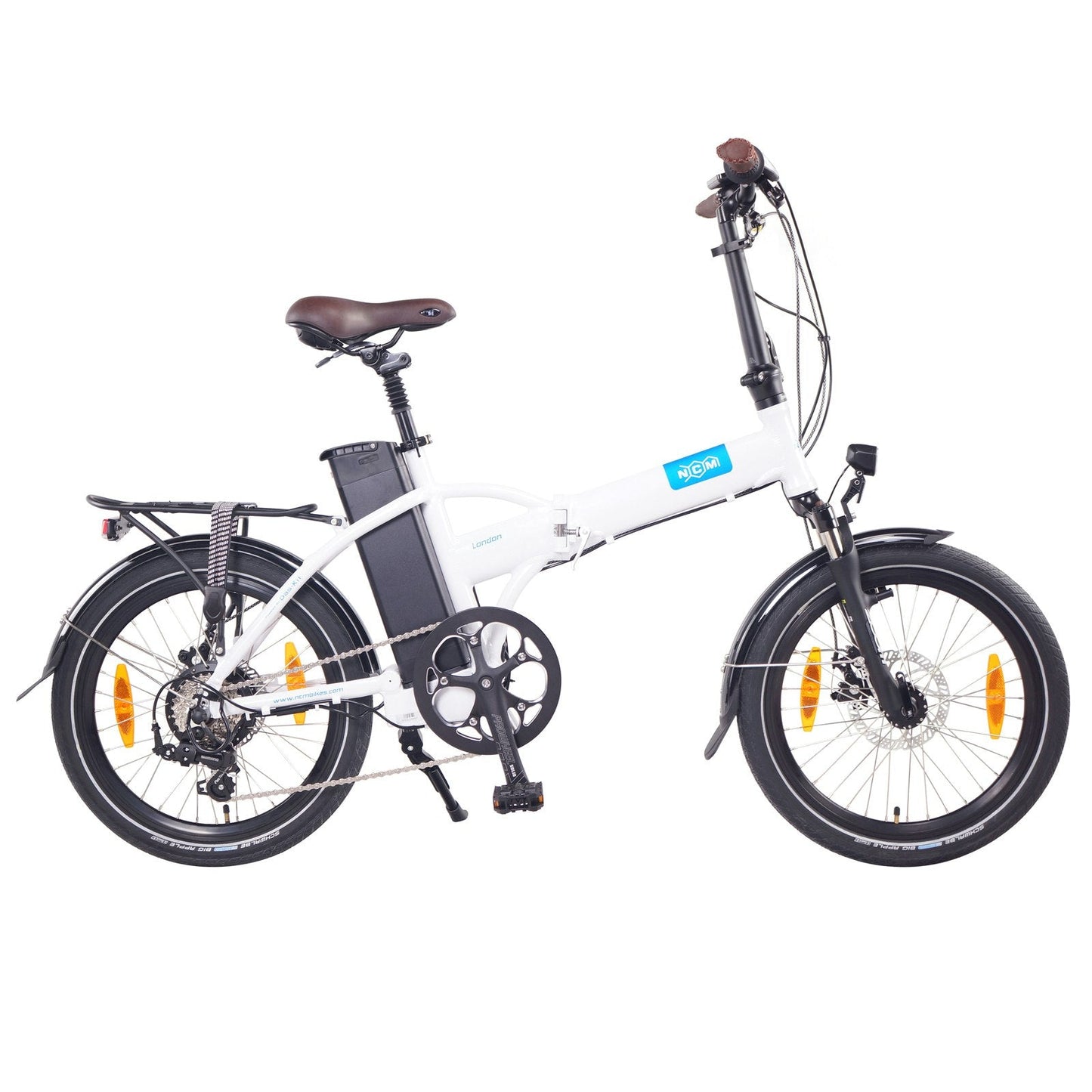

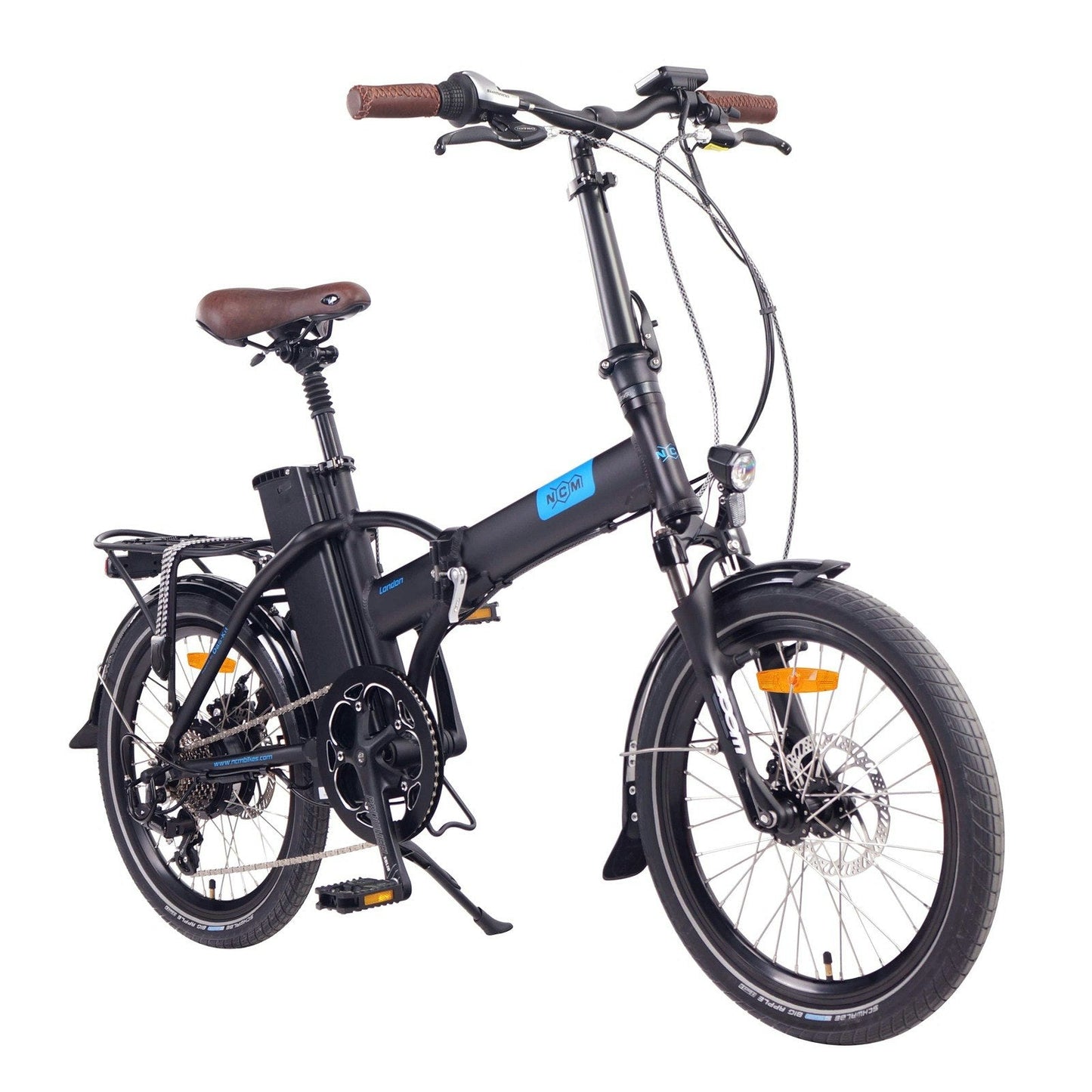

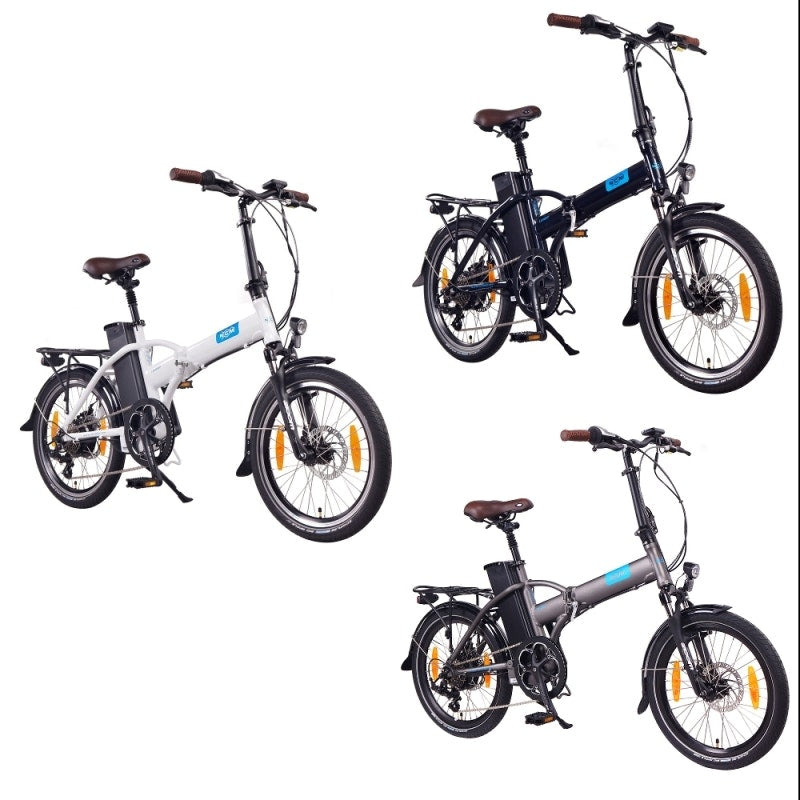

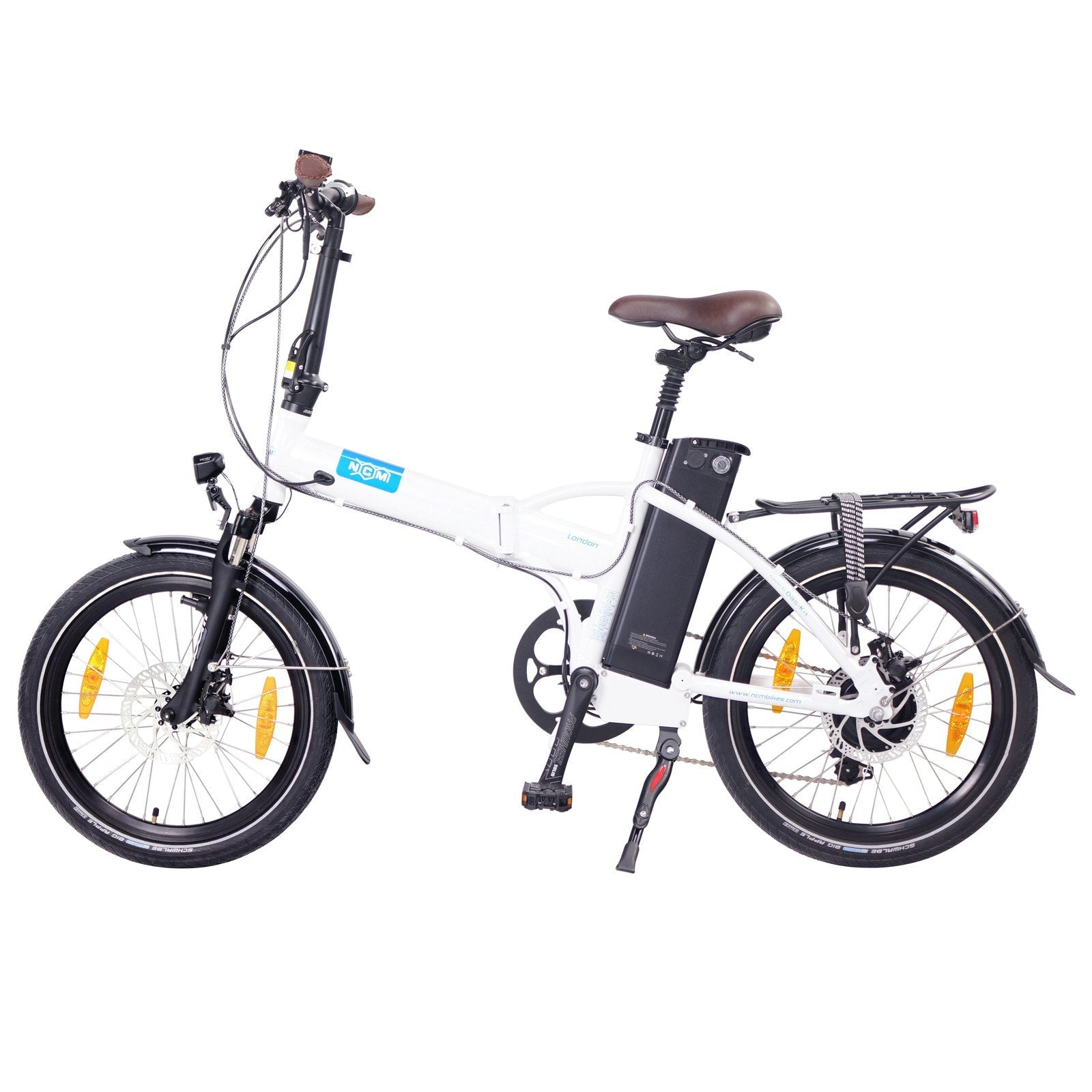

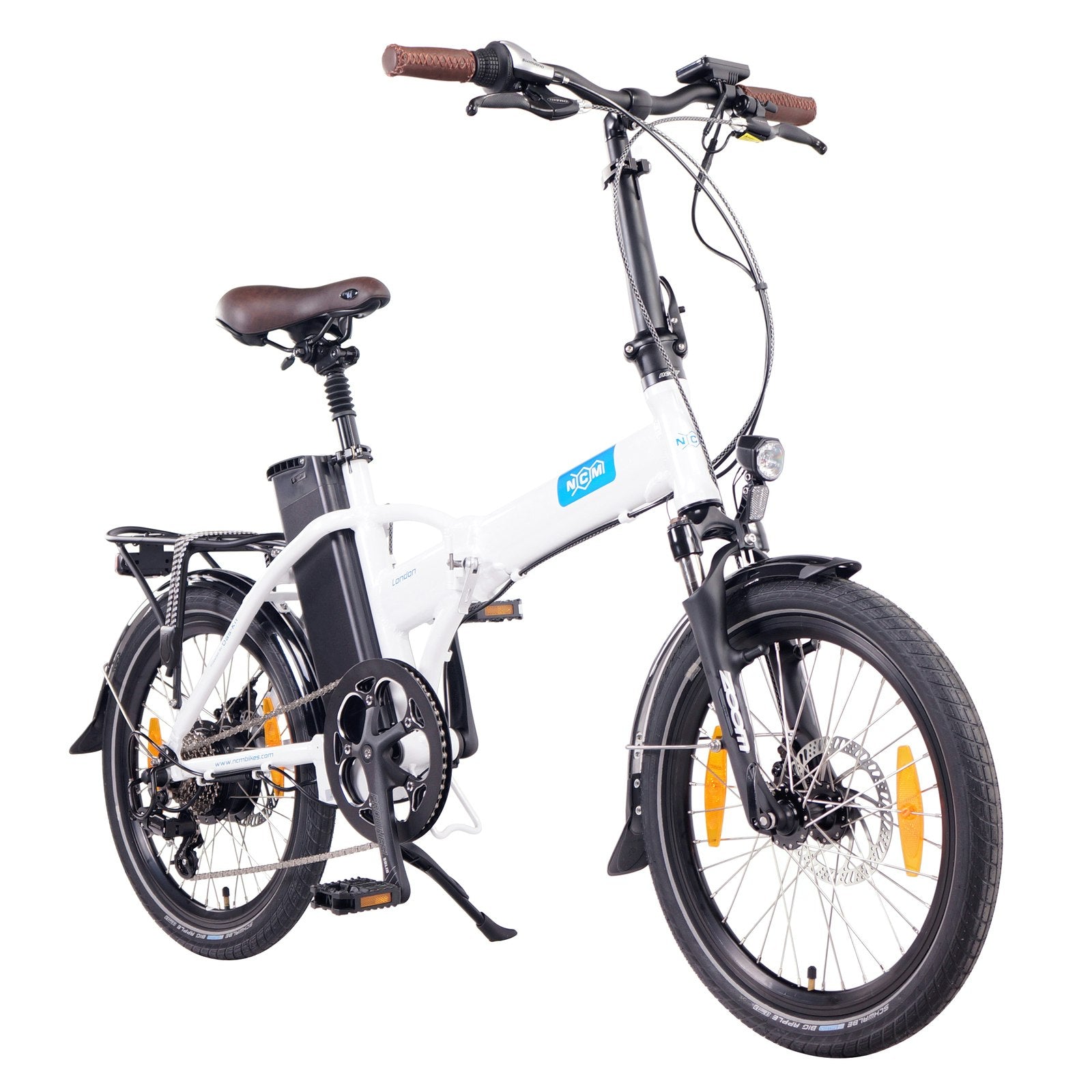

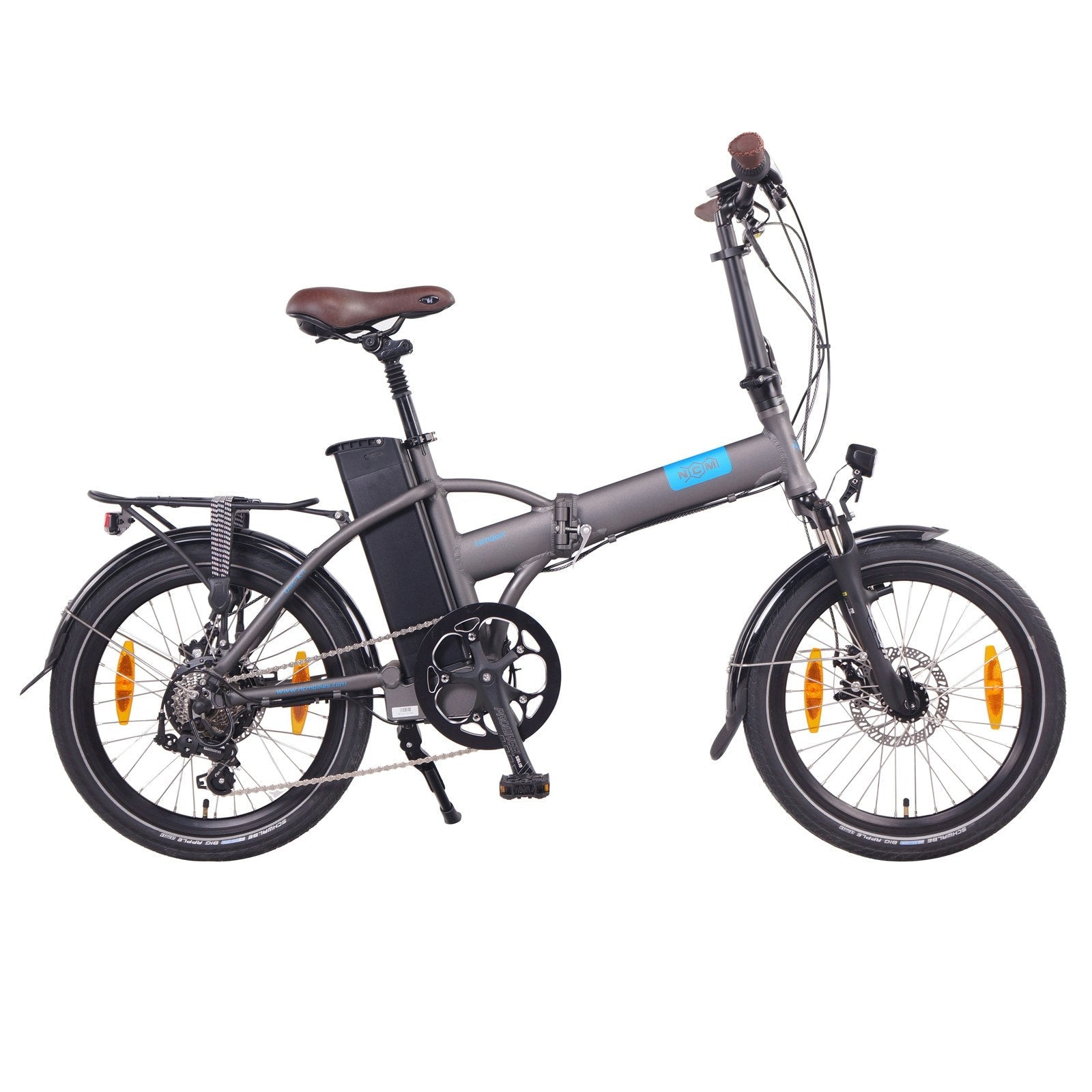

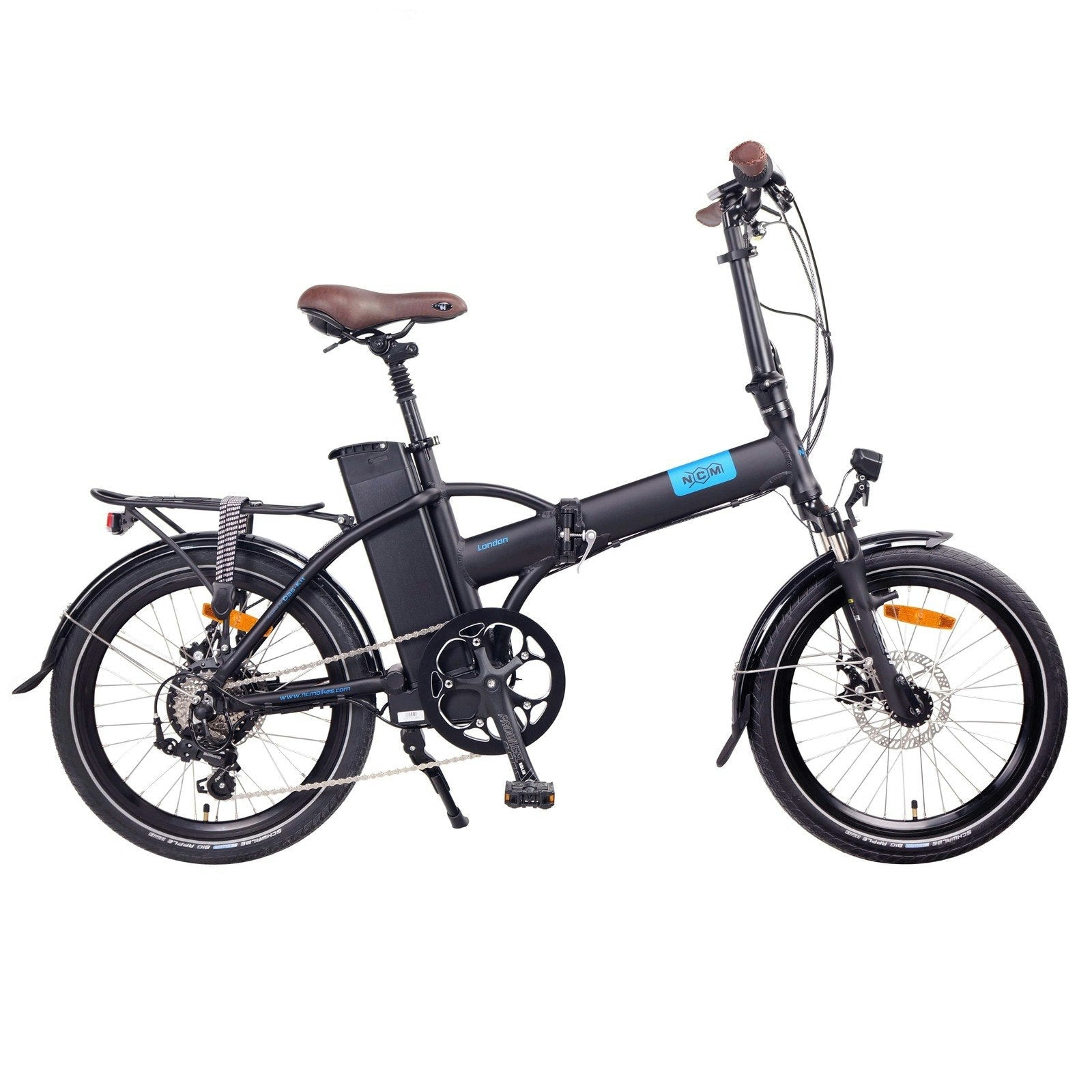

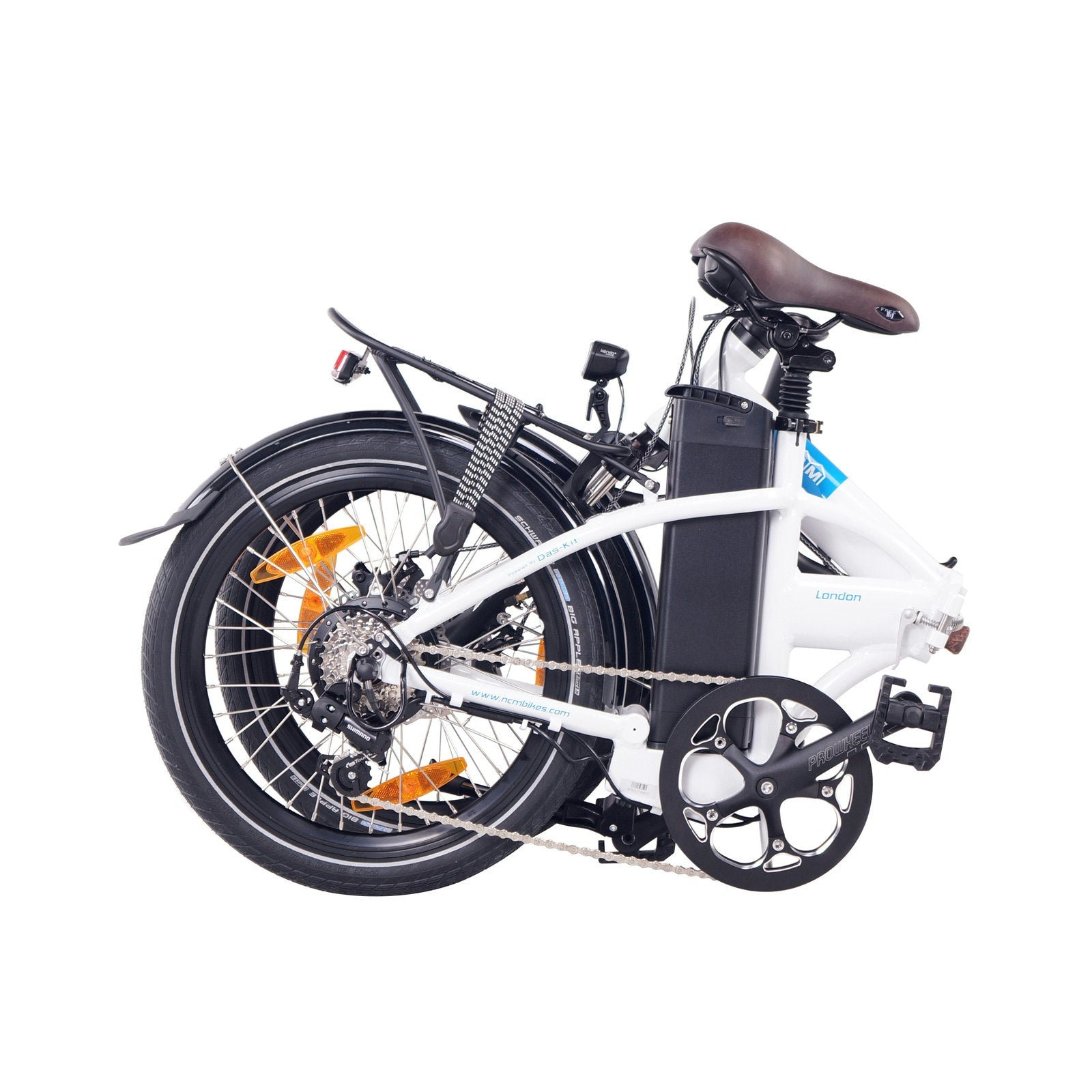

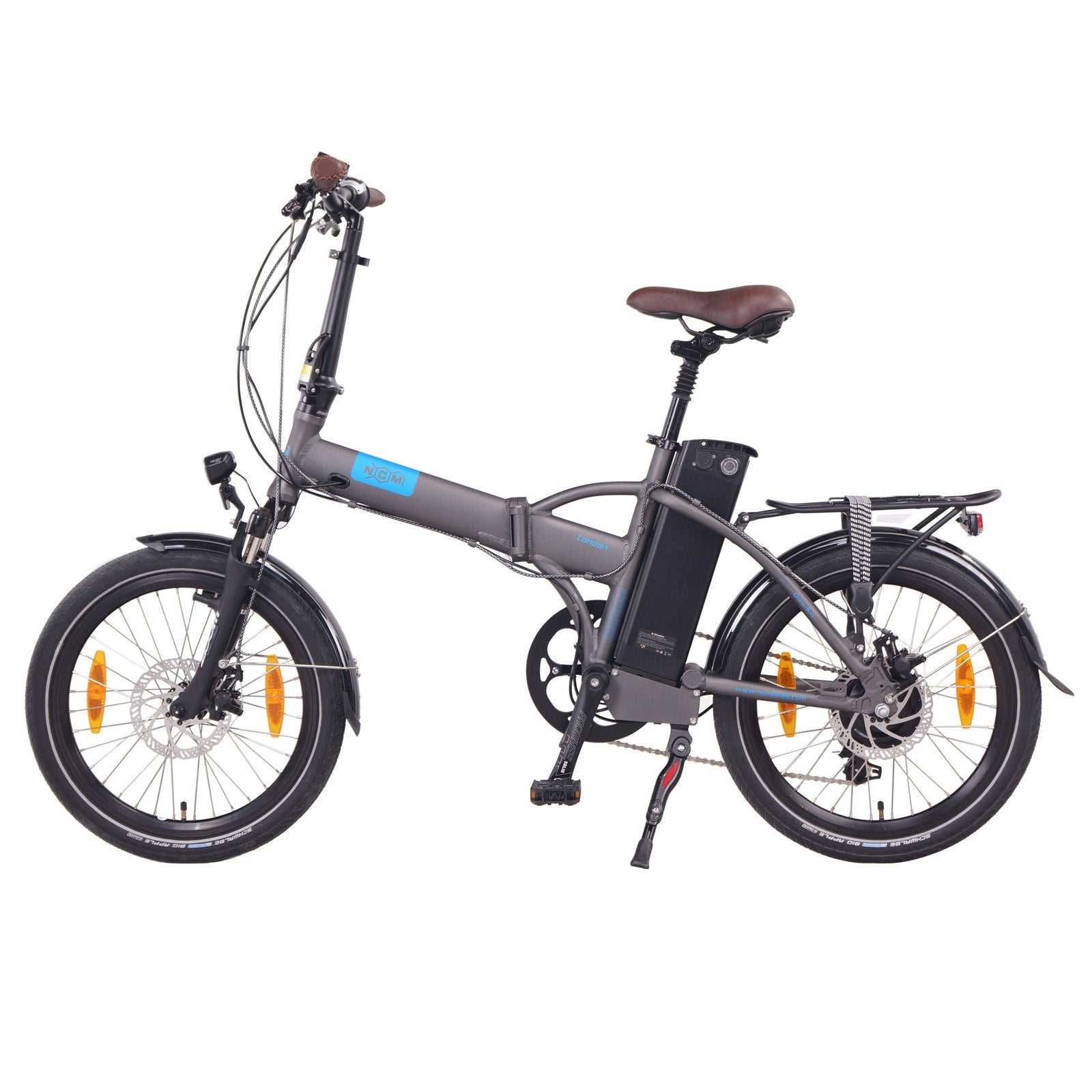

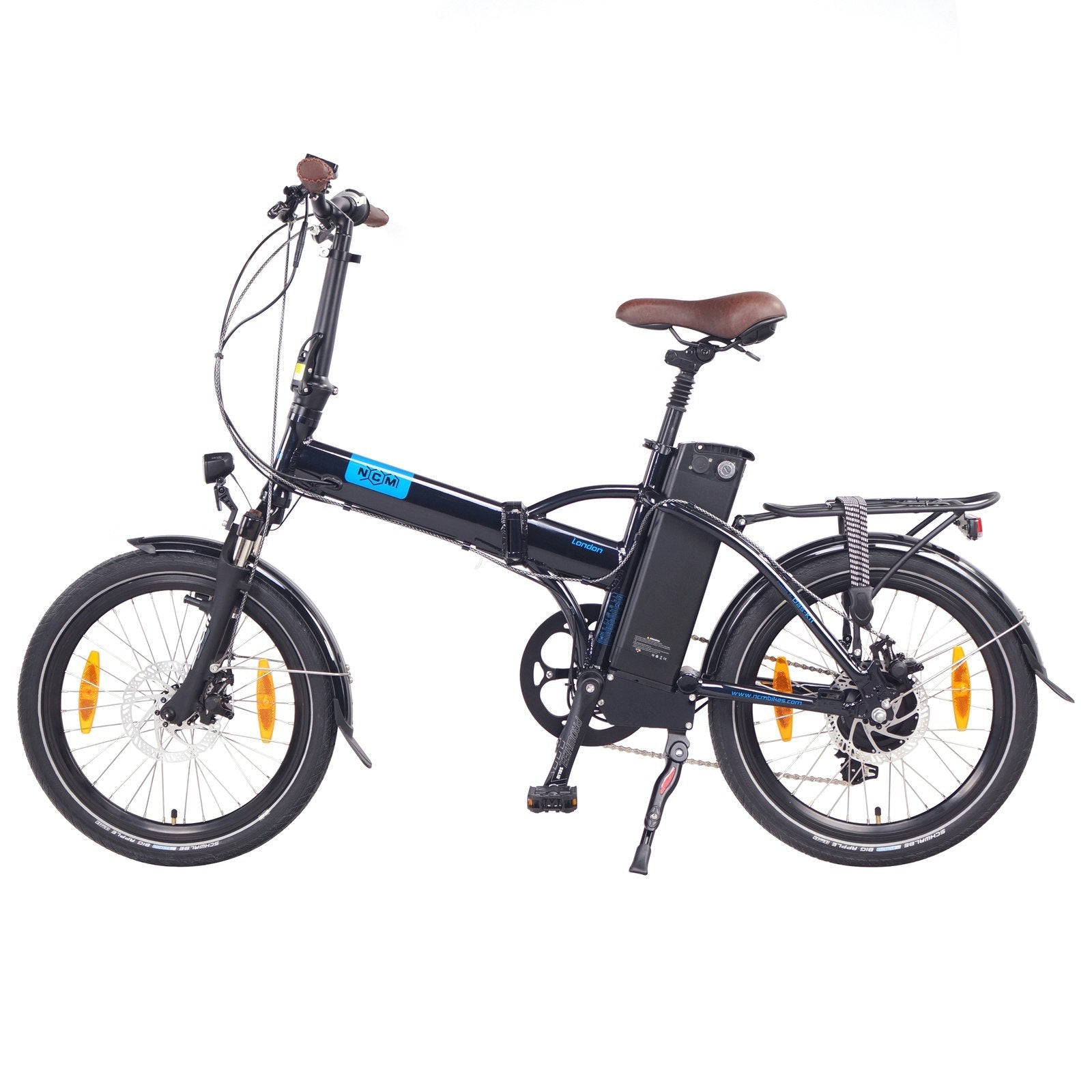

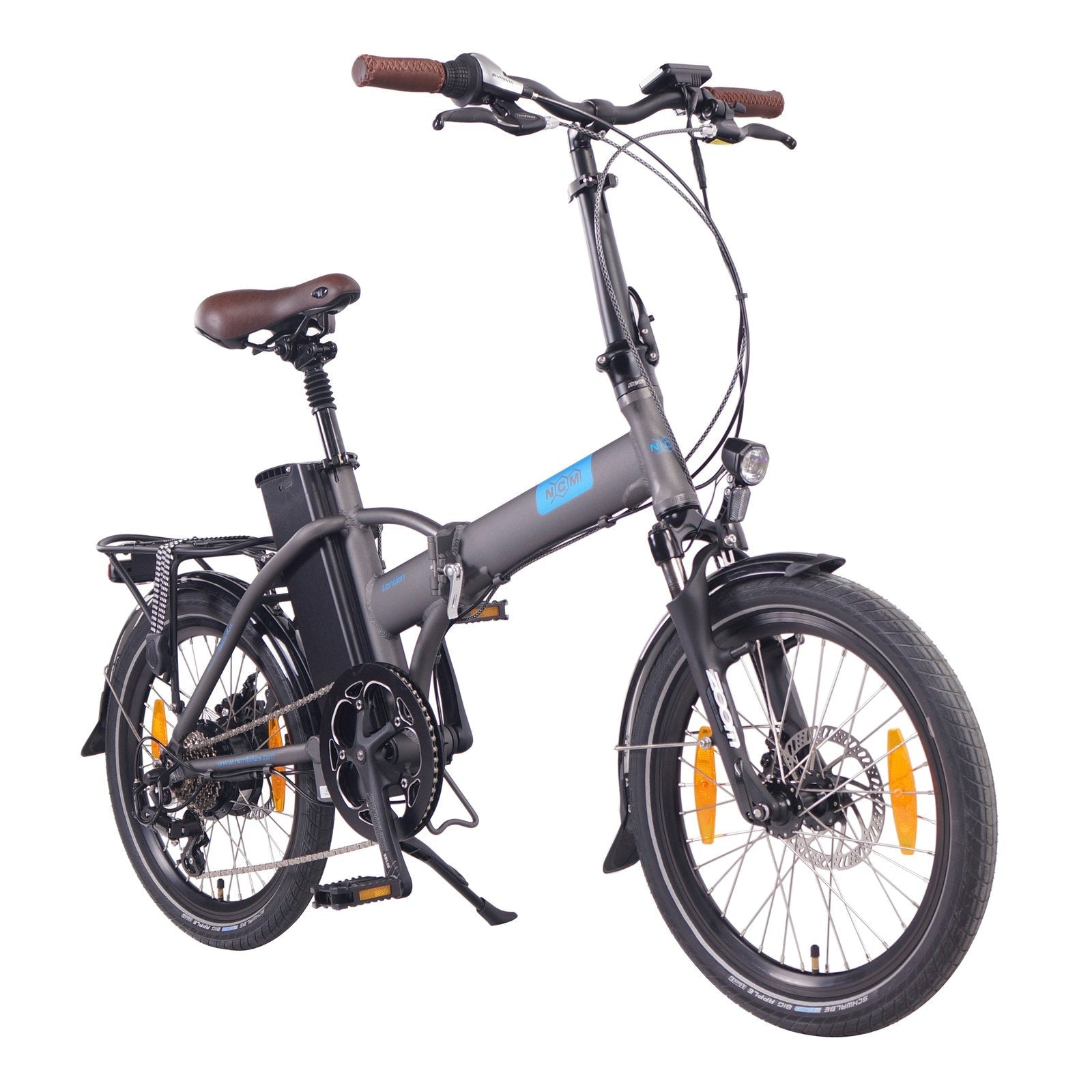

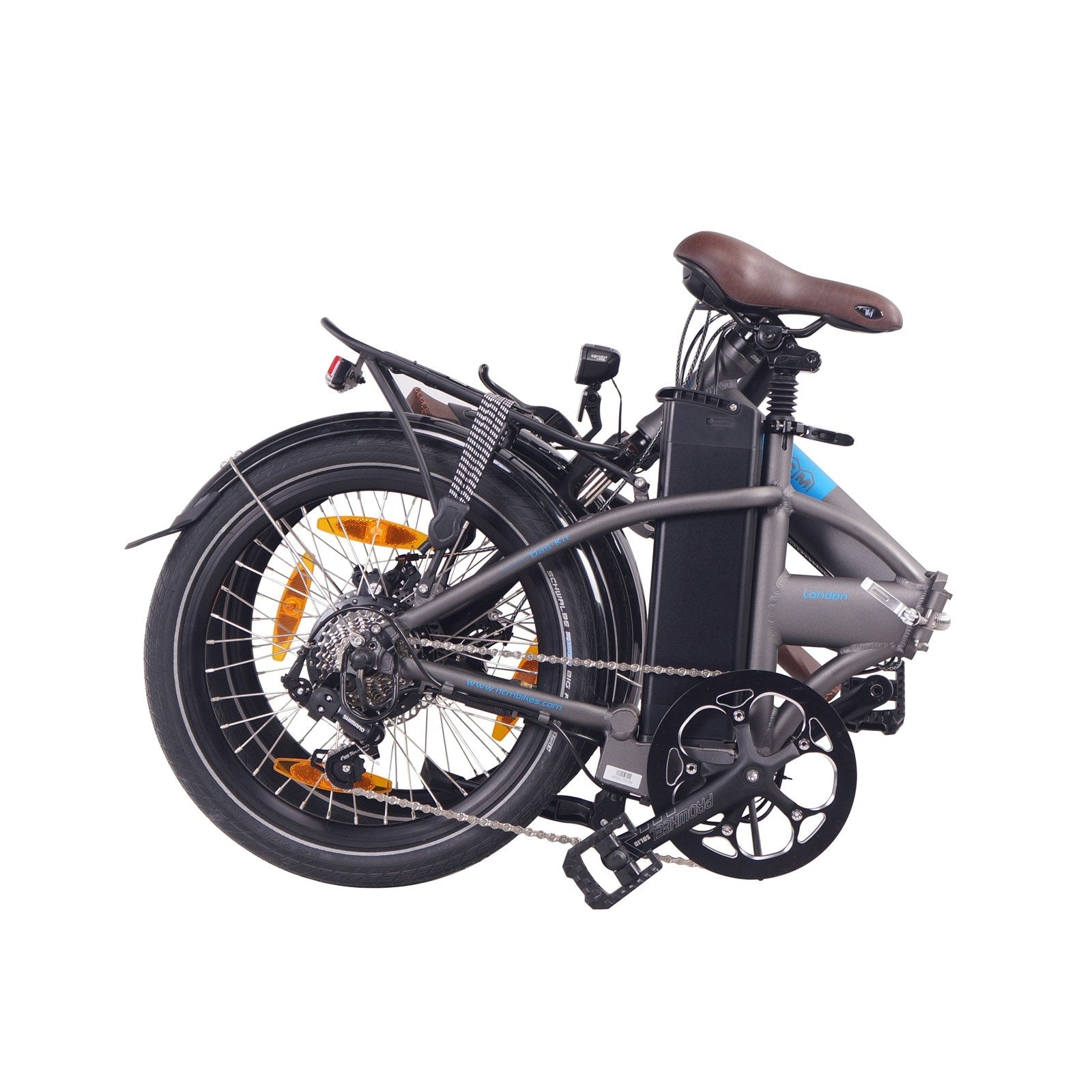

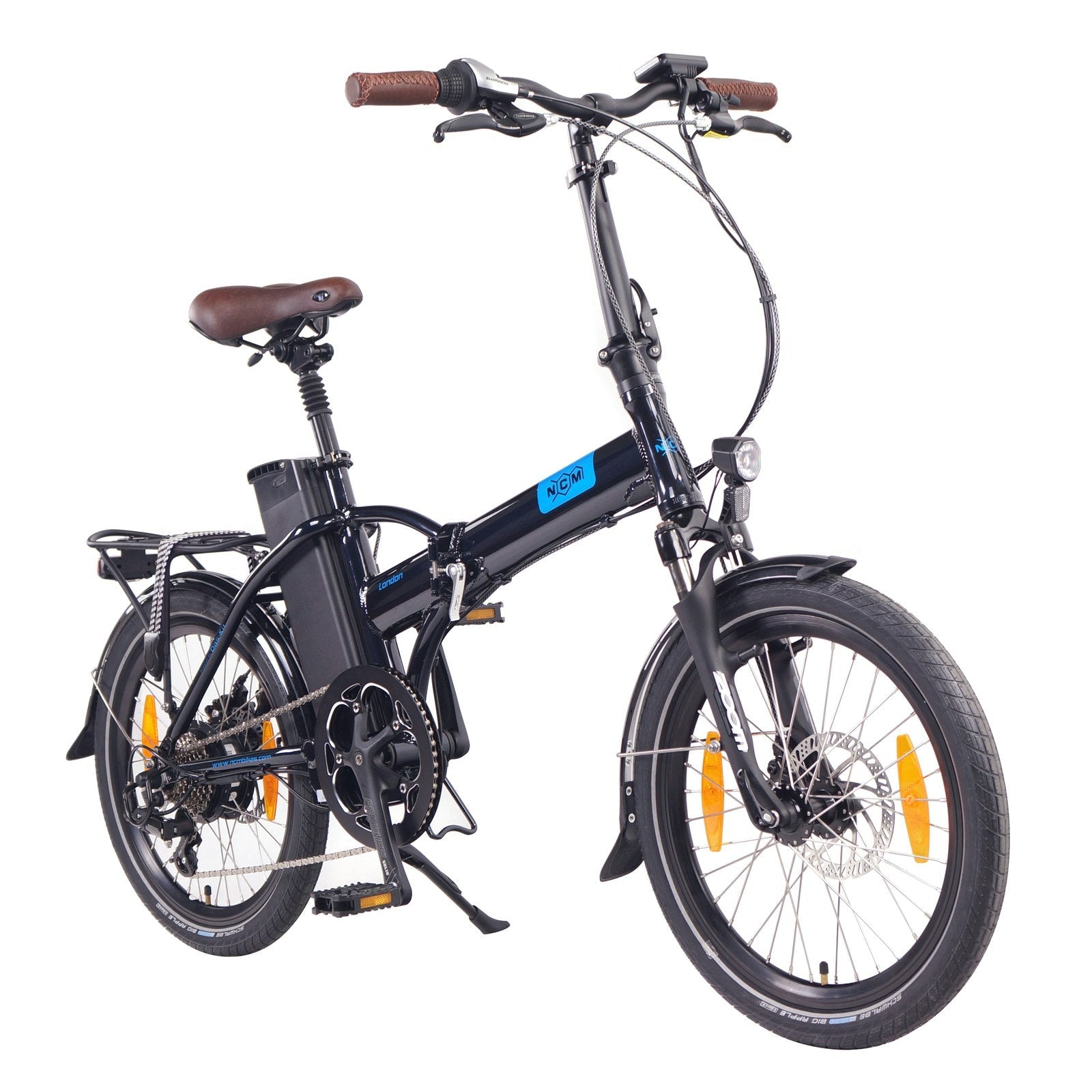

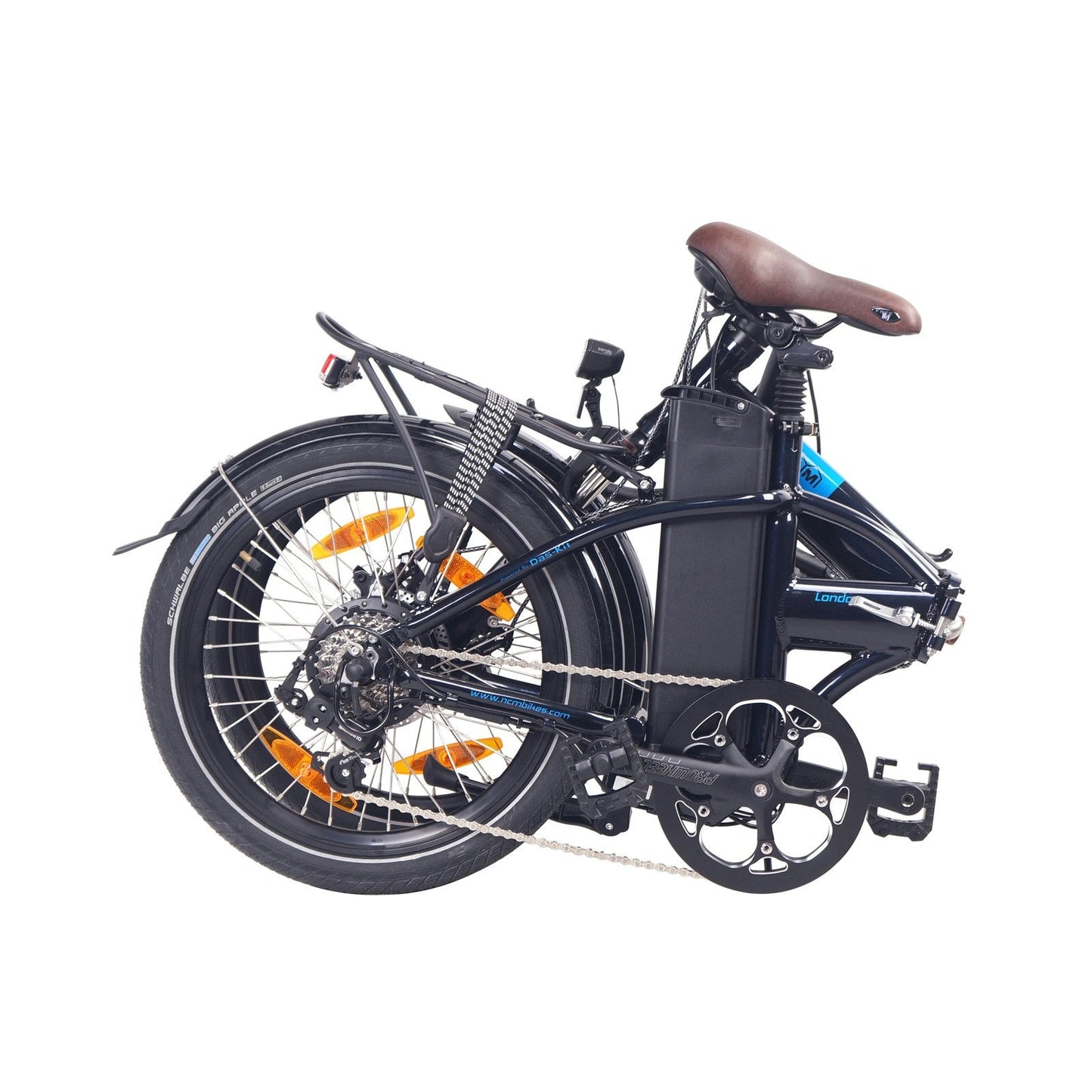

The NCM London is a highly versatile folding E-bike as it can be compacted
without tools for even the smallest storage spaces with its folding frame,
stem, pedals and saddle: take it with you when you go on vacation; ride it to
your office and park it right next to your chair; or store it at home beside
the shoe rack with no inconvenience. The step-through frame makes repeated
mounting and dismounting effortless for when you’re shopping or running
errands, and a unique feature of the electronics system allows the motor to
run at 4mph without the need for pedalling—perfect for navigating through
heavy foot traffic or riding casually alongside someone who is walking.

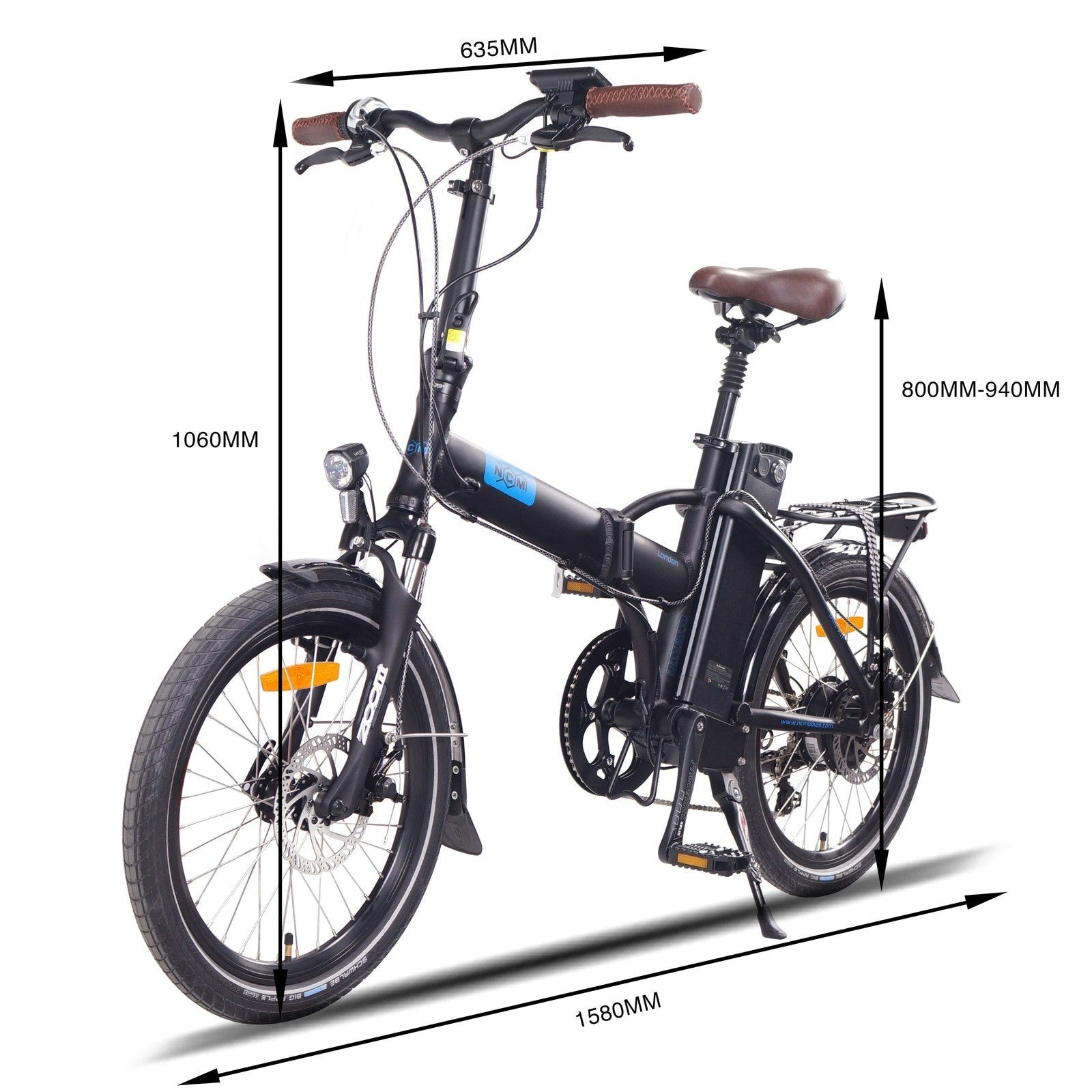

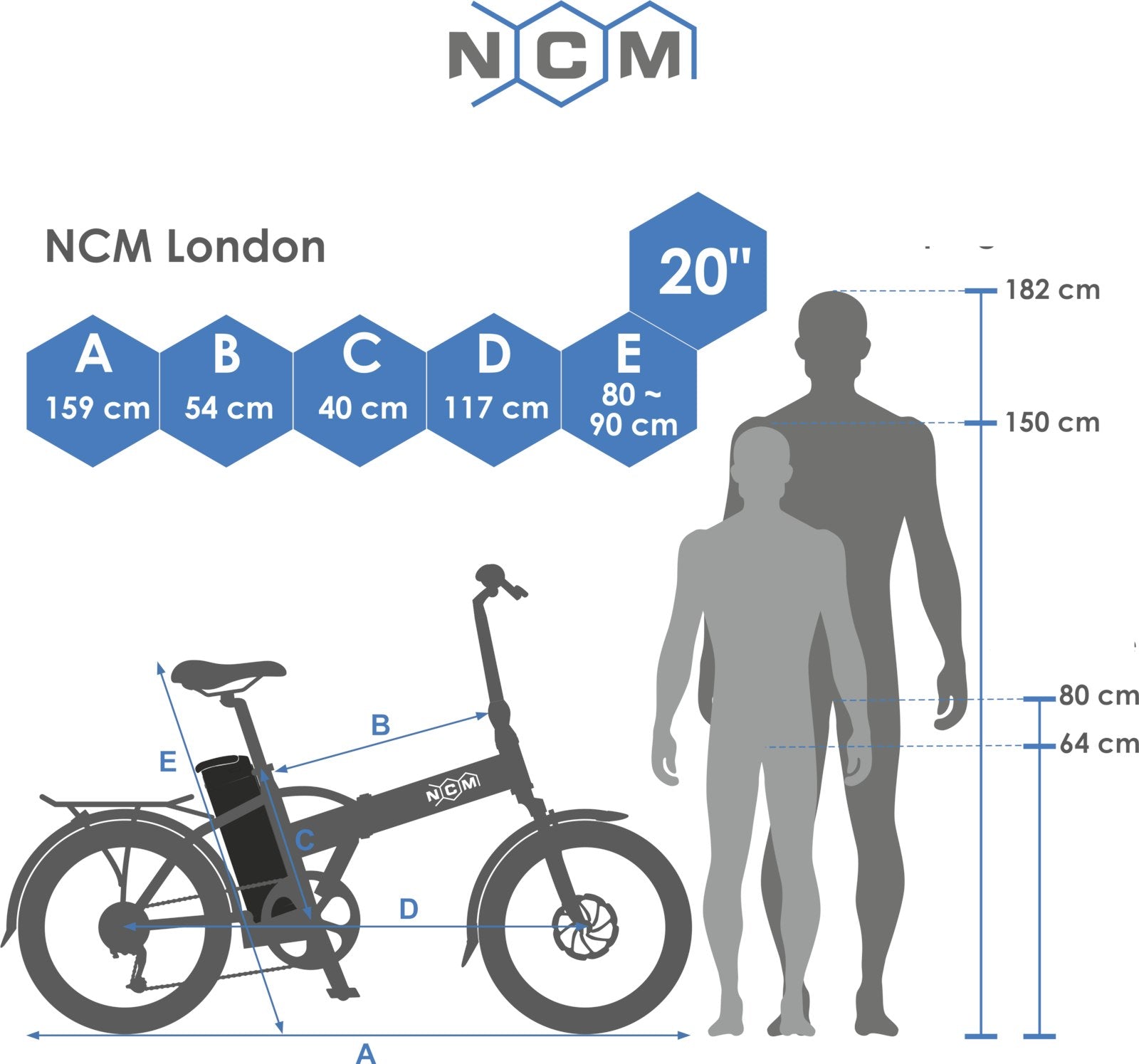

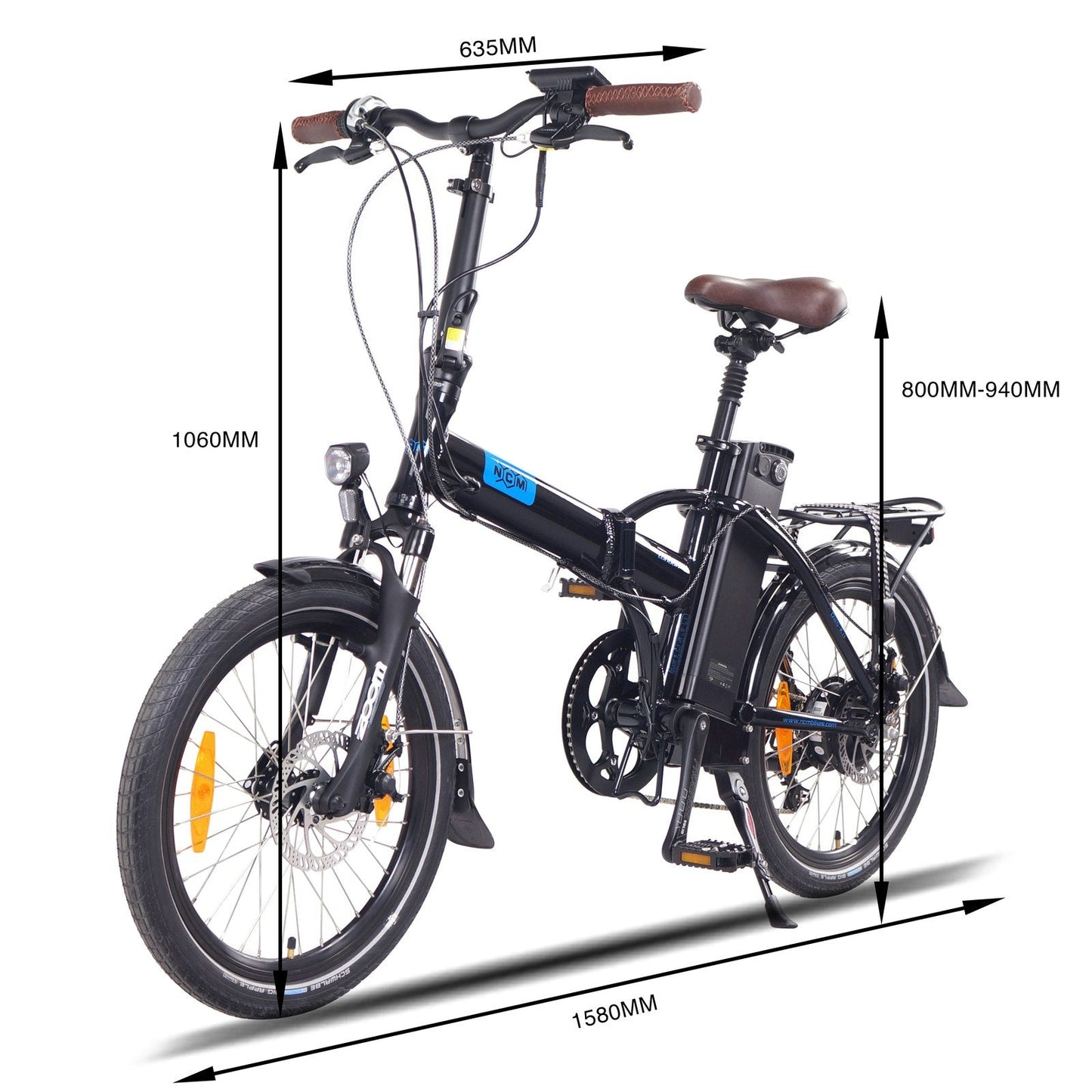

General Information
Weight: 25kg (55lbs)
Type: Folding Wheel size: 20”
Load capacity: 125kg (264lbs)
Maximum speed: 25km/h
Battery Information:
Lithium-ion Battery
Model: B1U-3615H
Ratings: DC 36V, 15Ah, 540Wh
Electric parts
Display: Das-Kit, L6B, LCD, 6 Levels, 6km/h walk mode
Controller: Das-Kit, CT4, 36V 14A

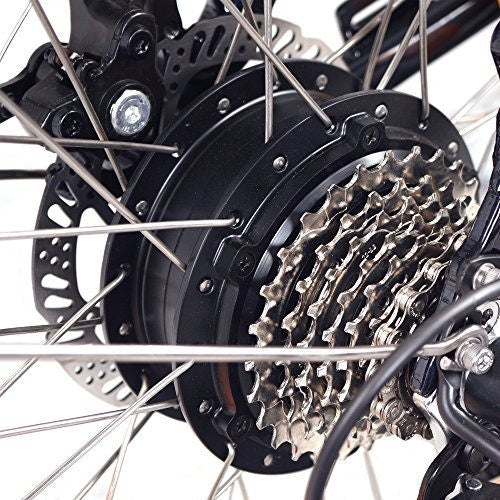

Motor: Das-Kit, R2S Rear-drive motor, 36V 250W-350W, 25km/h

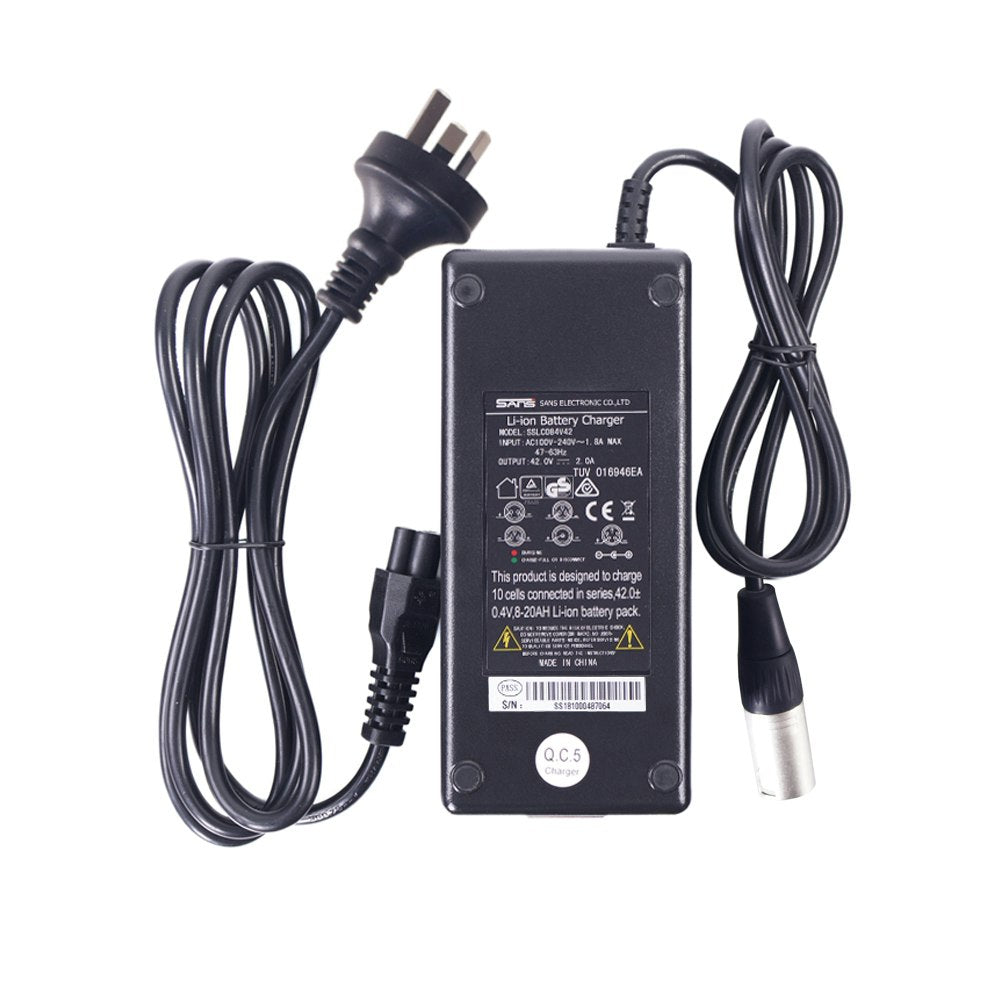

Battery: 36V 15AH, with USB port Average range: 40-110km depending on
assistance level
Front/Rear Light: Spanninga, KENDO, 36V, 20 Lux/ Spanninga, SOLO
Bike parts

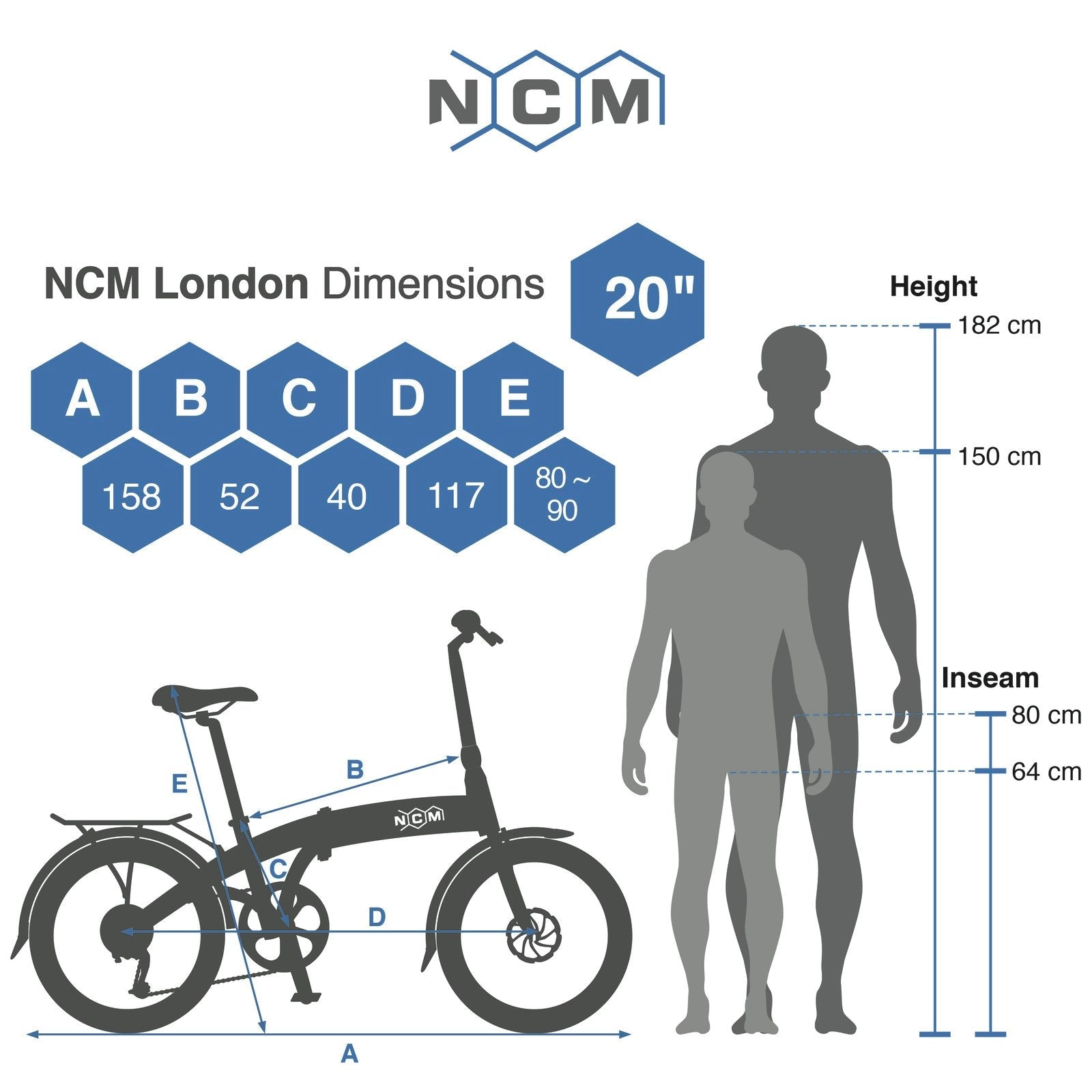

Frame: Alu. 6061, 20"380MM
Fork: Zoom, CH190
Brake Levers: Tektro, with left brake sensor
Brakes F/R:Tektro Disc Brakes,MD-280
Crank: Prowheel, SOLID-252AA9

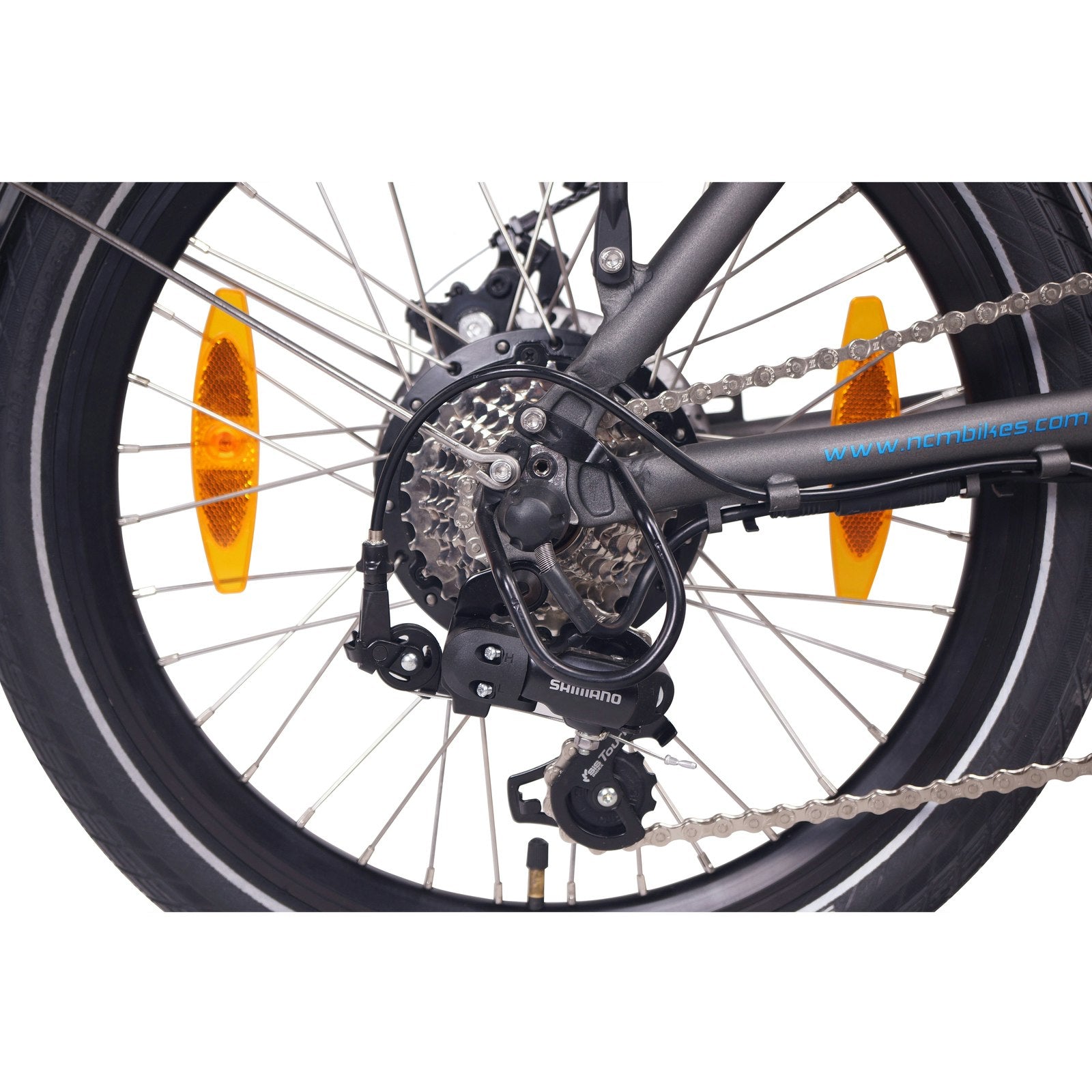

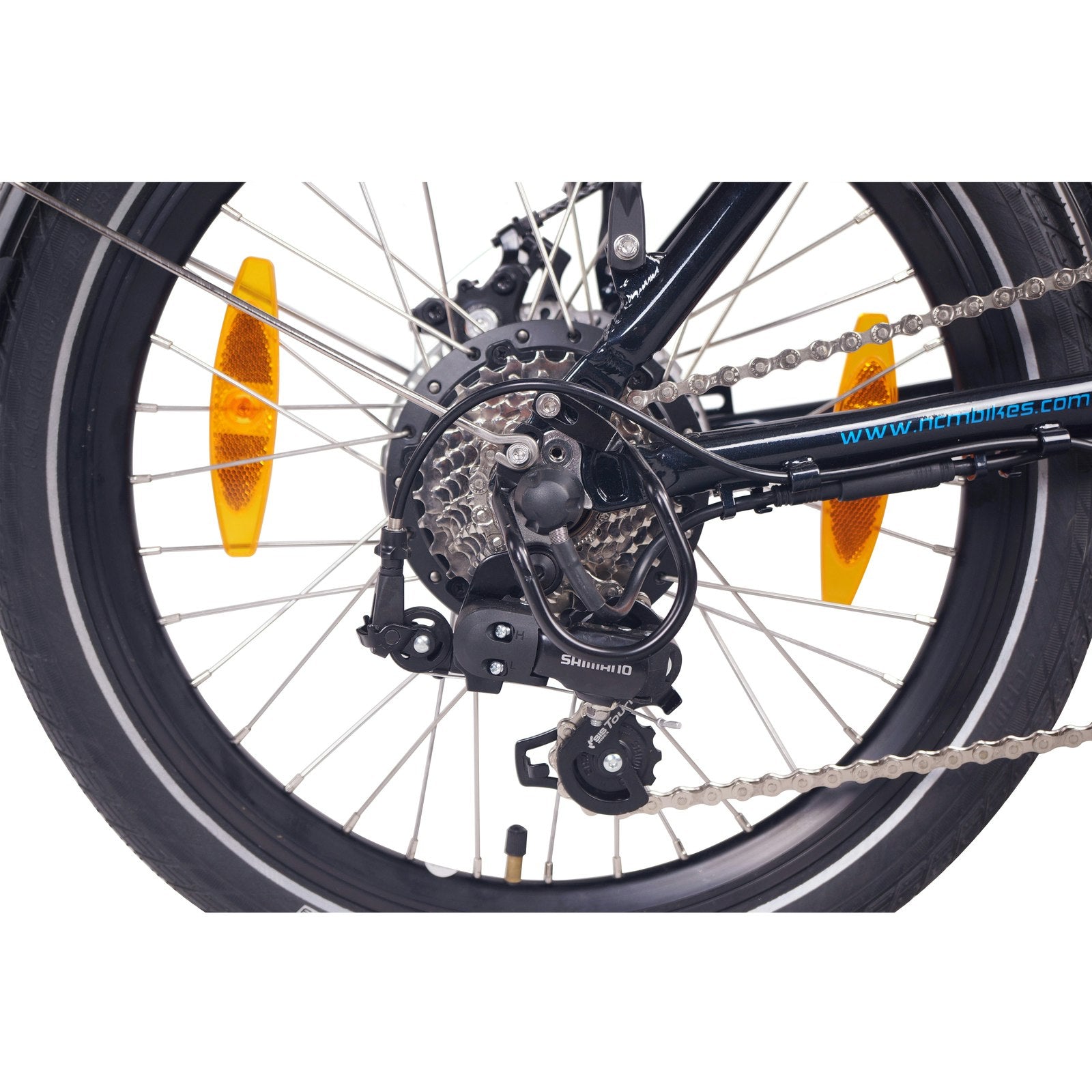

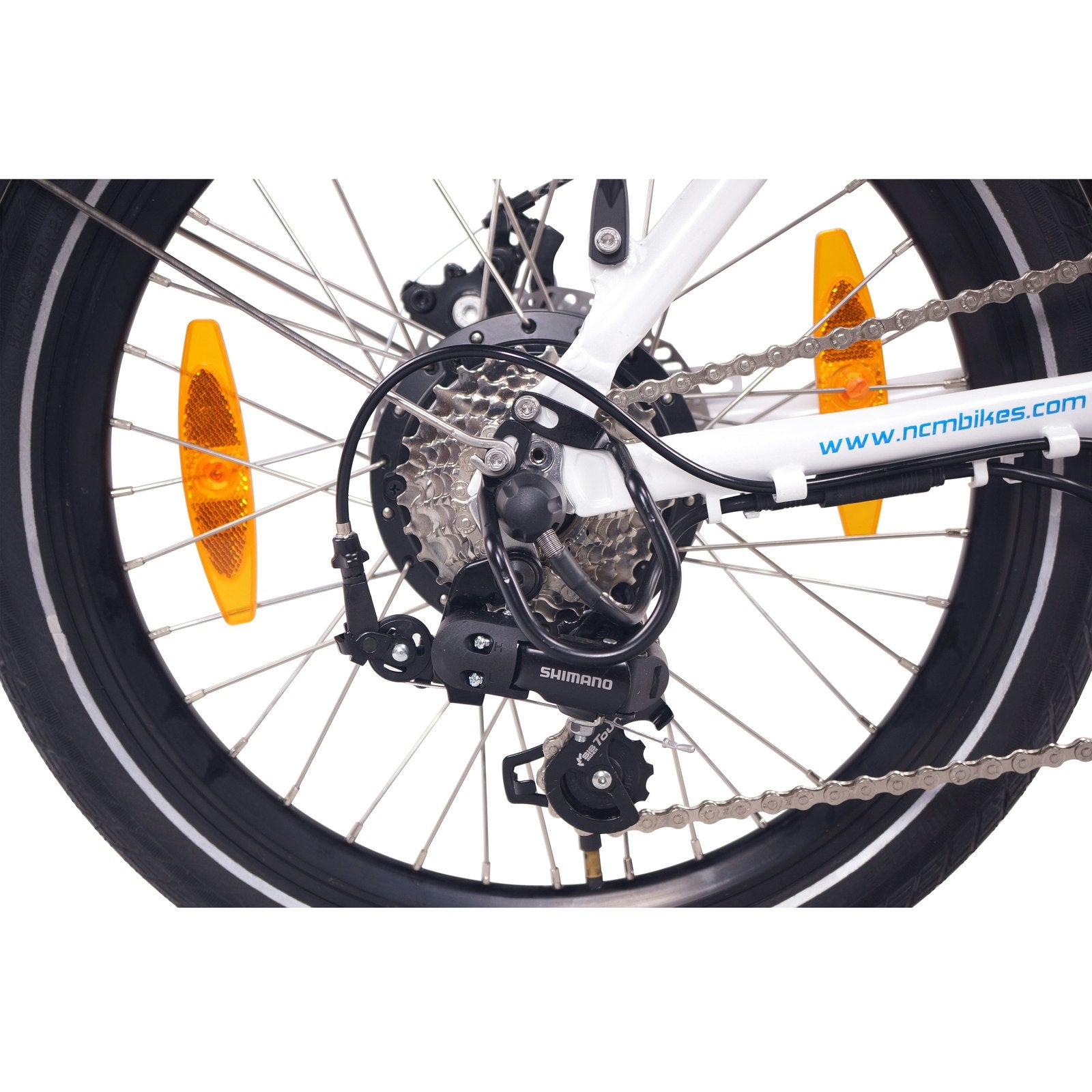

Rear Derailleur: Shimano, Tourney 7-speed, ARDFT35D
Tyres: Schwalbe, Big Apple,20"2.0
Saddle: Selle Royal, Freeway, Brown with Gel
Seat Post: CL, PB-523, with suspension, 27.2*350mm
Grips: Selle Royal, brown synthetic leather
Pedals: Wellgo, foldable
Rack: Rear rack with elastic straps
Warranty
1 year warranty on all electronic parts (including battery, motor, controller,
display, lights)
2 year warranty on the bike frame
Apart from manufacture defects that could be present, parts that wear due to
normal use (such as tyres, brake pads, chains, etc) are not included in the
warranty but maybe replaced on a case by case basis within the first 6 months.
* Disclaimer: *Once you received the e-bike, we recommend to have it
assembled by a professional in bike shops near you and also get your bike
serviced after 1 month of use to ensure all aspects of the bike are set and
calibrated correctly.
