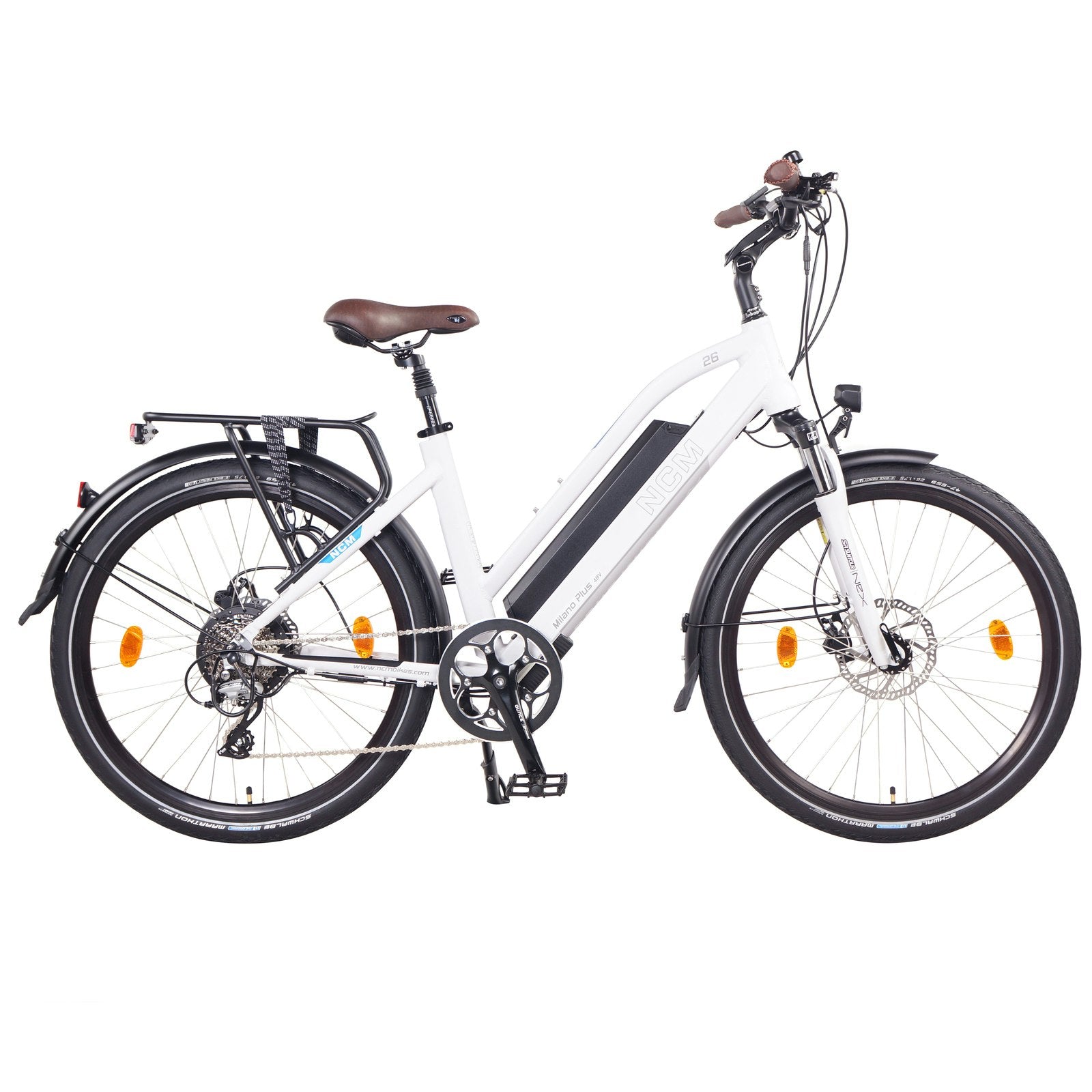

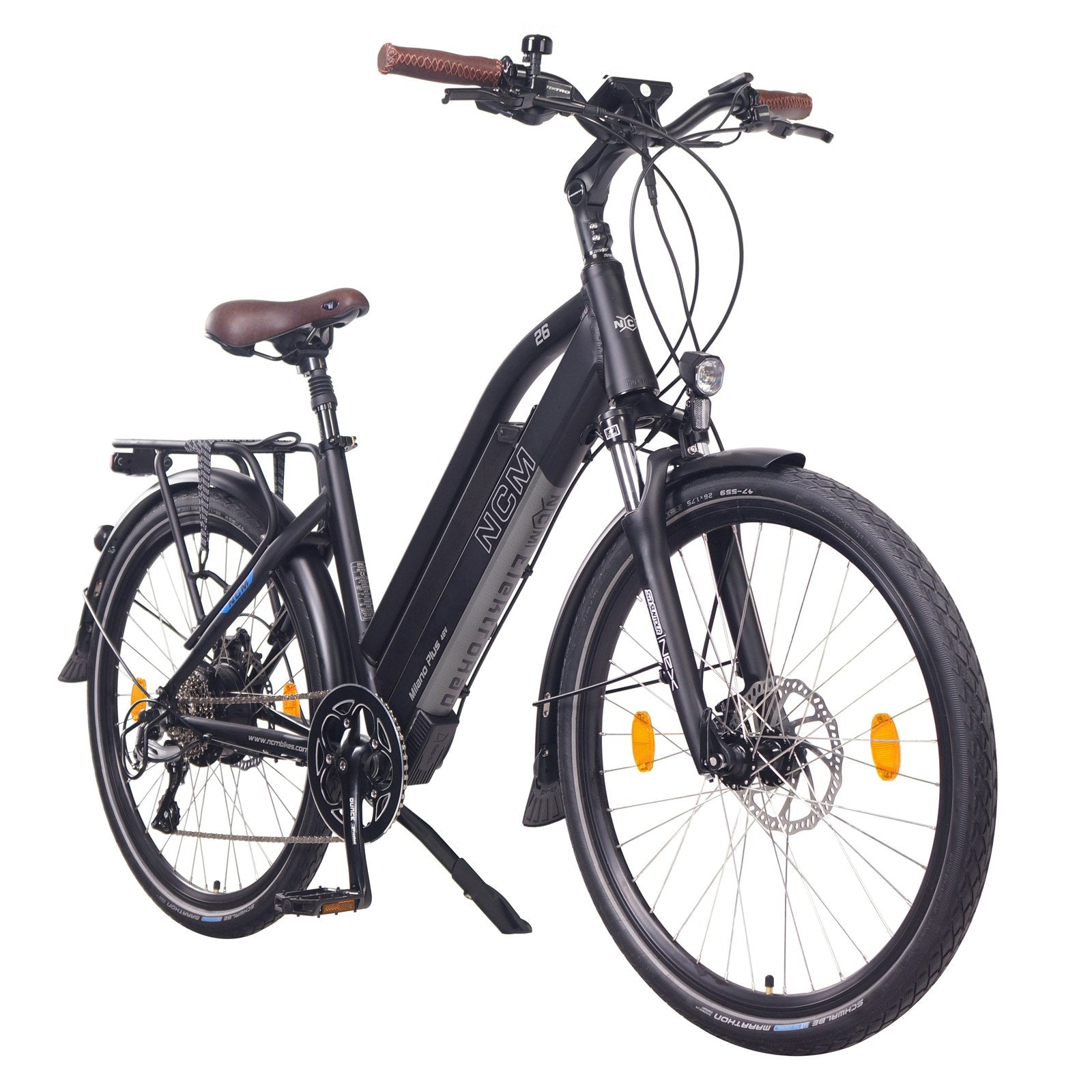

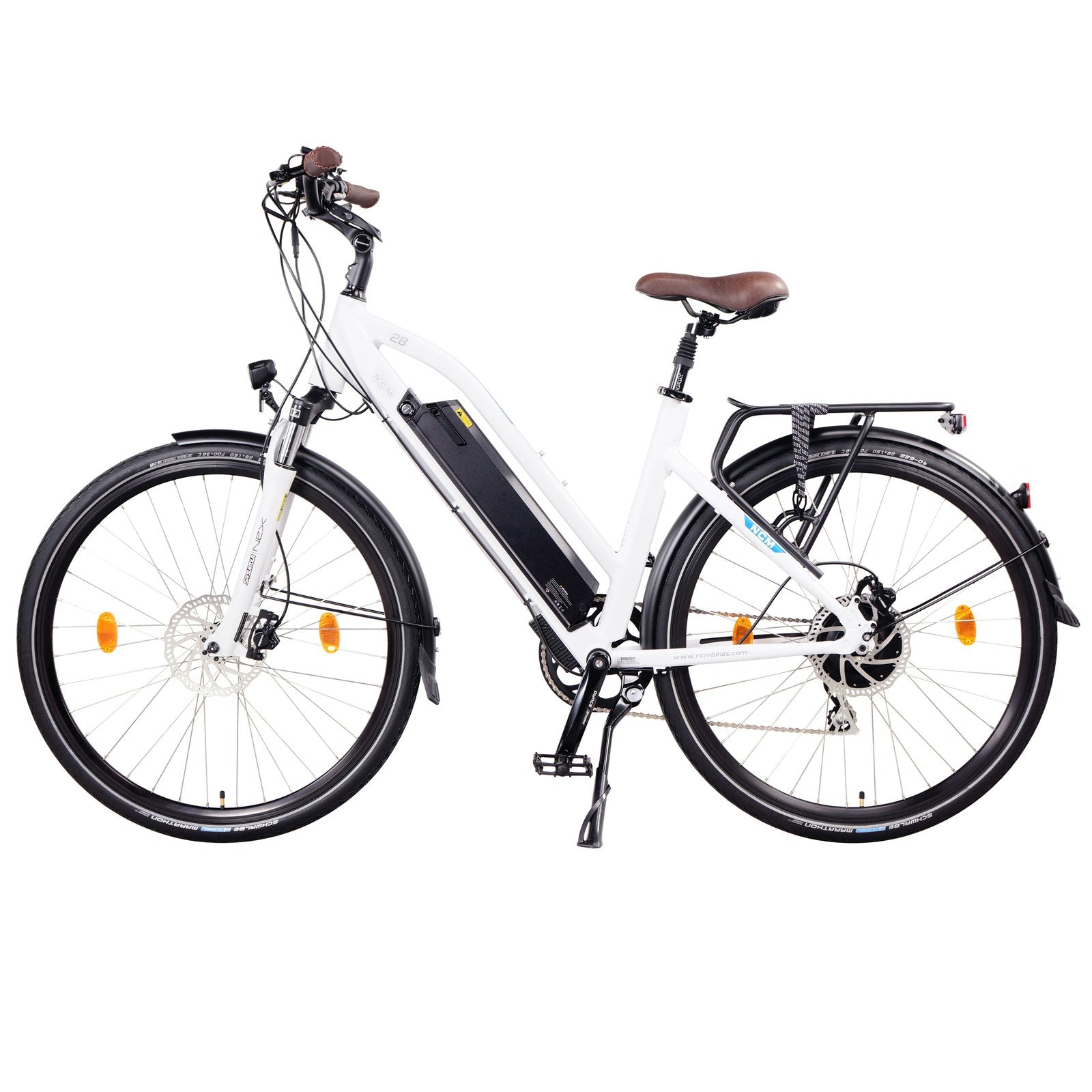

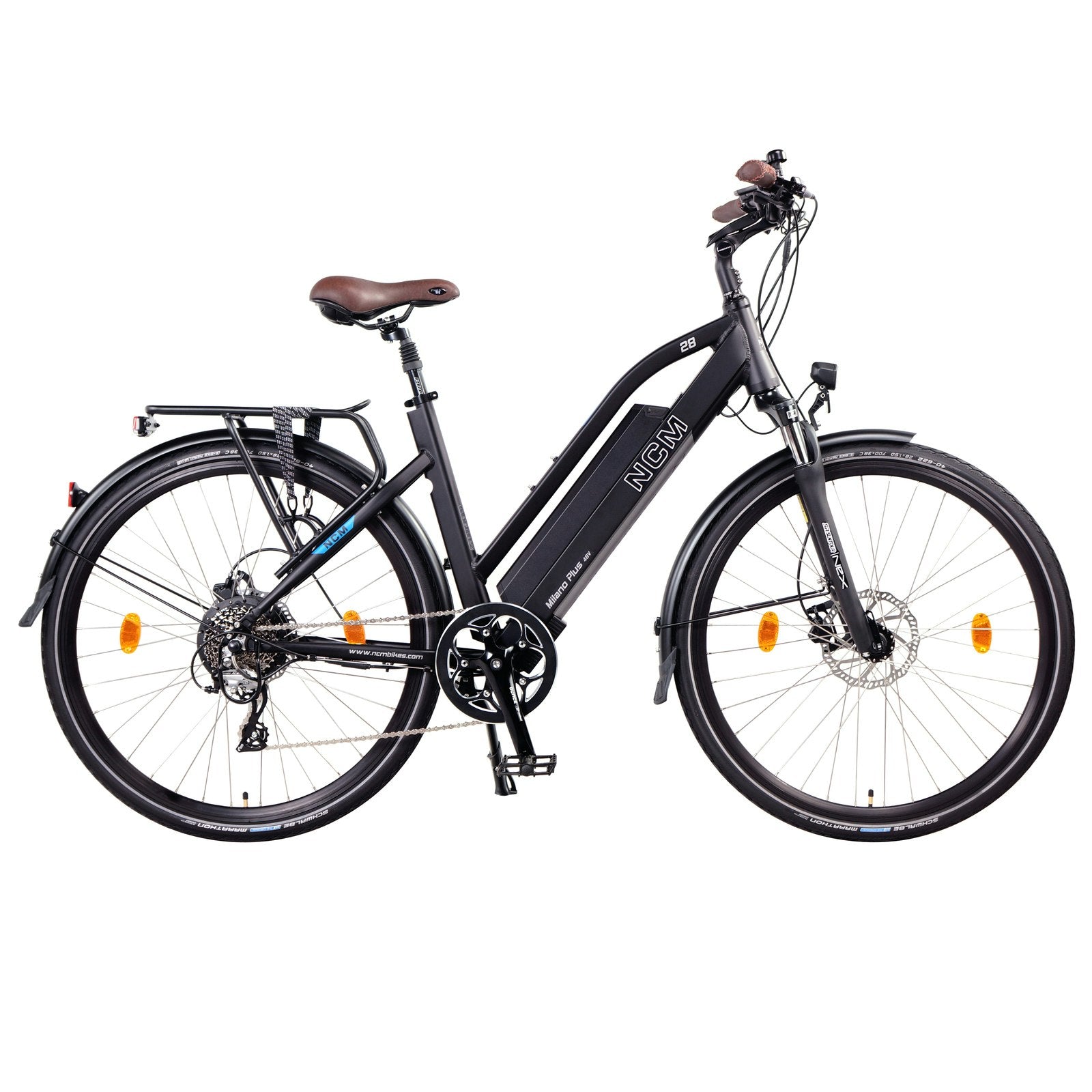

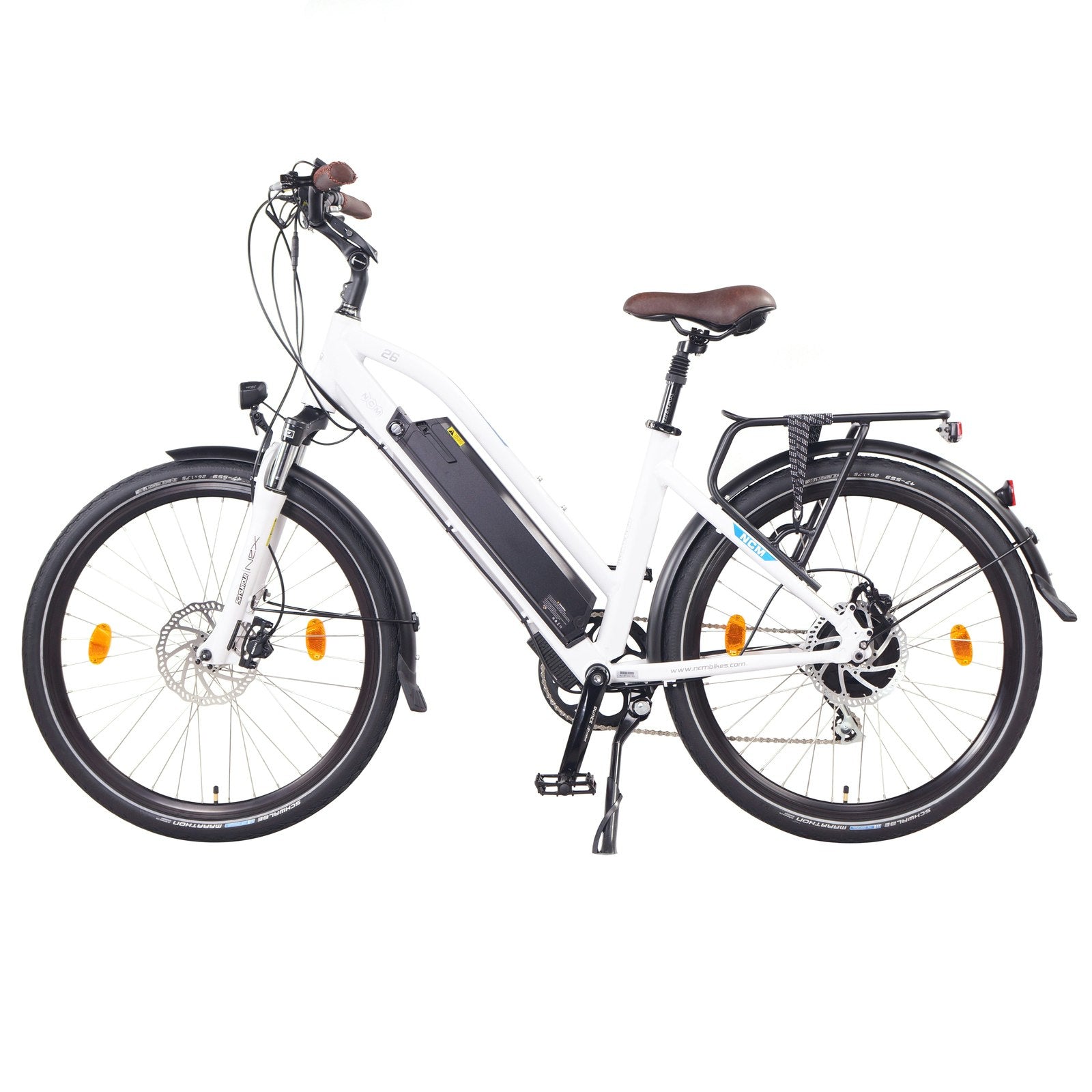

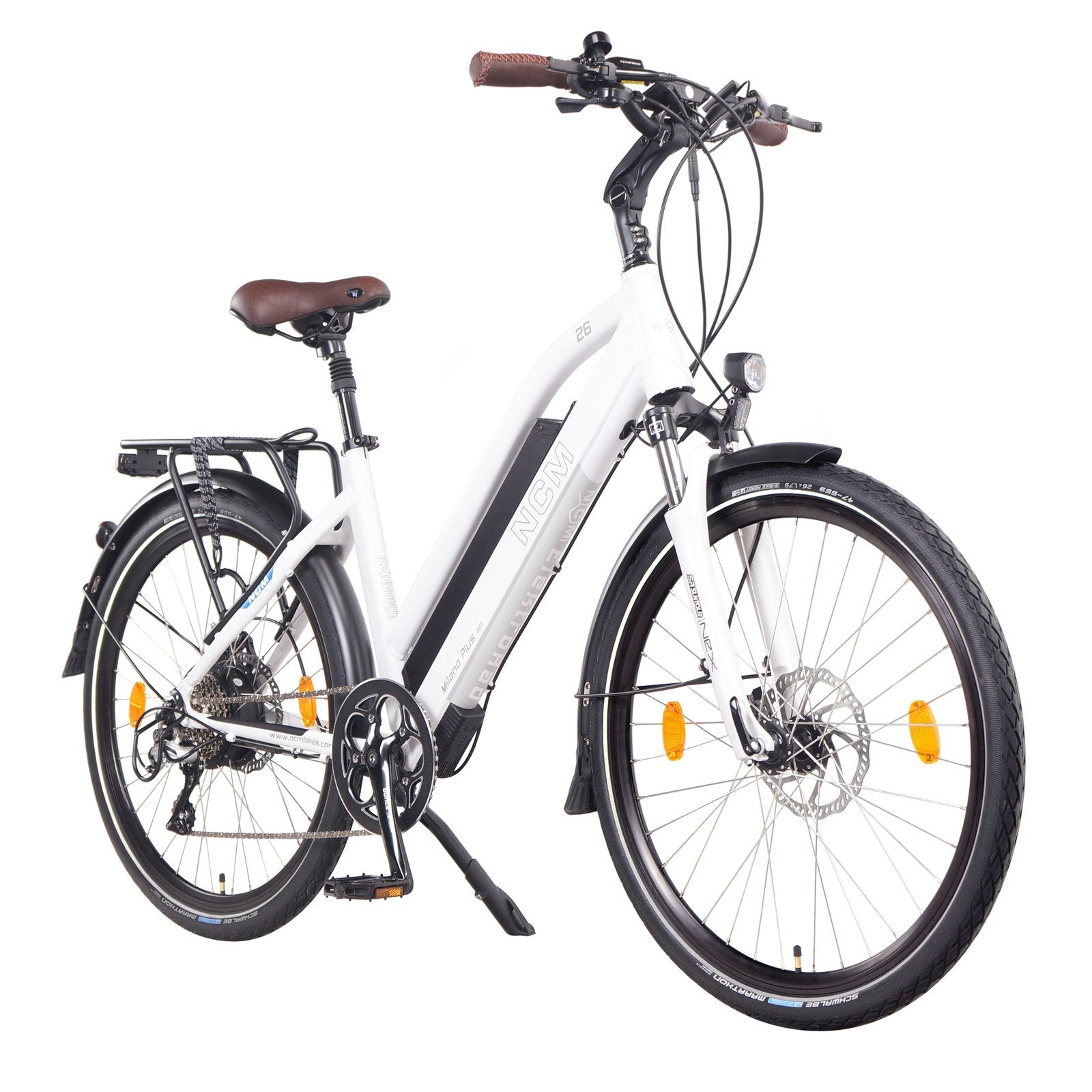

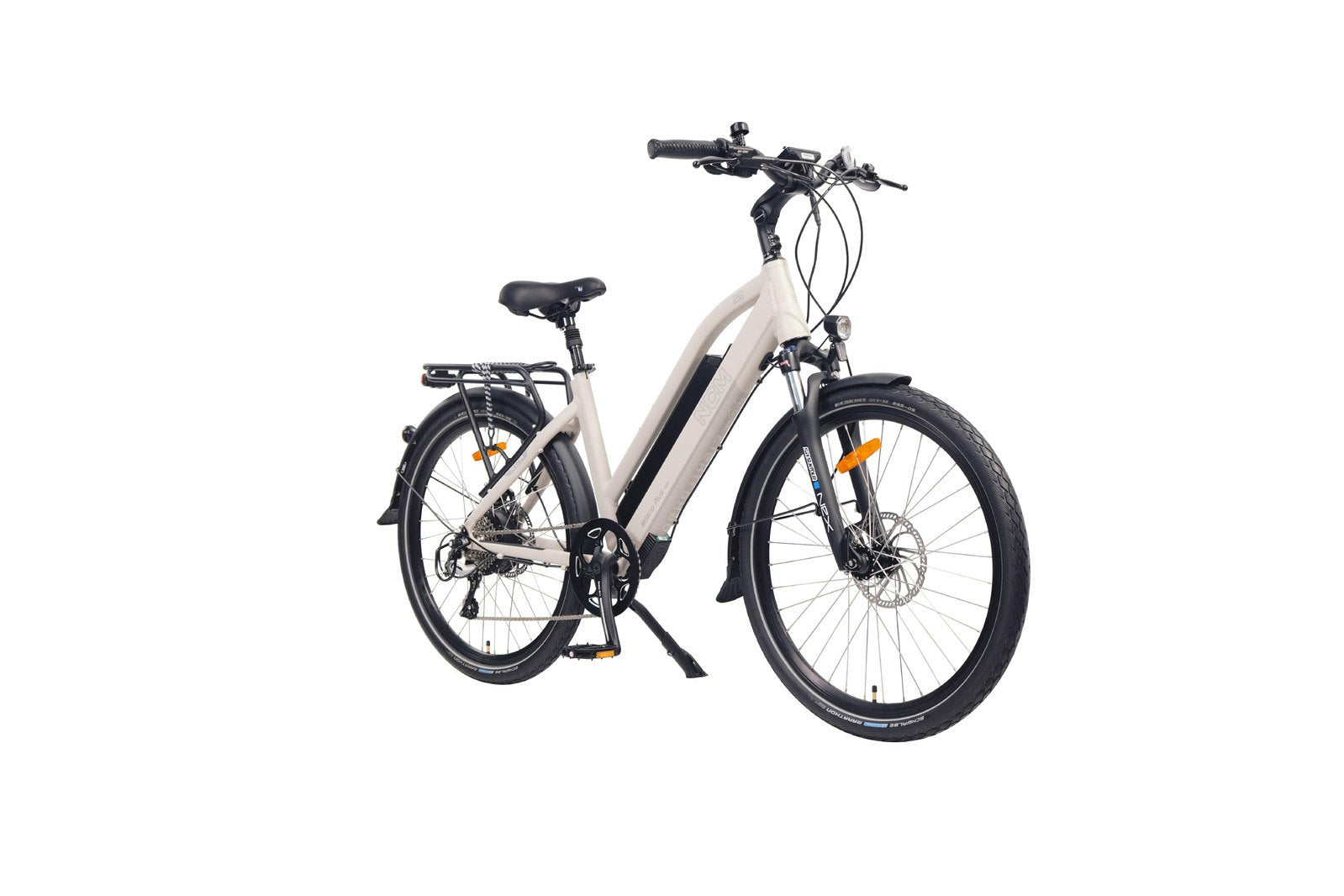

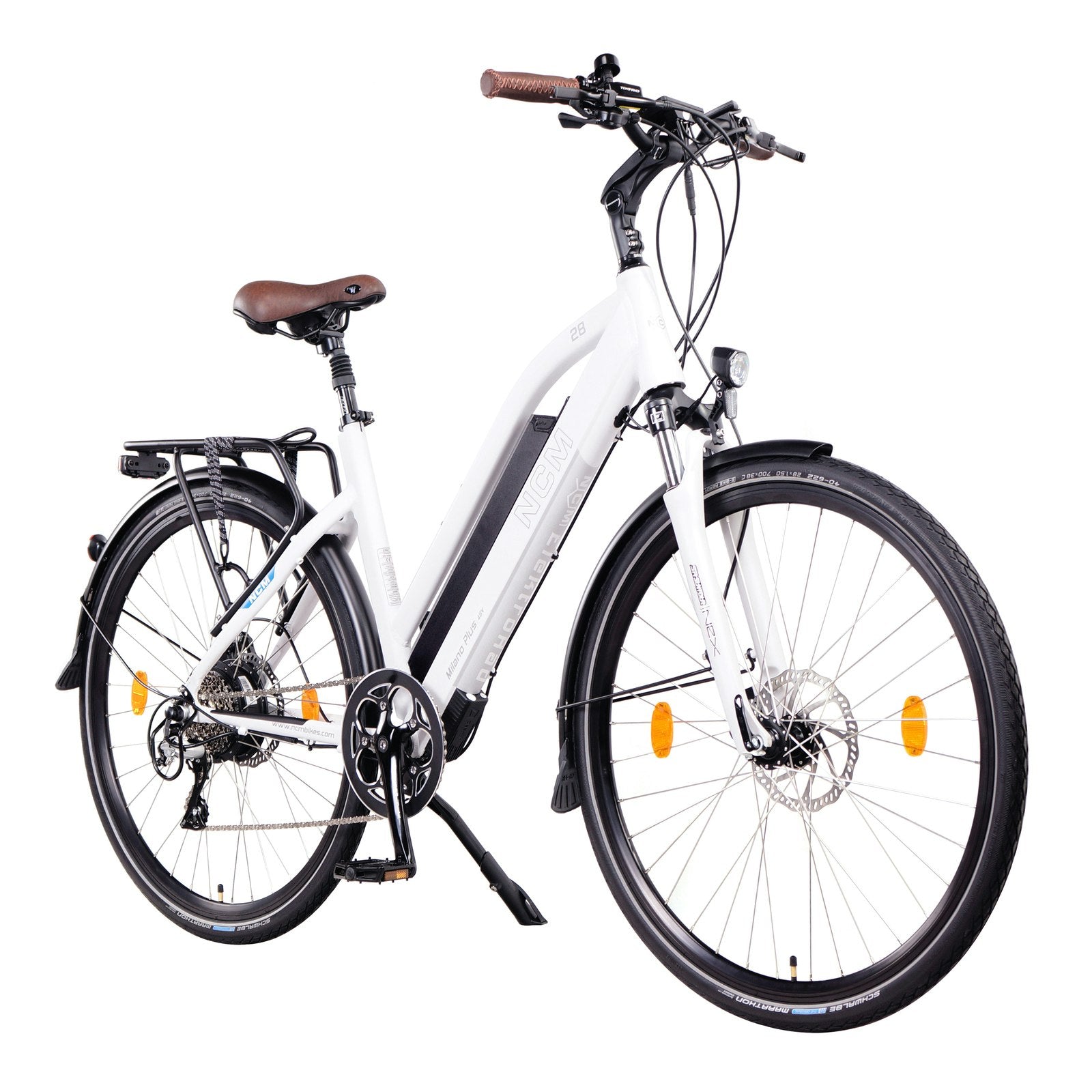

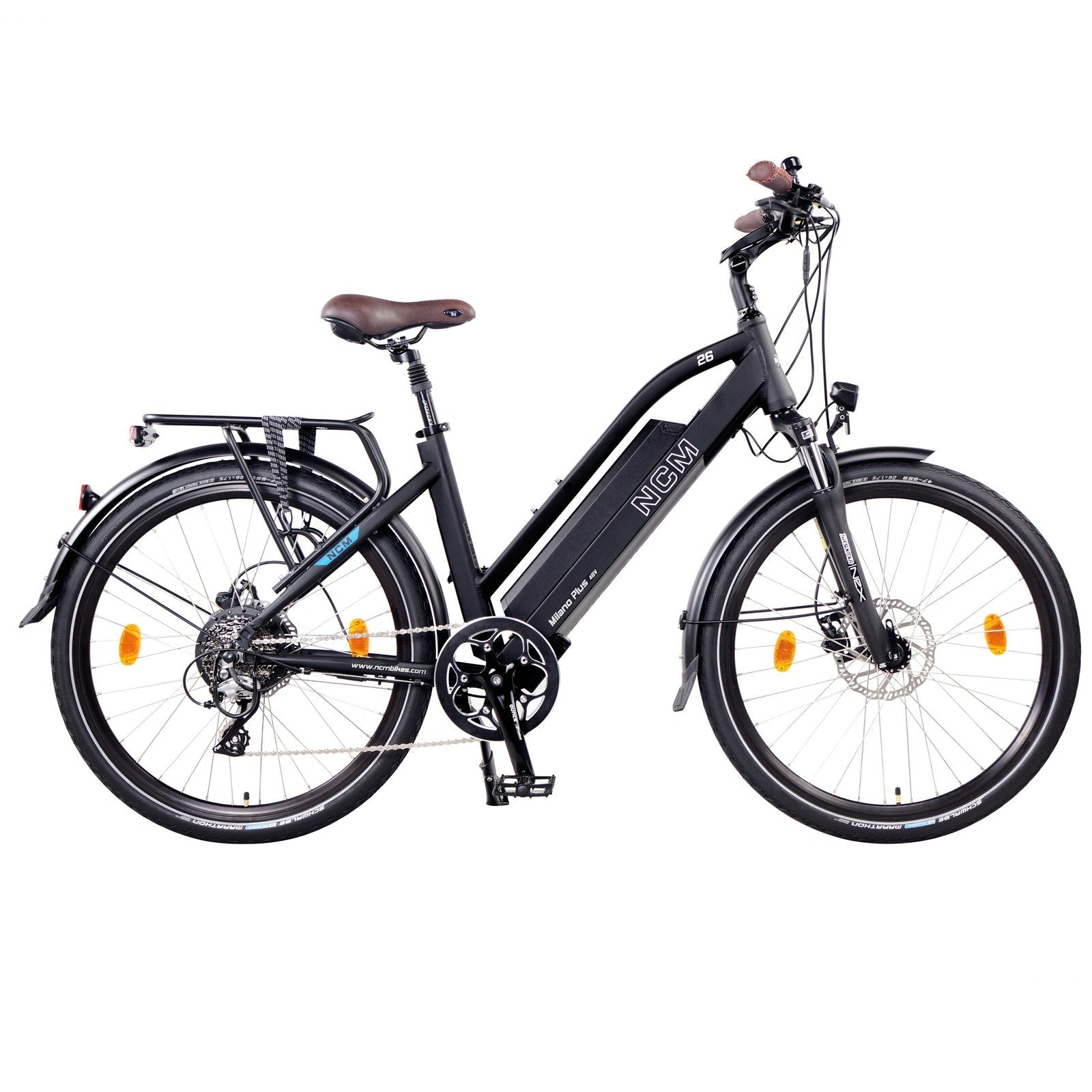

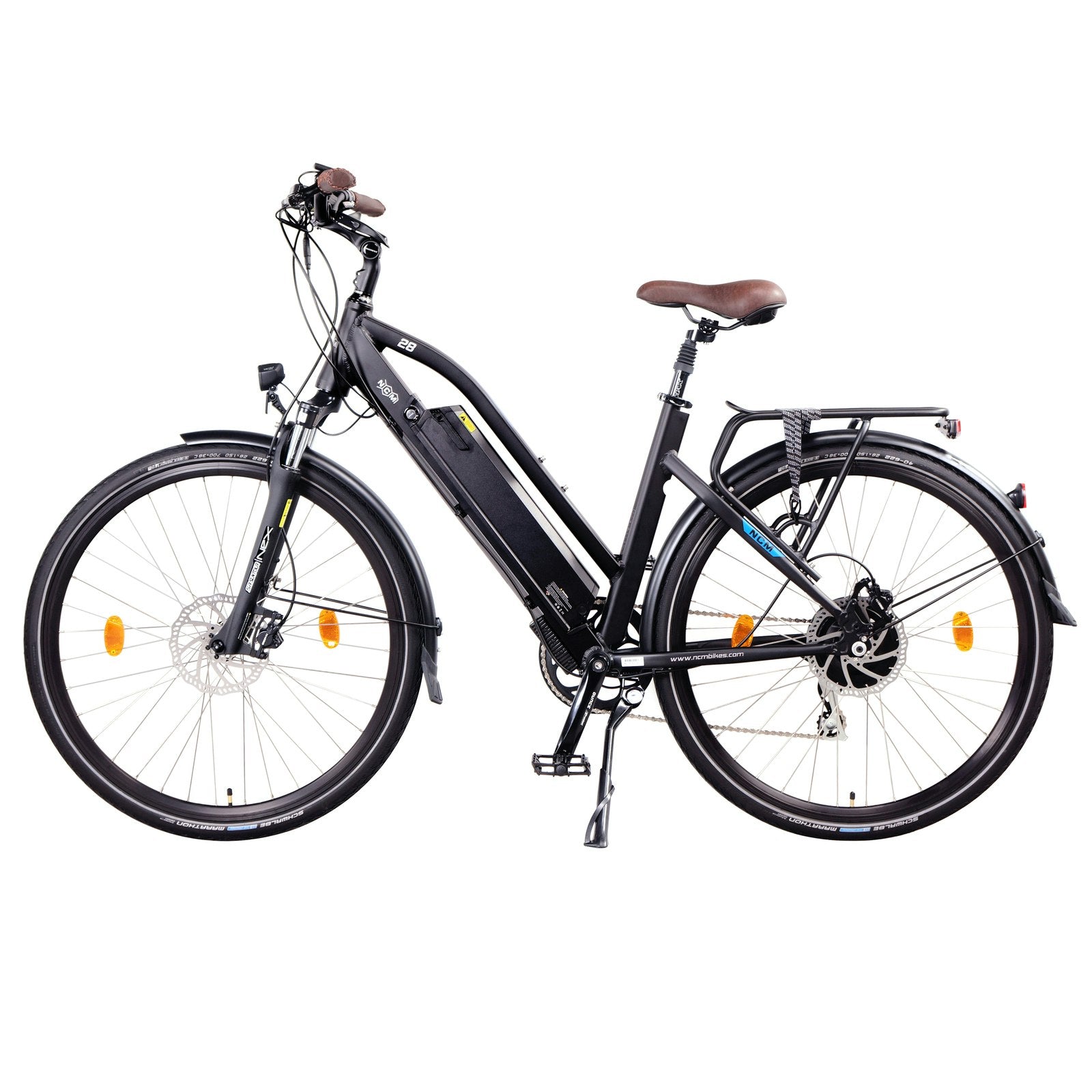

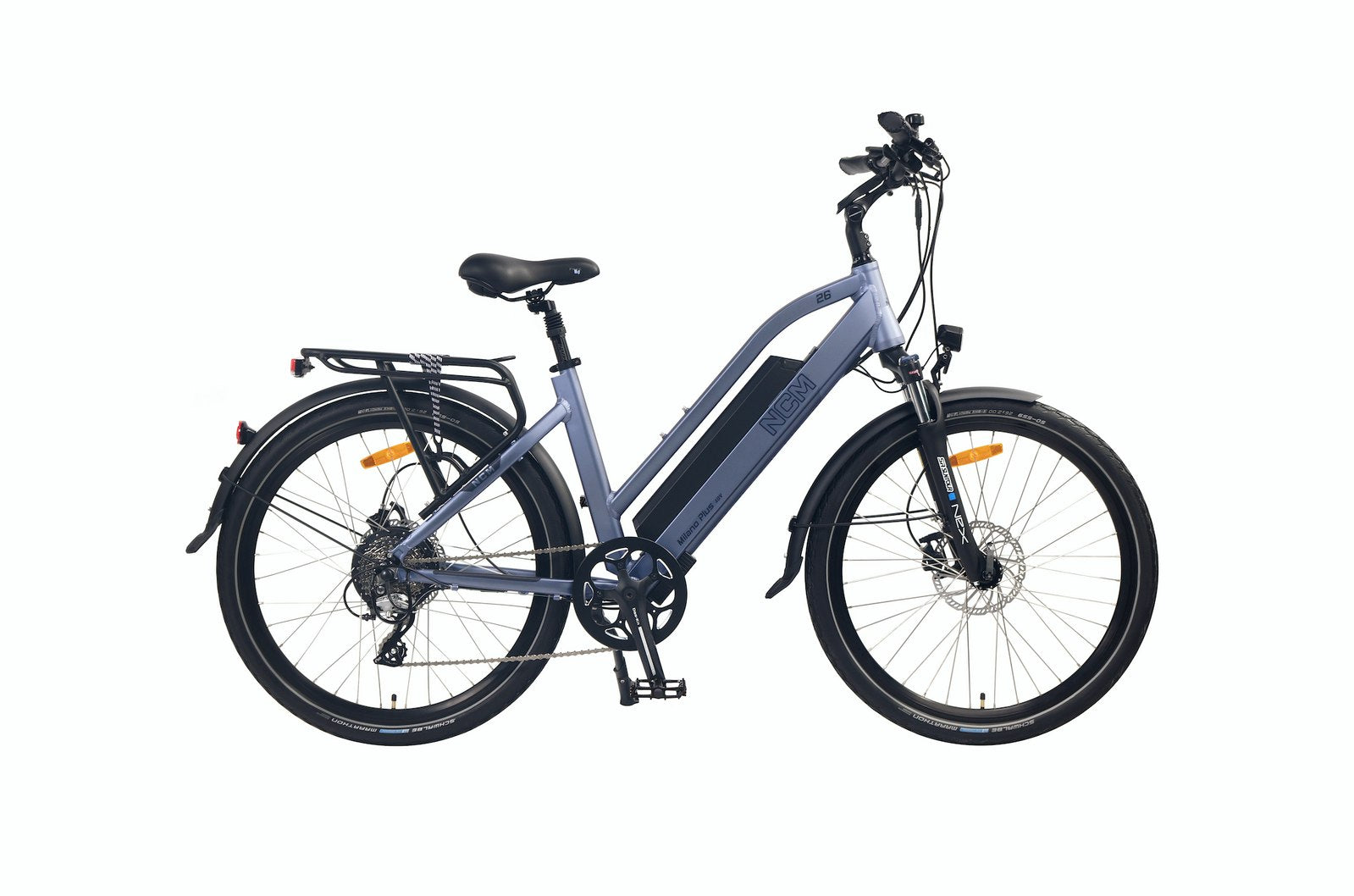

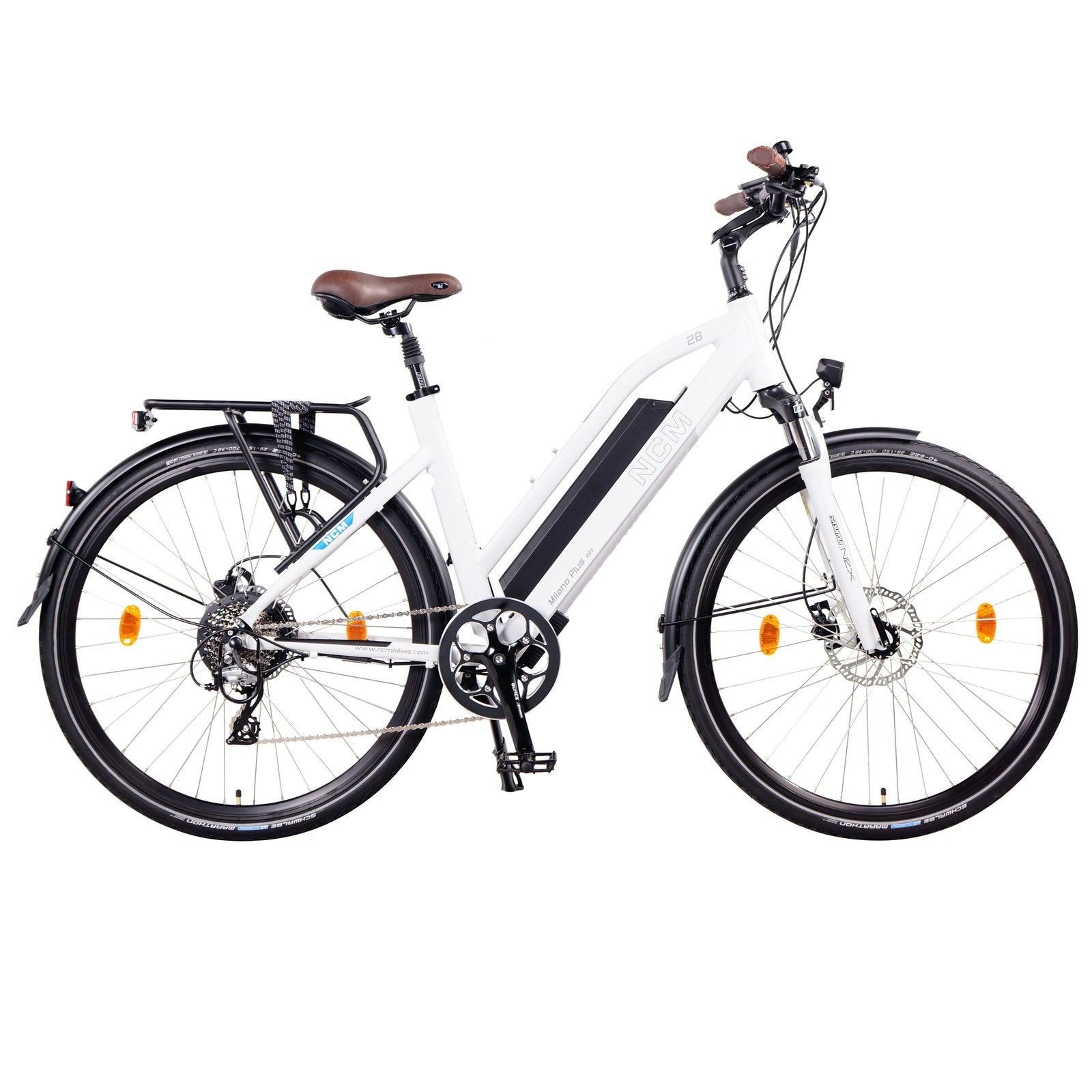

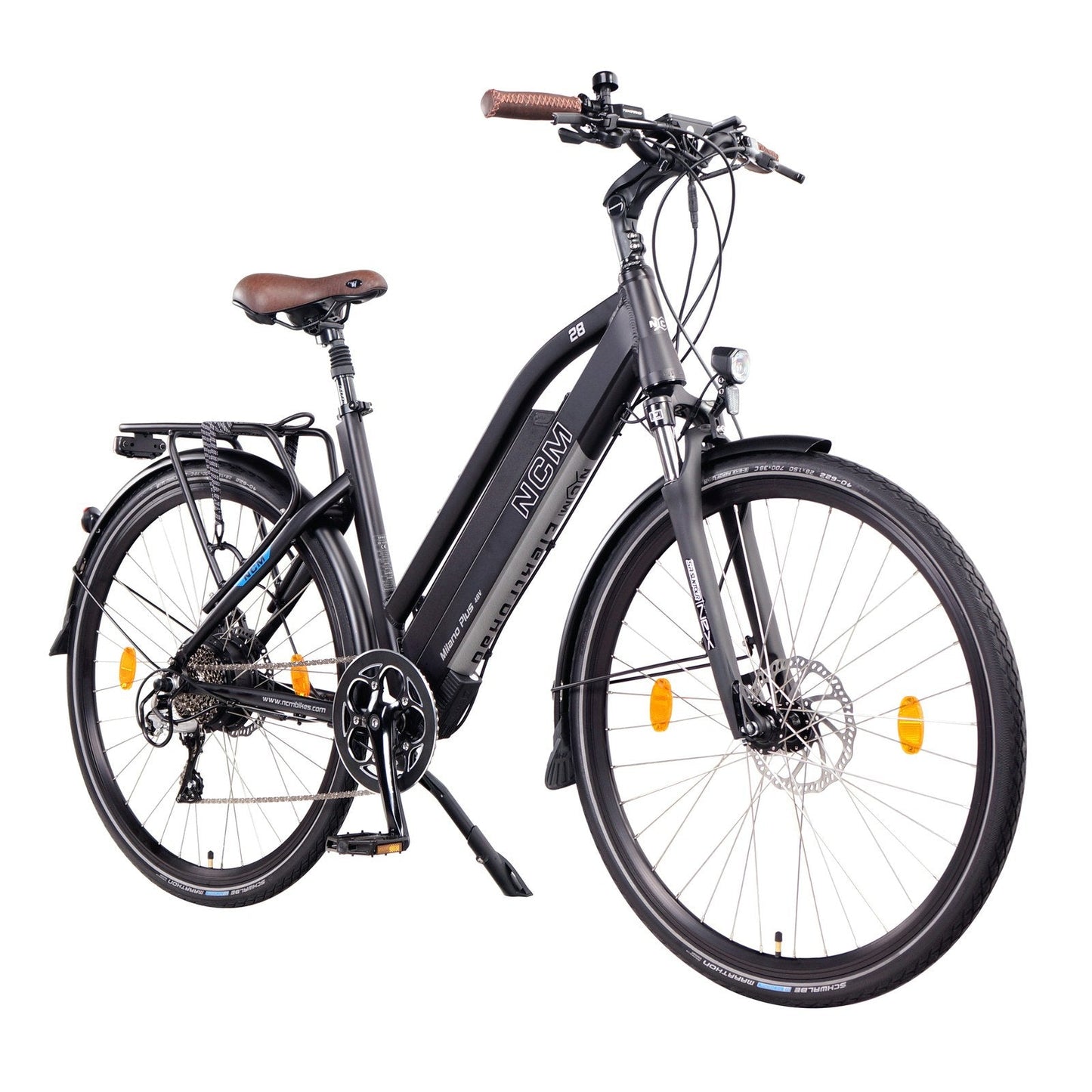

NCM Milano Plus Trekking E-Bike, City-Bike, 250W-500W, 48V 16Ah 768Wh Battery

Specifications

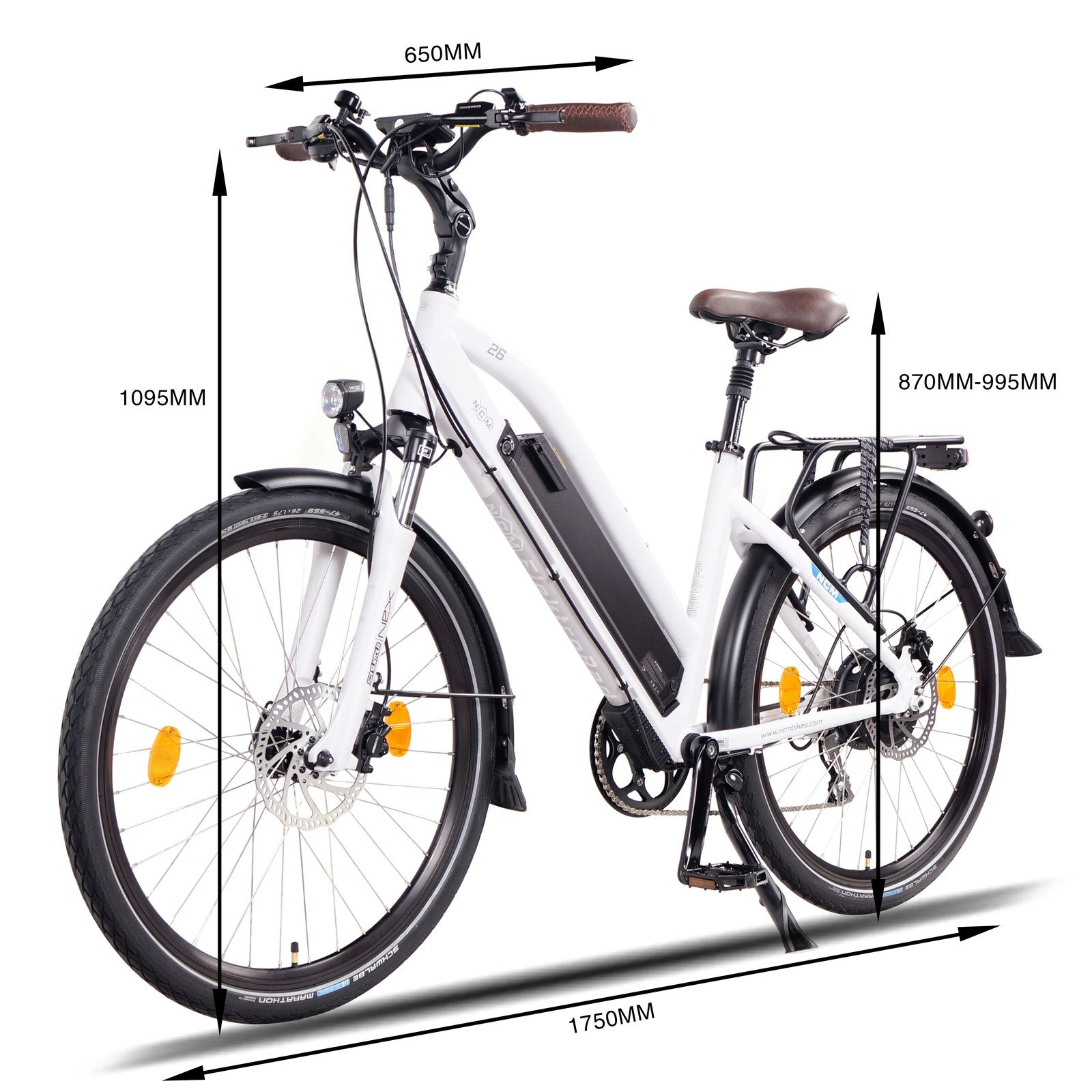

General Information

• Weight: 26”= 27kg/ 28”= 27kg
• Type: E-Trekkingbike
• Wheel size: 26” / 28"
• Load capacity: Max. 125kg
• Maximum speed: 15.5mph

ELECTRIC PARTS

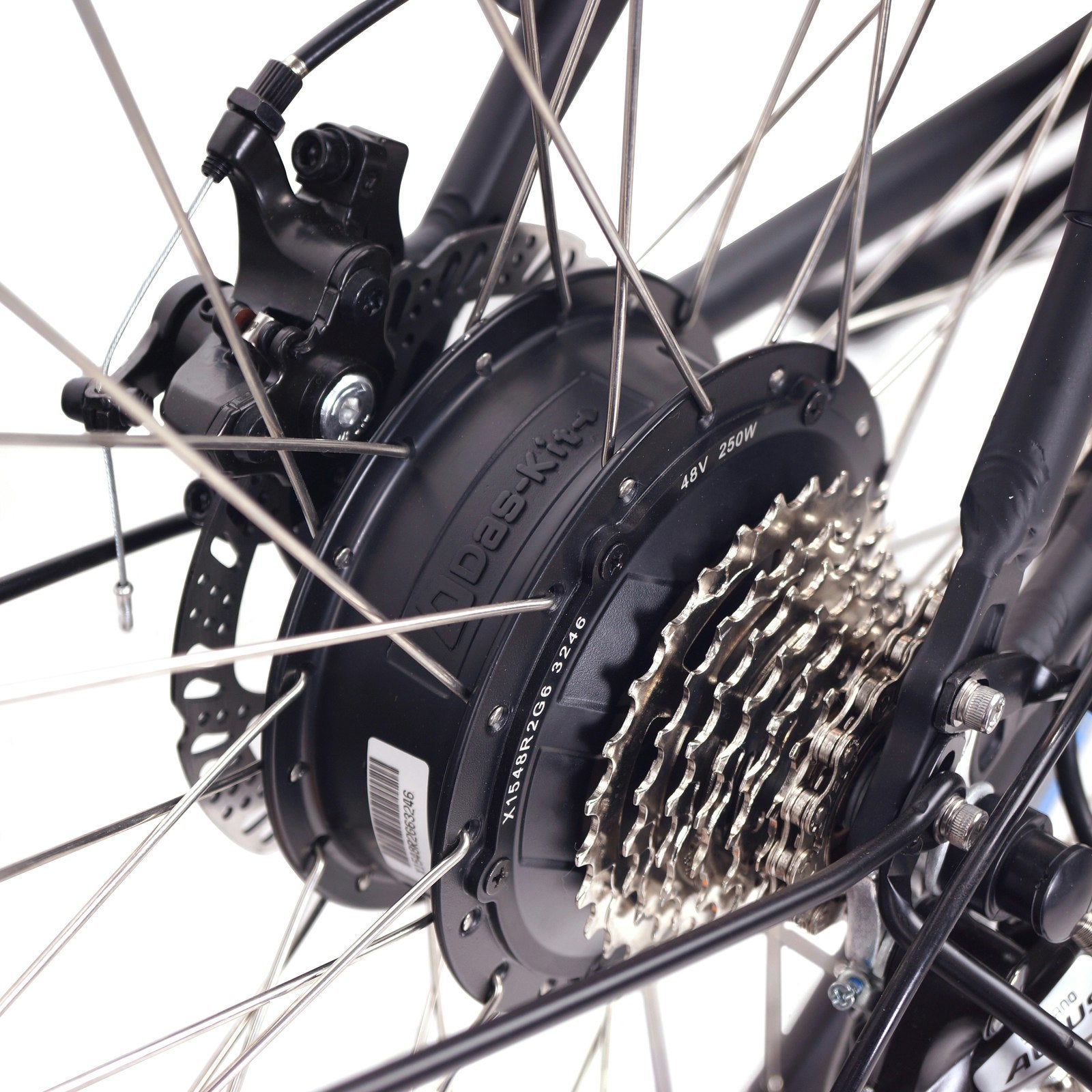

• Motor: Das-Kit, X15 Rear-drive motor, 48V 250W, 15.5mph
• Controller: Das-Kit, CT5-I5, 48V 15A

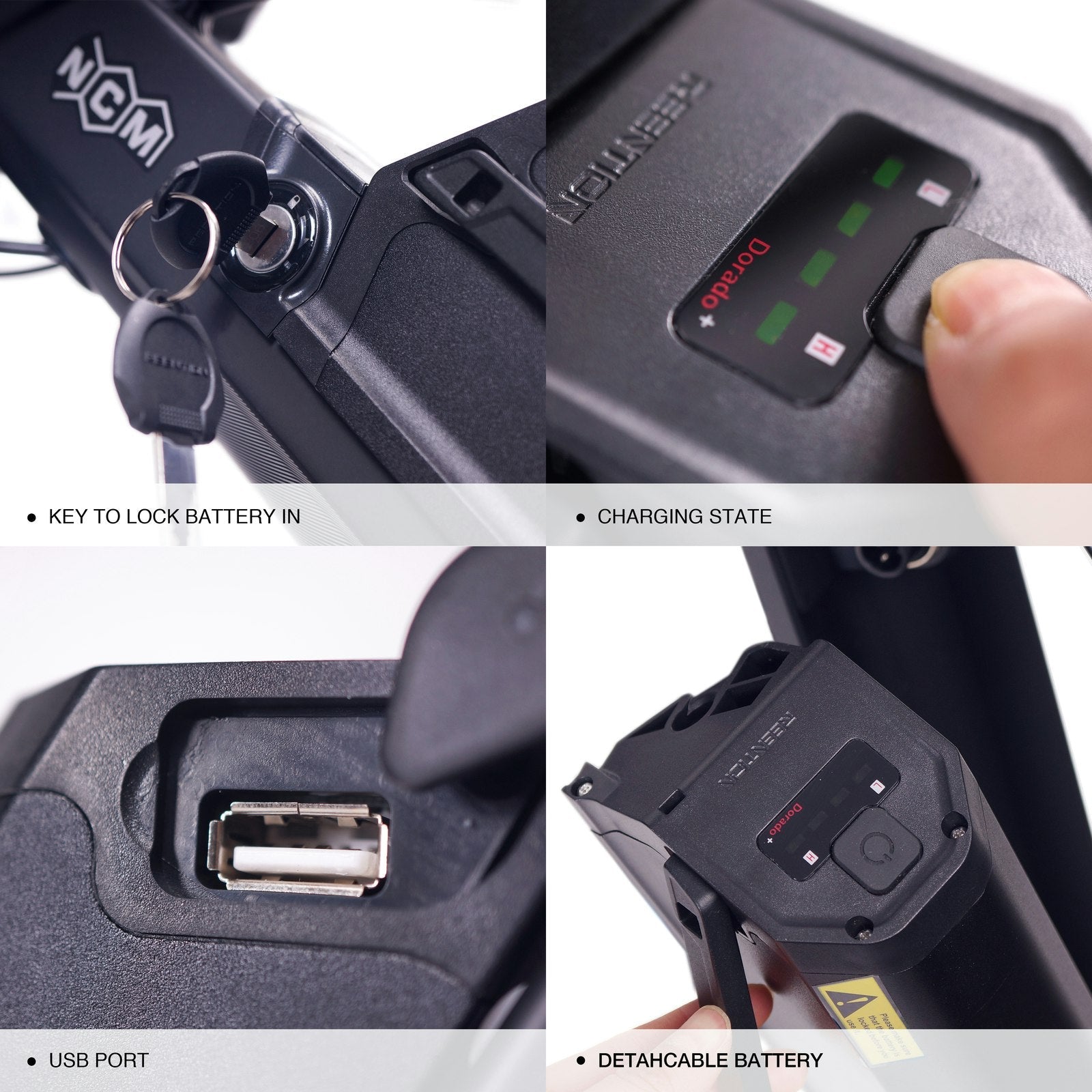

• Battery: DEHAWK I5-4816H,48V 16Ah, 768Wh, with USB port
• Average range: 40-90 miles depending on assistance level
• Display: LCD Das-Kit C7 display with many functions
• Front/Rear Light: Spanninga, Kendo, 48V, 30 Lux Spanninga, Solo 2xAA

BIKE PARTS

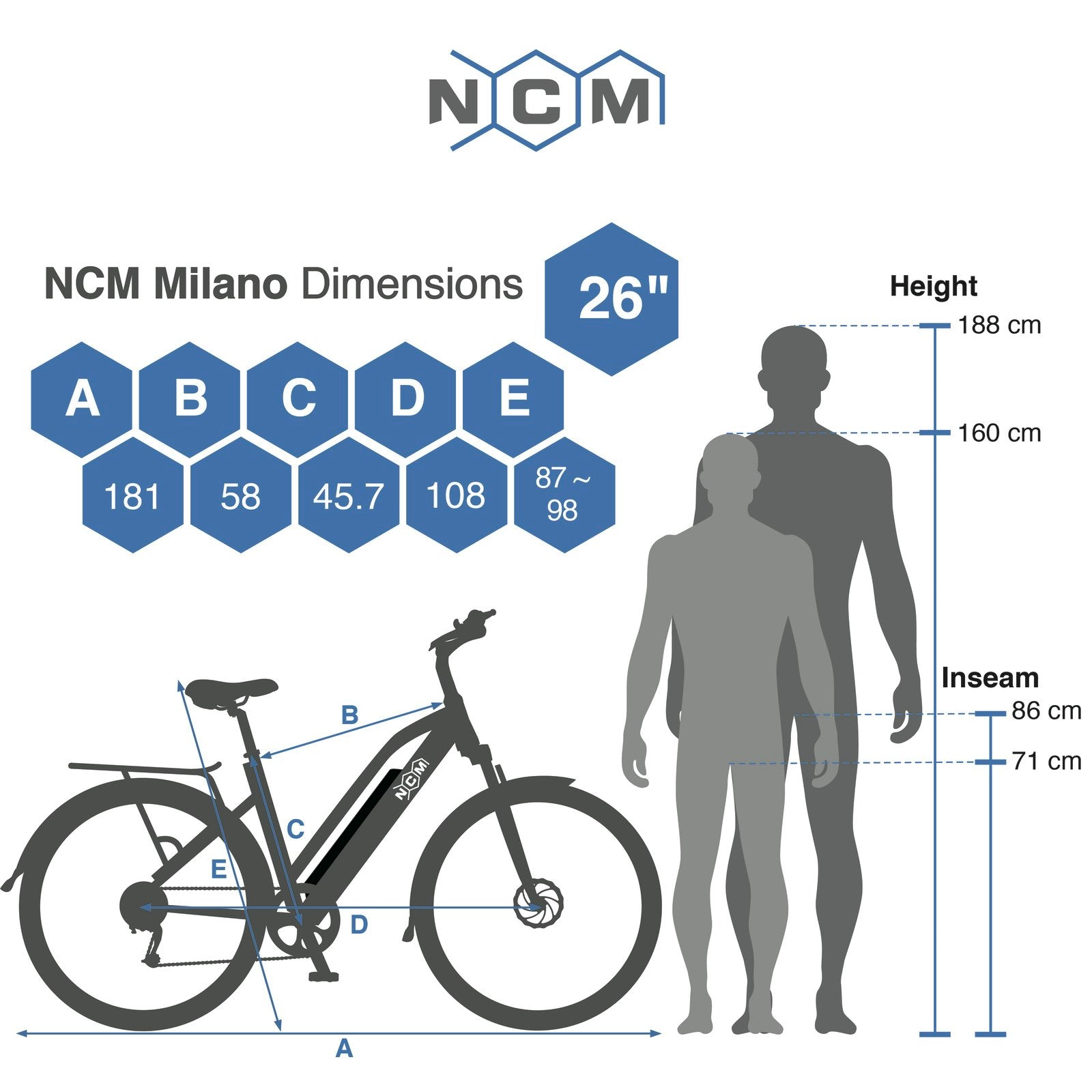

• Frame: Alu. 6061, 26"457MM /28"480MM
• Handelbar: Promax MA579 adjustable
• Fork: SR Suntour, NEX 26" / 28"
• Brake Levers: Tektro, incl. E-Brake levers on both sides
• Brakes F/R: Front/Rear: Hydraulic Disc Brake Systems, Tektro E350

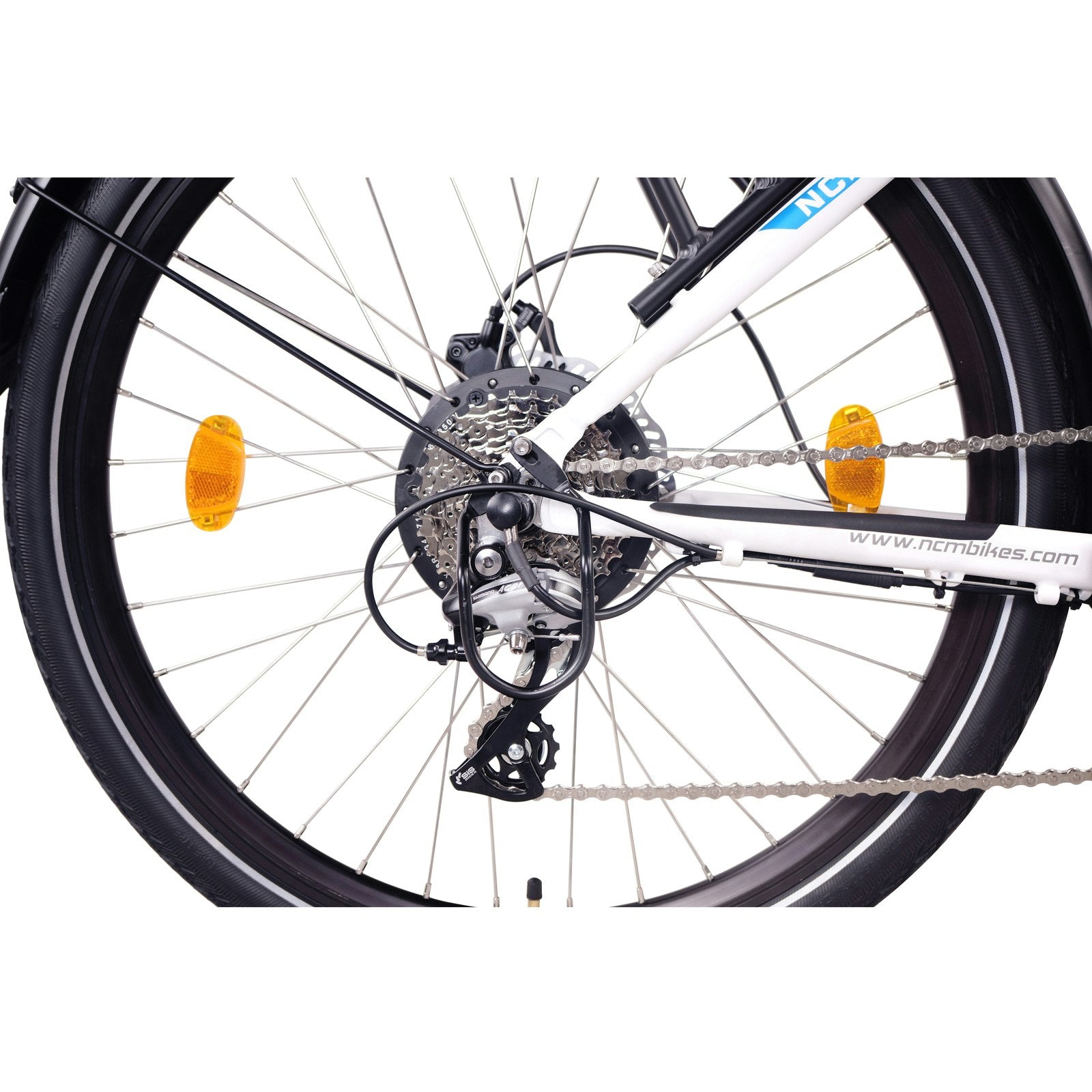

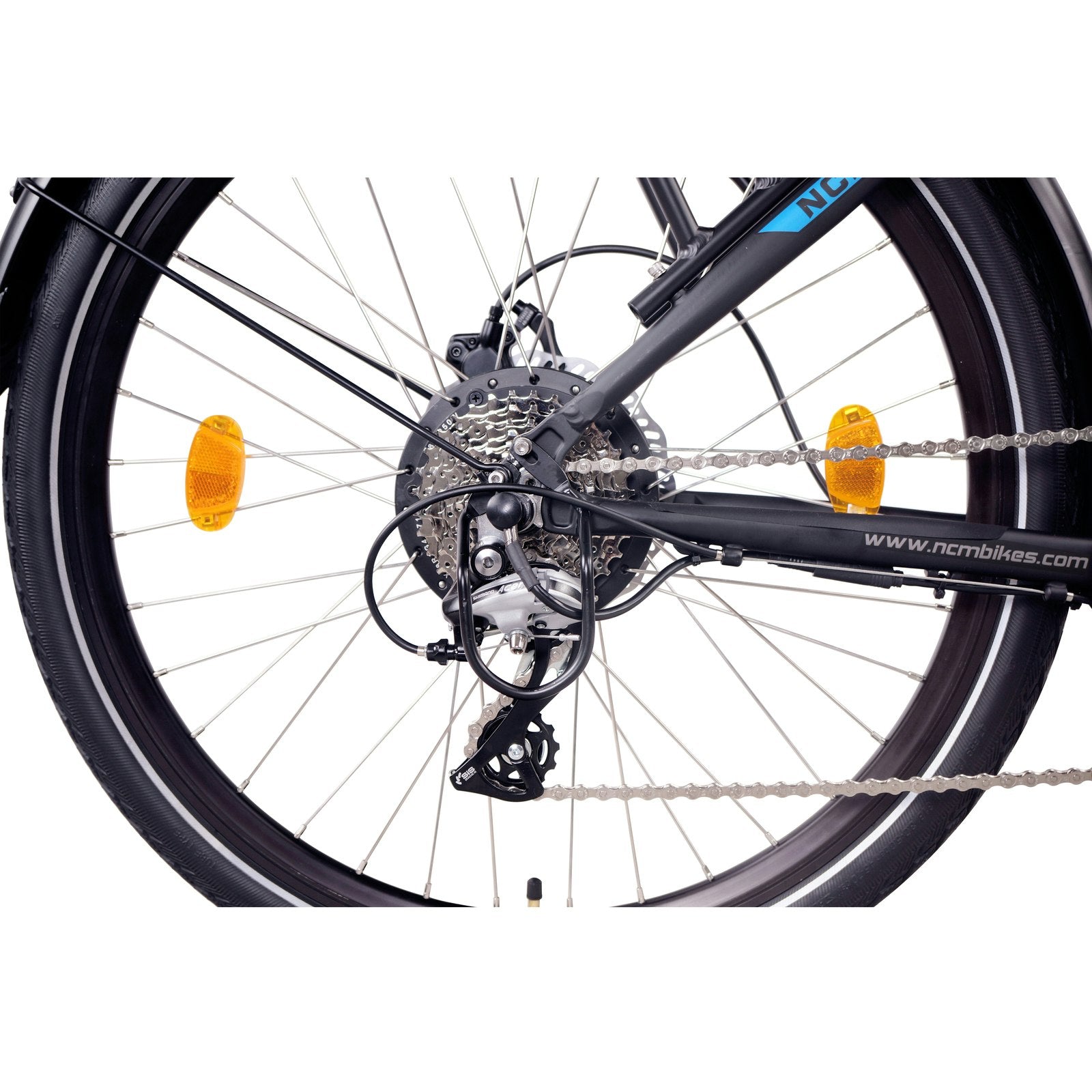

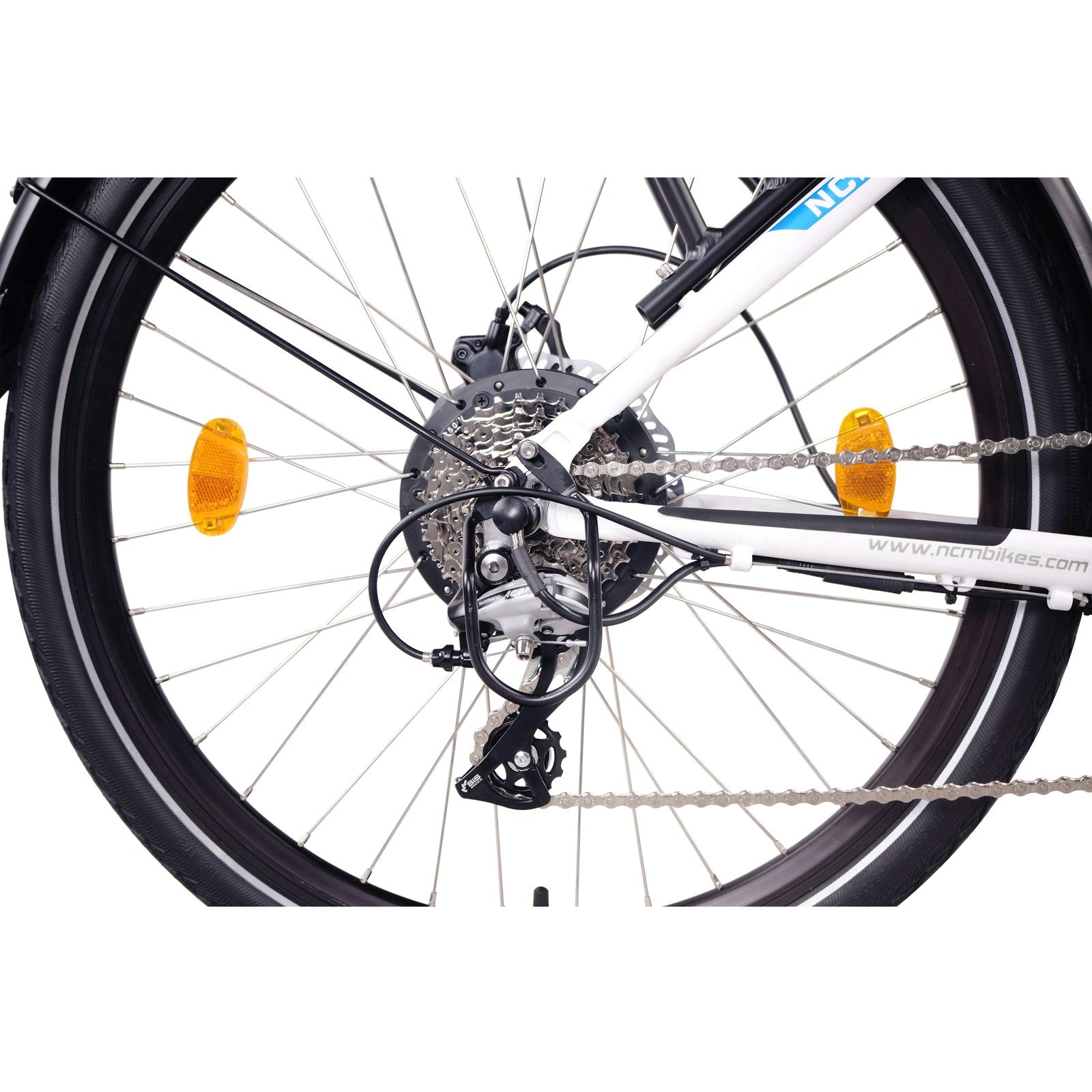

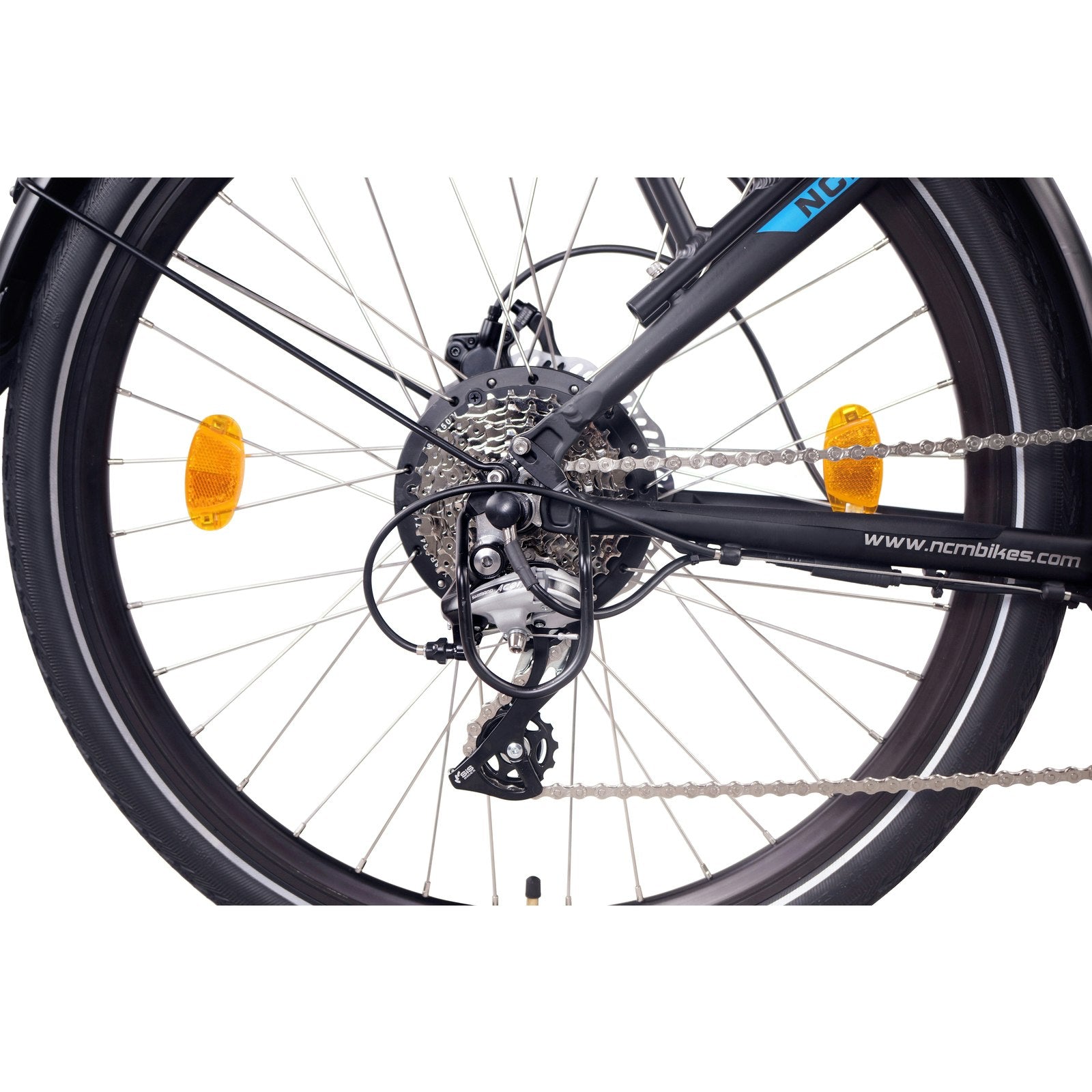

• Chain derailleur: Shimano, Altus M310, 8 speed
• Crank set: Prowheel, OUNCE-248AC, 48T
• Gear shift: Shimano, Acera M360, 8-Speed
• Pinion:Freewheel sprocket (8-Speed), 11-32T
• Tyre: Schwalbe Marathon 26"1.75 / 28"1.5 700C black

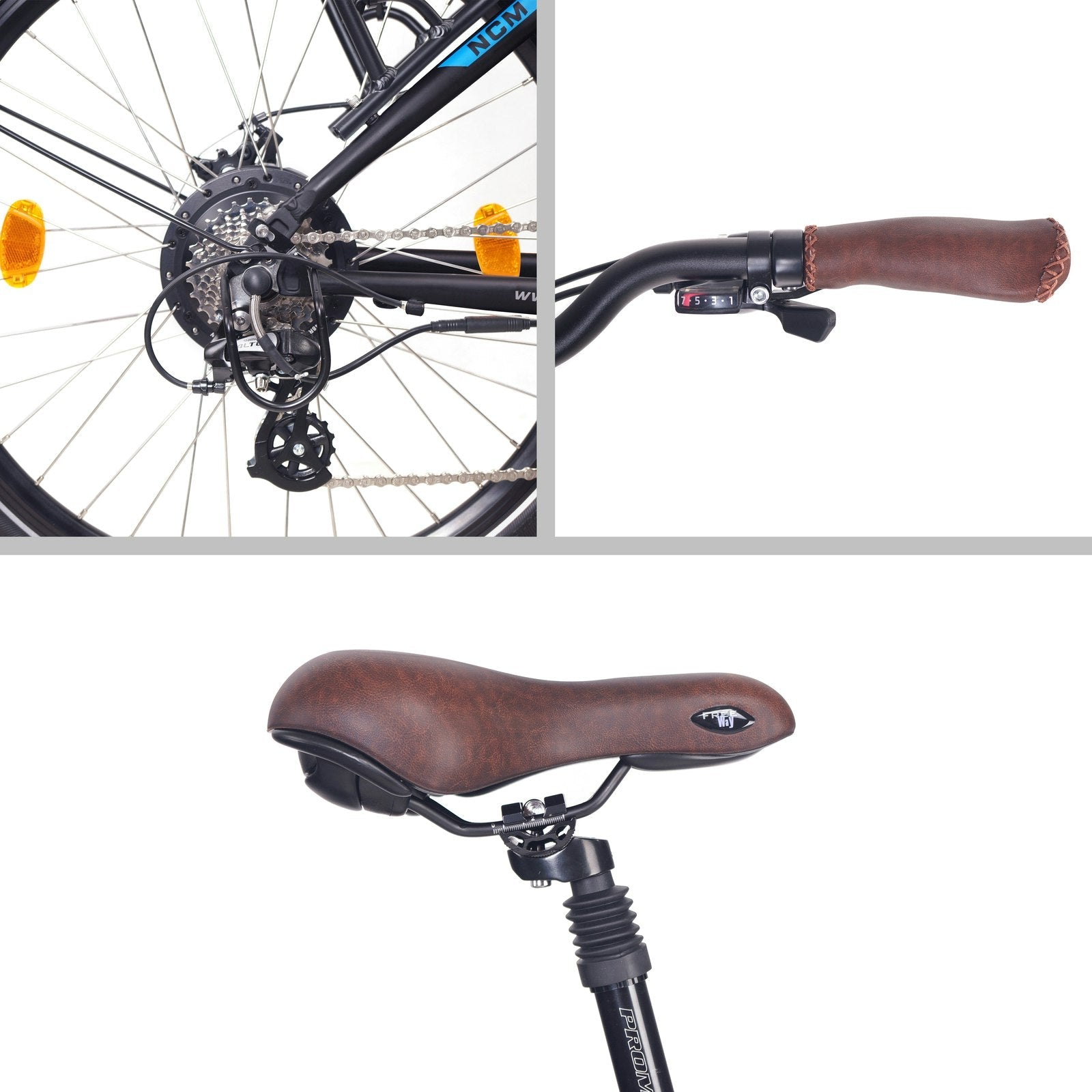

• Saddle: Selle Royal, gel saddle, brown (imitation leather)
• Seatpost: Promax, SP-884, with suspension, 27.2*300MM
• Handles: Selle Royal, brown (imitation leather)
• Pedals: Wellgo, B087, black
