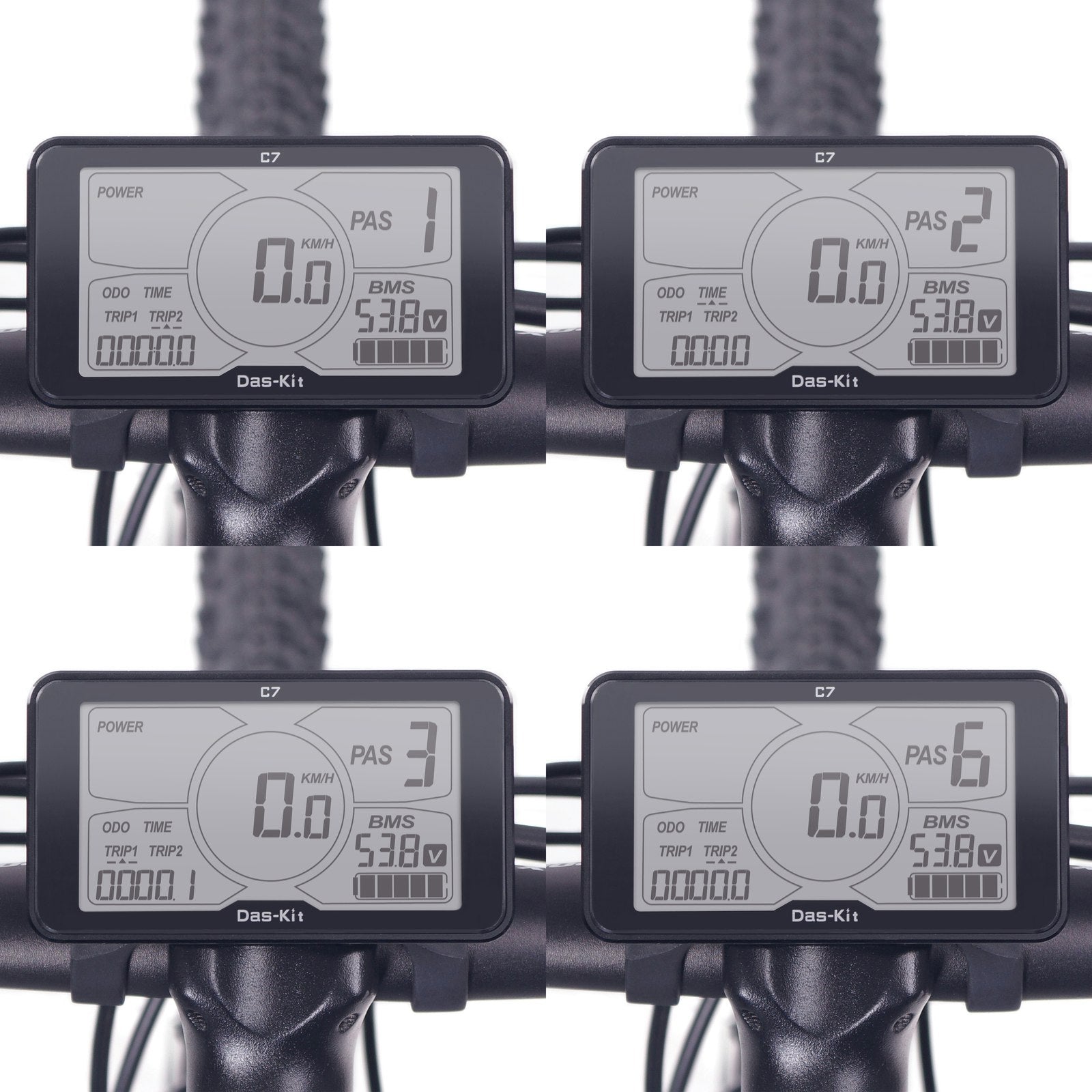

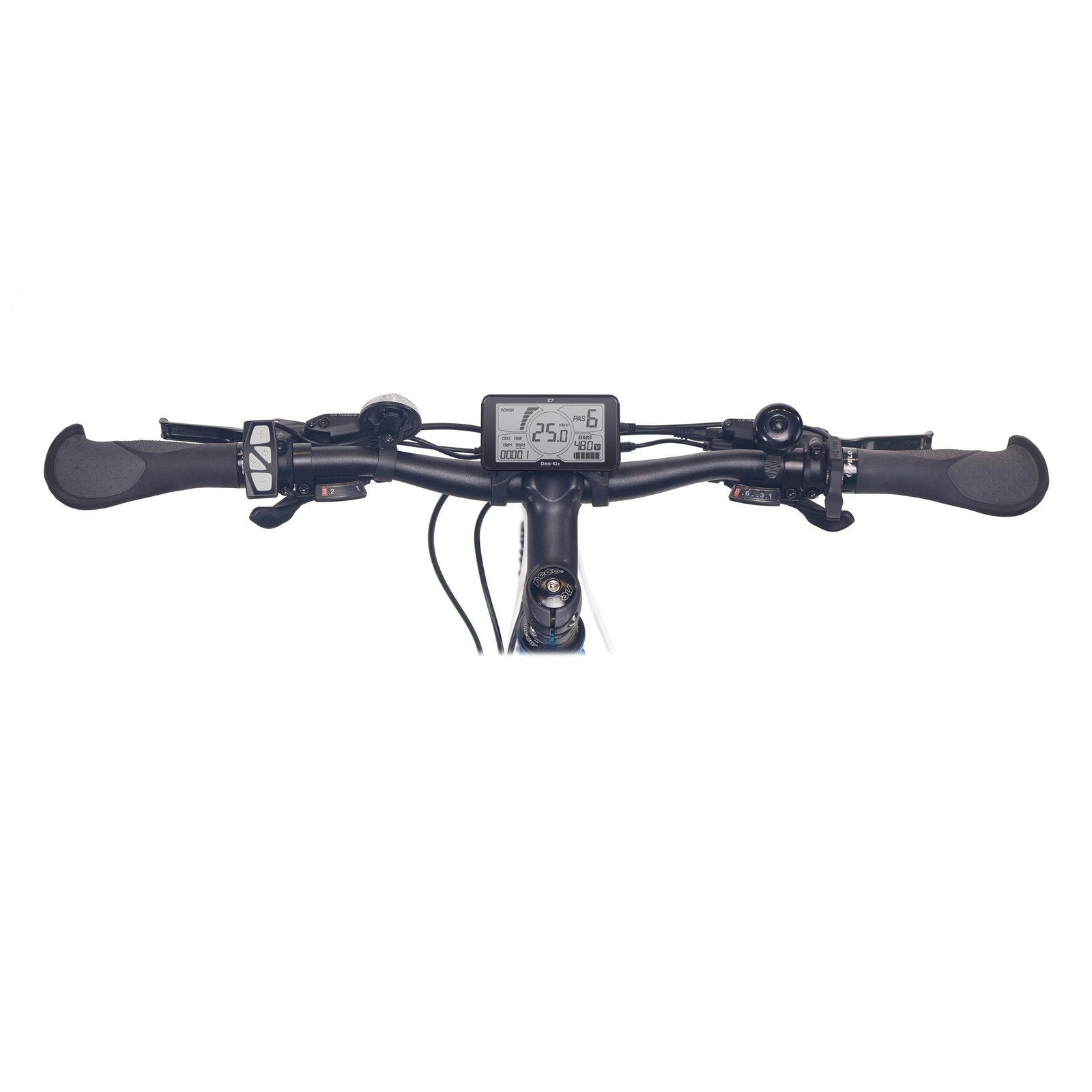

Display: Das-Kit, L7B, LCD, 6 Assistant levels, up to 4mp/h power assist walk
Controller: Das-Kit, CT5-I5, 48V 15A

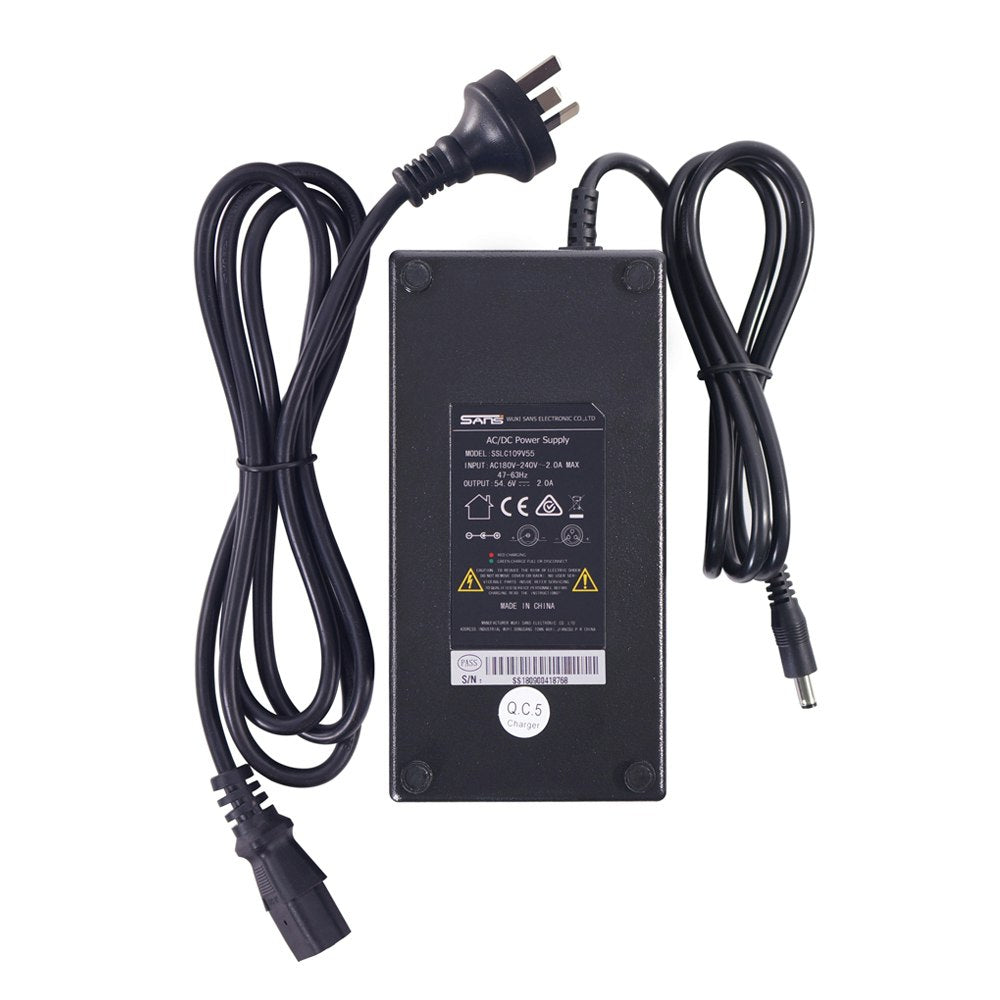

Charger: Inclueded DC483AU 48V 2A with round plug

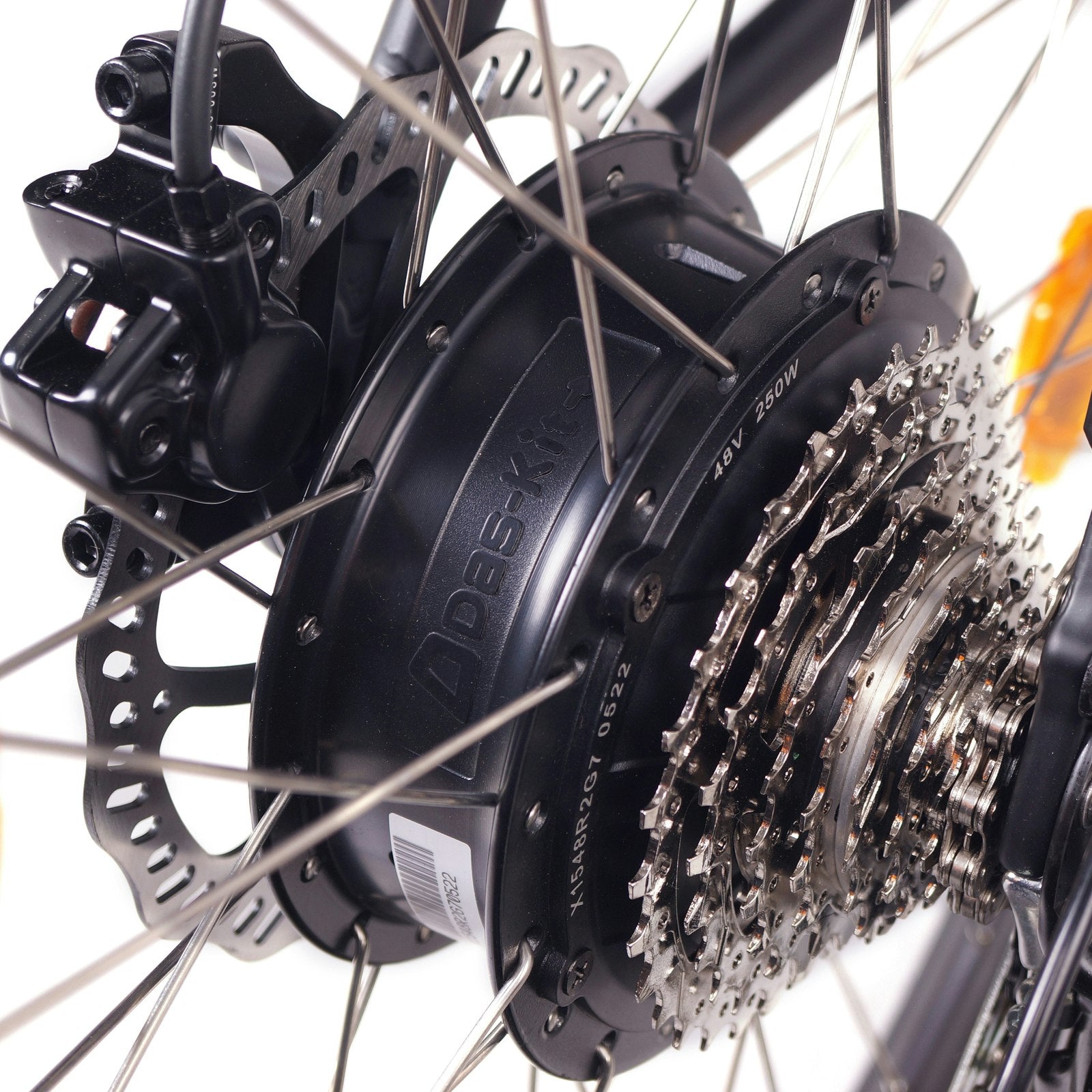

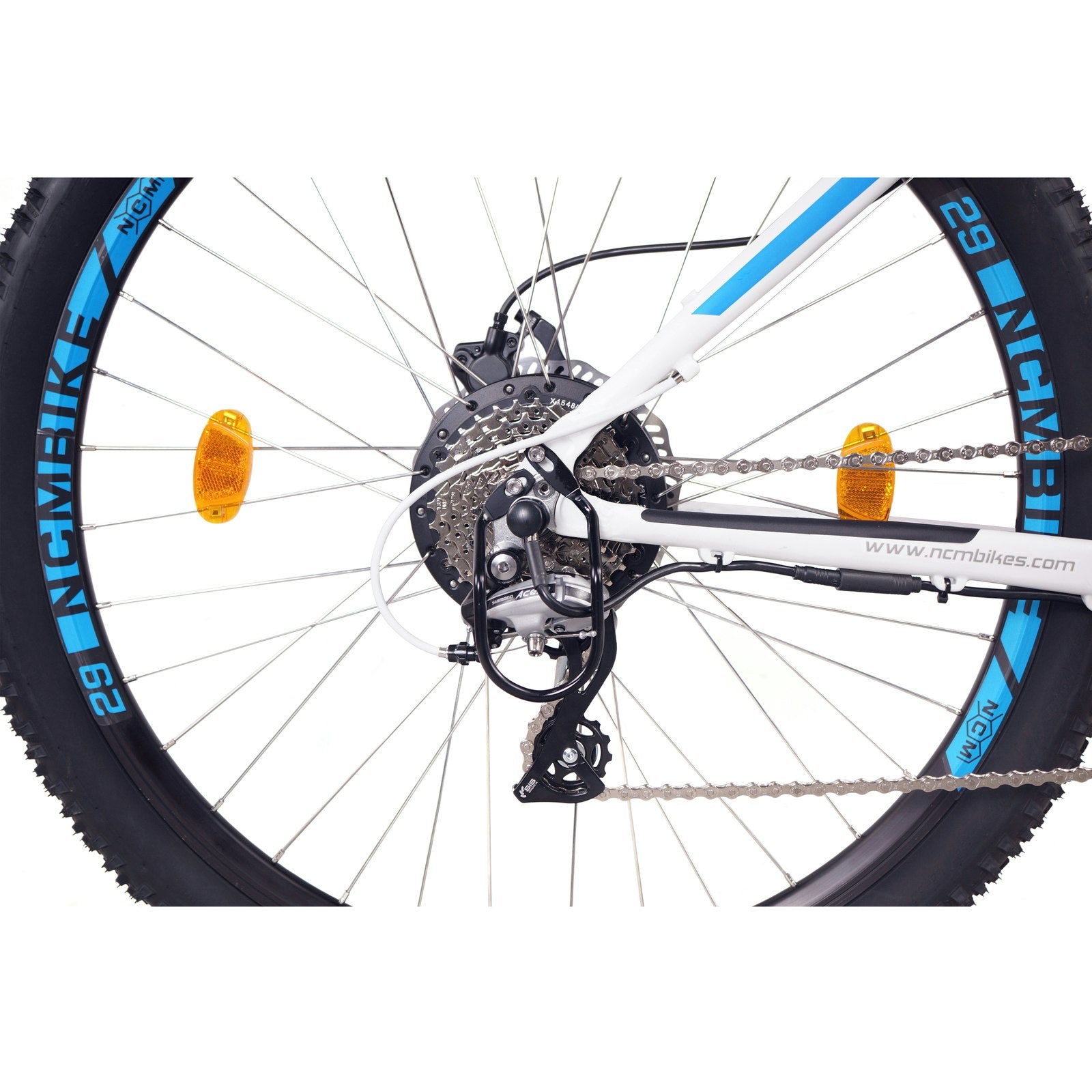

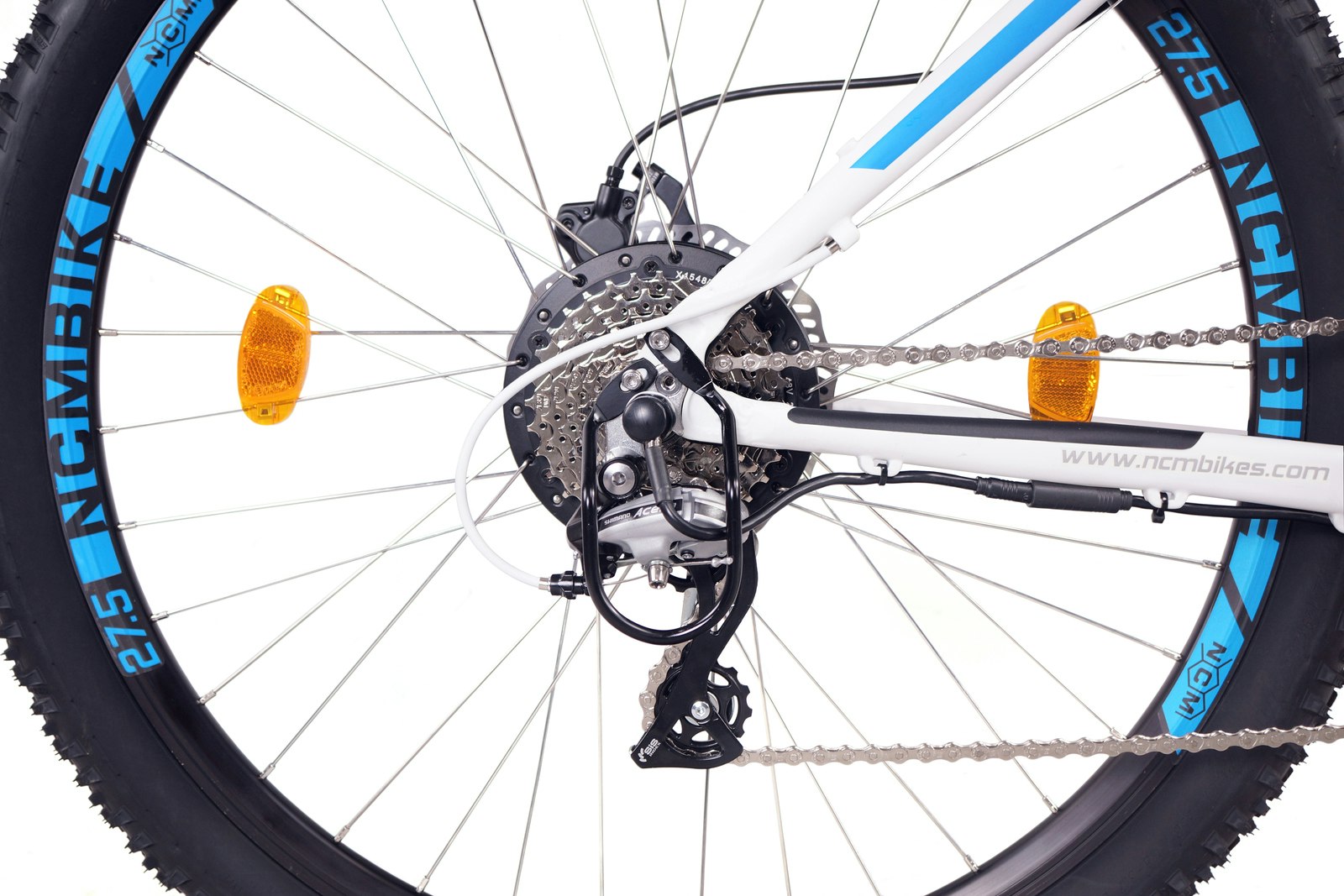

Motor: Das-Kit, X15, 48V 250W, 15.5mp/h, rear motor wheel

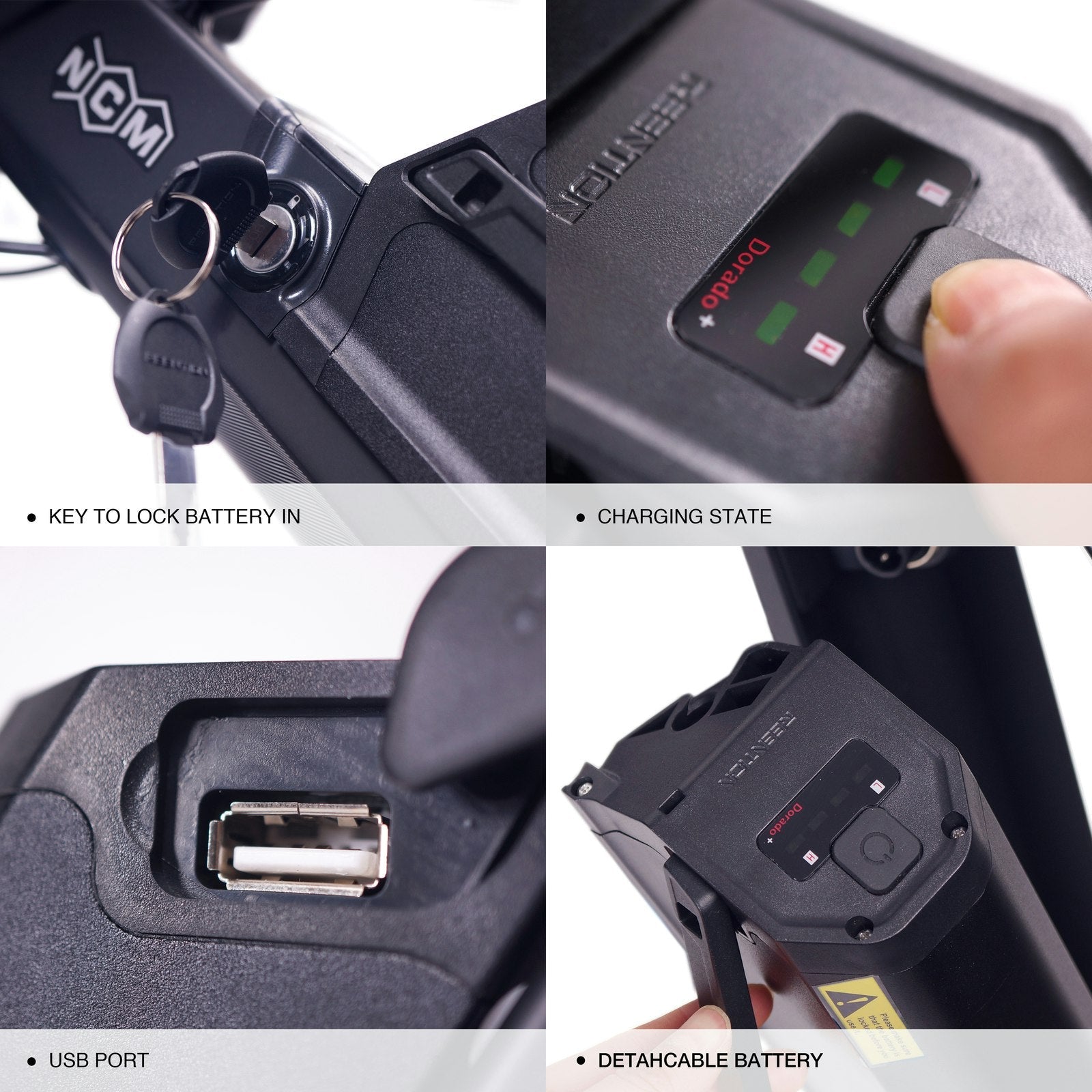

Battery: i5-4816P, 48V 16Ah, 768Wh Panasonic Cells,
Li-NCM-18650 incl. USB port
(charging mobile devices with 1A)
Distance approx. 40-90 miles depending on assistance level.
Front/Rear Light: Have to be purchased separately. Not included. Front/Rear reflector incl., cat's eye
BIKE PARTS

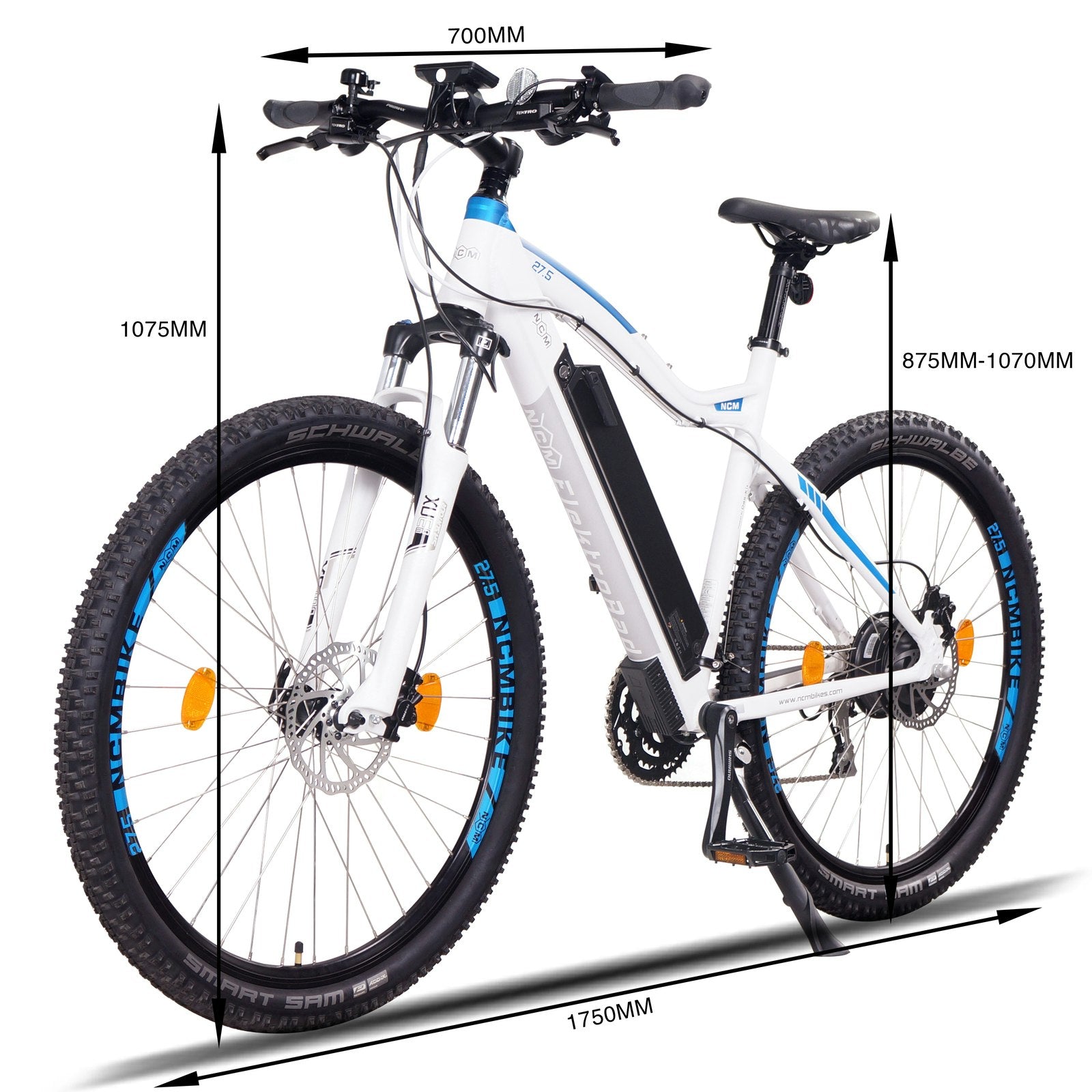

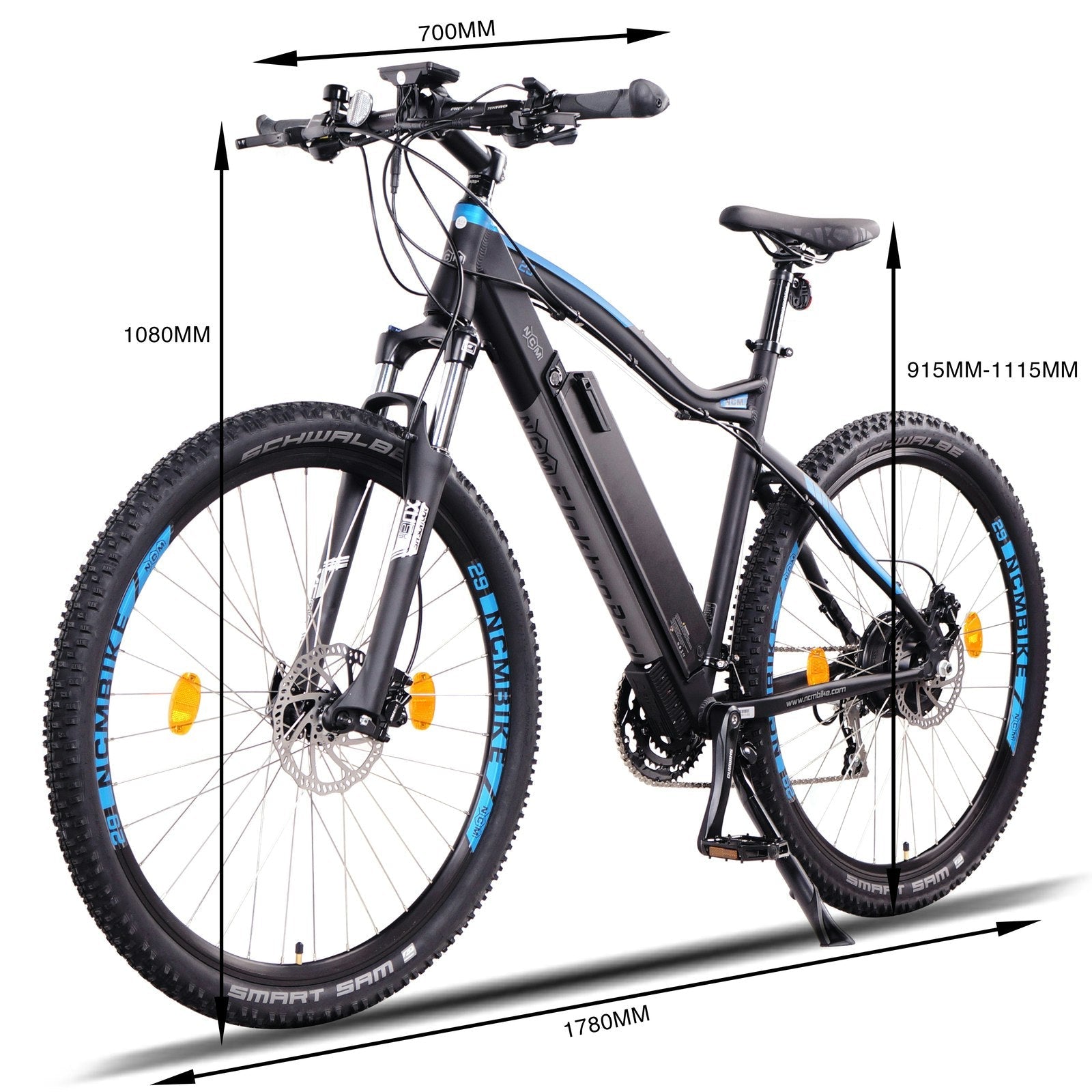

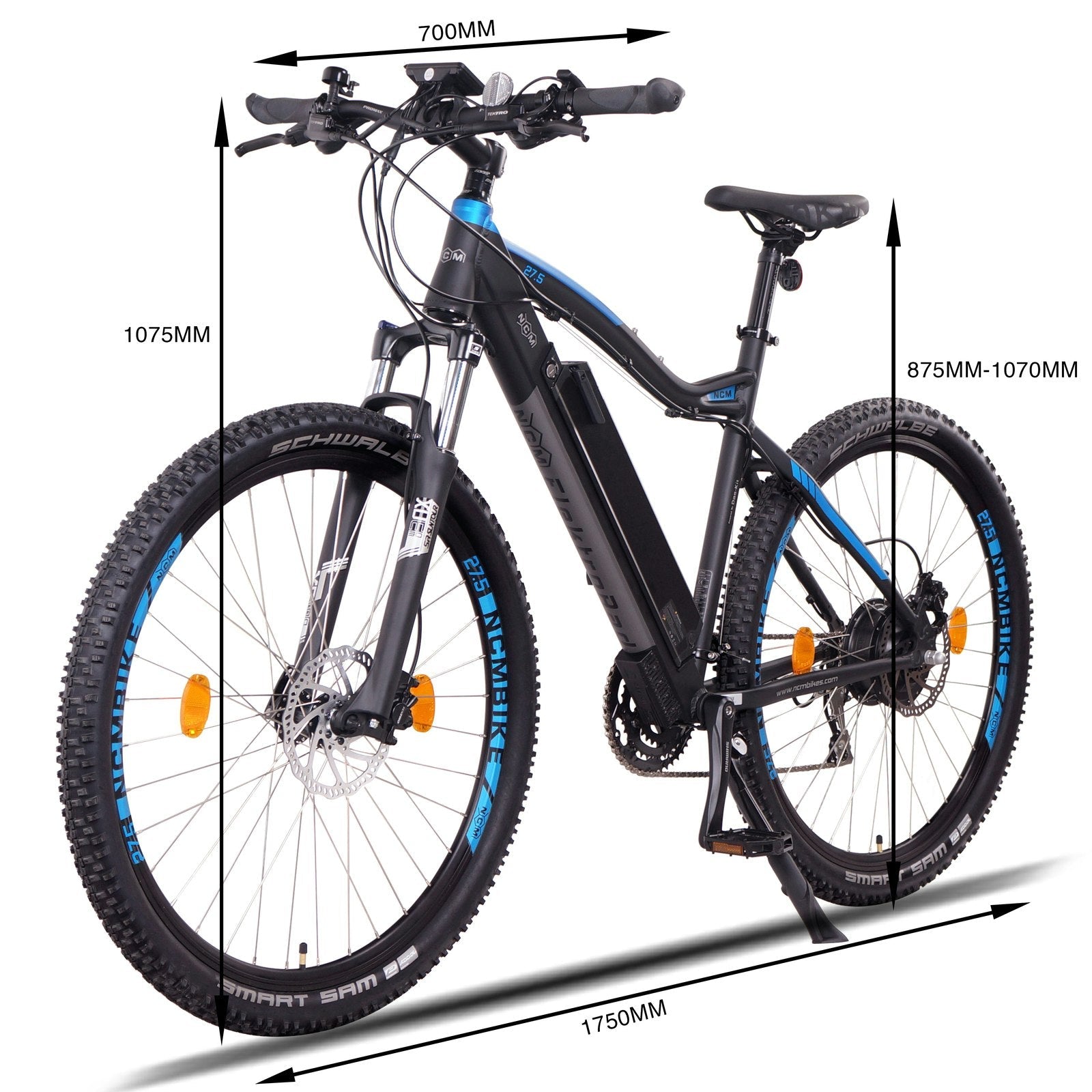

Frame: Aluminium 6061, 27,5“ 480MM / 29"*520MM,
Fork: Suntour, XCM-27.5 / 29” with suspension and lock-out
Brake Lever: Tektro, with brake sensor on both sides
Brakes: F/R: Hydraulic Tektro Disc Brakes

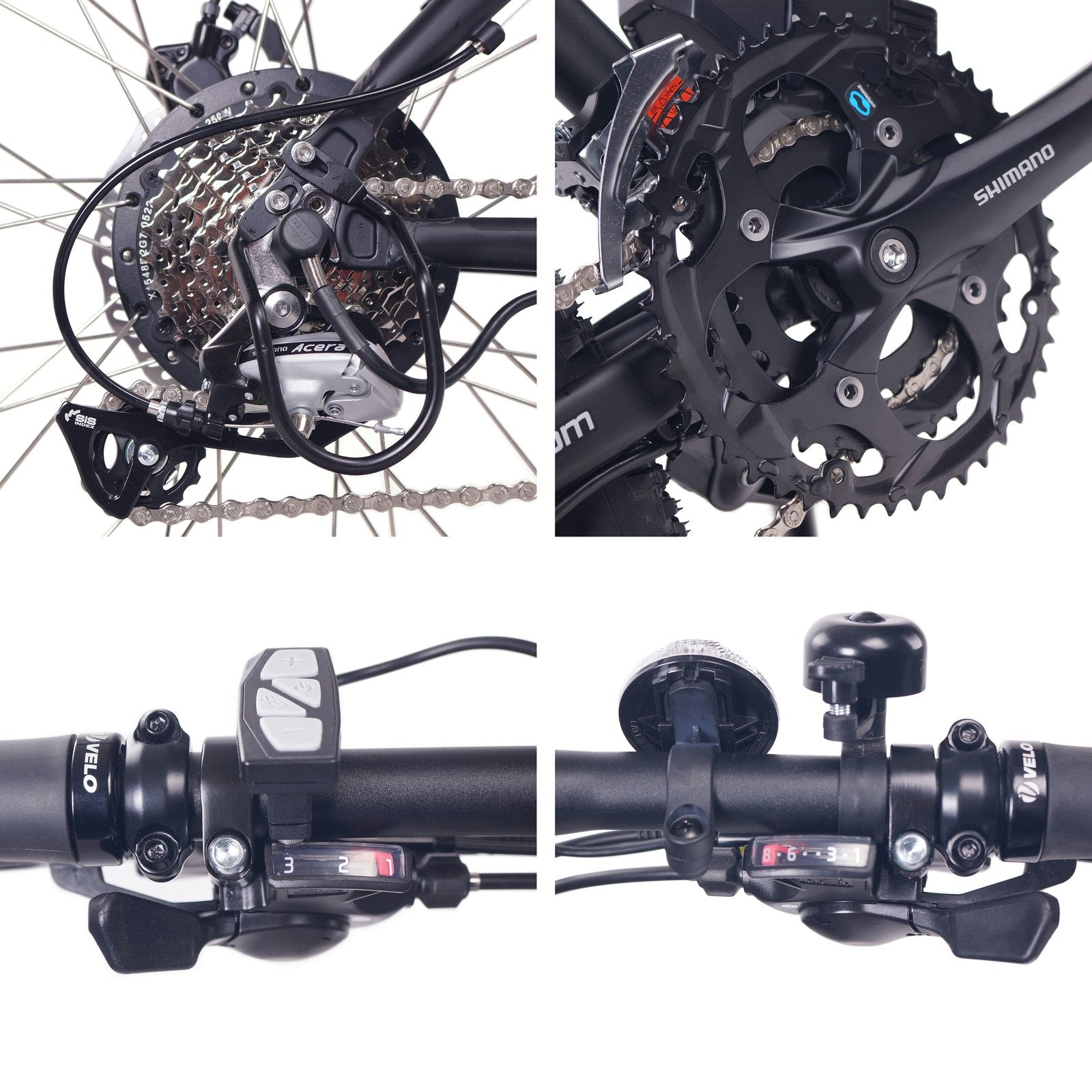

Crank: Shimano, FC-M361, 170mm, 28/38/48T
Gearshift: Shimano, Altus, F: SL-M310-L, 3 Gang, R:SL-M310-8R, 8 Gang

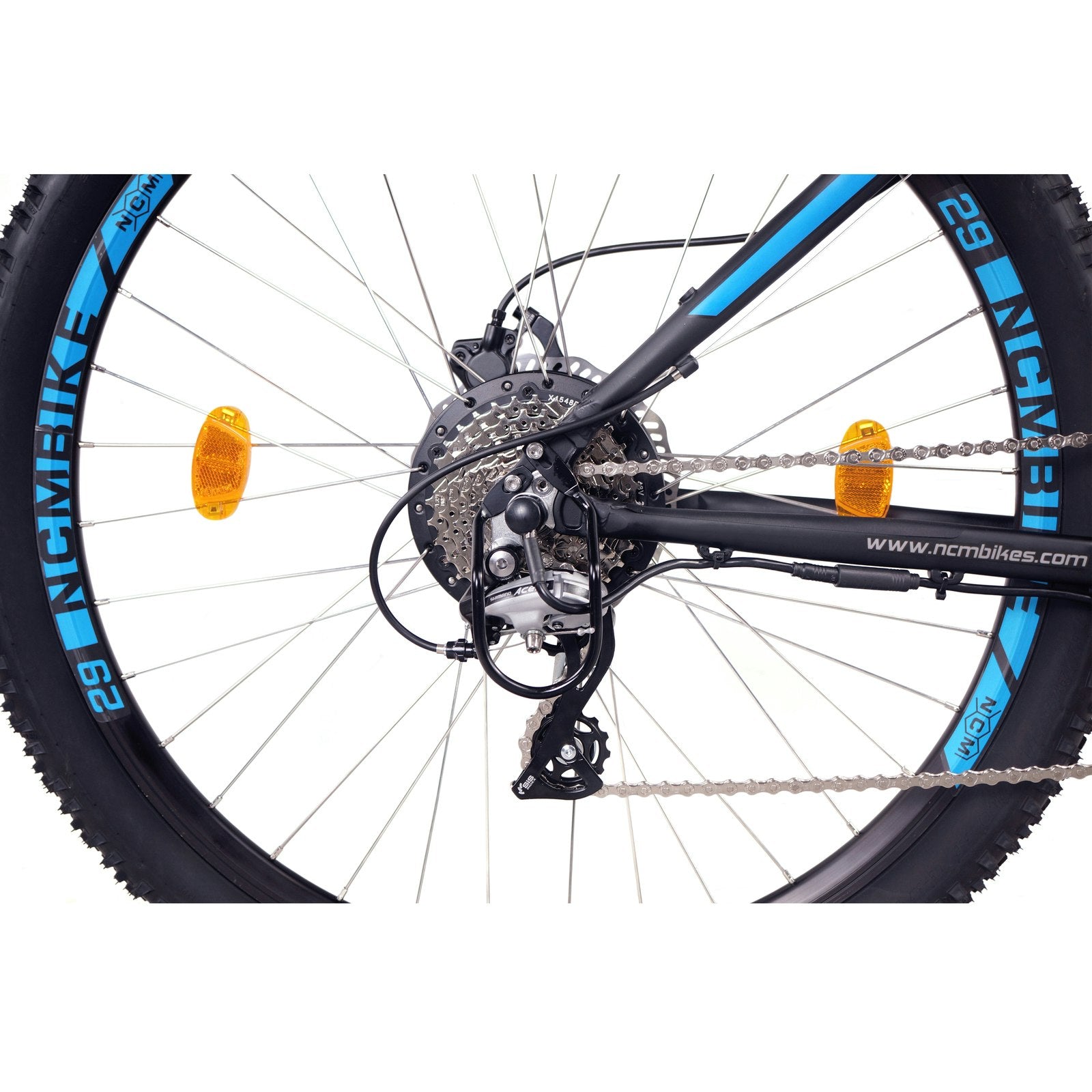

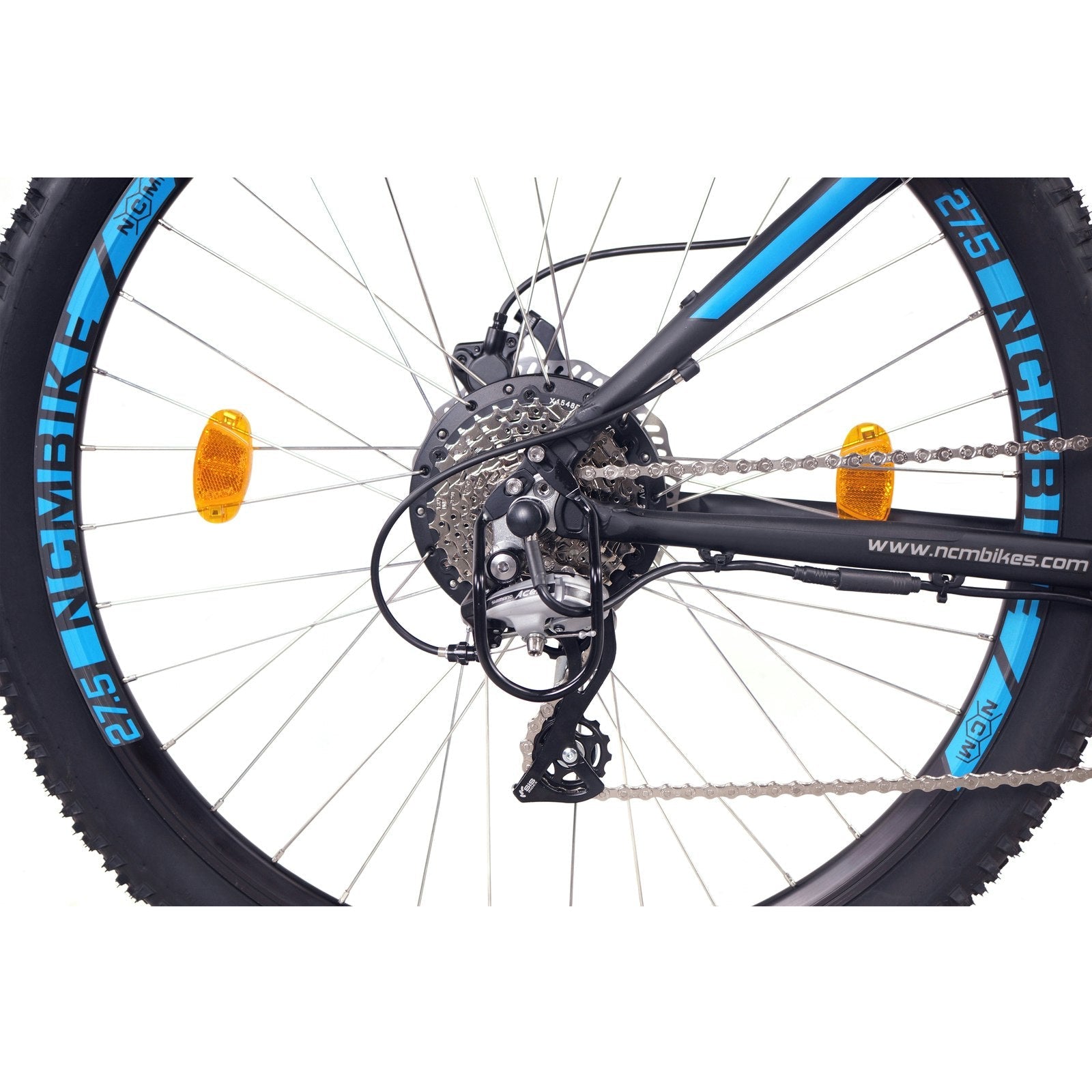

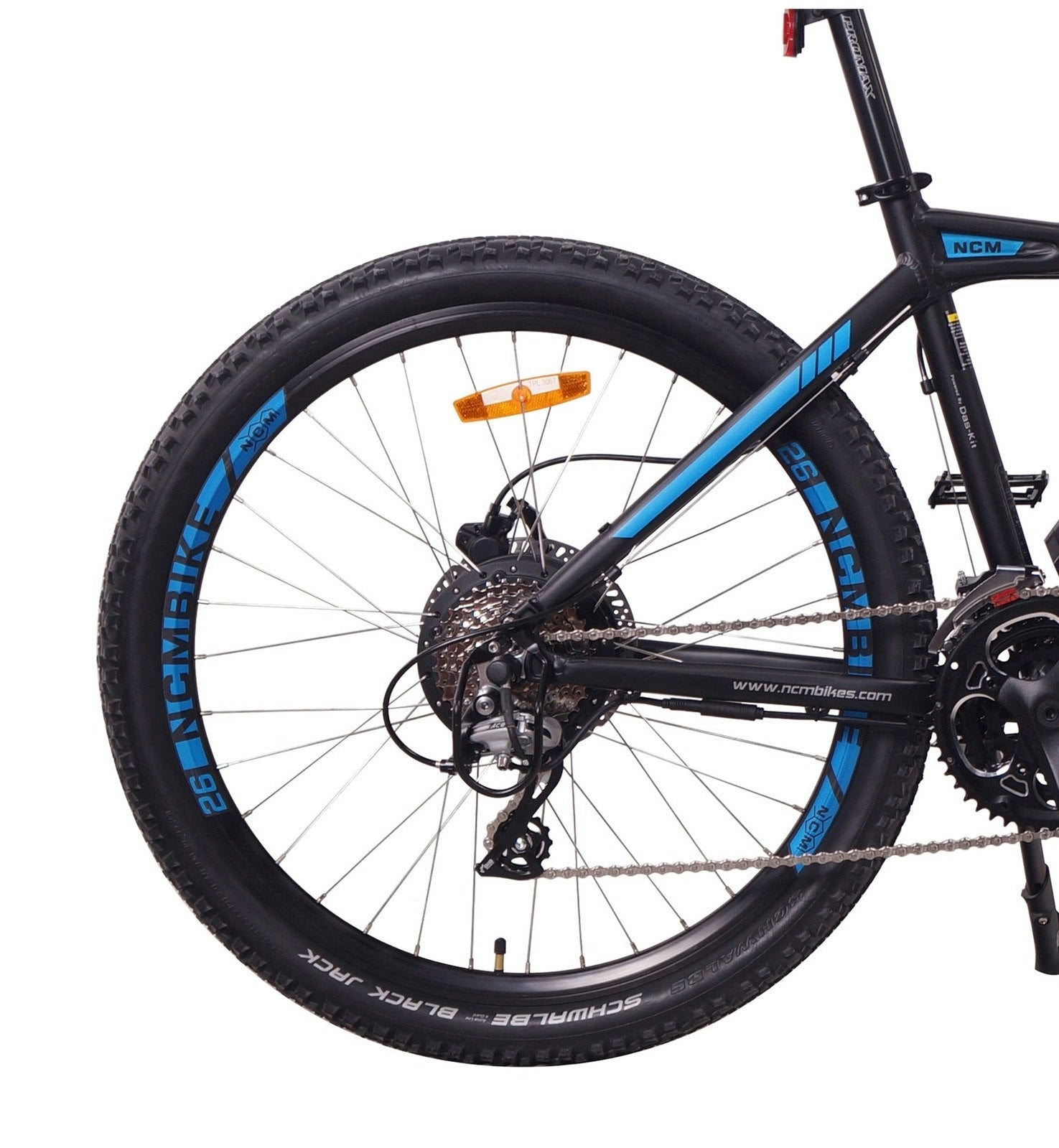

Rear Derailleur: Shimano, Acera, RD-M360, 8 speed
Tire: Schwalbe, SMART SAM 27,5"* / 29"* 2.25
Saddle: VELO designed by NCM, black
Seat Post: Promax, Alu.MA-471, Ext 90mm
Grip: VELO, ergonomic, black/grey (synthetic)
Pedal: Wellgo. B087, black
Warranty
1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
2 year warranty on the bike frame
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
Disclaimer: Once you received the e-bike, we recommend to have it
assembled by a professional in bike shops near you and also get your bike
serviced after 1 month of use to ensure all aspects of the bike are set and
calibrated correctly.
