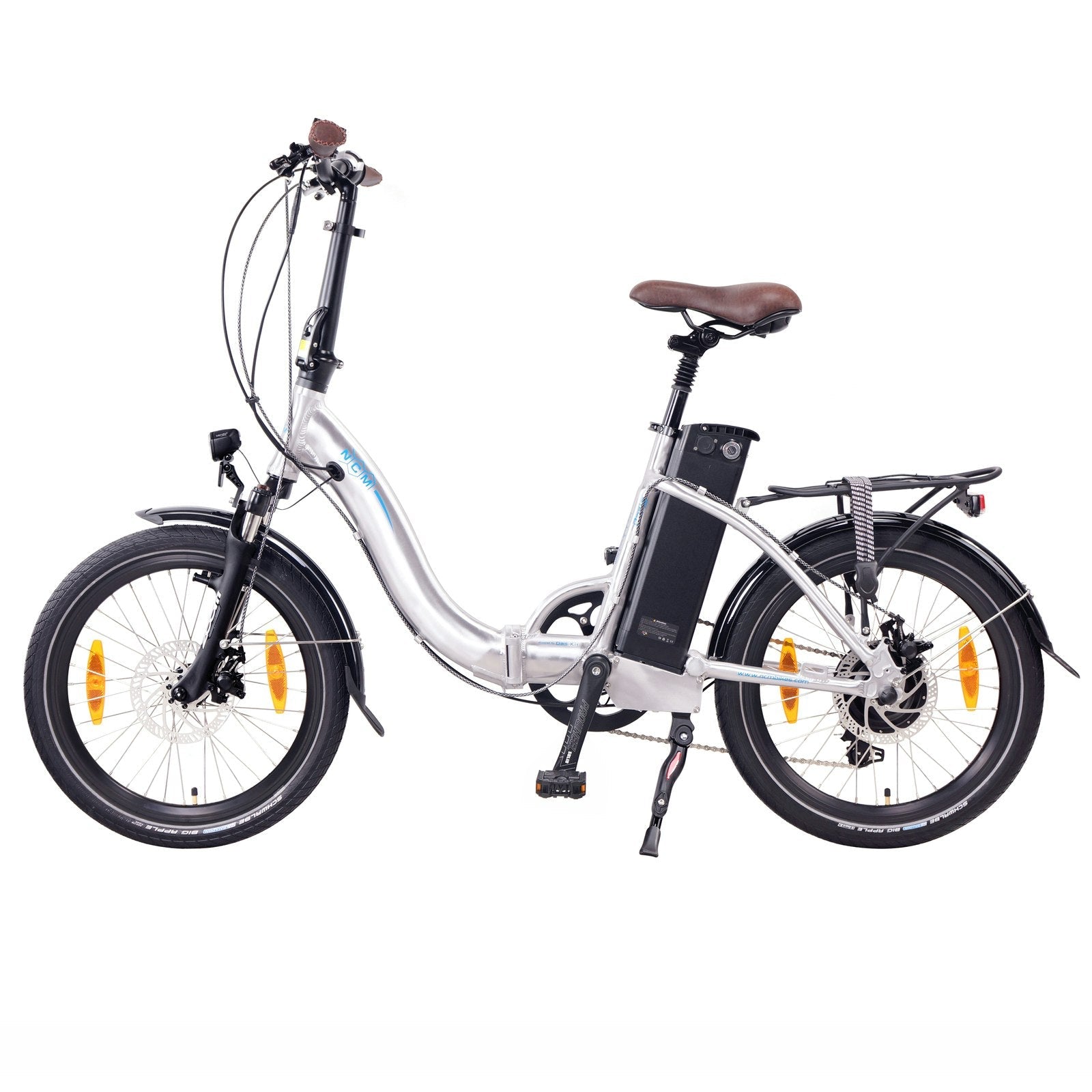

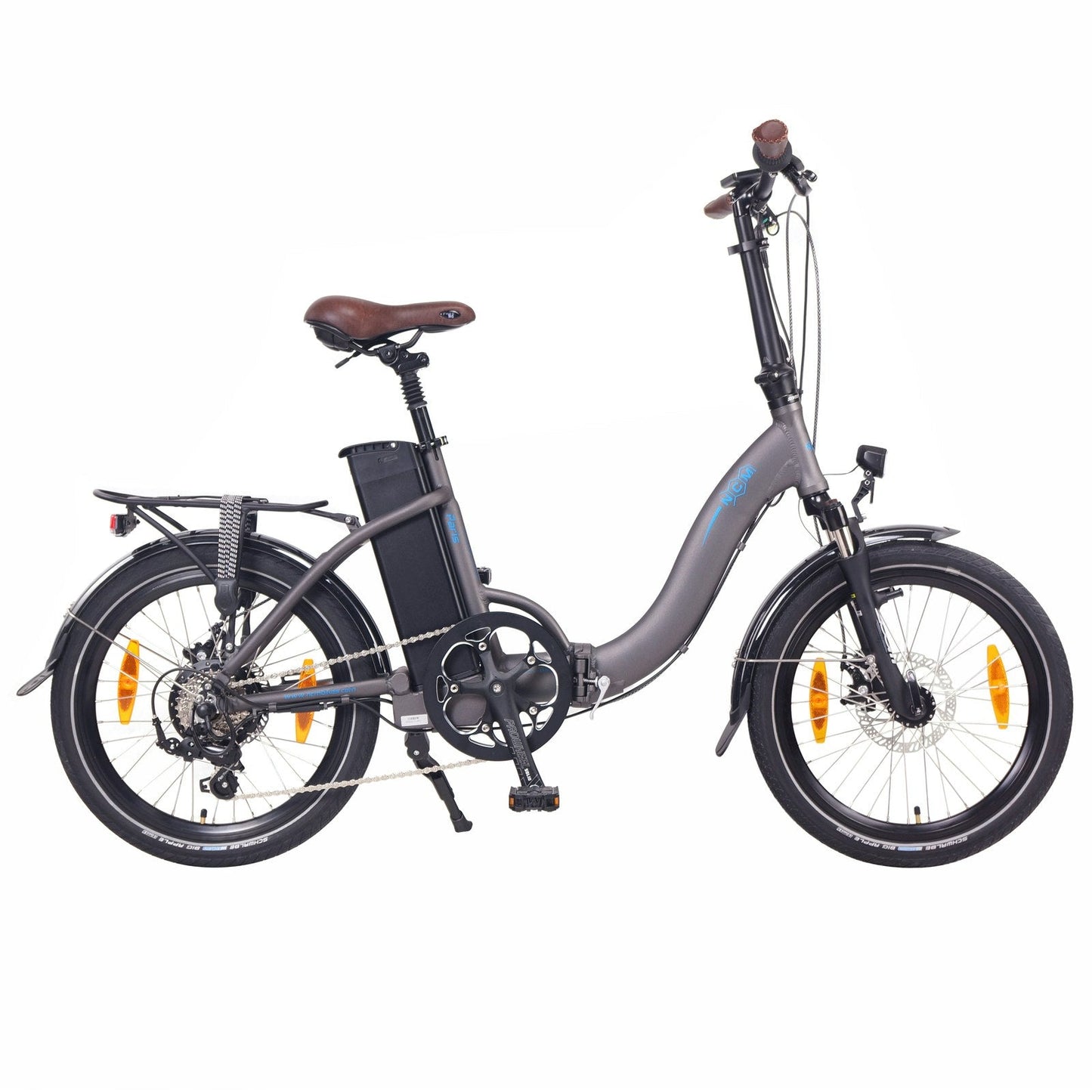

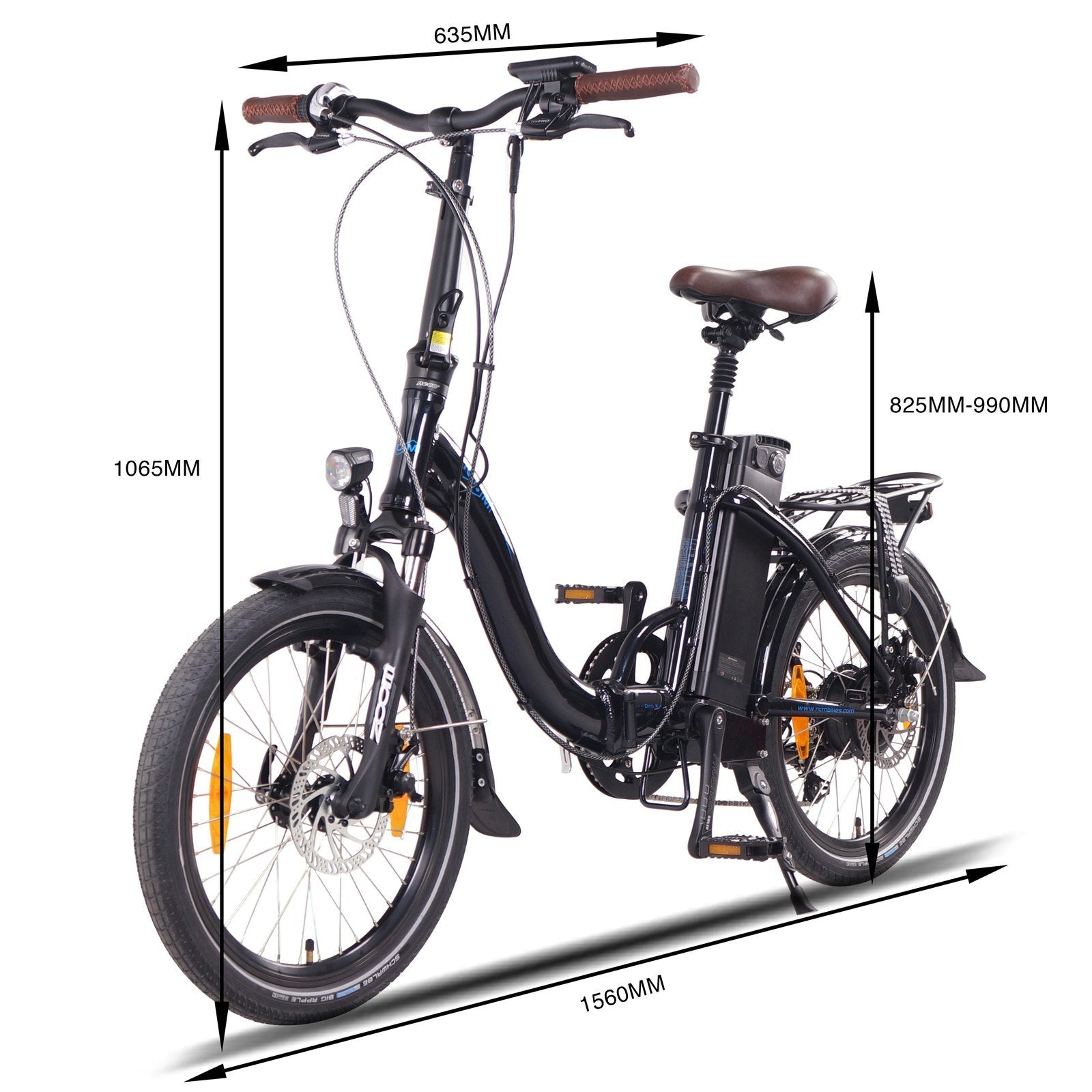

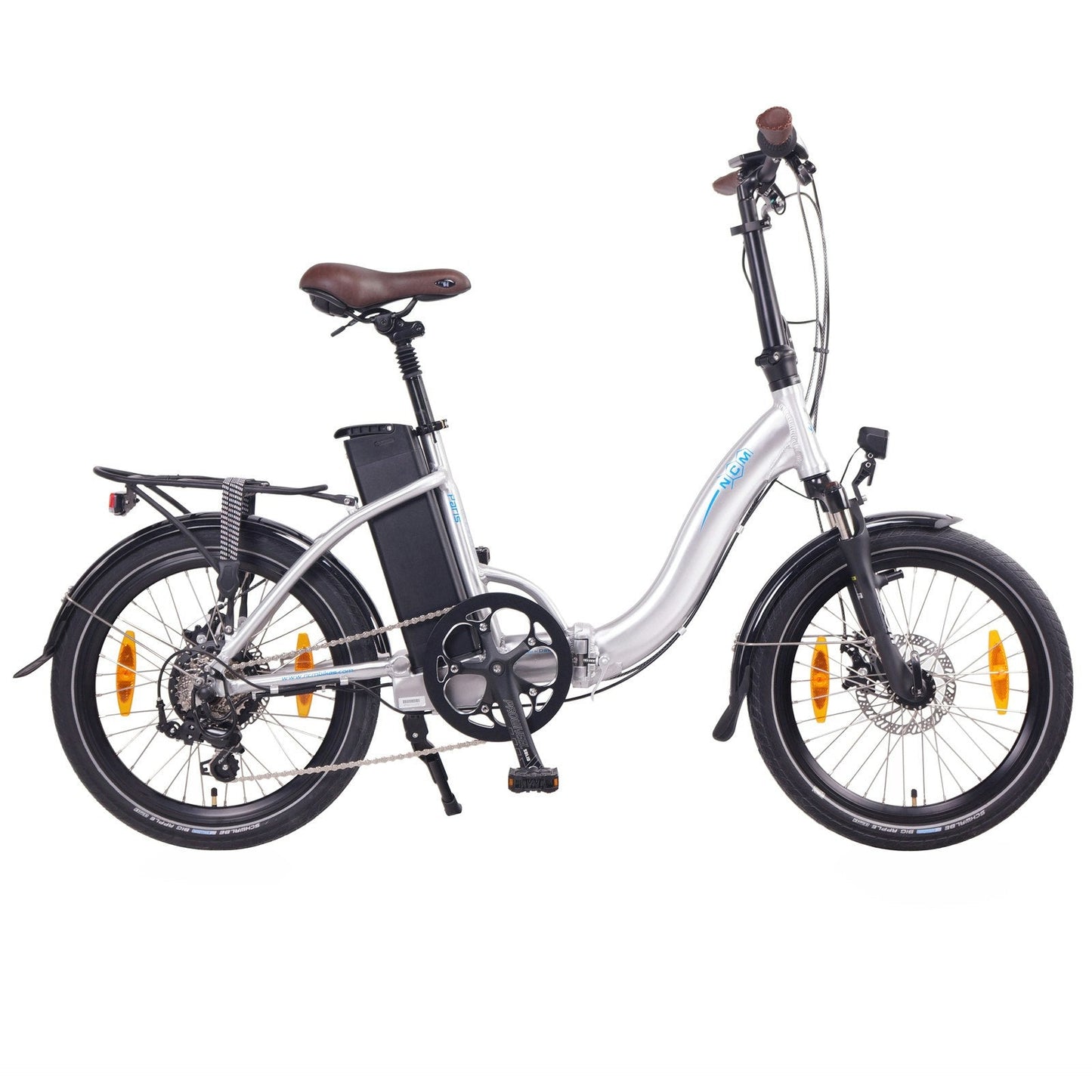

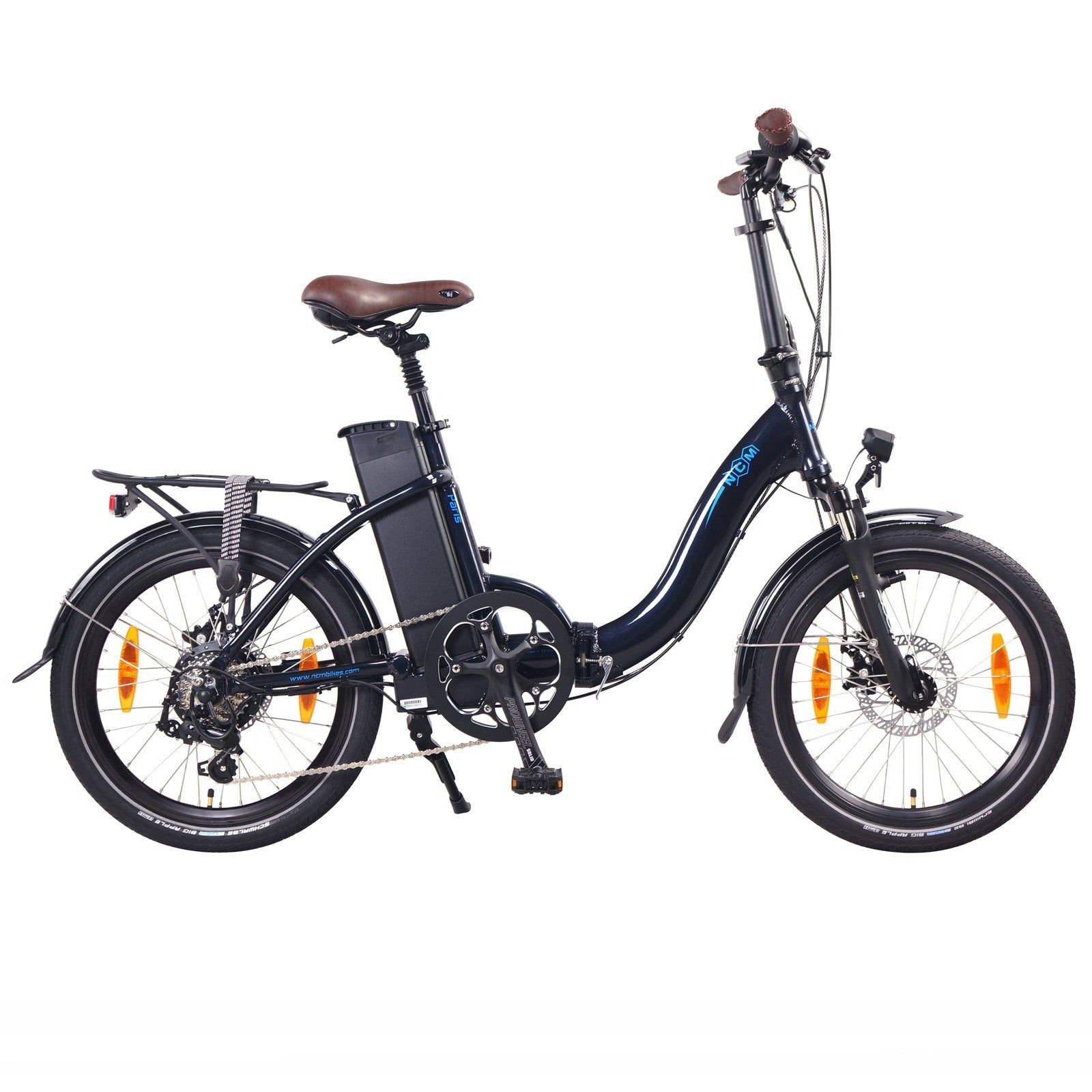

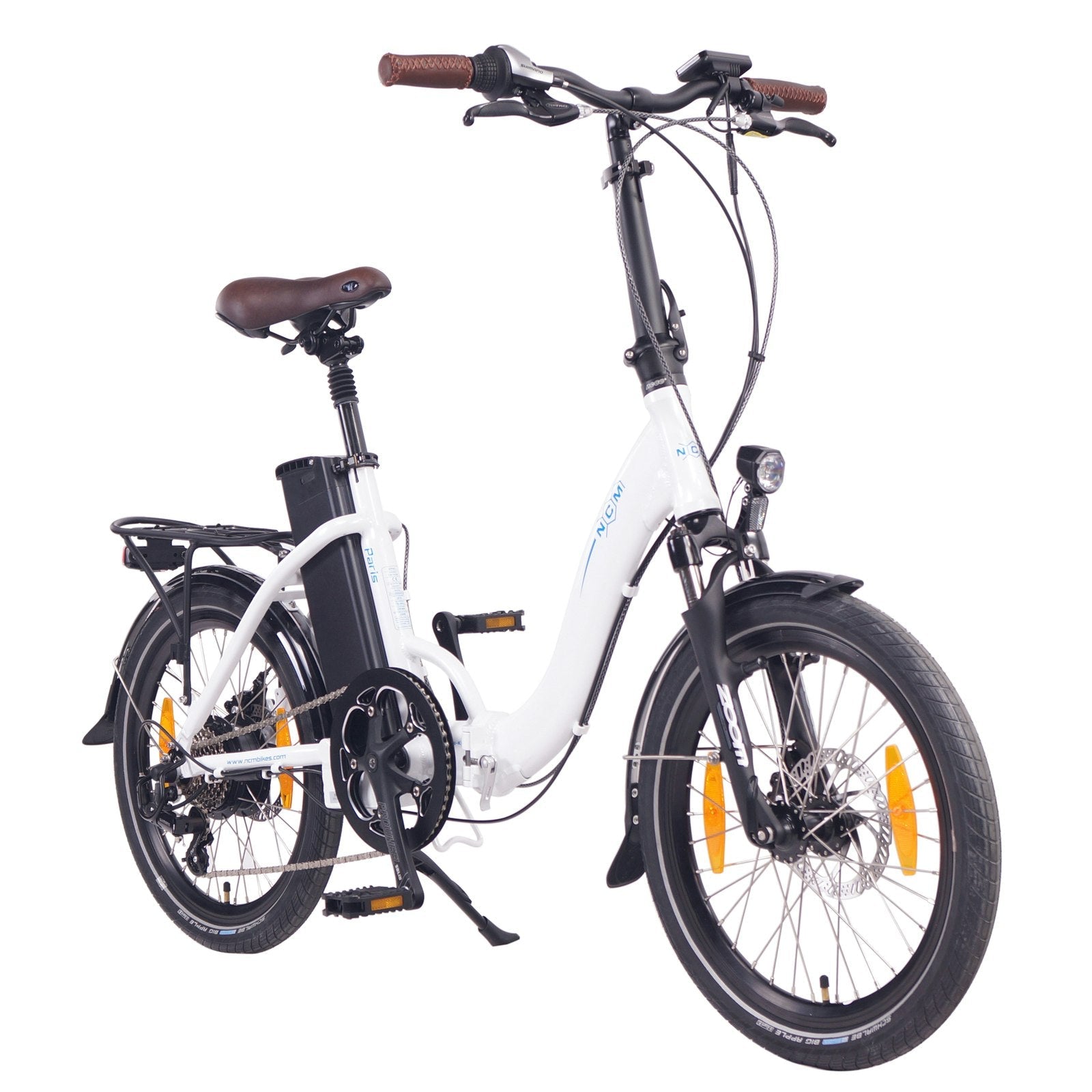

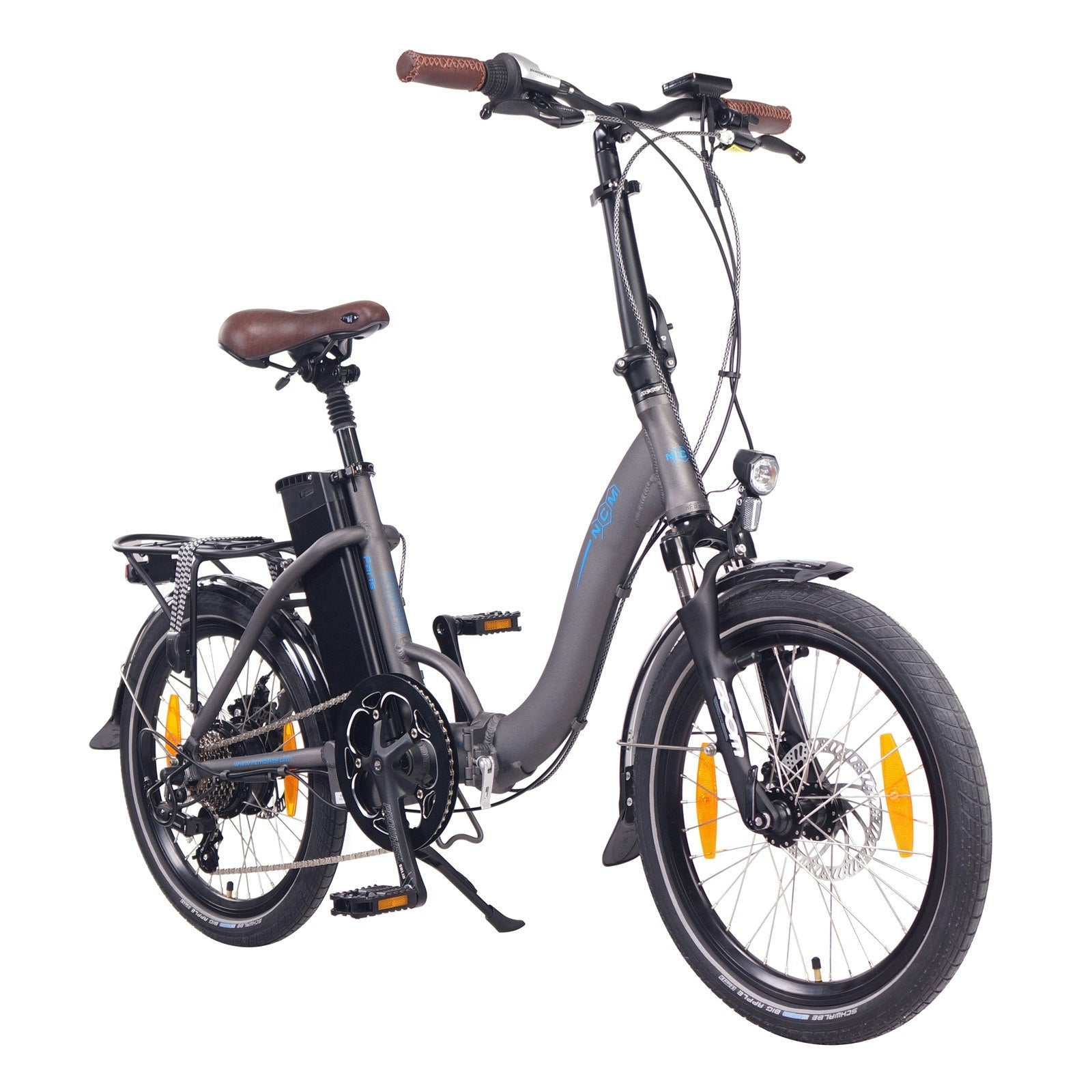

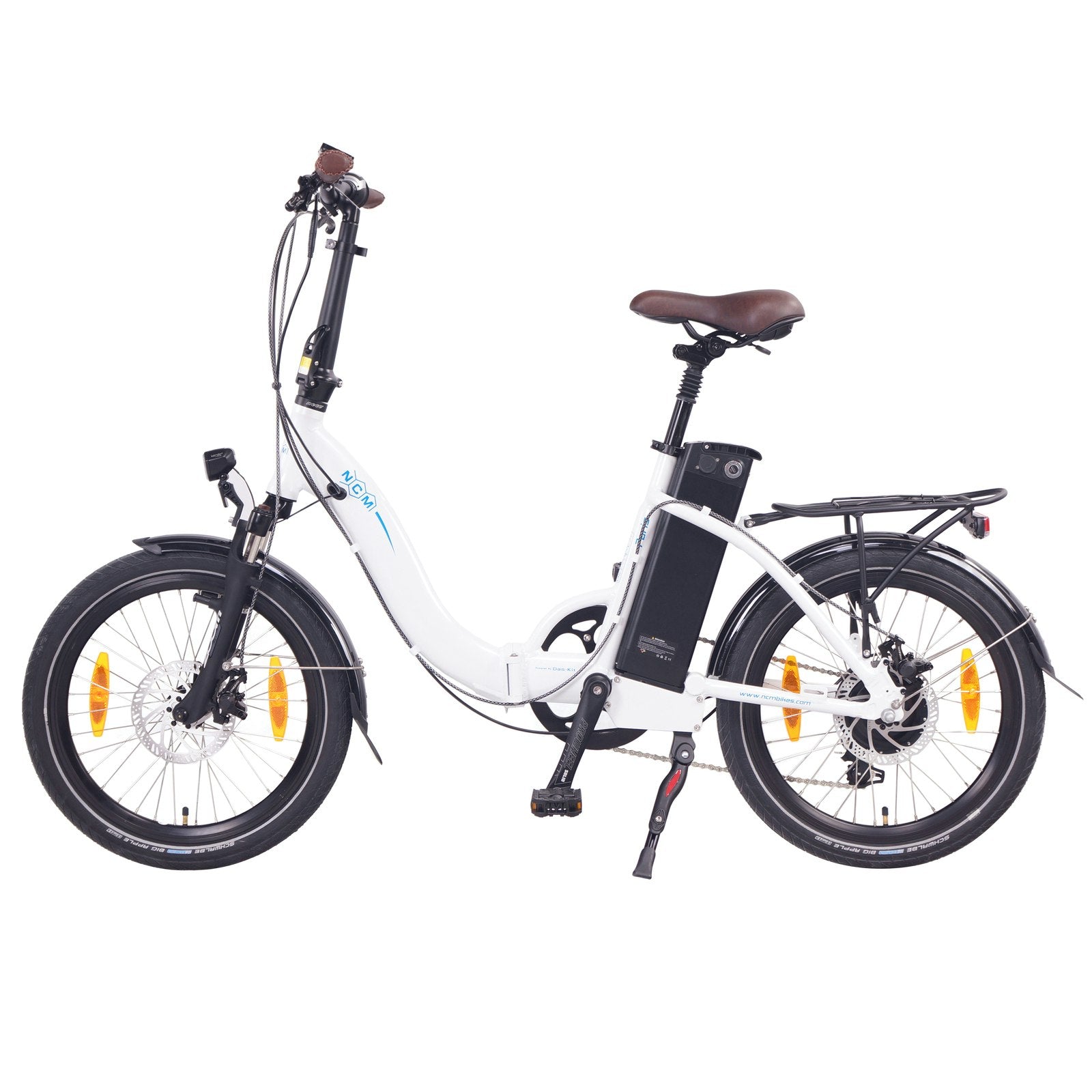

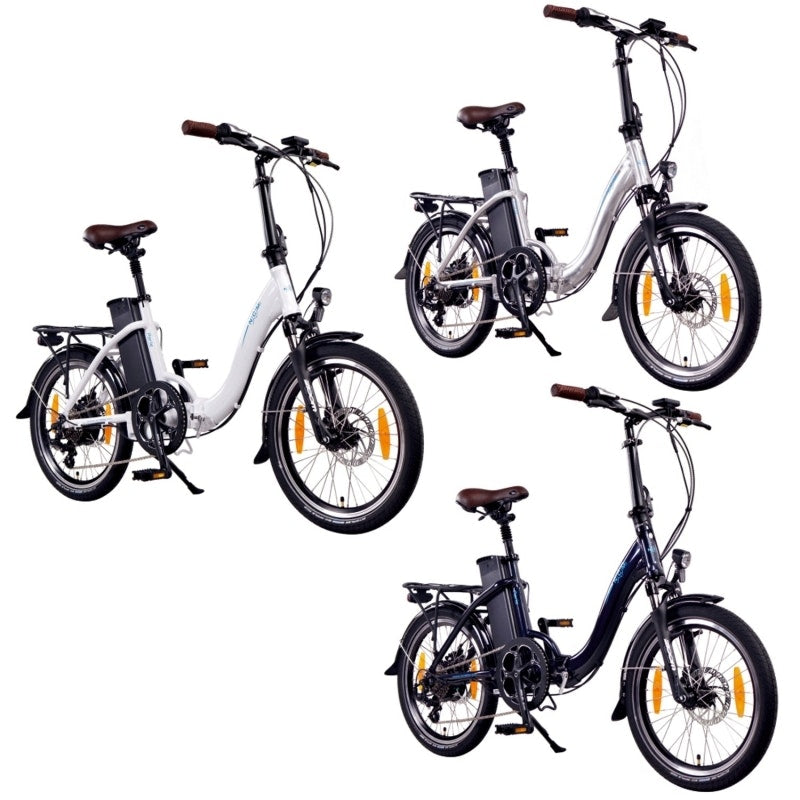

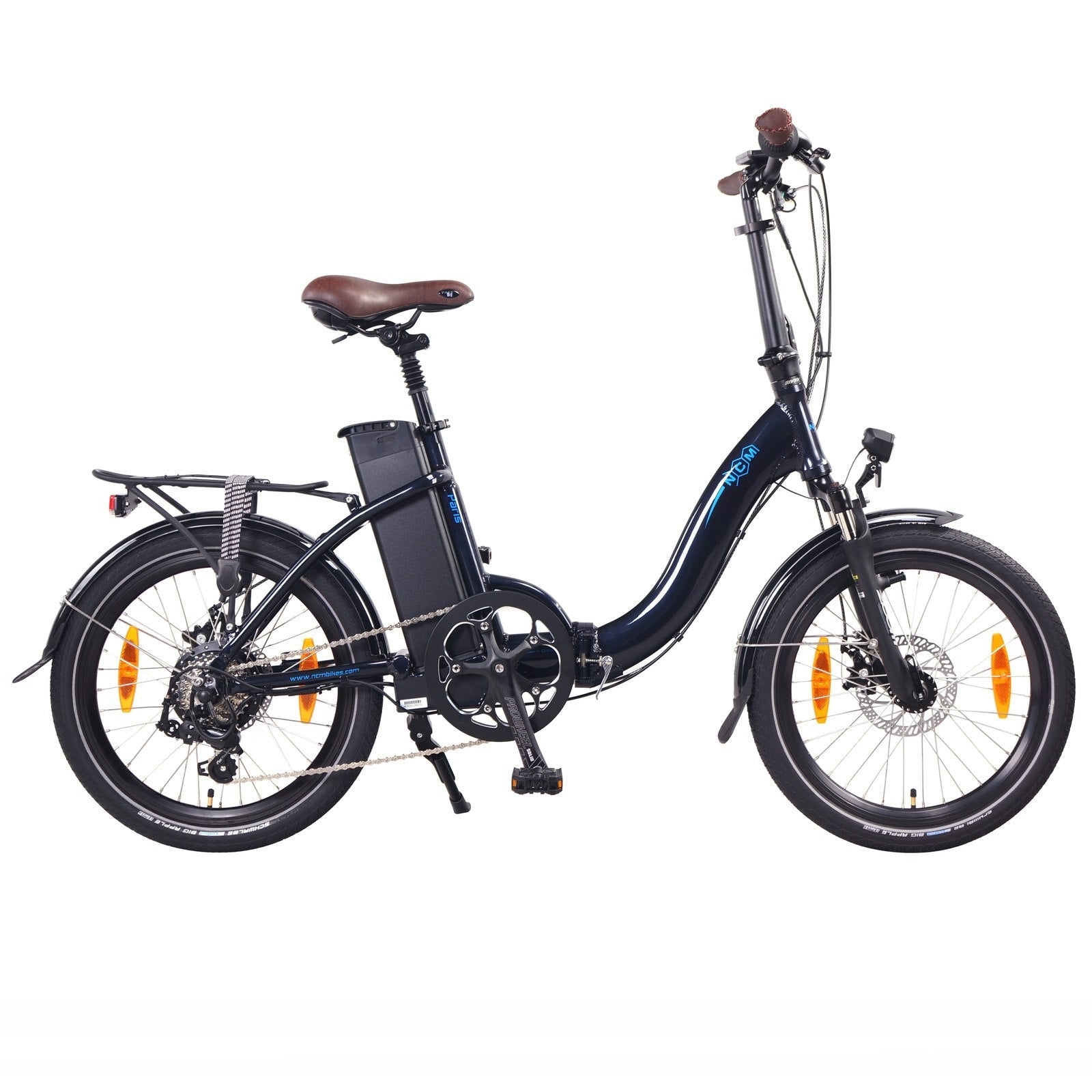

General Information
Weight: 25kg (55lbs)

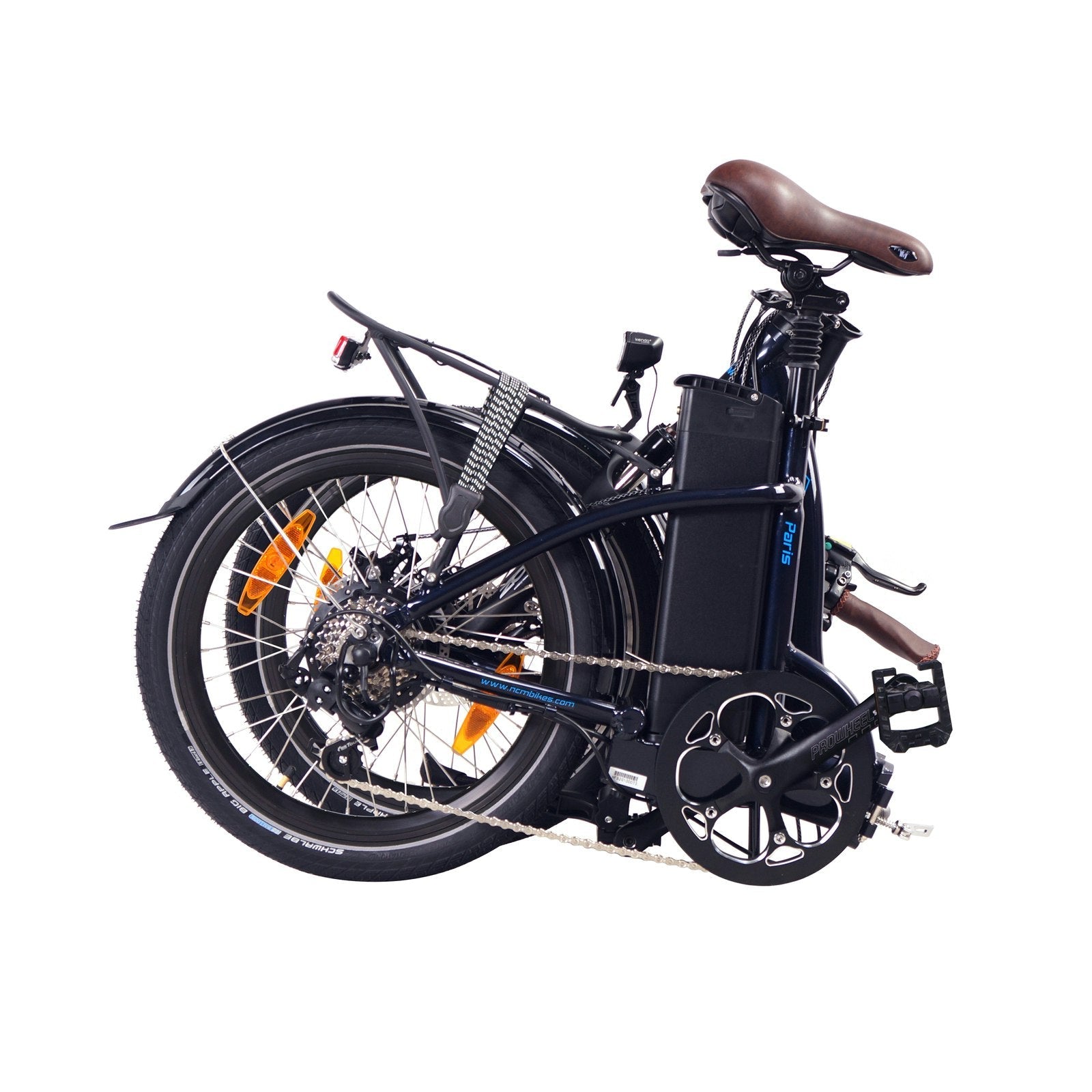

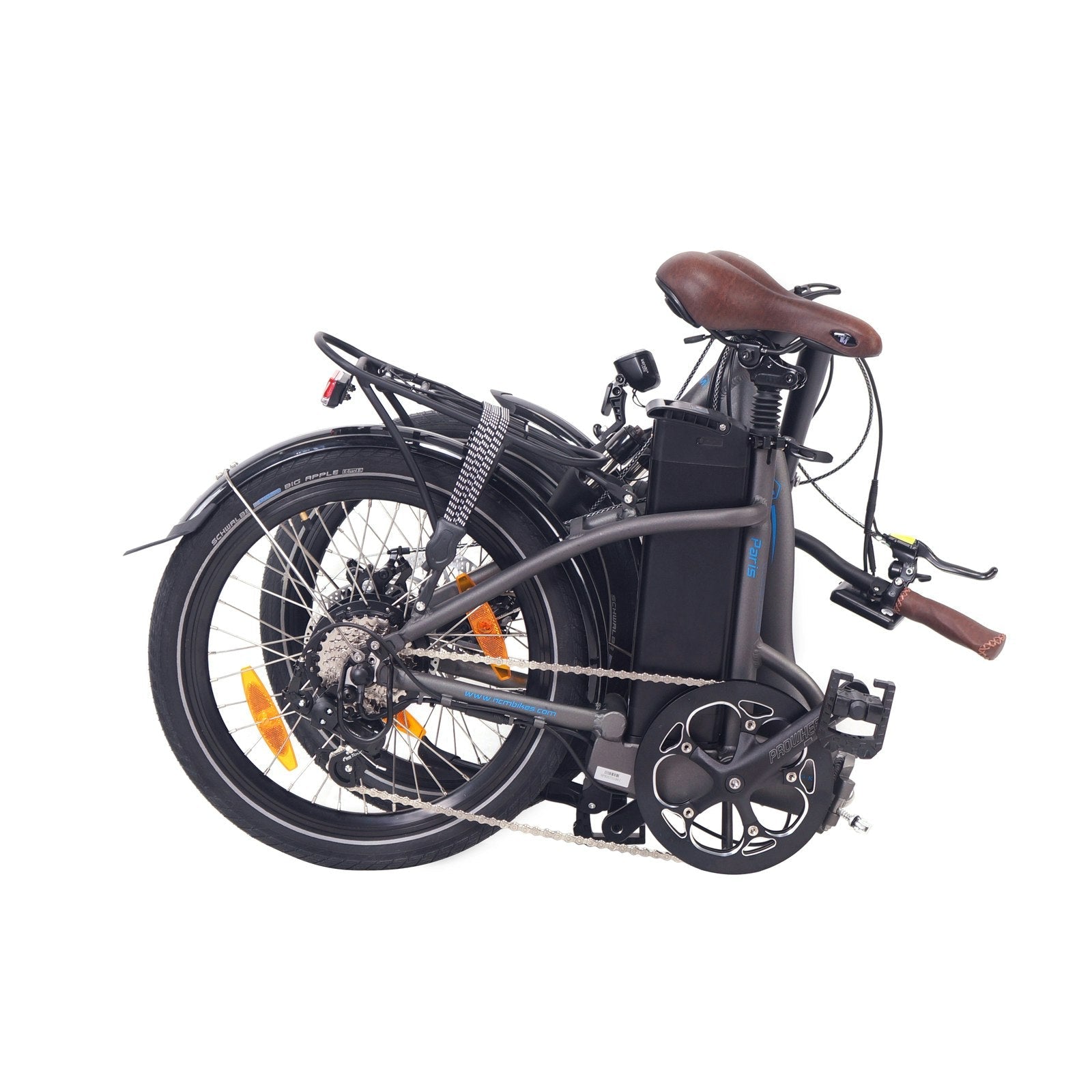

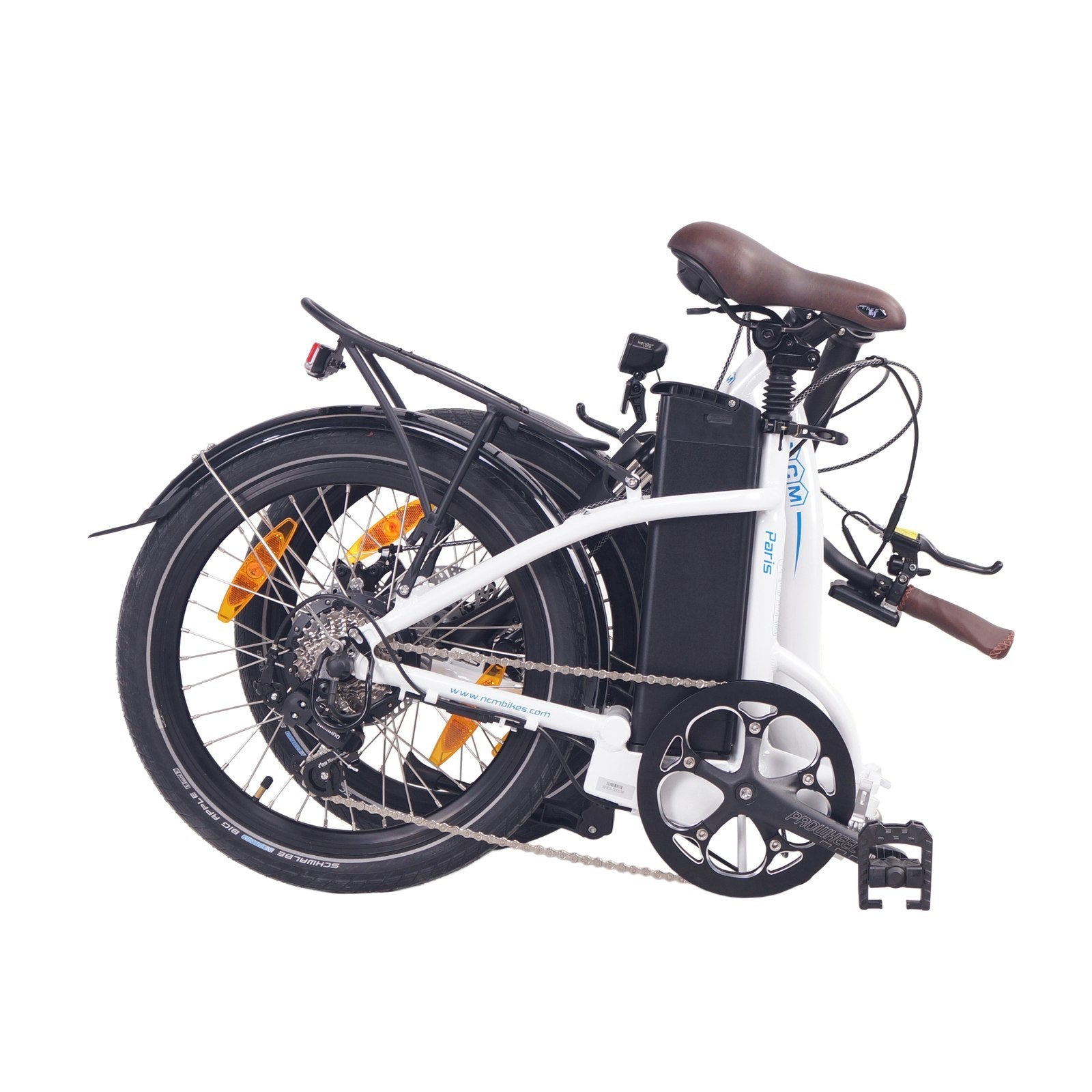

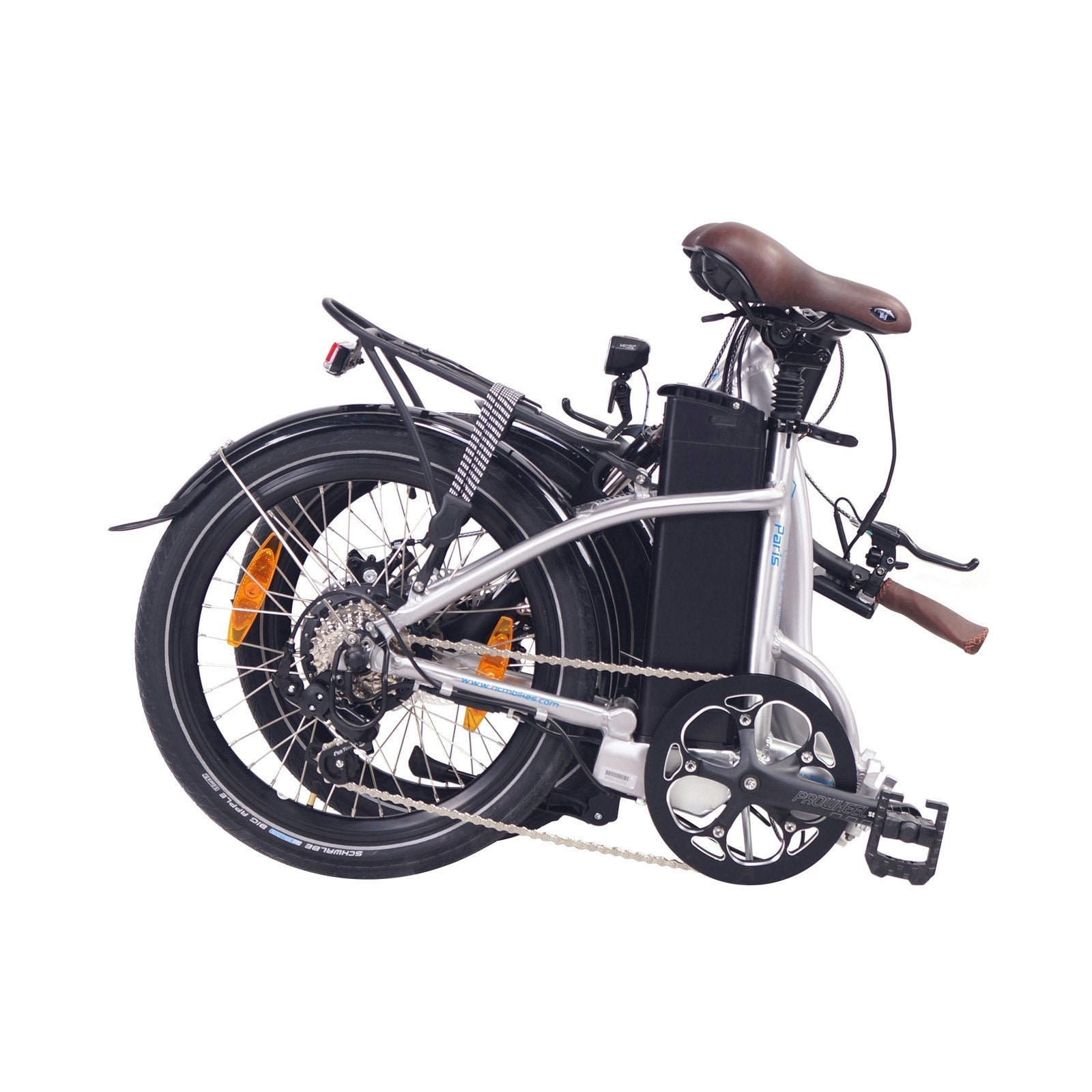

Type: Folding Wheel size: 20”
Load capacity:125kg (264lbs)
Maximum speed: 25km/h
Electric parts

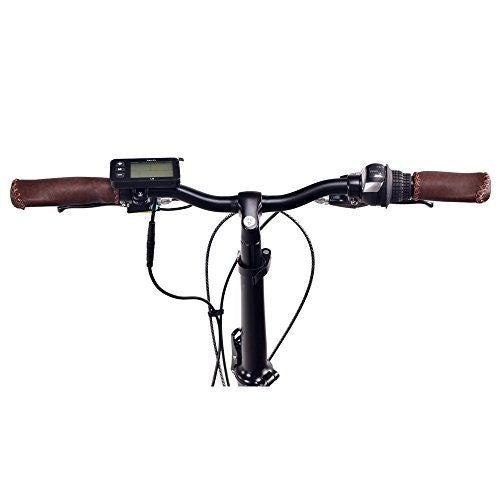

Display: Das-Kit, L6B, LCD, 6 Levels, 6km/h walk mode
Controller: Das-Kit, CT4, 36V 14A

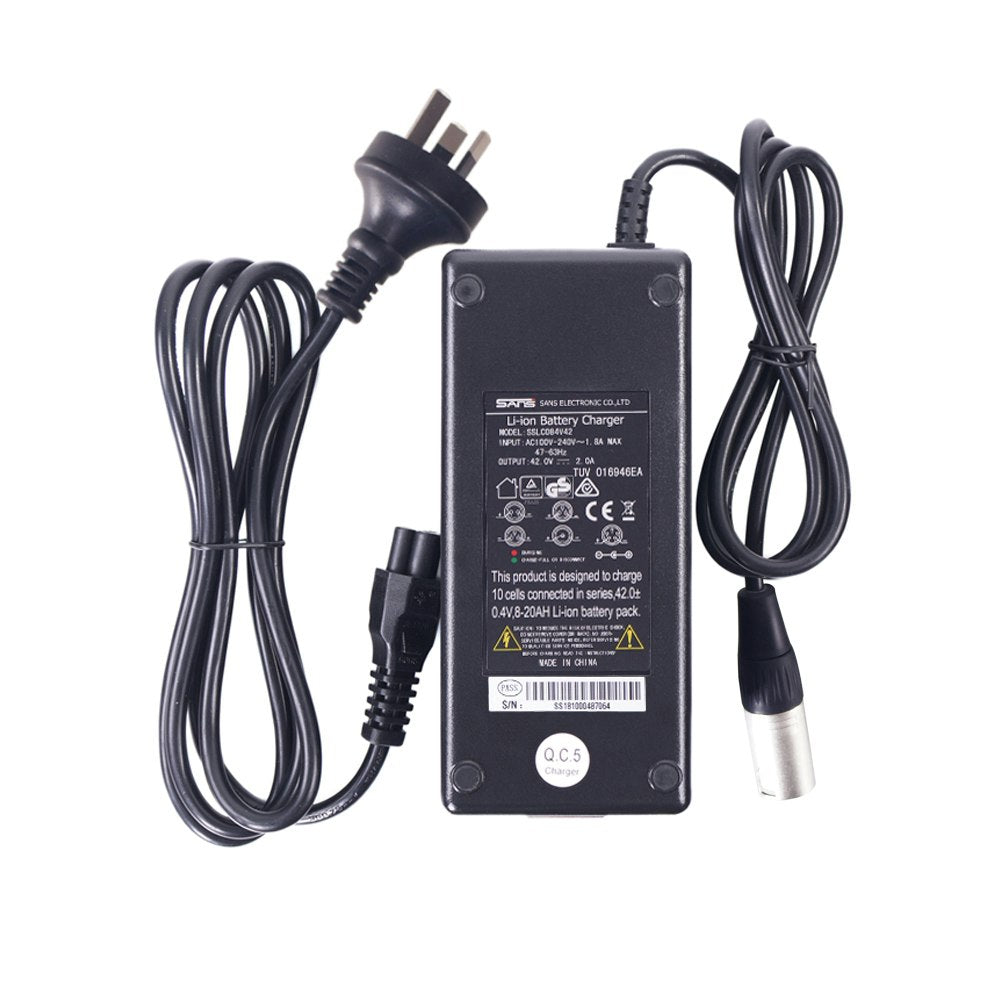

Charger: Included M362AU 36V 2A with XLR-plug (EESS Number: E2022081360)

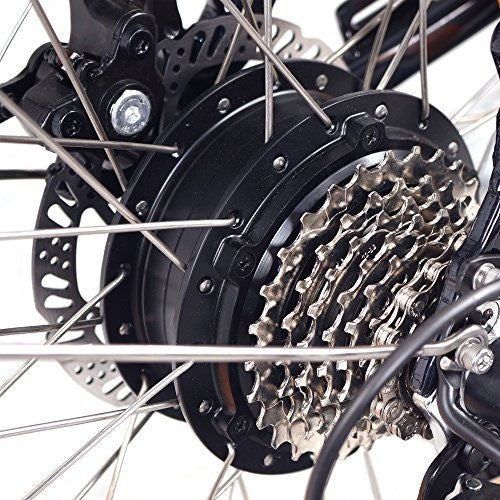

Motor: Das-Kit, R2S Rear-drive motor, 36V 250W-350W, 25km/h
Battery: 36V 15AH 540WH, with USB port
Average range: 40-110km depending on assistance level
Front/Rear Light Spanninga, KENDO, 36V, 20 Lux/ Spanninga, SOLO

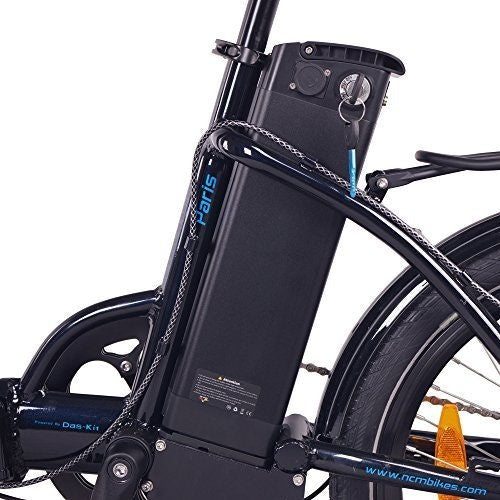

Battery Information:
Lithium-ion Battery
Model: B1U-3615H
Ratings: DC 36V, 15Ah, 540Wh
Bike parts
Frame: Alu. 6061, 20"380MM
Fork: Zoom, CH190
Brake Levers: Tektro, with left brake sensor
Brakes: F/R:Tektro Disc Brakes,MD-280
Crank: Prowheel, SOLID-252AA9

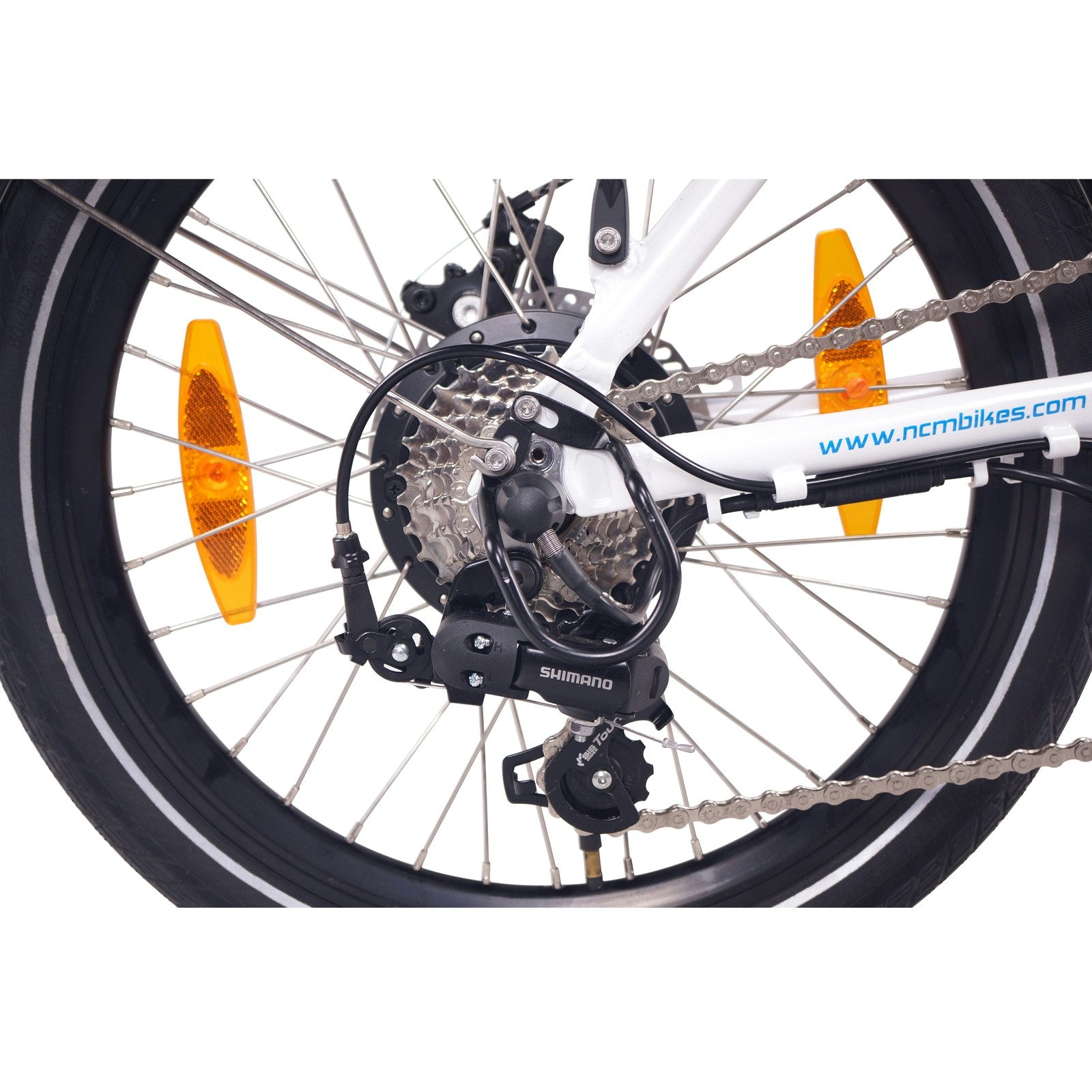

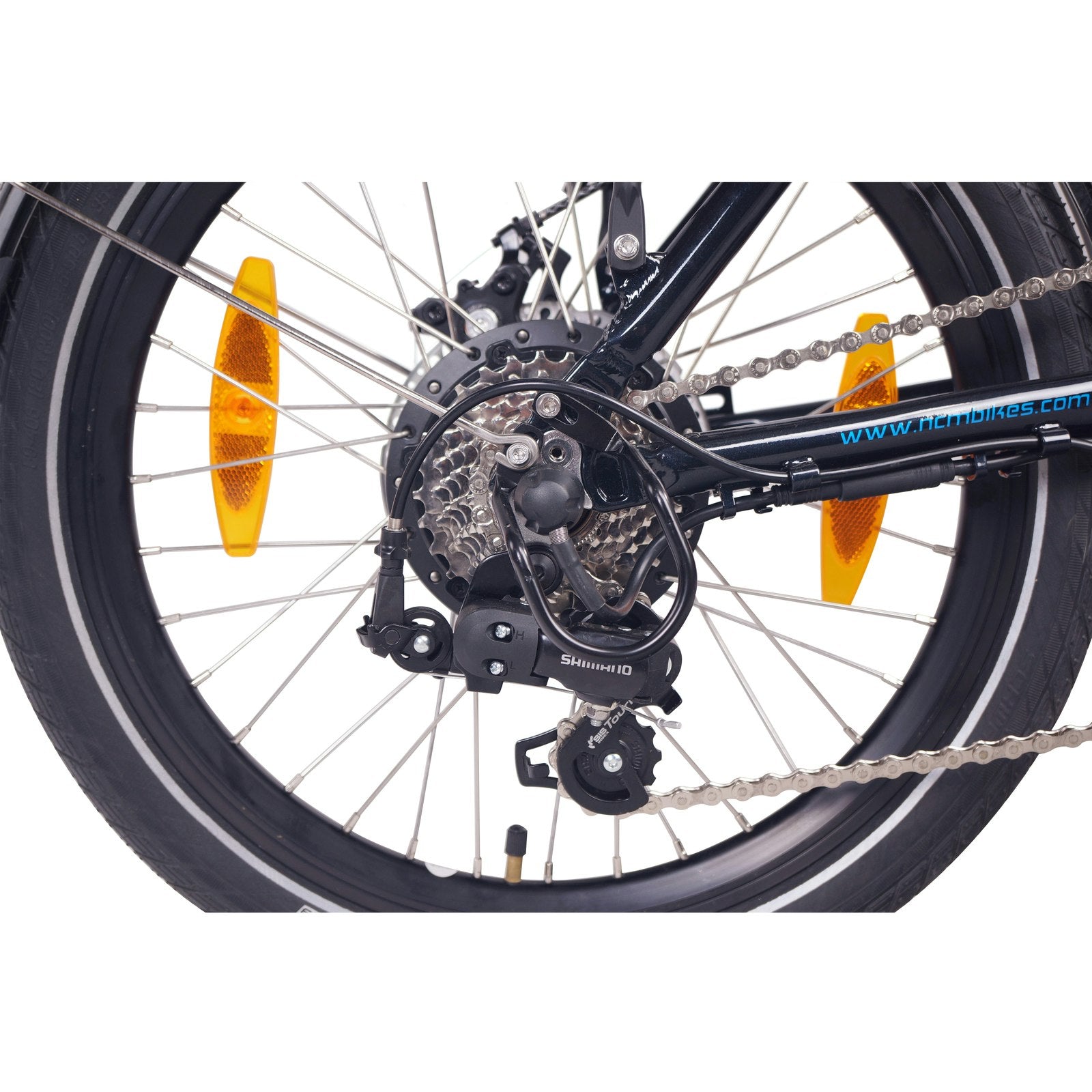

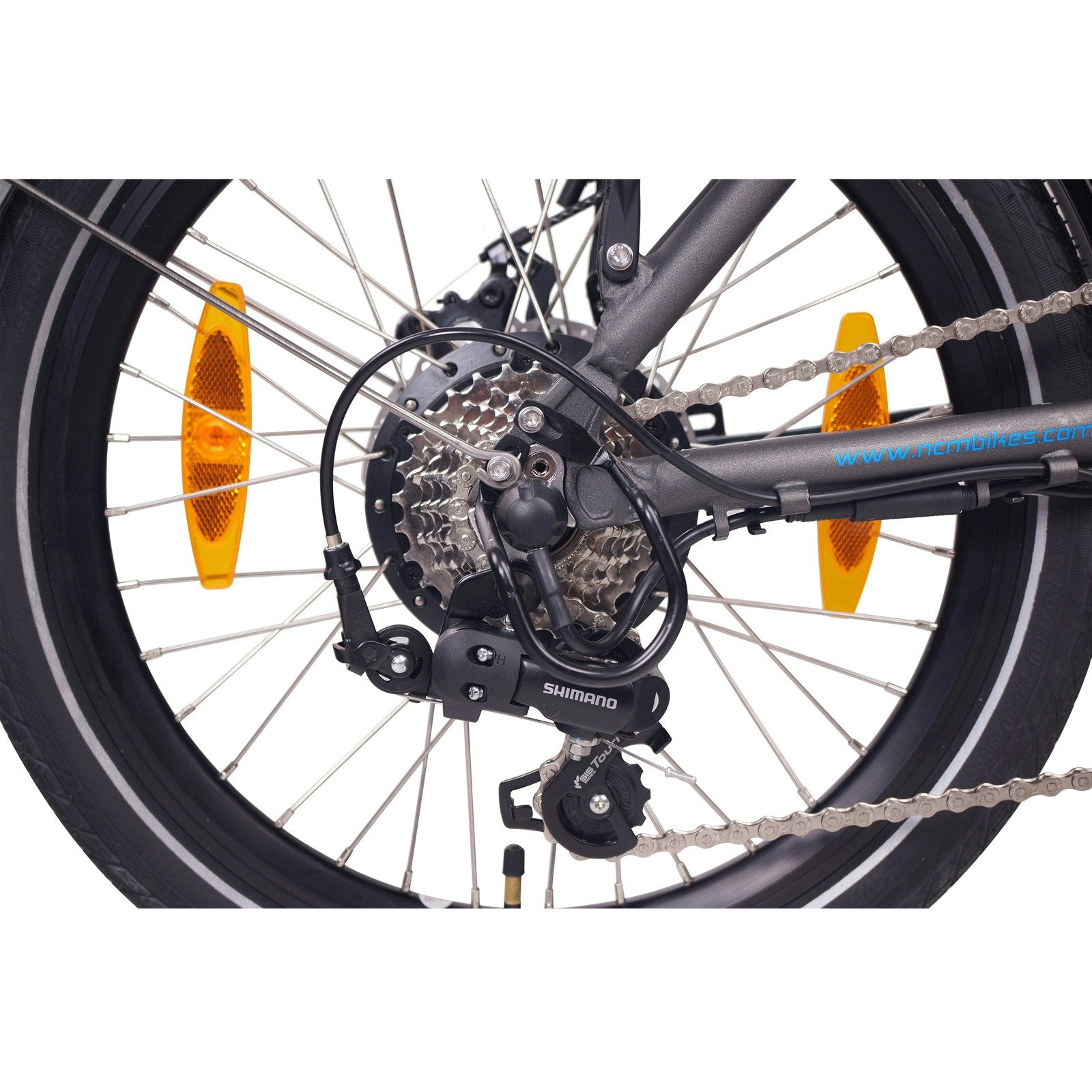

Rear Derailleur: Shimano, Tourney 7-speed, ARDFT35D
Tyres: Schwalbe, Big Apple,20"2.0
Saddle: Selle Royal, Freeway, Brown with Gel
Seat Post: CL, PB-523, with suspension, 27.2*350mm
Grips: Selle Royal, brown synthetic leather
Pedals: Wellgo, foldable
Warranty
1 year warranty on all electronic parts (including battery, motor, controller,
display, lights)
2 year warranty on the bike frame
Apart from manufacture defects that could be present, parts that wear due to
normal use (such as tyres, brake pads, chains, etc) are not included in the
warranty but maybe replaced on a case by case basis within the first 6 months.
Disclaimer: Once you received the e-bike, we recommend to have it
assembled by a professional in bike shops near you and also get your bike
serviced after 1 month of use to ensure all aspects of the bike are set and
calibrated correctly.
