Pickup only - Nuova Mapa Telescopic & Adjustable Table Leg with Table Top Mechanism (Black)

|

❖Features

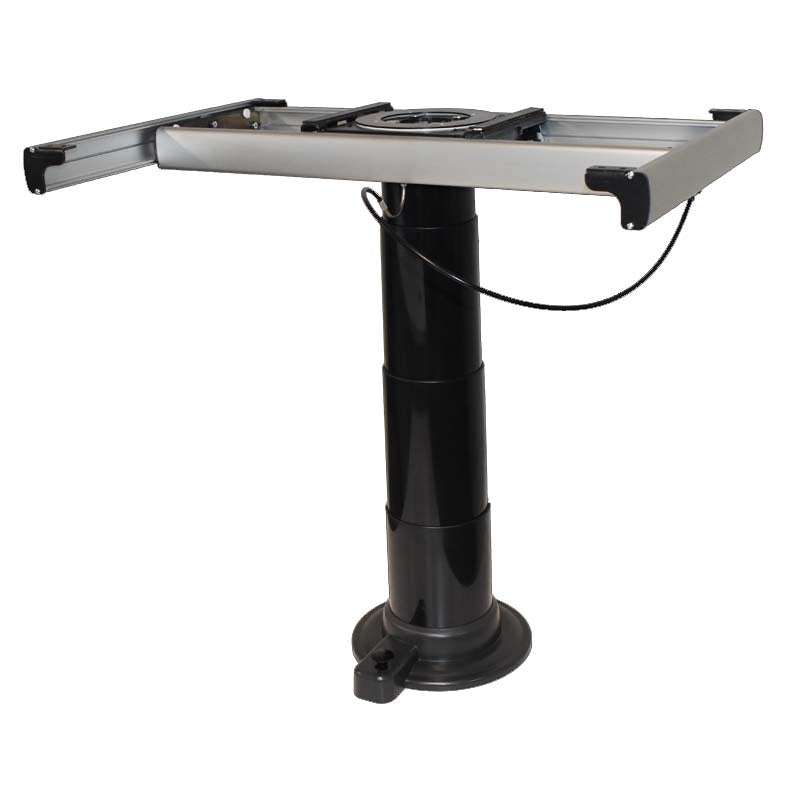

The Black Nuova Mapa Telescopic and Adjustable Table Leg has a Turntable/Sliding Tabletop Mechanism) Encompassing ease and versatility, this revolutionary table leg is made in Italy from galvanised steel.

Now available with a sleek black leg and base cover to suit contemporary van design and tastes.

Product Description

Its spring loaded leg, it can be lowered by pressing on the foot pump at the base and pushing down on the table top. Raising the table top is just as simple – press the foot pump again. The table top mechanism, made from lightweight aluminium, facilitates movement in and out of the dining area. A lift lever allows the tabletop to swivel up to 180o, as well as in a N, S, E or W direction. Tip: To create additional strength and stability, it is always good practise to have the table top edges rest on surrounding furniture bases.

Specifications

• Diameter of leg base: 260mm
• Max Weight Capacity (in bed position): 100Kg
• Max Height (from floor to underside of table top): 710mm
• Min Height (from floor to underside of table top): 330mm

Includes :

• Telescopic & Adjustable Table Leg x 1
• Turntable/Sliding Table Top Mechanism x 1

|

❖Specifications

|
---|---
Brand | Nuova Mapa
Model | 400-02602
Color | Black
Shipping Weight | 15 kg
Shipping Dimension (mm) | 800 x 500 x 400
