DESCRIPTION
.
FEATURES

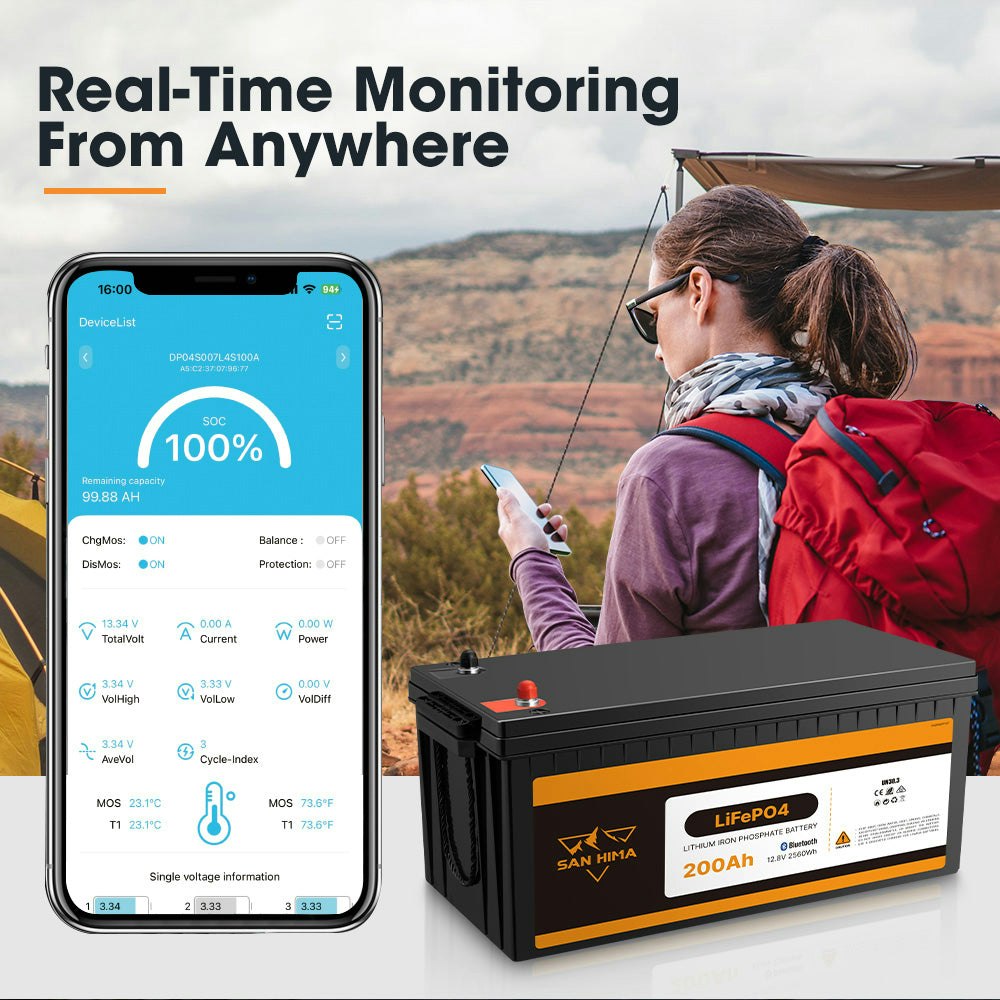

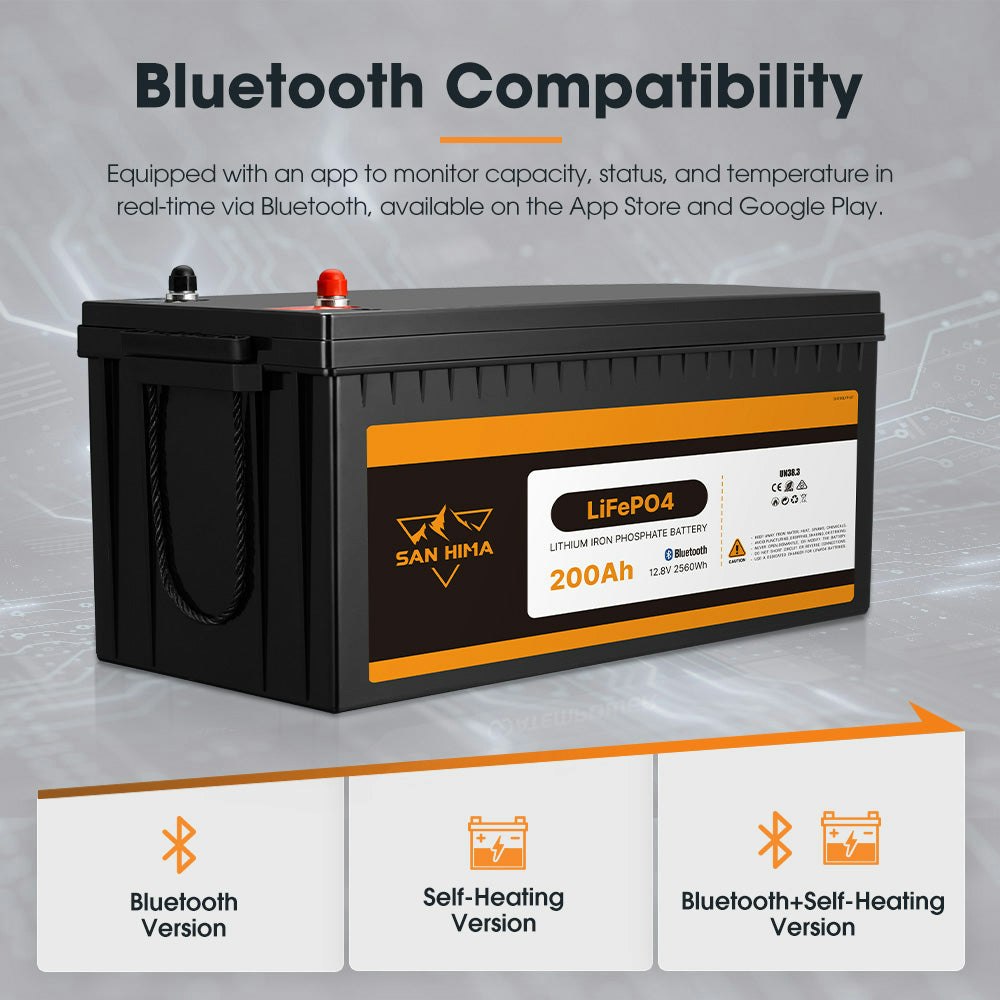

Bluetooth Compatibility: Equipped with an app to monitor capacity, status, and
temperature in real-time via Bluetooth, available on the App Store and Google
Play.

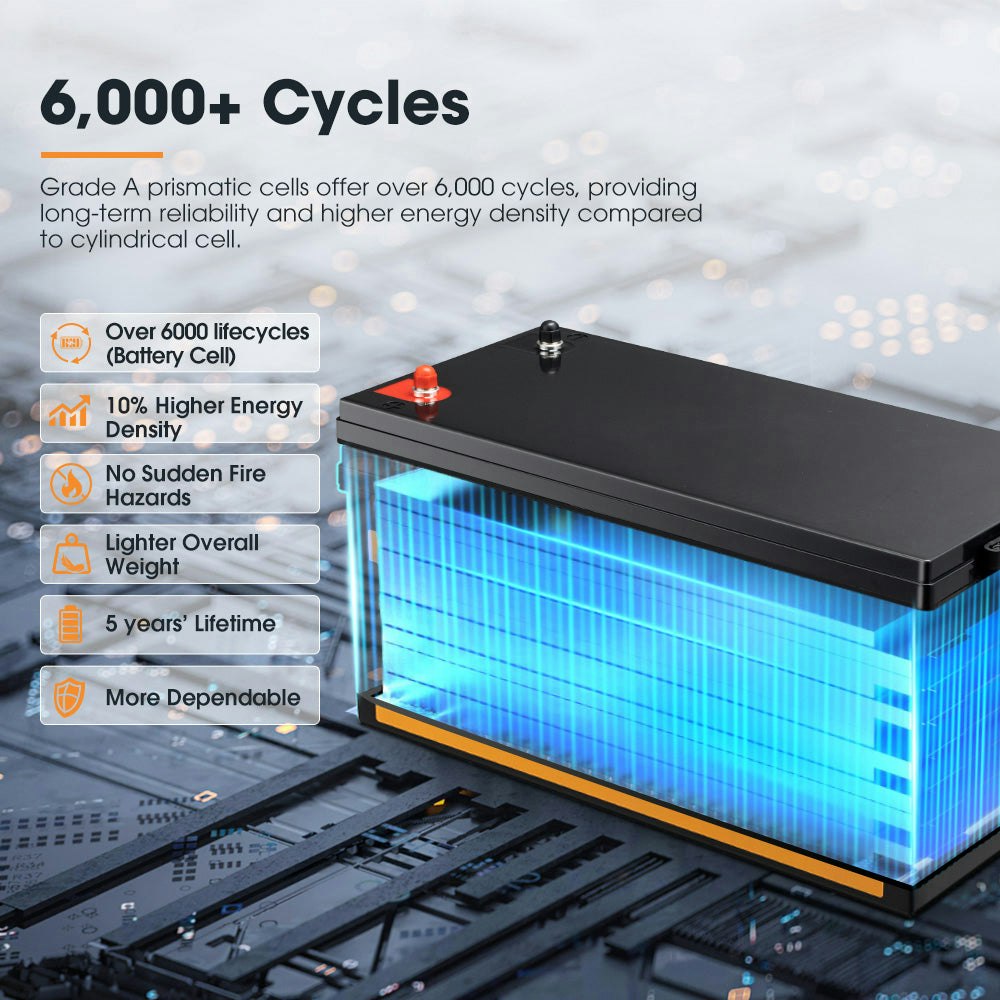

6,000 Cycles: Powered by Grade A prismatic cells with higher energy density
than cylindrical cells, it features a lifespan of 6,000 cycles, ensuring long-
term reliability.
Flexible Configurations: Tailor your setup with options for 2s & 2p
configurations, maximizing output potential for situations like power outages
or hurricanes.

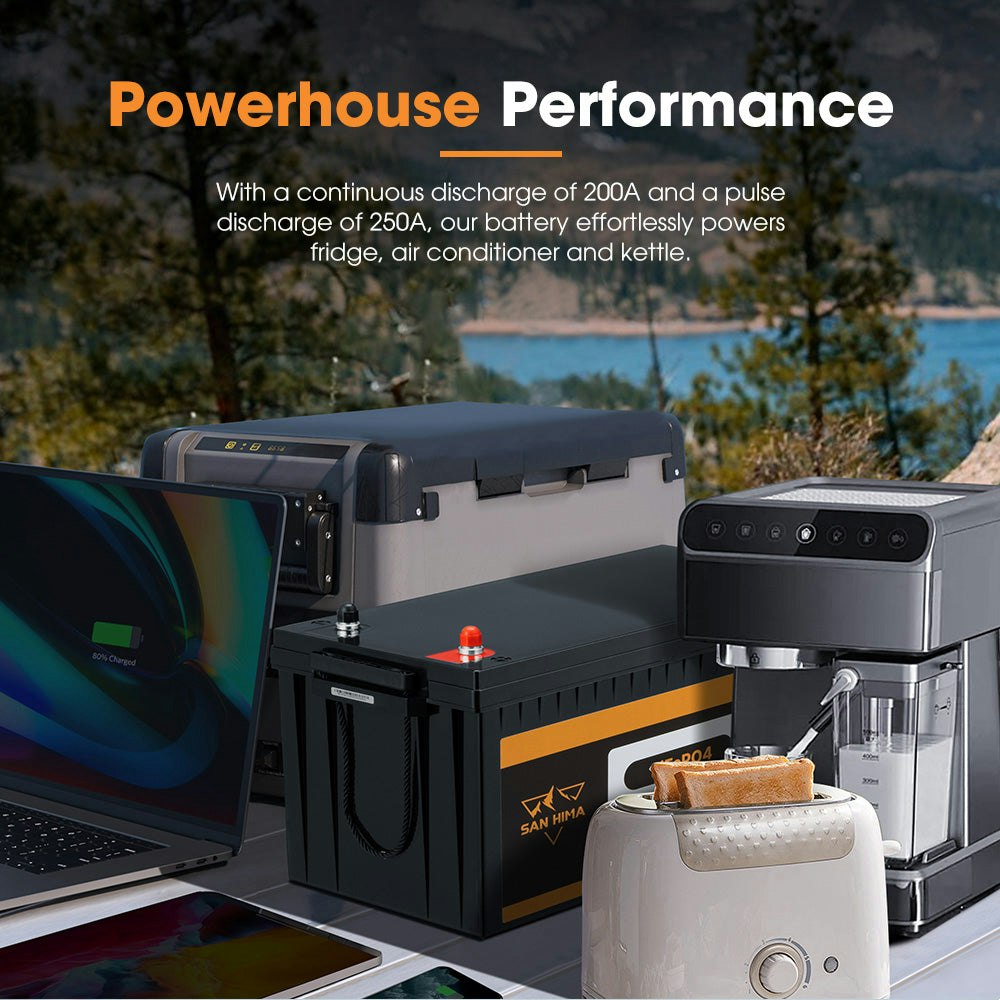

Powerhouse Performance: With a continuous discharge of 200A and a pulse
discharge of 250A, our battery effortlessly powers fridge, air conditioner and
kettle.
Smarter BMS: Upgraded for overvoltage, overcurrent, overdischarge, overcharge
and overheat protection, minimizing cell degradation for safer operation.
Quick Recharge: Our smart LiFePO4 battery recharges faster with a maximum
charging current of 100A, ensuring availability of power in time-sensitive
situations.

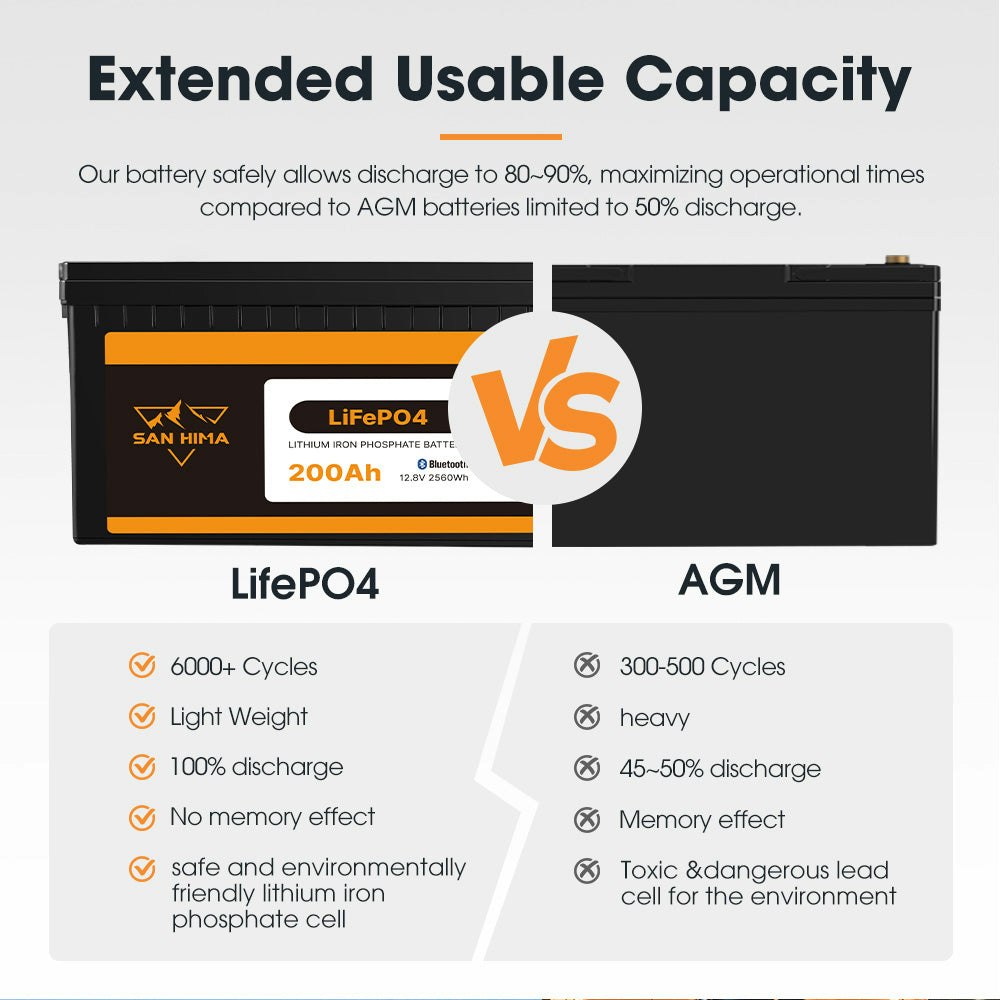

Extended Usable Capacity: Our battery safely allows discharge to 80~90%,
maximizing operational times compared to AGM batteries limited to 50%
discharge.
Fire-Resistant Housing: Provides vertical burning resistance, reducing fire
spread risks, especially in remote areas with delayed emergency responses.
Massive Capacity: Eliminate the need for multiple batteries with our single
smart 200Ah LiFePO4 battery, capable of handling substantial power demand with
ease.
Minimal Self-Discharge: Our LiFePO4 battery maintains minimal self-discharge,
preserving charge for months in storage, ensuring reliable power whenever
needed.
SPECIFICATIONS
Cell Type:Prismatic LiFePO4
Rated Capacity:200Ah
Nominal Voltage:12.8V
Cycle Life:6,000 (0.2c; DoD 80%)
Recommended Charge Current for Maximum Life:40A
Max. Continuous Charge Current:100A
Max. Continuous Discharge Current:200A
Max. Pulse Discharge Current (3s):250A
Charge Cut-off Voltage:14.4V
Discharge Cut-off Voltage:10.8V
Standby (Float) Voltage:10.8V~14.4V
Max. Modules in Series/Parallel Configuration:2S/2P or 2S 2P
Self-discharge (Per Month):3%
Internal Resistance:15m
Operating Temperatures:-0C~55C
Storage Temperatures:-20C~45C
Relative Humidity:95RH
Certifications:CE

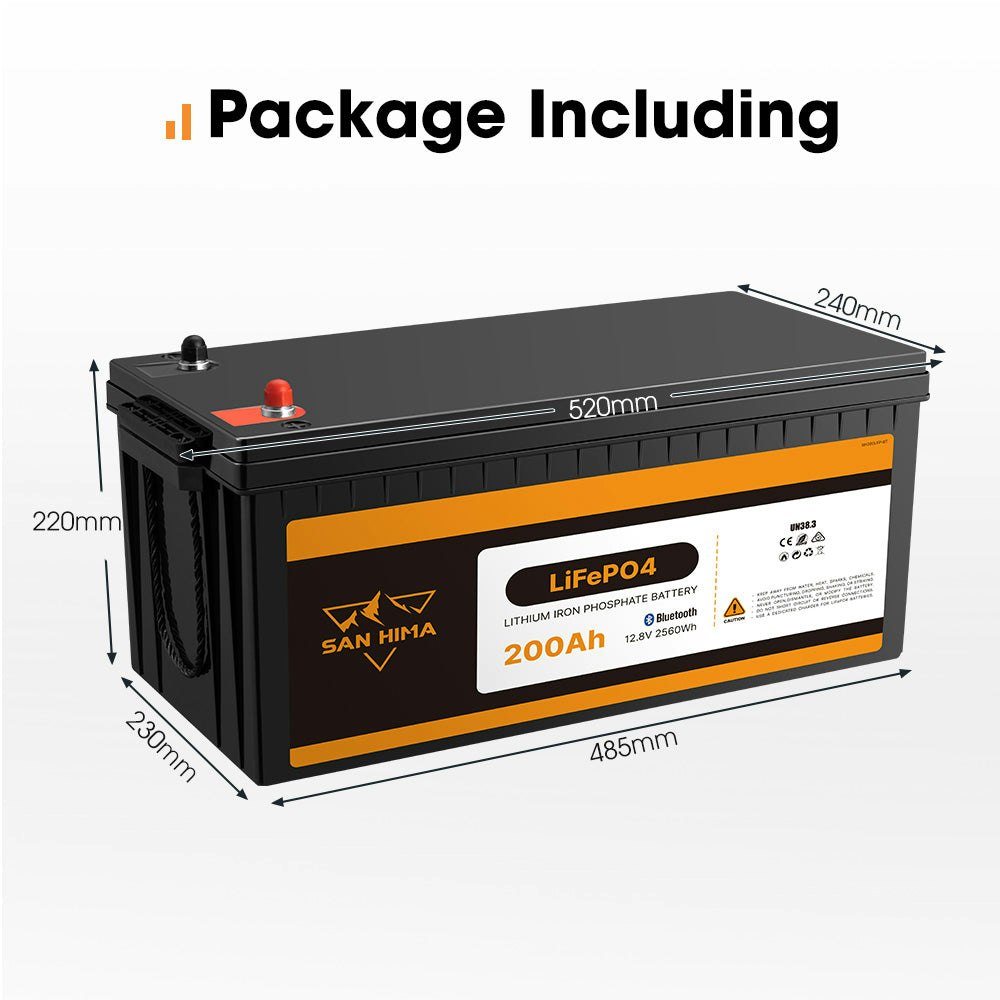

Package Size:555mm x 305mm x 255mm
Package Weight:20.4KG
PACKAGE INCLUDES

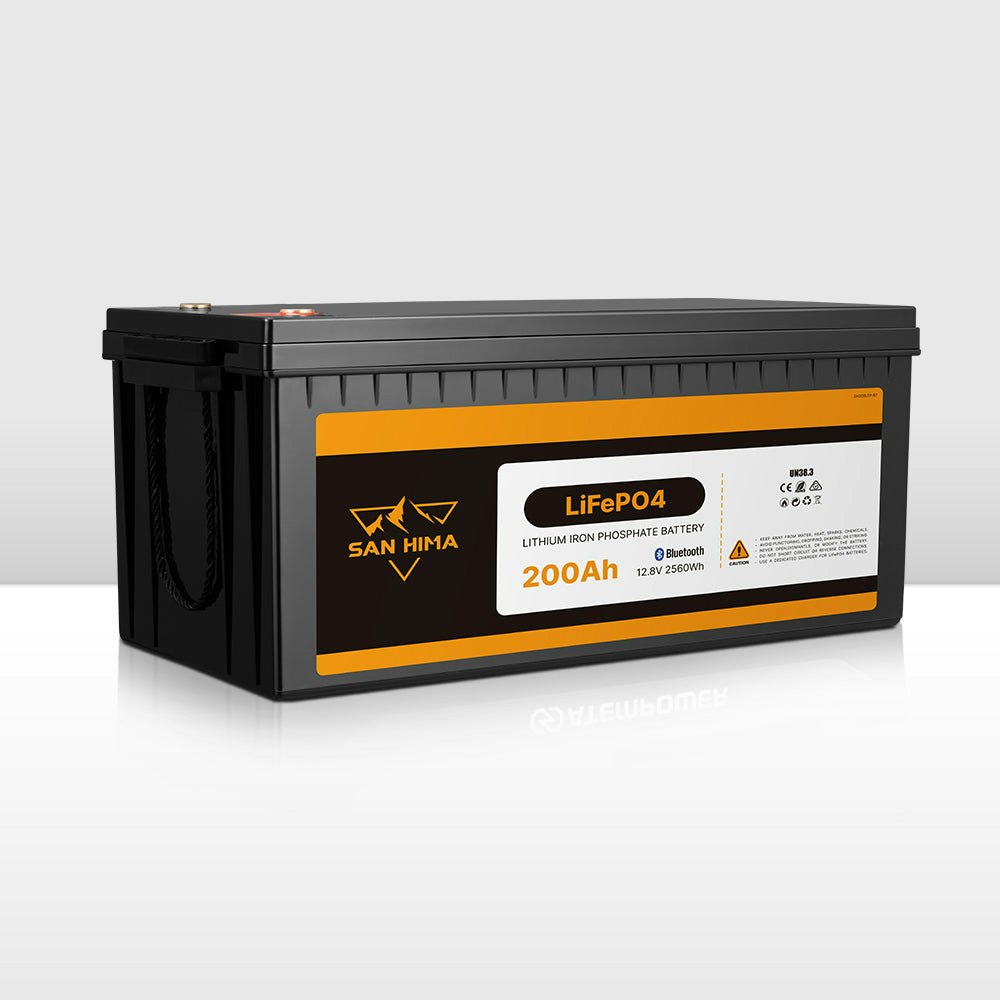

1 x San Hima 200Ah Smart LiFePO4 Battery
1 x User Manual
WARRANTY
5 Years Warranty
