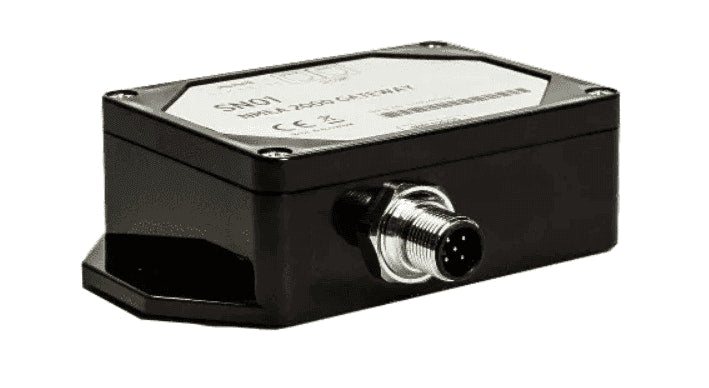

Simarine SN01 SiCOM NMEA 2000 Gateway module allows your PICO to transmit data
of the devices connected to the PICO system. It allows control of switch
banks, transmitting battery status, tank levels and some environmental
information. Using the gateway, PICO can also display a range of engine and
transmission parameters if they are connected to the NMEA network.
PGN | PGN Name | receiving | transmitting
---|---|---|---
59904 | ISO Request | Yes | No |
60928 | ISO Address Claim | Yes | Yes
126996 | Product Information | No | Yes
127257 | Attitude | No | Yes
127502 | Switch Bank Control | No | Yes
127505 | Fluid Level | No | Yes
127506 | DC Detailed Status | No | Yes
127508 | Battery Status | No | Yes
130310 | Environmental Parameters | No | Yes
130314 | Actual Pressure | No | Yes
