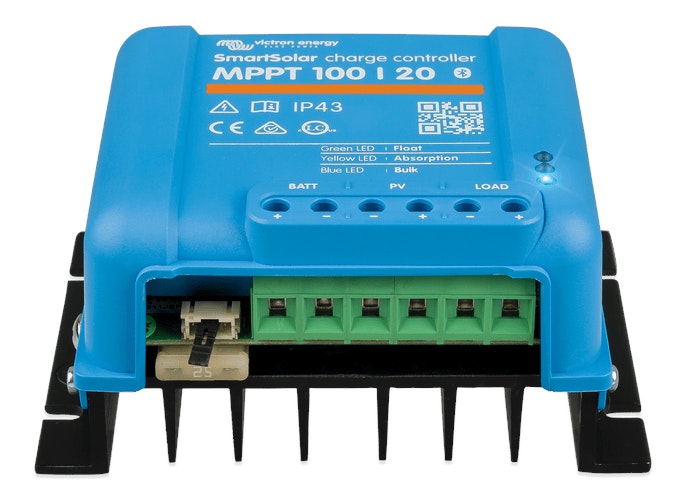

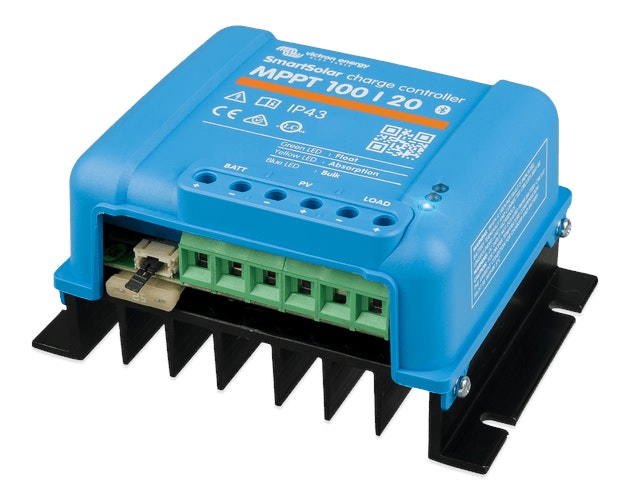

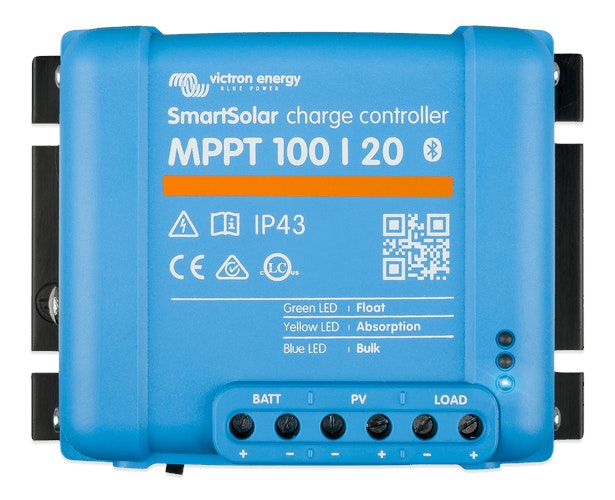

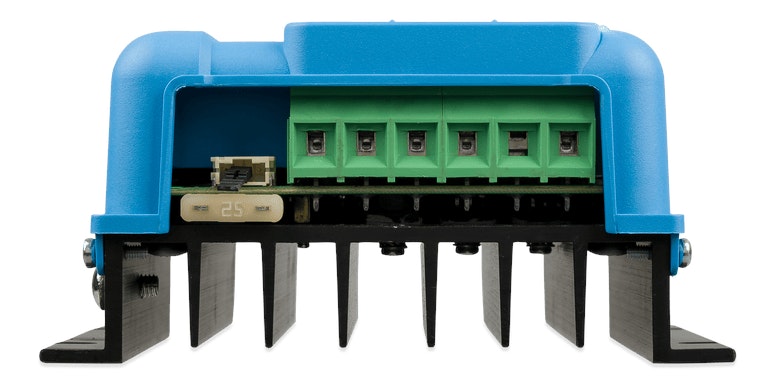

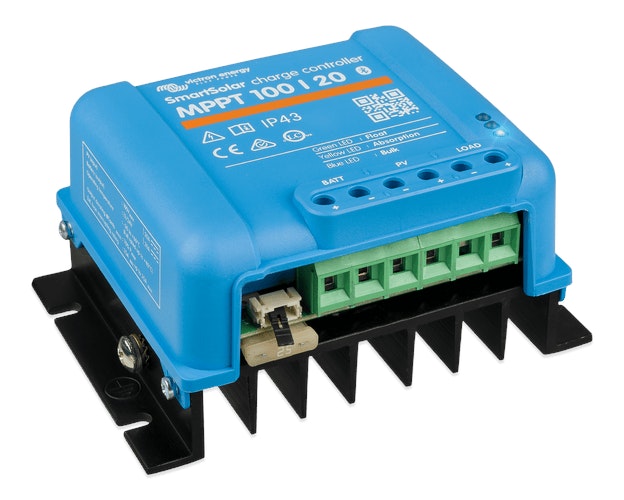

Victron 12/24/48V 20A SmartSolar MPPT 100/20 Bluetooth Solar Charge
Controller
Elevate your solar power system with the Victron 12/24/48V 20A SmartSolar MPPT
100/20 Bluetooth Solar Charge Controller, designed for optimal efficiency and
user-friendly operation. This advanced charge controller harnesses the power
of Bluetooth Smart technology for effortless solar management, making it a
perfect addition to any solar energy setup.

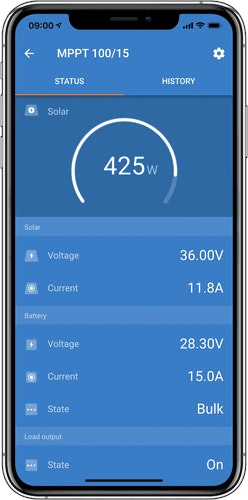

Bluetooth Smart: Seamless Solar Management
Enjoy the convenience of wireless setup, monitoring, updates, and
synchronization with our SmartSolar Charge Controllers. This built-in
Bluetooth Smart feature transforms your solar energy management experience,
offering unparalleled ease of use.
VE.Direct: Wired Data Connection Excellence
Achieve a flawless wired data connection to Cerbo GX and other GX devices,
PCs, or additional devices through VE.Direct. This feature ensures efficient
data sharing and device integration, enhancing your system's overall
performance.
Ultra-fast MPPT: Maximize Solar Energy Harvest
With our cutting-edge ultra-fast Maximum Power Point Tracking (MPPT)
technology, increase your energy harvest by up to 30% over PWM charge
controllers and by up to 10% over slower MPPT controllers. Ideal for
fluctuating light conditions and cloudy skies, ensuring you get the most out
of your solar panels.
Load Output: Protect Your Battery
Prevent battery over-discharge by connecting all loads to the load output. The
intelligent load output disconnects the load when the battery voltage drops to
a preset level, safeguarding your battery with our intelligent battery
management algorithm.
Battery Life: Prolong Battery Longevity
Our innovative Battery Life algorithm enhances the efficiency of your solar
charge controller, promoting optimal battery charging and avoiding the harmful
cycling between partially charged and fully discharged states. This approach
helps maintain near full recharge approximately once every week, significantly
extending battery life.
Programmable Battery Charge Algorithm: Tailored Charging
Dive into the software section on our website to discover how you can
customize the battery charge algorithm to suit your specific needs, ensuring
your system operates at peak efficiency.
Day/Night Timing and Light Dimming
Explore advanced features like day/night timing and light dimming options for
added control and efficiency. Visit our software section for more information
on how to implement these features.
Internal Temperature Sensor: Precise Charge Compensation
Benefit from accurate charge compensation with our internal temperature
sensor, which adjusts absorption and float charge voltages in response to
temperature fluctuations, ensuring efficient and accurate charging under all
conditions.
Optional External Battery Voltage and Temperature Sensing
Enhance your monitoring capabilities with optional devices such as Smart
Battery Sense or a BMV-712 Smart Battery Monitor. These accessories
communicate critical battery voltage and temperature information to your
SmartSolar Charge Controllers via Bluetooth, further improving your system's
performance.
Advanced Charging Features
Adaptive 3-Stage Battery Charging
Victron's sophisticated 3-stage charging process includes Bulk, Absorption,
and Float stages, meticulously designed to ensure efficient battery charging
and maximized battery health.
-
Bulk Stage : Rapidly charges the batteries with maximum current until the absorption voltage is reached.
-
Absorption Stage : Switches to constant voltage mode, gradually reducing current to maintain battery health.
-
Float Stage : Maintains batteries at a reduced voltage, ensuring they remain fully charged without overcharging, particularly during nighttime when solar power is not available.
Flexible Charge Algorithm and Equalization Charging

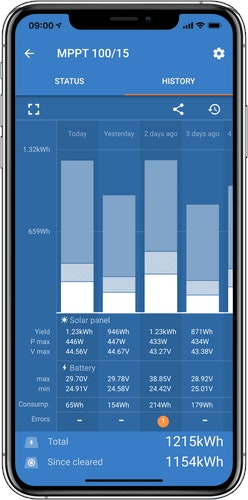

Utilize the VictronConnect App to select from 8 pre-set charge algorithms or
create a fully programmable charge algorithm, allowing for complete
customization of charge voltages, stage durations, and current for optimal
efficiency. Additionally, activate equalization charging for specific lead-
acid battery types to balance cell voltages, ensuring longevity and
reliability.
Transform your solar power system with the Victron 12/24/48V 20A SmartSolar
MPPT 100/20 Bluetooth Solar Charge Controller for unparalleled efficiency,
advanced battery management, and user-friendly operation.
