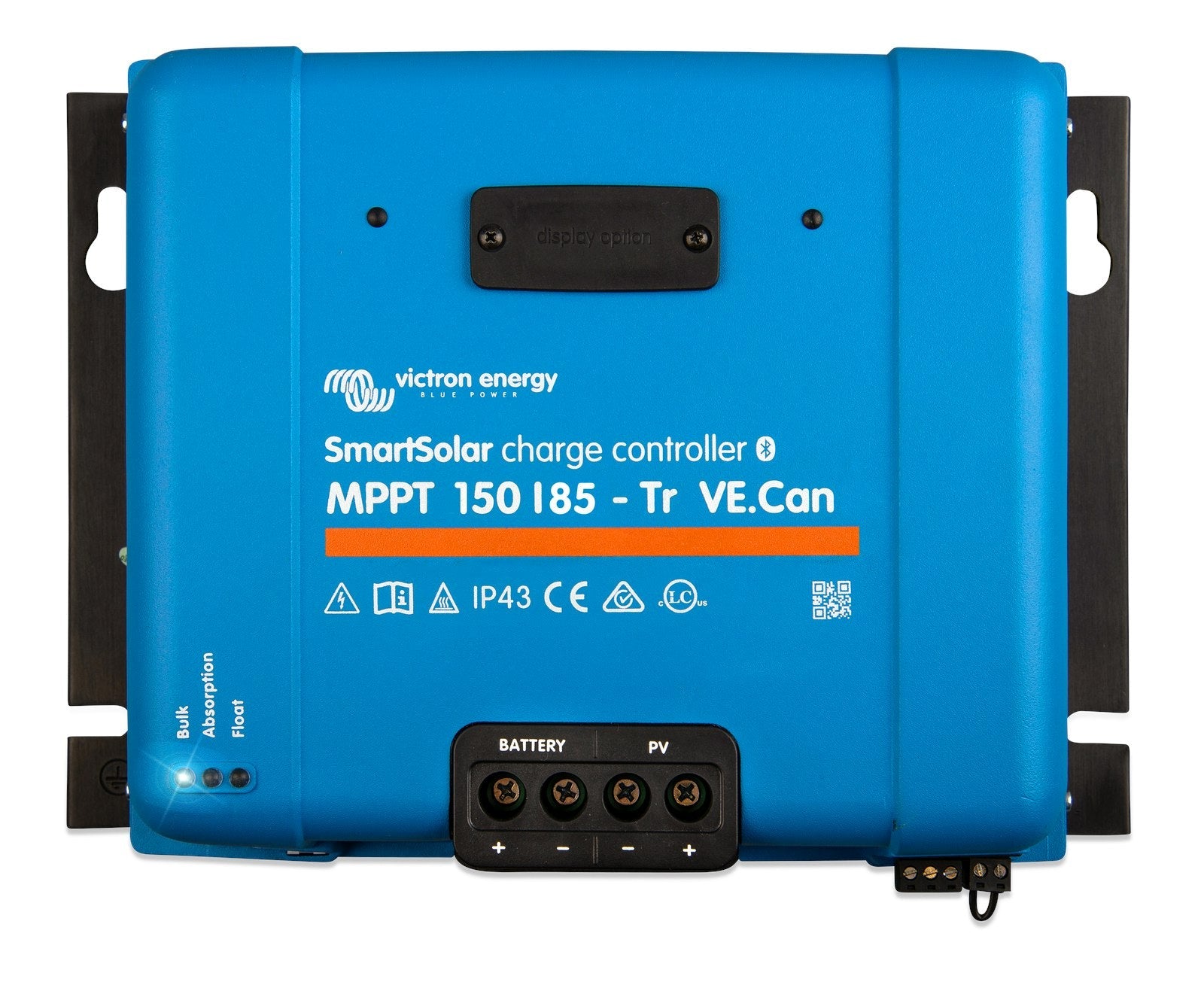

Victron SmartSolar MPPT 150/85-Tr VE.CAN (12/24/48V-85A) Bluetooth Solar
Charge Controller Features
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing
continuously, an ultra-fast MPPT controller will improve energy harvest by up
to 30% compared to PWM charge controllers and by up to 10% compared to slower
MPPT controllers.
**Advanced Maximum Power Point Detection in case of partial shading
conditions**
If partial shading occurs, two or more maximum power points may be present on
the power-voltage curve.
Conventional MPPTs tend to lock to a local MPP, which may not be the optimum
MPP.
The innovative SmartSolar algorithm will always maximize energy harvest by
locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%.
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on Victron's
website), and eight pre-programmed algorithms, selectable with a rotary
switch.
Extensive electronic protection
- Over-temperature protection and power derating when temperature is high.
- PV short circuit and PV reverse polarity protection.
- PV reverse current protection.
Internal temperature sensor
Compensates absorption and float charge voltage for temperature.

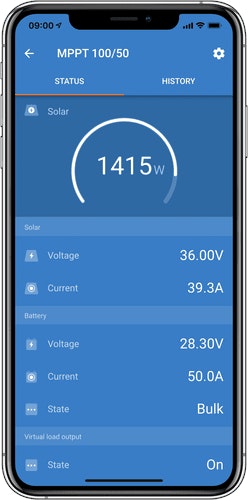

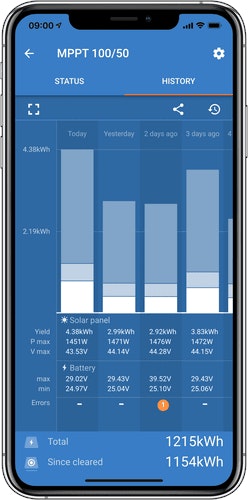

Bluetooth Smart built-in: dongle not needed
The wireless solution to set-up, monitor and update the controller using Apple
and Android smartphones, tablets or other devices.
VE.Direct
For a wired data connection to a Color Control panel, PC or other devices
Remote on-off
To connect for example to a VE.BUS BMS.
Programmable relay
Can be programmed (a.o. with a smartphone) to trip on an alarm, or other
events.
Optional: pluggable LCD display
Simply remove the rubberseal that protects the plug on the front of the
controller, and plug-in the display
