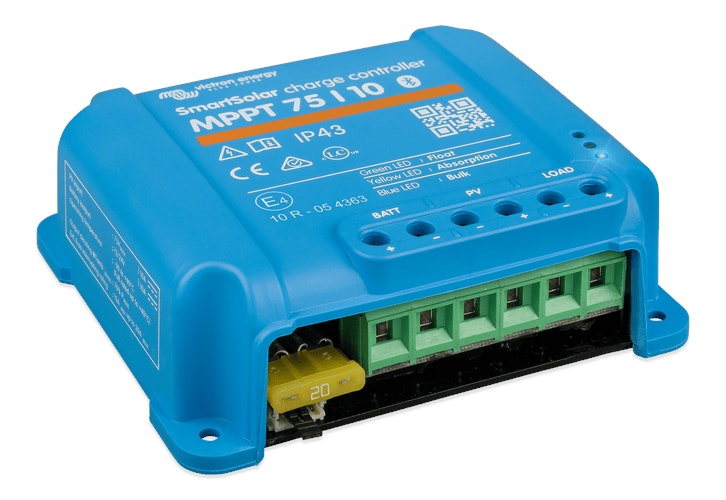

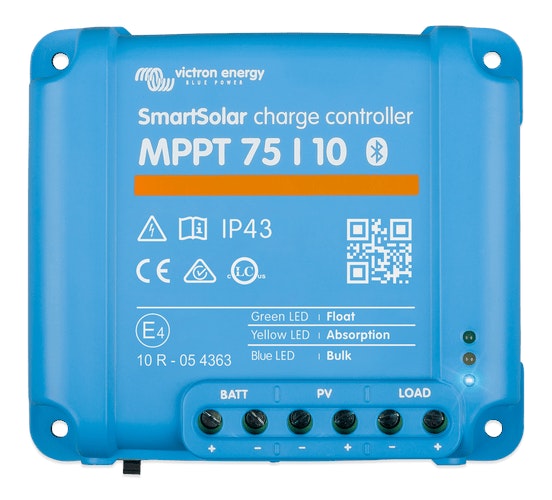

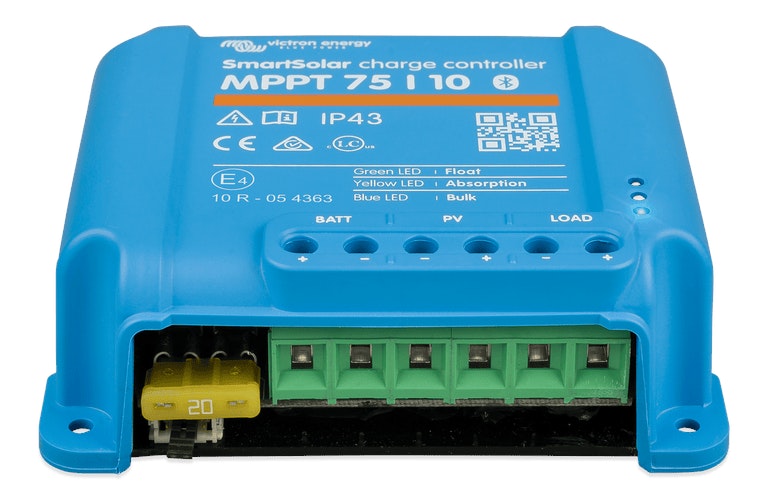

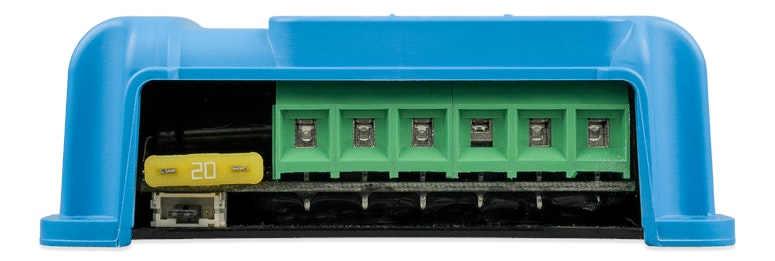

Victron 12/24V 10A SmartSolar MPPT 75/10 Bluetooth Solar Charge Controller
Elevate your solar system's efficiency with the Victron 12/24V 10A SmartSolar
MPPT 75/10 Bluetooth Solar Charge Controller. This compact and advanced
controller is designed to maximize the performance of your solar panels,
offering an easy and efficient way to manage your solar energy.
Bluetooth Smart: Effortless Solar Management

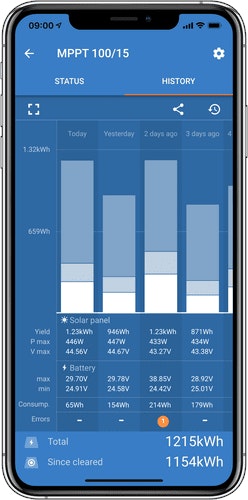

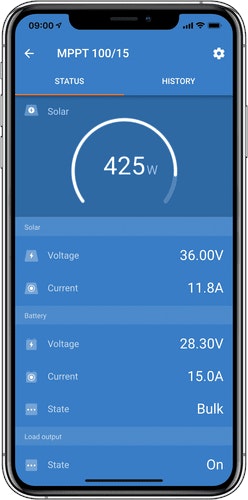

With the integrated Bluetooth Smart technology, managing your solar energy
system is a breeze. This feature allows for wireless setup, monitoring,
updating, and synchronization of your SmartSolar Charge Controllers, providing
a user-friendly interface through your smartphone or tablet.
VE.Direct: Reliable Wired Data Connectivity
The VE.Direct port offers a robust wired data connection to Cerbo GX and other
GX devices, PCs, or similar devices. This direct connectivity ensures
efficient data sharing and device integration, optimizing your solar energy
system's performance.
Ultra-fast MPPT: Enhanced Energy Harvest
Utilize our ultra-fast Maximum Power Point Tracking (MPPT) technology to
significantly increase your energy harvest—by up to 30% over PWM charge
controllers and by up to 10% over slower MPPT controllers. This technology is
ideal for environments with cloudy skies and fluctuating light intensity,
ensuring you capture the maximum solar energy available.
Load Output: Intelligent Battery Protection
The load output feature prevents battery over-discharge by disconnecting the
load when the battery voltage drops to a predetermined level. This intelligent
battery management algorithm optimizes operation and protects your battery's
health and longevity.
Battery Life: Prolonged Battery Longevity
Our innovative Battery Life algorithm promotes efficient charging of your
solar charge controller, avoiding harmful cycles between partially charged and
fully discharged states. This strategy ensures a near-full recharge
approximately once every week, extending your battery's life.
Programmable Battery Charge Algorithm: Tailored Charging Solutions
Visit our software section for details on customizing your battery charge
algorithm. This flexibility allows you to tailor the charging process to your
specific needs, ensuring optimal performance of your solar system.
Day/Night Timing and Light Dimming
Explore additional functionalities such as day/night timing and light dimming
through our software. These advanced features provide enhanced control over
your solar system, allowing for further optimization of energy use.
Internal Temperature Sensor: Accurate Charge Adjustment
The built-in internal temperature sensor accurately compensates for absorption
and float charge voltage according to temperature fluctuations, ensuring your
battery is charged efficiently and safely under all conditions.
Optional External Battery Voltage and Temperature Sensing
Enhance your system's monitoring capabilities with optional accessories like
the Smart Battery Sense or a BMV-712 Smart Battery Monitor. These devices
communicate vital battery voltage and temperature information to your
SmartSolar Charge Controllers via Bluetooth, optimizing your solar energy
system's efficiency.
Advanced Charging Features
Adaptive 3-Stage Battery Charging
The sophisticated 3-stage charging process, consisting of Bulk, Absorption,
and Float stages, ensures efficient and thorough battery charging. This
adaptive approach adjusts the Absorption stage duration based on the battery's
discharge level, maintaining batteries at a healthy voltage and ensuring they
remain fully charged.
-
Bulk Stage : Delivers maximum charge current for rapid battery charging.
-
Absorption Stage : Switches to constant voltage, gradually reducing current to avoid overcharging.
-
Float Stage : Keeps batteries at a lower voltage to preserve their charged state, especially when solar power is not available at night.
Flexible Charge Algorithm and Equalization Charging
The VictronConnect App offers a choice of 8 pre-set charge algorithms or a
fully programmable charge algorithm, allowing for complete customization of
charge voltages, stage durations, and charge current. Additionally,
equalization charging can be activated for specific lead-acid battery types to
ensure all cells are balanced, promoting battery health and longevity.
Invest in the Victron 12/24V 10A SmartSolar MPPT 75/10 Bluetooth Solar Charge
Controller for a smart, efficient, and customizable approach to solar
charging, ensuring your solar system operates at its maximum potential.
