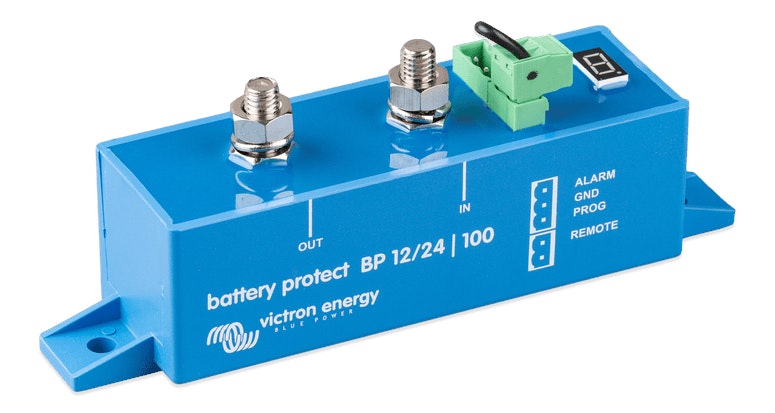

Victron Battery Protect 12/24V-100A: Optimal Power Management for Vehicle
and Marine Systems
Note : "Victron Battery Protect" units are NOT Bluetooth. See
"Victron Smart Battery Protect" units if Bluetooth is required.
Preserve Your Battery's Lifespan
The Victron Battery Protect is an essential device for safeguarding your
vehicle's battery from complete discharge, thereby extending its lifespan. It
efficiently disconnects the battery from non-essential loads, like lights or a
refrigerator, before they fully drain the battery or when the power is too low
for engine cranking.
Uni-Directional Current Flow and Voltage Protection
Uniquely designed as a uni-directional device, the BatteryProtect handles
current in one direction – either to a load or from a charger, but not both
simultaneously. This function is ideal for ensuring the safe flow of current
and protecting sensitive onboard equipment from over-voltage.
Auto-Detecting 12/24V System and Simple Programming
This device intelligently auto-detects system voltage, whether 12V or 24V, for
seamless integration into various setups. The user-friendly programming allows
you to set engagement and disengagement at different voltages, indicated by a
clear display.
Special Mode for Li-ion Batteries
Incorporating a specific setting for Li-ion batteries, the BatteryProtect can
be controlled by the VE.Bus BMS. It's also ideal as a charge interrupter

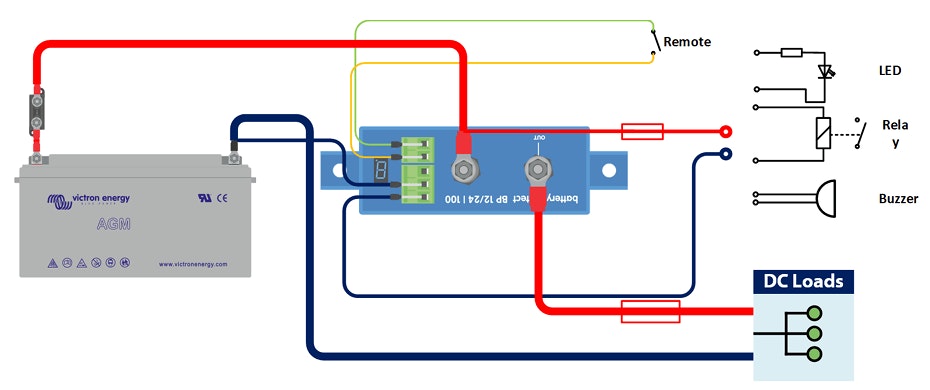

between a battery charger and a Li-ion battery, as detailed in the connection
diagram in the manual.
Ultra-Low Current Consumption
With its low current consumption, the BatteryProtect is crucial for Li-ion
batteries, especially after a low voltage shutdown, to minimize energy loss
and enhance battery protection.
Reliable Over Voltage and Ignition Protection
Equipped with over-voltage protection, the BatteryProtect disconnects loads
when the DC voltage exceeds safe levels. MOSFET switches ensure ignition-proof
operation, removing the risk of sparks.
Flexible Use as a Remote Switch
The BatteryProtect can also function as a remote switch, allowing you to turn
on and off various devices remotely. This flexibility is particularly useful
in situations where manual control of devices like external lighting or
electronic gadgets is needed.
Delayed Alarm and Load Management
Featuring a delayed alarm output, the BatteryProtect ensures that starting the
engine won't trigger a false alarm. It also offers intelligent load disconnect
and reconnect, managing power effectively to maintain continuity.
Choose the Victron Battery Protect for efficient and reliable battery
management, enhancing the performance and lifespan of your battery system in a
variety of scenarios.
