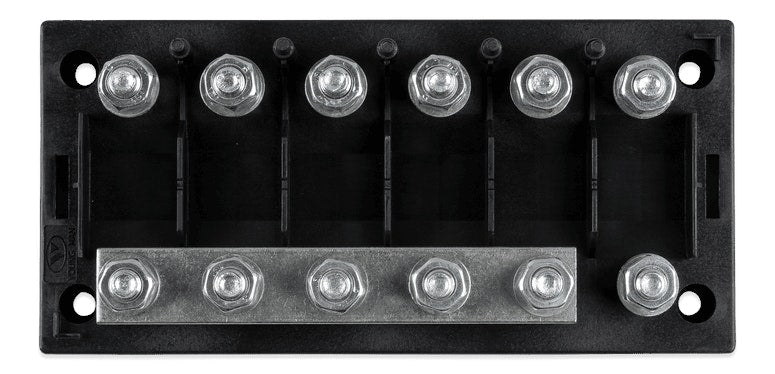

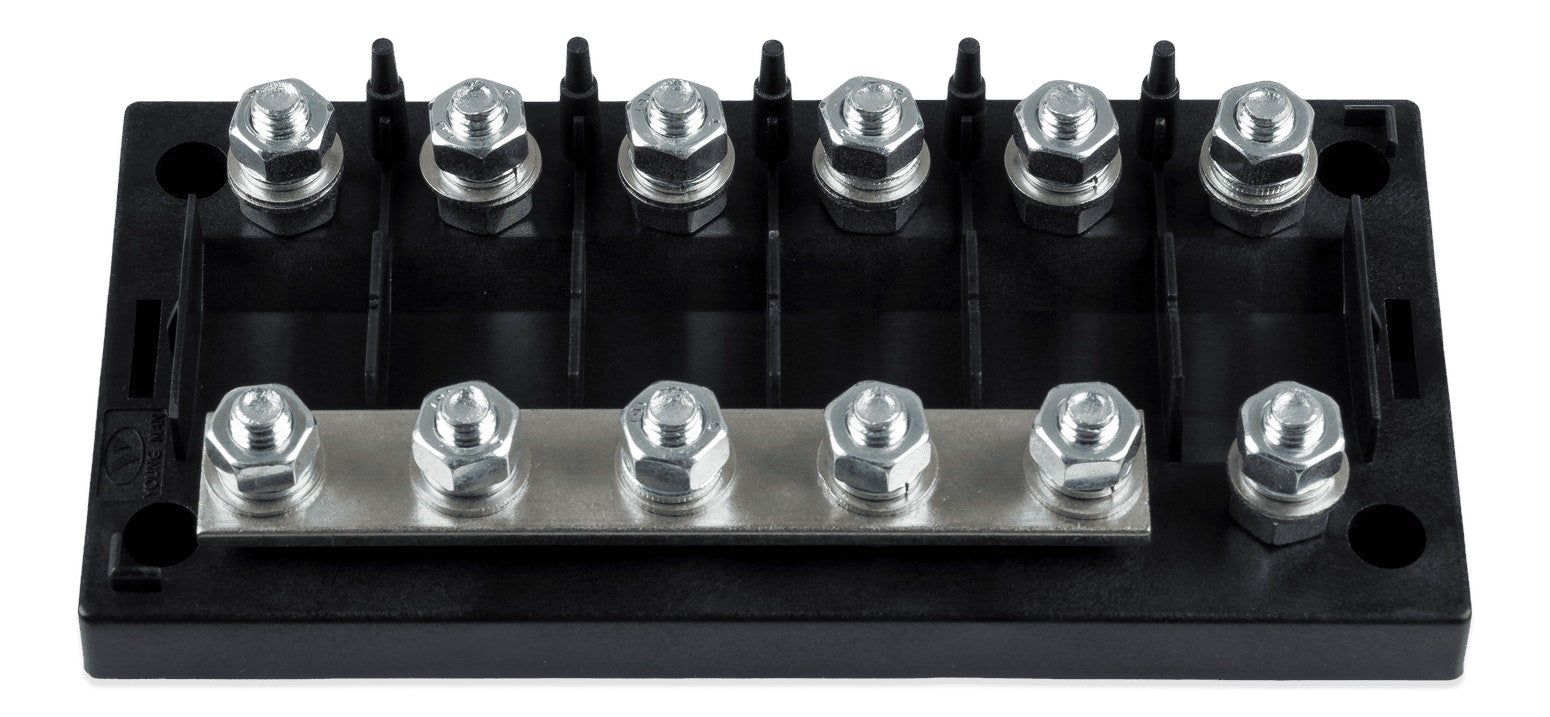

Streamline your high-current applications with our robust 6-way MEGA fuse
holder, designed to handle up to 250 A continuous current with a maximum
voltage of 70 VDC. Engineered for reliability, this fuse holder boasts a
sturdy construction with terminals and hex nuts made from galvanized steel to
ensure a solid connection and durability. With a terminal diameter of 5/16
inch and a height of 0.67 inch, it's built to accommodate substantial wiring
with ease.
Precision installation is guaranteed with a recommended torque setting of 60
lbf-inch / 7 N⋅m, ensuring a secure and stable assembly. The busbar strip is
crafted from tin-plated copper, providing excellent conductivity and corrosion
resistance. The base material is made from black ABS with a UL 94 V-0 rating,
indicating a high standard of safety and flammability resistance.

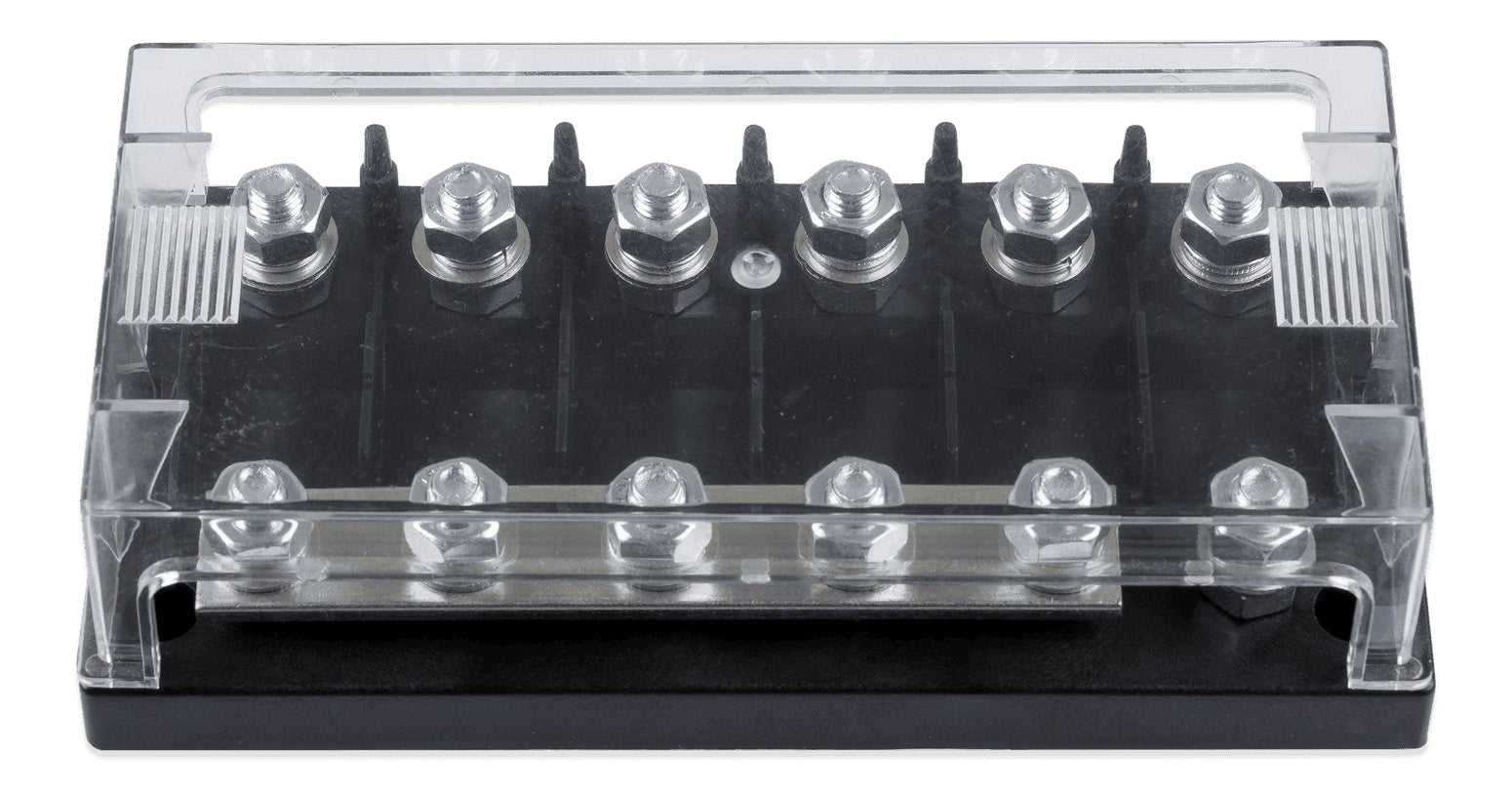

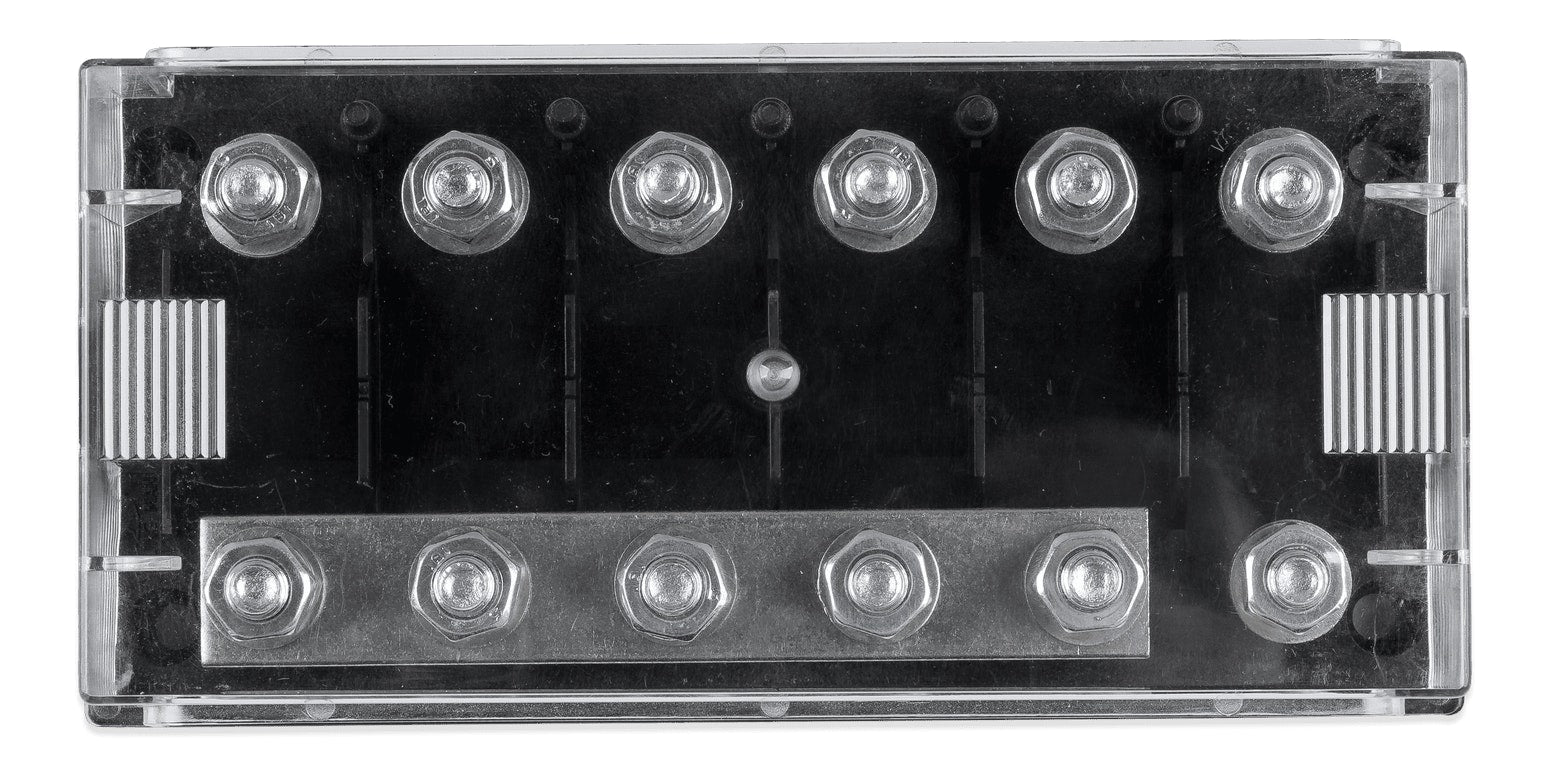

The cover is made from clear Polycarbonate with a UL 94 HB rating, combining
strength with visibility, so you can easily inspect fuse conditions. Weighing
in at a light 1 lb, this fuse holder is easy to handle and install. Its

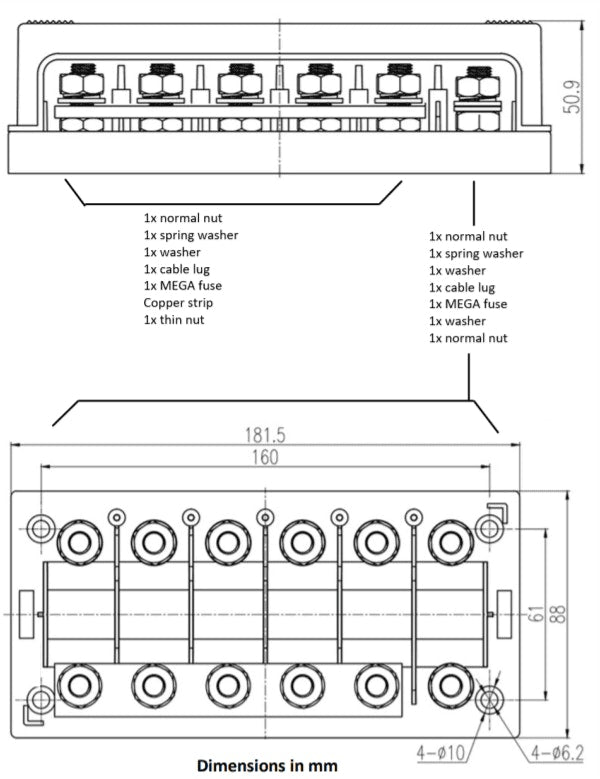

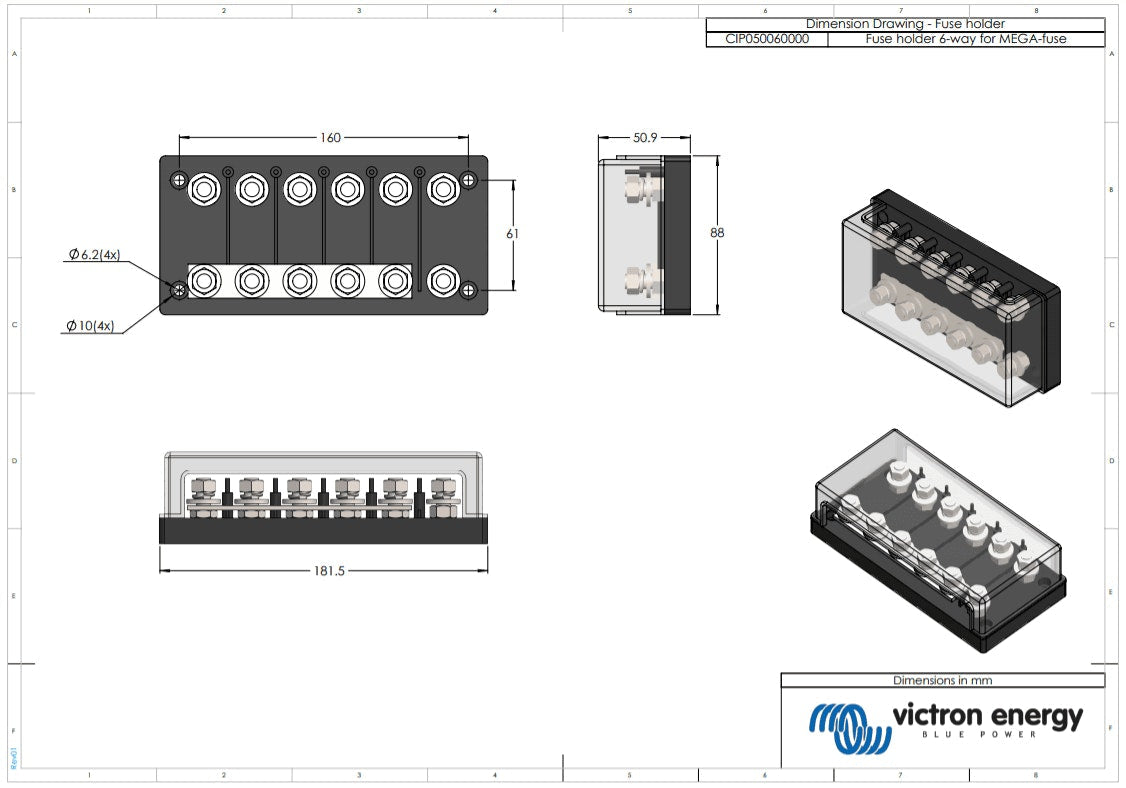

compact dimensions of 2.0 x 7.2 x 3.5 inches ensure it won't take up
unnecessary space in your setup. This fuse holder is an essential component
for managing your power distribution safely and effectively.
