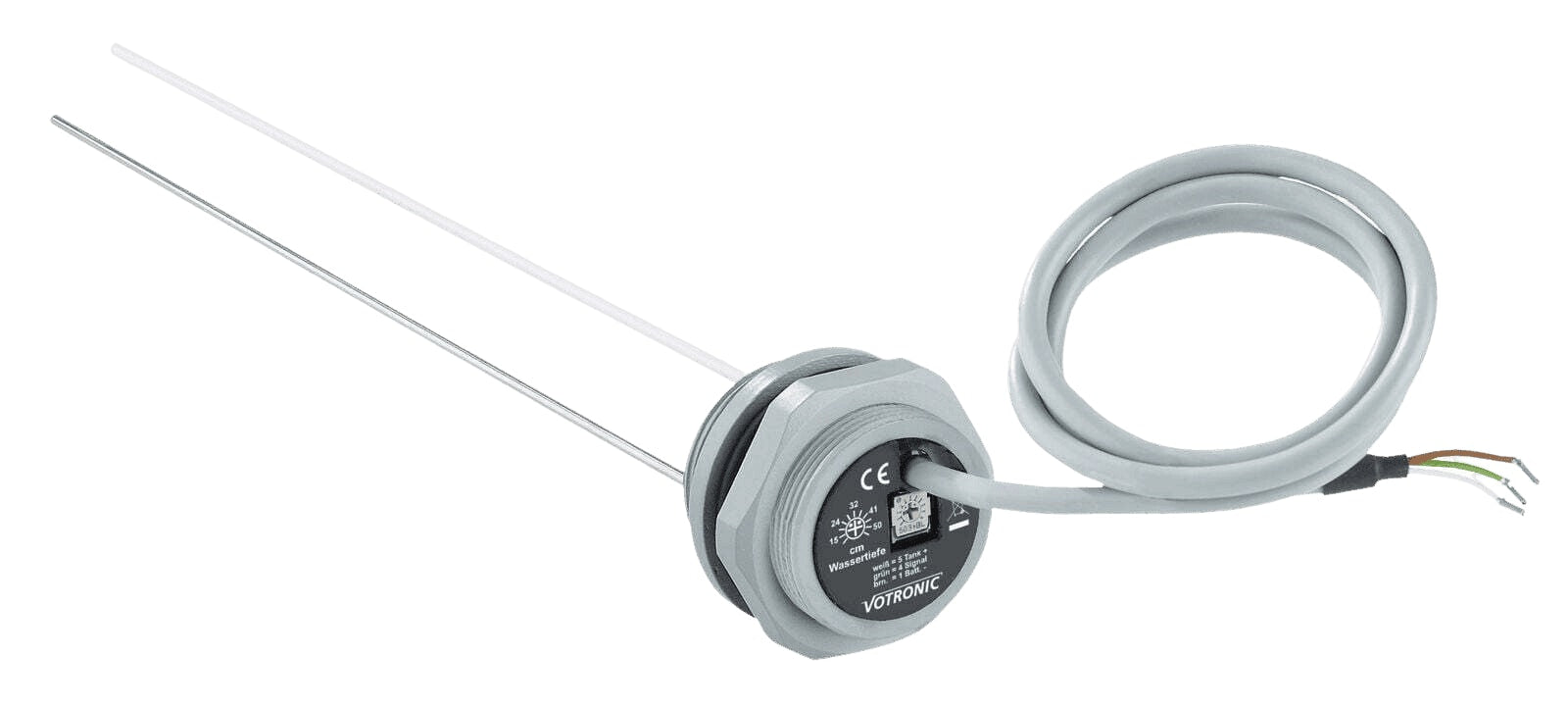

For precise level measuring of fresh water, grey water or toilet water in
metal or plastic tanks. Combined with the display it provides precise level
measurement information. Stick can be easily cut to tank height. The measured
value is sensed electronically and the signal sent to the display unit via 2
cables. Included: Tank electrode, packing ring, nut PG 29, connection cable

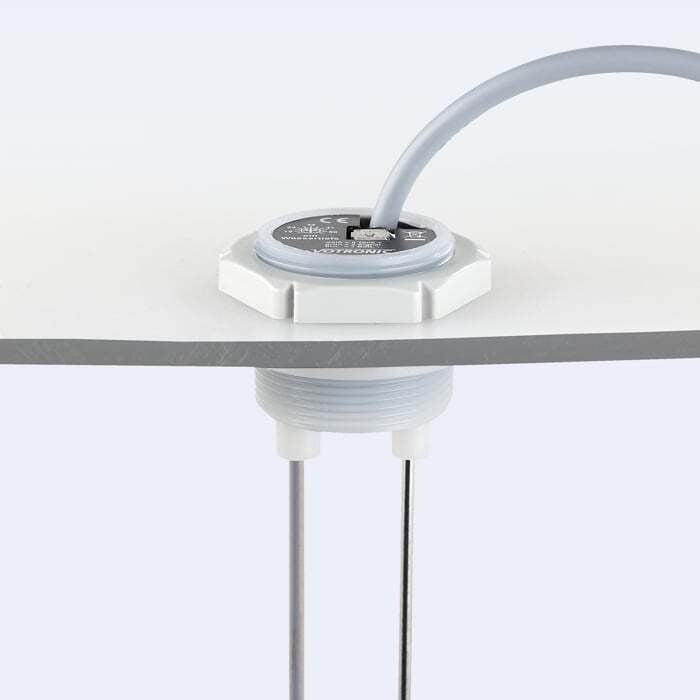

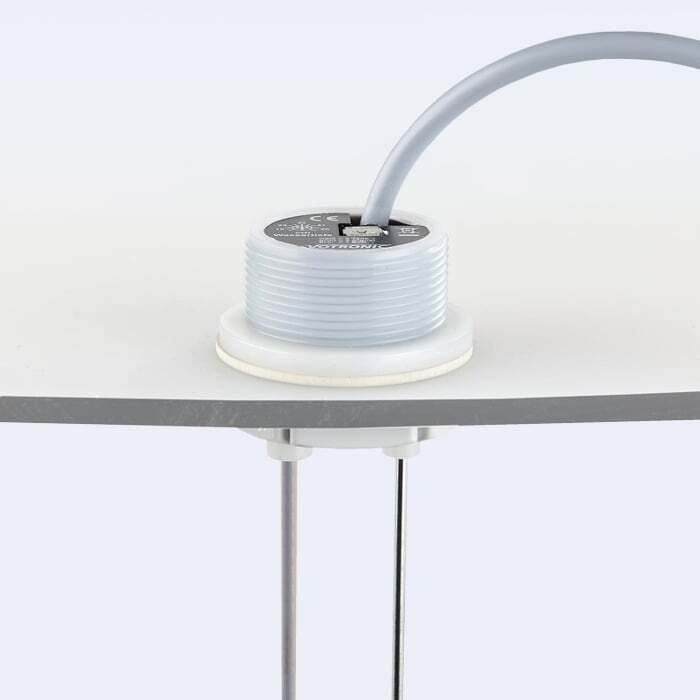

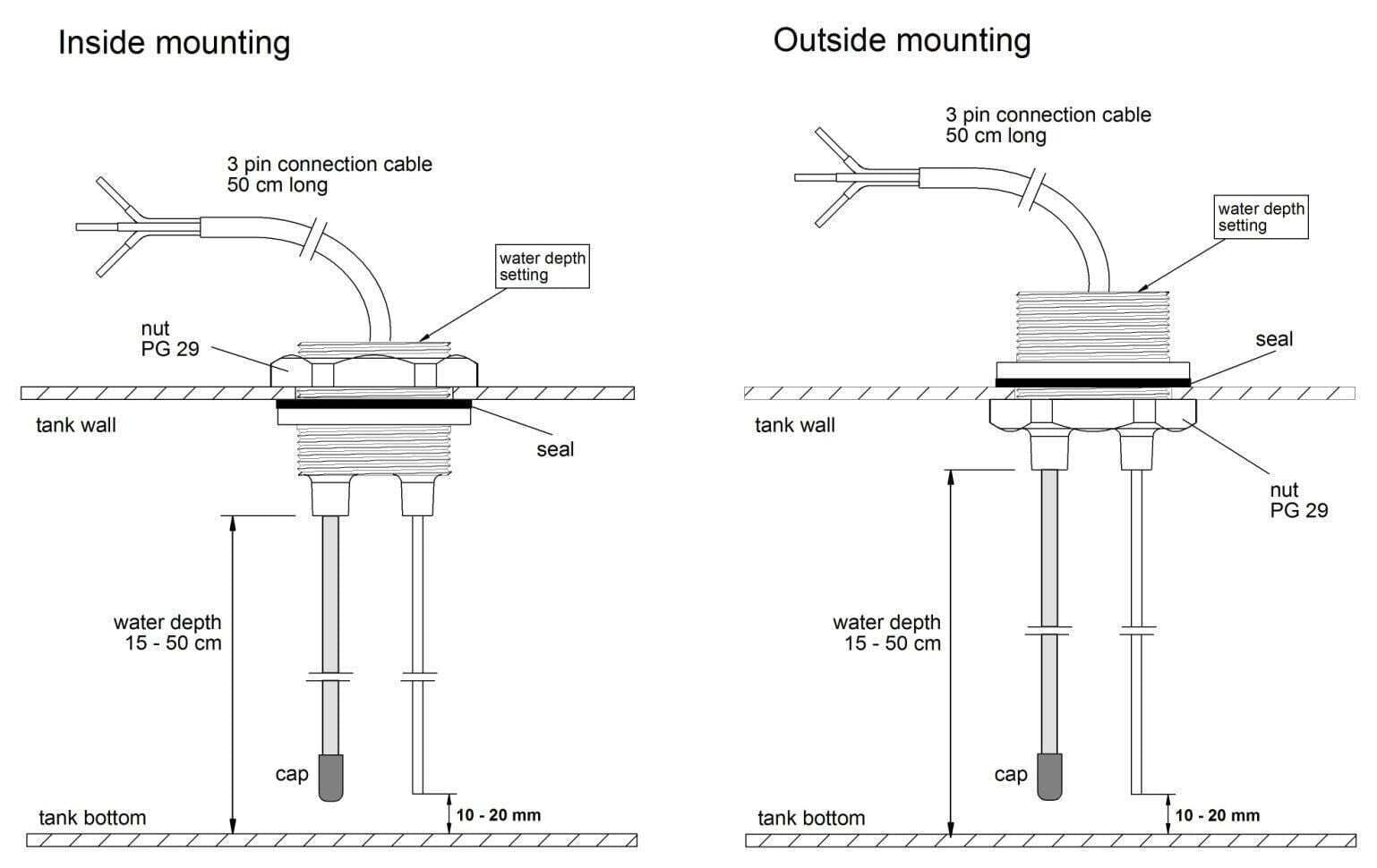

75cm and manual. Possibility to install the tank electrodes from inside as
well as from outside on the tank top. In case of fresh water tanks, the
installation is also possible at the tank bottom. Insensitive to soiling and
deposits in water; No mechanical moving parts; Robust fully-electronic
capacitive measuring method. The electronic system (IP 67) is sealed and
frost-proof, so is suitable for problematic locations, such as at underfloor
tanks. All Votronic measuring sensors work with the capacitive measuring
method and independently of pressure. Therefore, a falsification of the
measured values in case of overpressure in the tank, pressure filling etc. is
avoided. They includes a protection against reverse battery, overvoltage,
short-circuit and overload.
