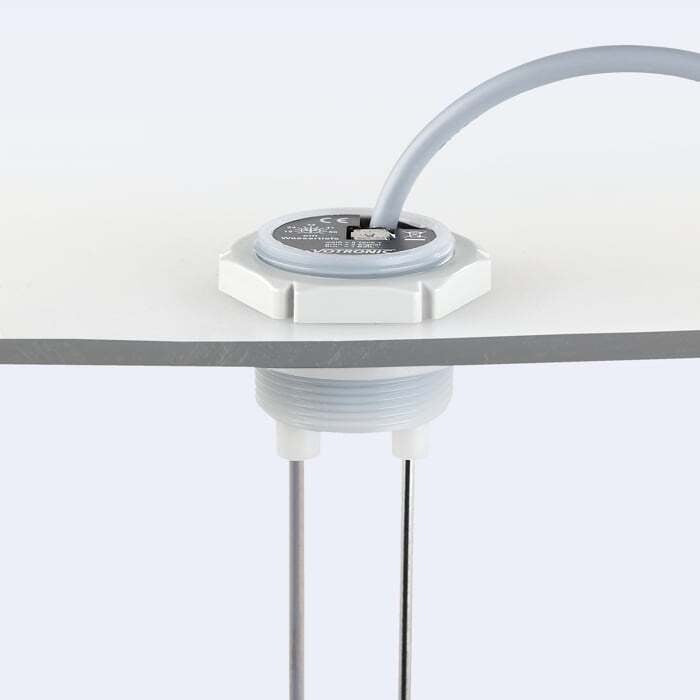

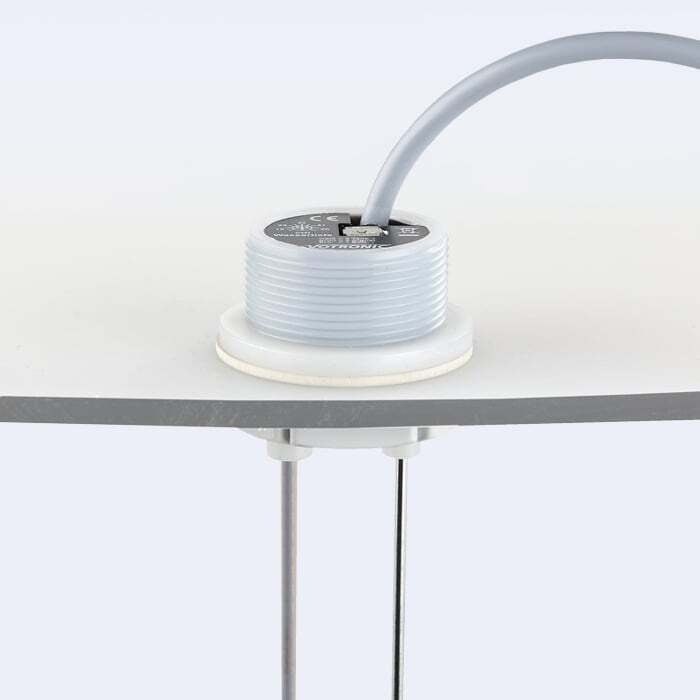

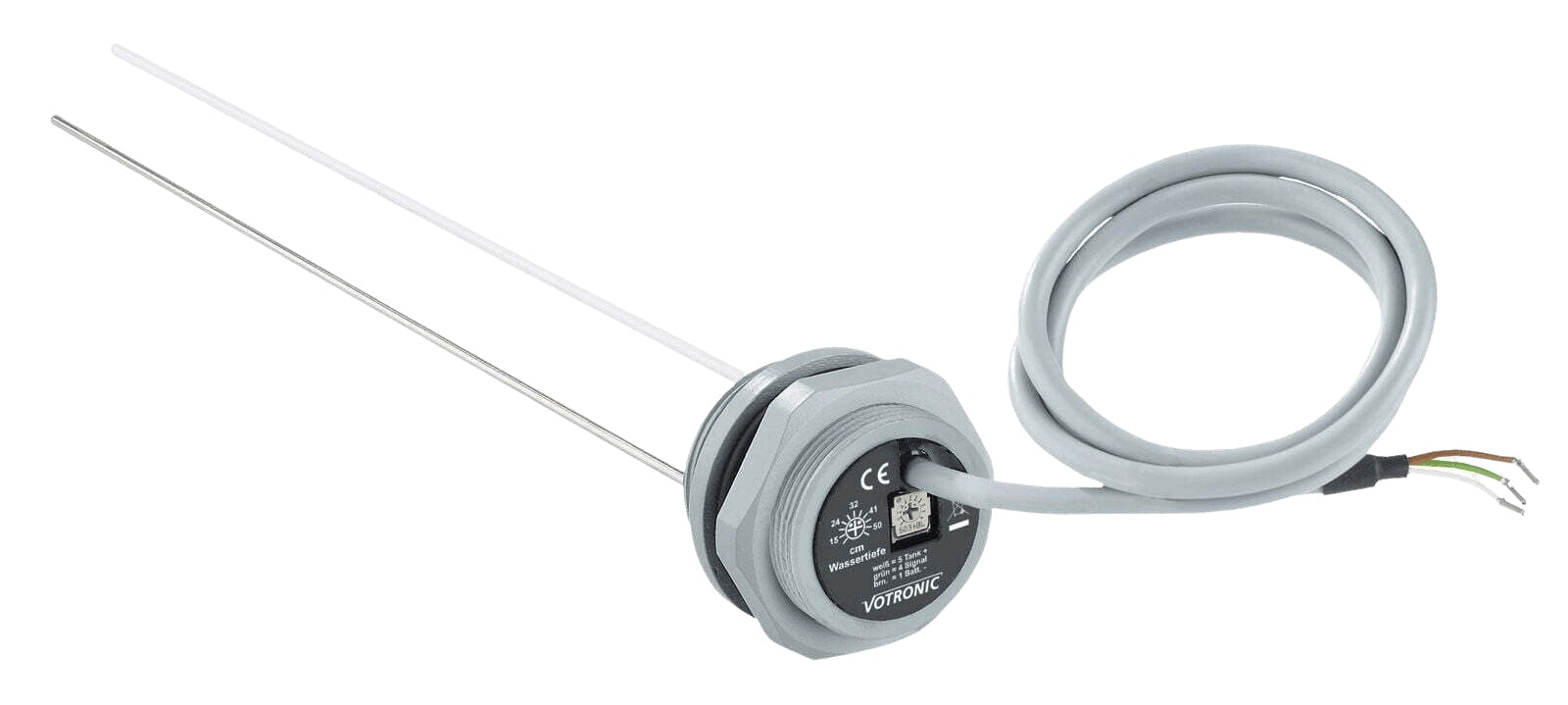

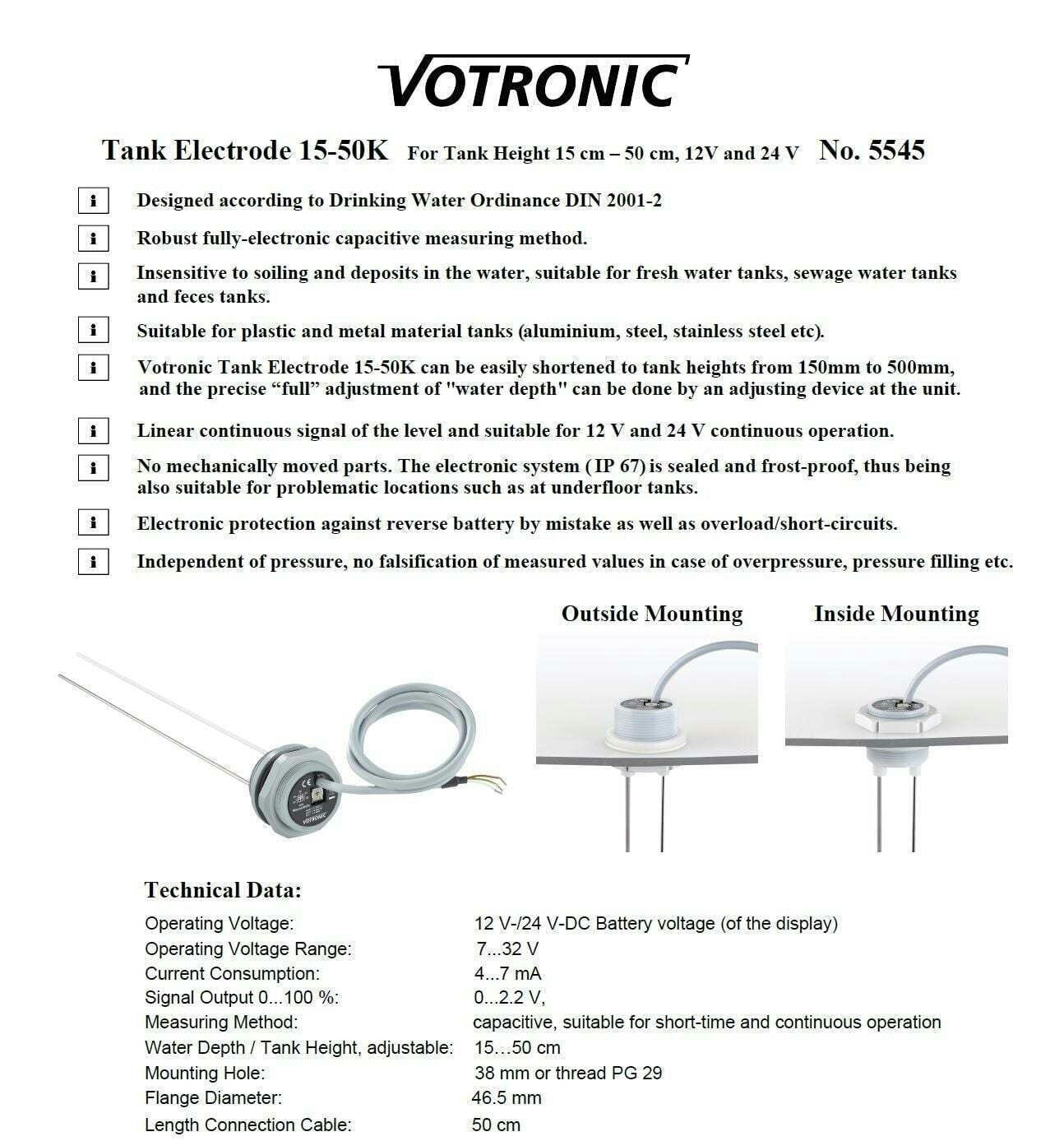

TANK SENSOR ELECTRODE
For precise level measuring of fresh water, grey water or toilet water in
metal or plastic tanks. Combined with the display it provides precise level
measurement information. The measured value is sensed electronically and the
signal sent to the display unit via 2 cables.
Included: Tank electrode, packing ring, nut PG 29, connection cable 75cm and
manual.
All Votronic measuring sensors work with the capacitive measuring method and
independently of pressure. Therefore, a falsification of the measured values
in case of overpressure in the tank, pressure filling etc. is avoided. They
include a protection against reverse battery, overvoltage, short-circuit and
overload.

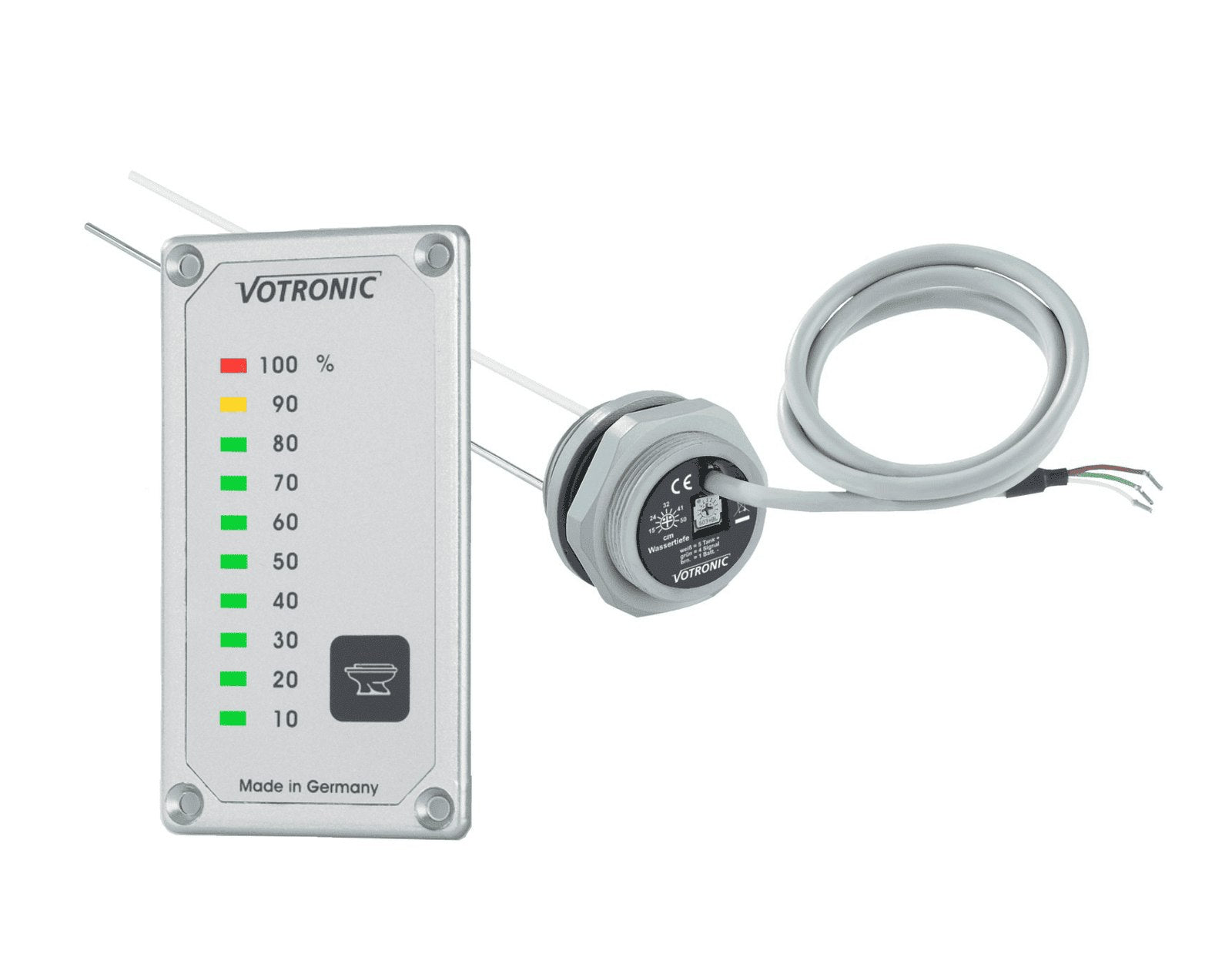

TANK LEVEL DISPLAY
The VOTRONIC tank displays had been designed for precise level measuring, and
they are suitable for any tank material and tank size. The units vary in the
arrangement of the three-colour display light-emitting diodes at the range
ends and in the symbols imprinted on the front panel.
The tank levels are represented in form of a clearly arranged luminous bar
with 10 light emitting diodes in three colours allowing that the tank levels
can be read conveniently at a glance. The displays are working continuously,
since intermediate results are displayed in variable brightness. Thus, also
tendencies can be recognised at once. During refuelling and emptying of the
tanks, the continuously raising or dropping display shows a direct image of
the instantaneous level allowing complete control of the procedure. Also the
continuous operation of the display contributes to this control. At the touch
of a button, the display can be switched-on or -off, or it is switched-off
automatically after approx. 10 minutes.
The display units are executed as panel version matching to the VOTRONIC
modular system. The appearance (identical height 85 mm) is adapted to the
other VOTRONIC display units. Of course, it is possible to retrofit a single
display in the vehicle. The small dimensions of the front panel and the
particularly small mounting depth of only 15 mm allow an installation at
almost any location. Thus, storage space, which is located behind, can be used
further.
The units are protected against reverse battery and overload and can be easily
connected to the unit rear by means of terminal screws. Installation and
operating manual, as well as drilling jig for the furniture cutout, are
included in the standard delivery scope. These displays are suitable for 12 V
and 24 V operation
