Wakespeed WS500 P-type wiring harness with CAN bus in harness - extra length tails

For use with: [Wakespeed WS500 Advanced Alternator Regulator] Included:

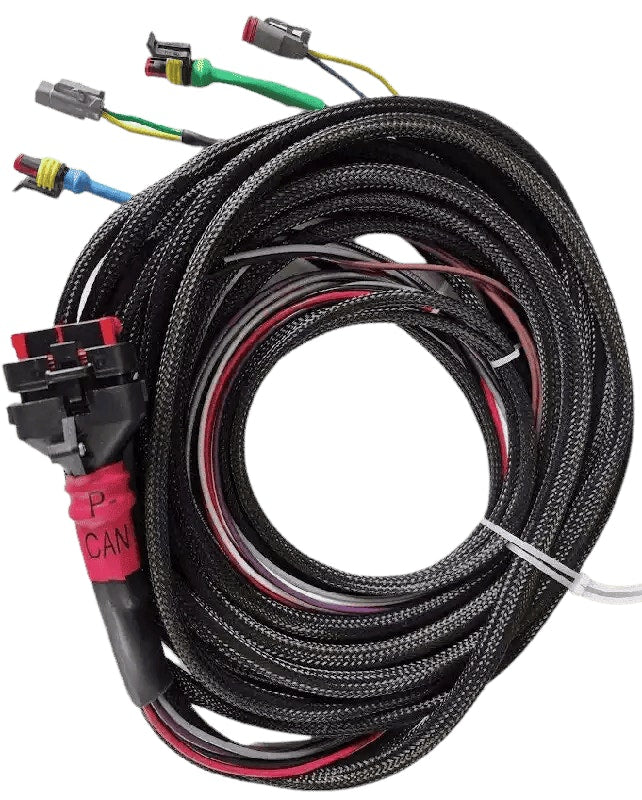

• WS500 P-type wiring harness for large RVs and boats: (see note 1 below) with branch lengths:
  • CAN bus: 1.5m

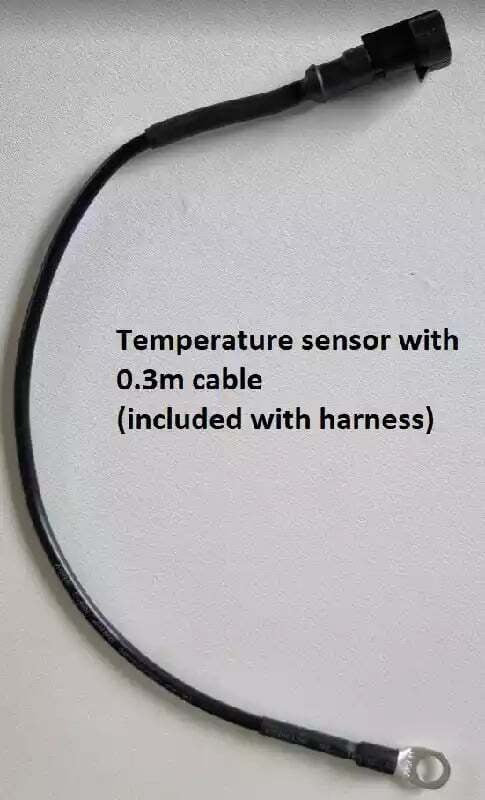

  • Battery temperature sensor: 1.5m (battery temperature sensor is a separate purchase as it is only needed for some systems)
  • Field/Stator/Alternator temperature wires: 8m
  • Ignition wire: 6m
• Alternator Temperature Sensor (see note 2 below)

Notes:

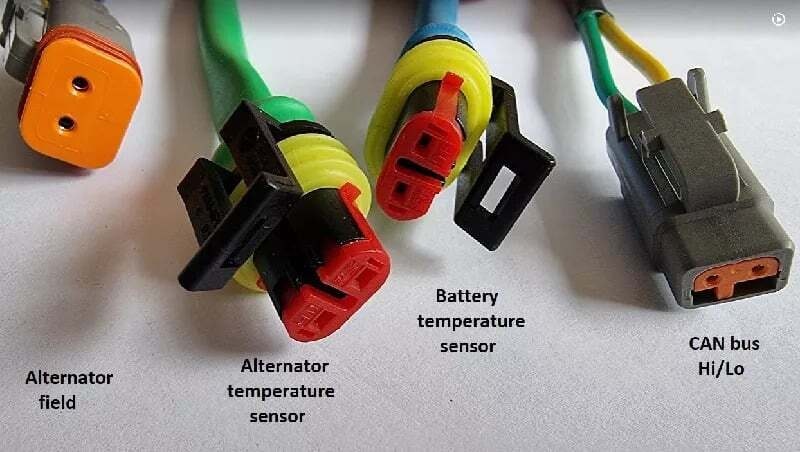

1. CAN Bus wires terminated with Deutsch DTM06-2S connector (we sell mating connector kits here: to be added )
2. Alternator temperature sensor tail is terminated with a TE Connectivity, AMP Superseal 1.5 series, socket 2 Way, part number: 282080-1. The mating connector needs to be purchased separately; it is a kit with TE Connectivty part numbers:

• Housing - male : 282104-1 (to try and avoid confusion, the housing is female, but the pins are male which defines the gender of the connector)
• Male Crimp pins 15AWG, part number: 282109-1 (2-pins required)
• Superseal wire seal, part number: 281934-3 (2-seals required)

A kit of all the parts listed above (including an additional 2-spare pins) is available here: (to be added)

An insulation boot is also available with TE Connectivity part number: 880810-1 (to be added)

Note: page being updated.
