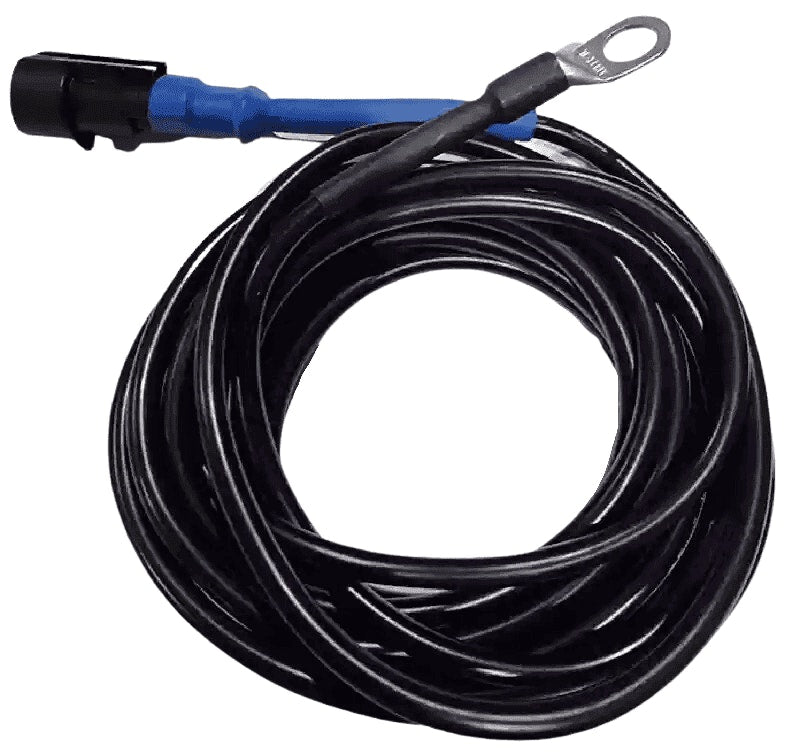

Wakespeed WS500 WS3MTHERM thermistor temperature sensor, 3m cable

Temperature sensor on 3 metre cable for use with:

Included:

• 3m cable with Superseal 1.5 connector to mate with "blue covered" connector on WS500 loom. 8mm "eye" lug for attachment to battery terminal or placement at the battery.


Note, if 3m cable is insufficient, an 8m cable version is also available, or the harness wires can be cut and shortened for extended with equivalent same gauge wire.

There is no electrical connection from the thermistor to the lug, therefore the lug can be secured to positive or negative terminal.

Essential for proper charge control in lead-acid and non CAN-enabled LiFeP04 battery technologies, the WS500/BT battery temperature sensor enables the regulator to access battery temperature to assist in temperature compensation when determining charging calculations. The battery temperature sensor is also an important component to protect against damage due to charging outside of safe temperature setpoints.
