❖Features

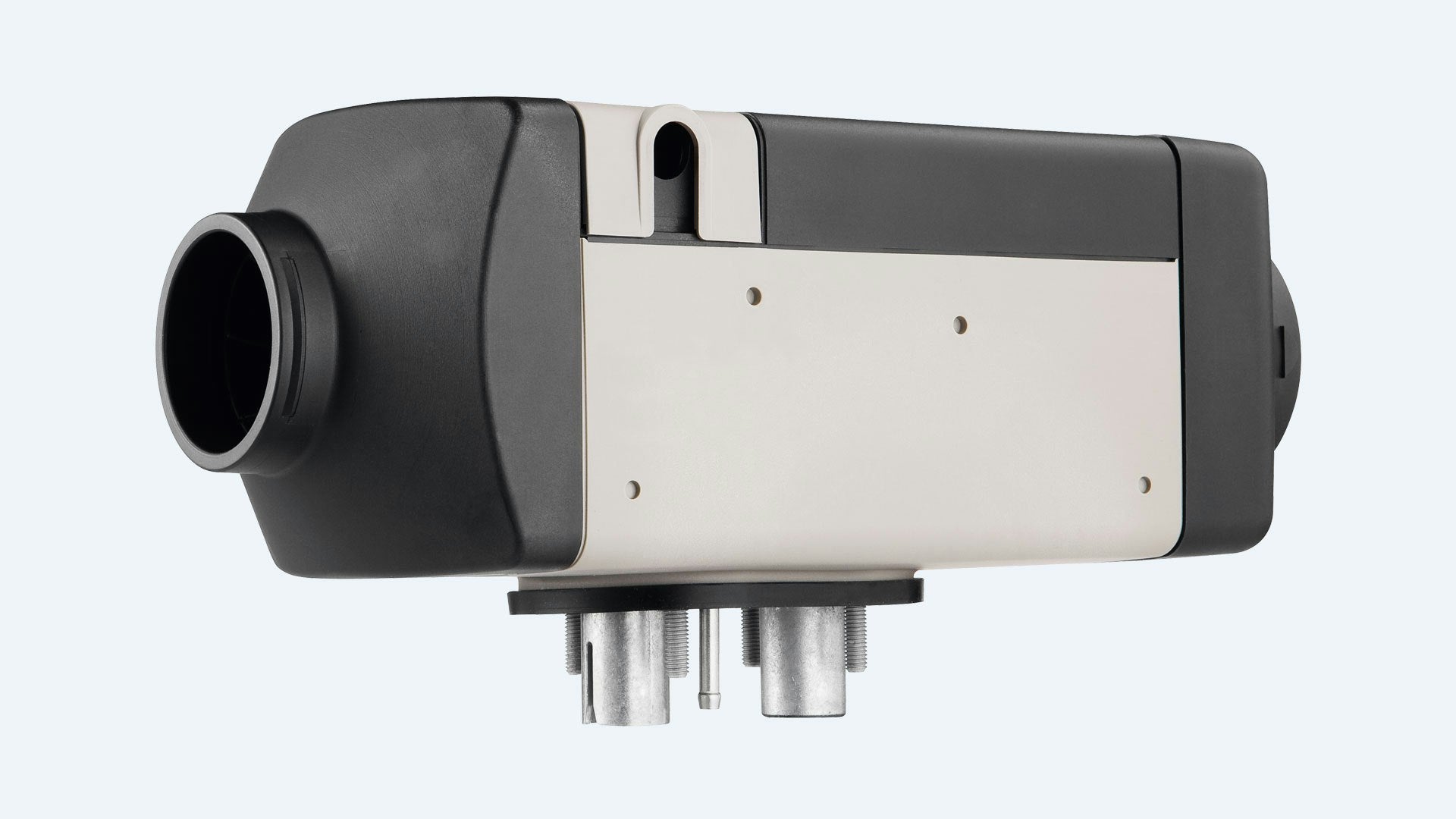

Webasto Air Heater AT2000STC
The heater operates quietly while consuming minimal electrical power and fuel.

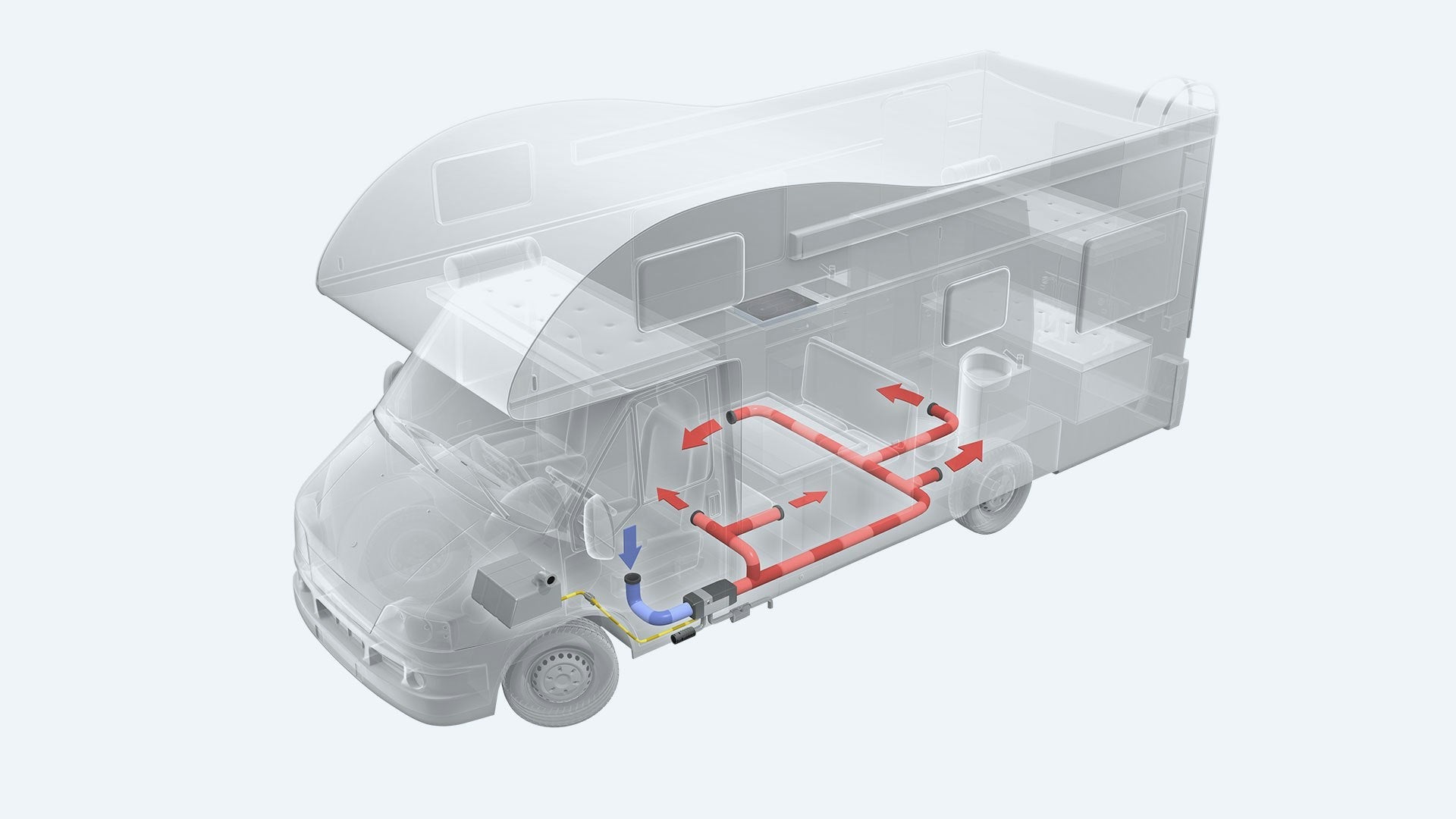

Choose from an installation mounted outside, in the double-floor or inside the
vehicle. The integrated altitude sensor constantly ensures an optimal
combustion process in altitudes up to 2,200 m – under lower air pressure and
with a lower oxygen ratio.
The Air Top 2000 STC model is offered with an optional altitude mode (in
combination with the MultiControl).
Specific kits have been developed to specifically match the unique needs and
demands of the RV market.

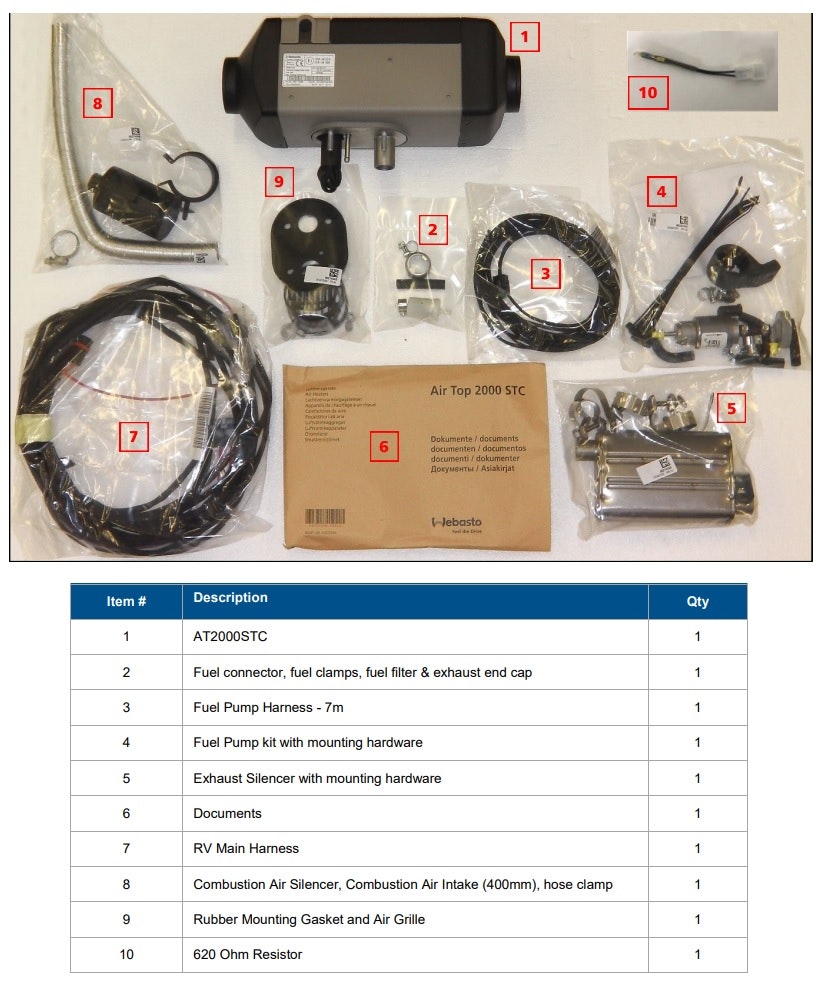

Using a RV kit guarantees fully satisfied customers:
- Extra low noise applications (extra silent fuel pumps, vibration clacking
brackets)
- Exhaust and air intake silencers
- External temperature sensor obligatory for RV applications
- Quick and easy installation thanks to new organisation of kits and included
installation overviews
Advantages
- Compact heaters with proven efficiency
- New and improved technology, e.g. with respect to service life and heat up
time
- Easy installation, underfloor or in the interior
- Constant ambient temperature, continuous control
- Manual altitude function possible for Air Top 2000 STC
- Low consumption, quiet operation
- Intelligent Blower Control
- Complete installation kits for fast retrofitting

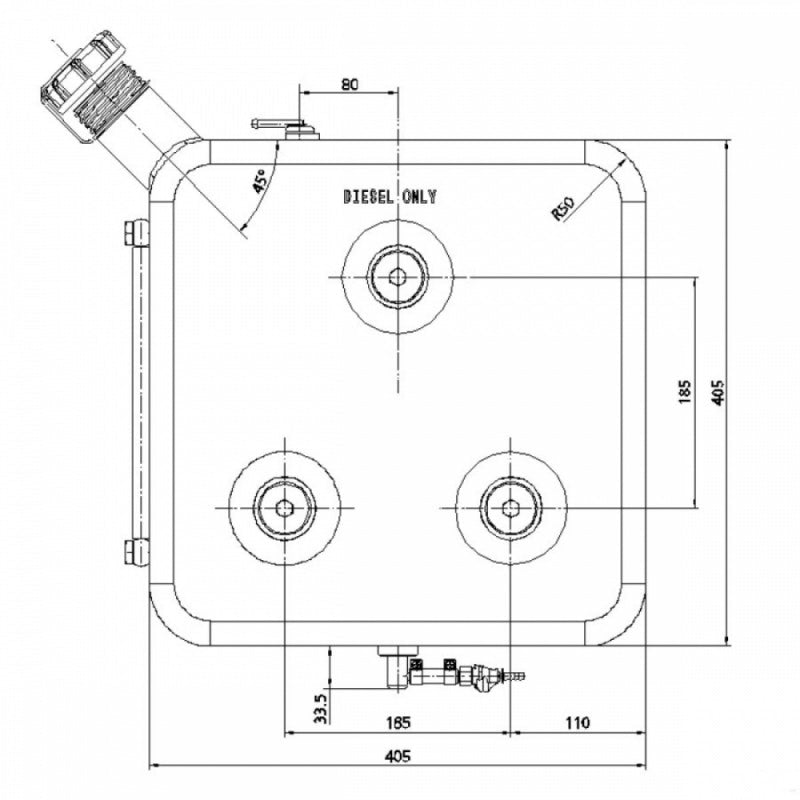

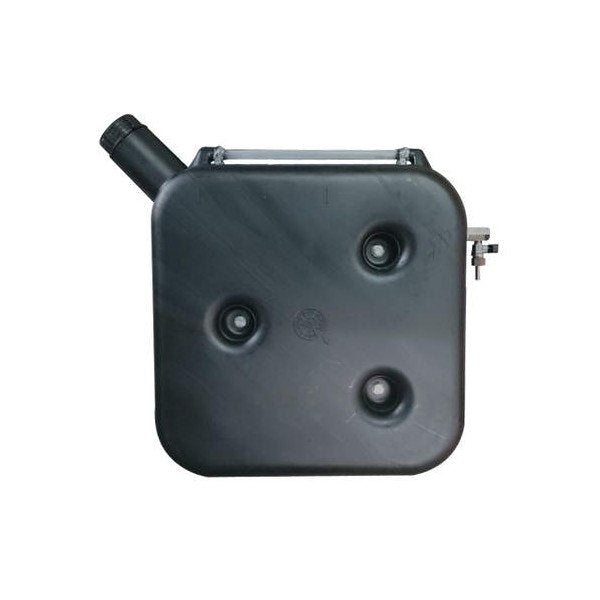

Fuel Tank 12L With Hose Coupli
- Diesel Fuel Tank
- Suitable for many fuel types, inc. Bio-Diesel
- 12 litre capacity
- Optional position for fuel outlet allows for LH or RH fuel filler position
- Light weight to allow variable and easy bulkhead mounting
- Sight glass & quick coupling
|
❖Specifications
Brand | Webasto

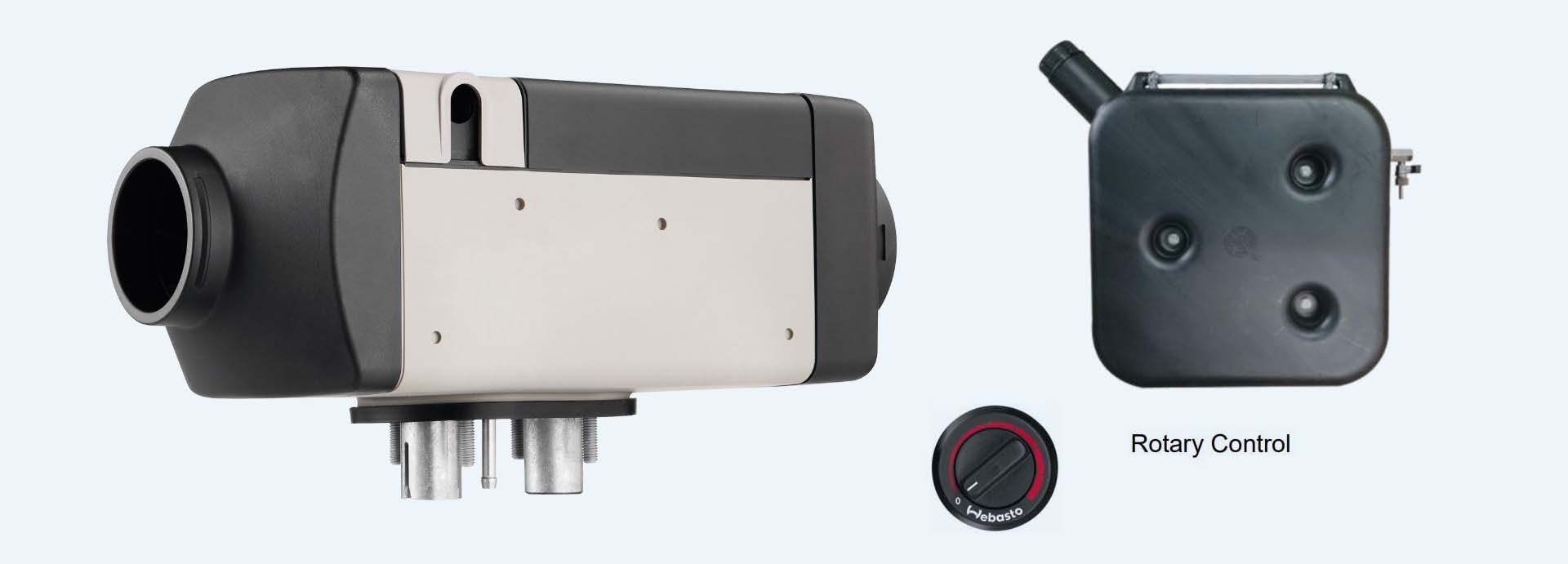

Model | AT2000STC + 12L Fuel Tank
Voltage (V) | 12/24 V
Fuel Type | Diesel
Heat Output (kW)
Partial Load - Full Load/Boost | 0.9 - 2.0
Fuel Consumption (L / hr)
Partial Load - Full Load/Boost | 0.12 - 0.24
Power Consumption (W)
Partial Load - Full Load/Boost | 14 - 29
Shipping Dimensions (LxWxH mm) | 600 x 510 x 400
Shipping Weight (kg) | 12.45
